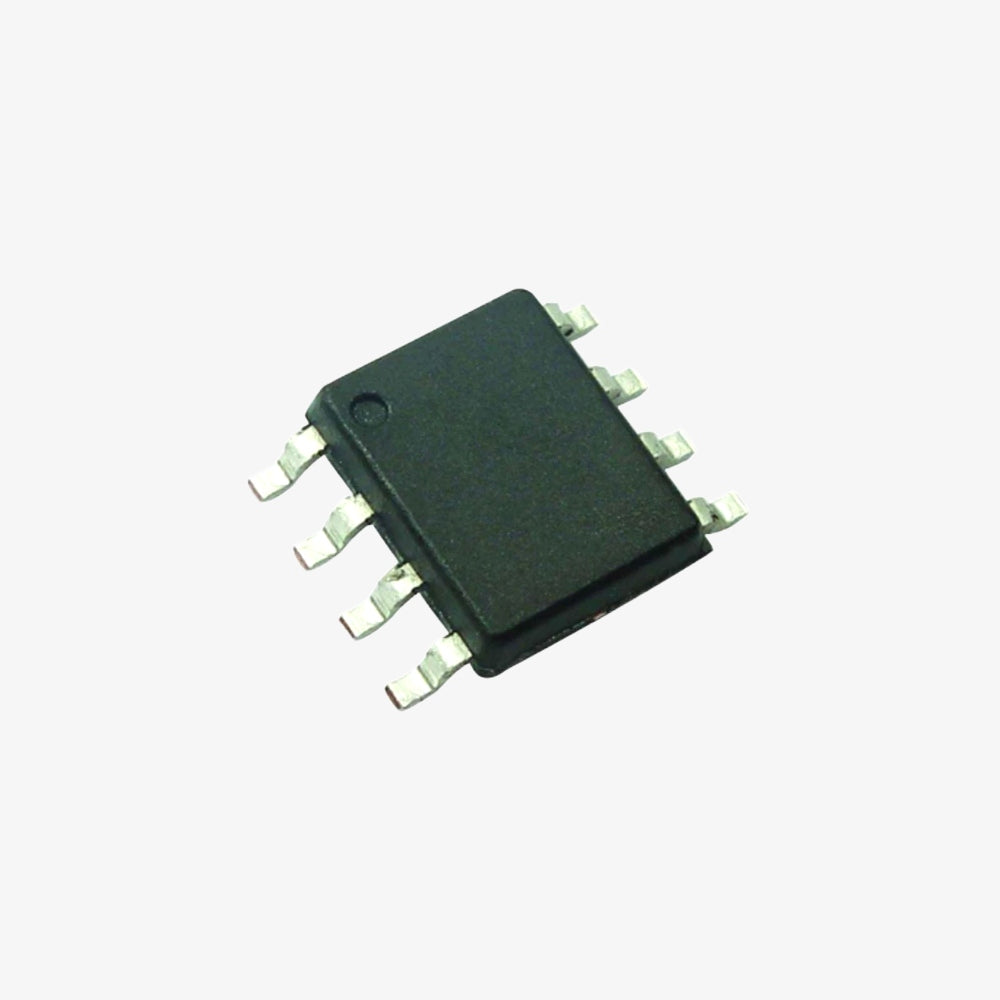

MC33272 Operational Amplifiers Single Supply High Slew Rate Low Input Offset Voltage IC (ON) - SOP-8 SMD Package
The MC33272 is a high-performance operational amplifier IC designed for single-supply applications. Manufactured by ON Semiconductor, it features a high slew rate and low input offset voltage, making it suitable for precision and high-speed applications. The IC is housed in a compact SOP-8 SMD package, offering a reliable solution for space-constrained designs.
Specifications:
- IC Type: Operational Amplifier
- Manufacturer: ON Semiconductor
- Package Type: SOP-8 SMD
- Package Size: 8 Pins
- Input Offset Voltage: ±0.5 mV (typical)
- Slew Rate: 0.5 V/µs (typical)
- Gain Bandwidth Product: 1 MHz (typical)
- Supply Voltage Range: 3 V to 30 V (single supply)
- Power Supply Current: 1.2 mA (typical)
- Operating Temperature Range: -40°C to +85°C
Pin Configuration:
- Offset Null: Offset null pin
- Inverting Input: Inverting input terminal
- Non-Inverting Input: Non-inverting input terminal
- Output: Output terminal
- Offset Null: Offset null pin
- Inverting Input: Inverting input terminal
- Non-Inverting Input: Non-inverting input terminal
- Output: Output terminal
Features:
- High slew rate and bandwidth
- Low input offset voltage
- Single supply operation
- Compact SOP-8 SMD package
- High precision and stability
Applications:
- Signal conditioning
- Analog filtering
- Precision measurement
- Data acquisition systems
- Medical instrumentation
Package Includes:
- 1 x MC33272 Operational Amplifier IC (SOP-8 SMD Package)
Note: Product images are for illustrative purposes only and may differ from the actual product.
