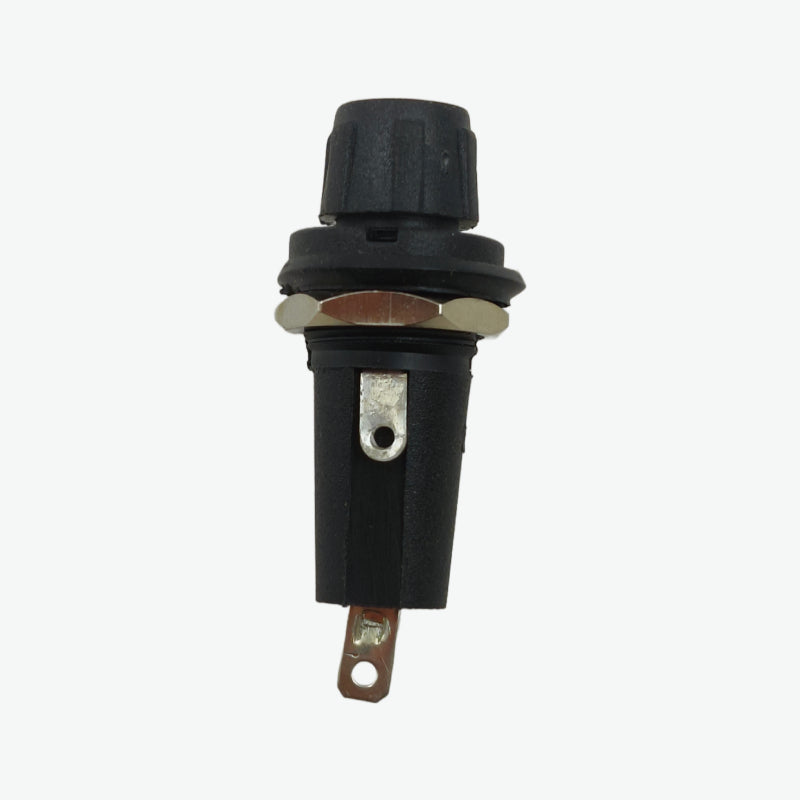

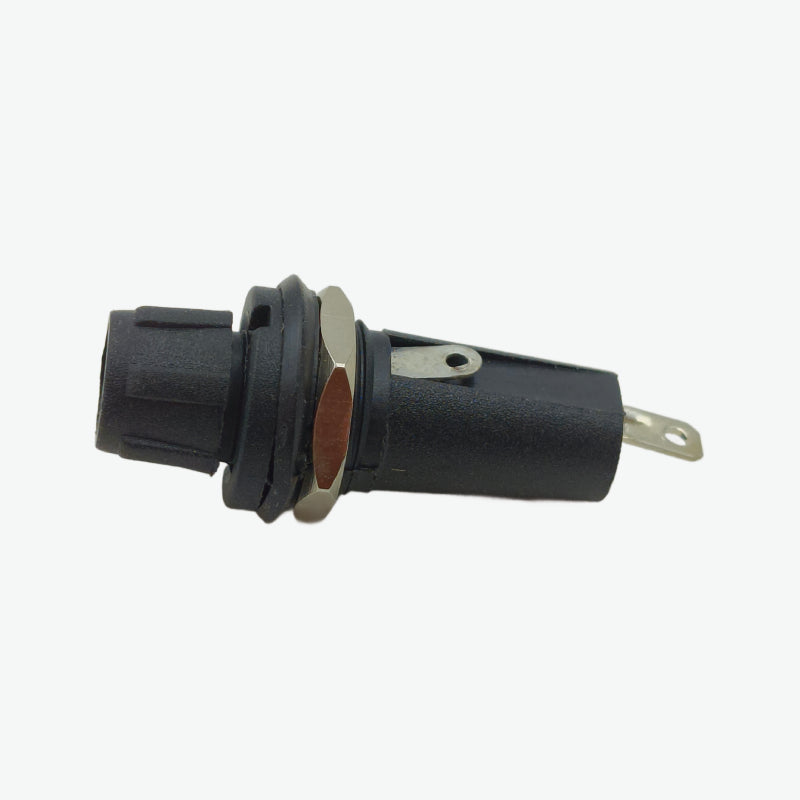

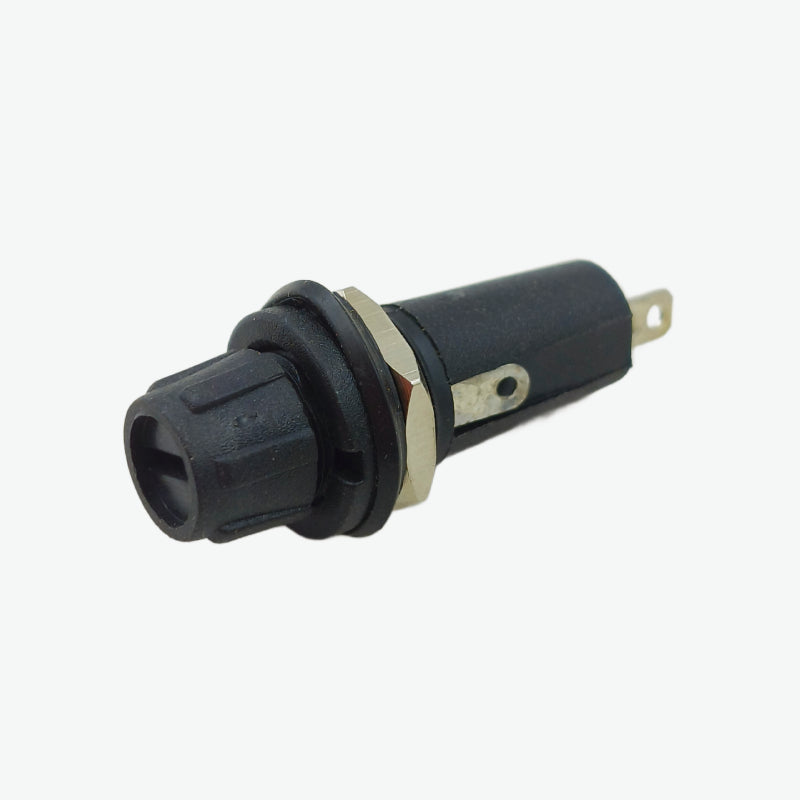

Screw-In Panel Mount Fuse Holder (5×20mm) - 6.3A 250V AC
The Screw-In Panel Mount Fuse Holder is a compact and reliable solution for securely mounting 5×20mm fuse links in electronic and electrical equipment. Designed for screw-up panel installation, it offers a sturdy and safe connection while allowing quick fuse replacement through its coin-slot screw cap. Built with a reinforced Polyamide (Glass-Filled) body and brass tin-plated contacts, it ensures high durability, insulation strength, and stable electrical performance.
Features:
- Screw-in panel mount design with coin-slot cap for easy fuse access
- Compatible with standard 5×20mm fuse links
- High-quality Polyamide (Glass-Filled) body for superior heat resistance and strength
- Brass tin-plated contacts for enhanced conductivity and corrosion resistance
- Excellent insulation and voltage withstand capability
- Compact and lightweight design ideal for tight installations
Specifications:
- Type: Screw-In Panel Mount Fuse Holder
- Mounting Style: Panel, Screw-Up
- Material: Polyamide (Glass-Filled)
- Fuse Size: 5×20mm
- Rated Current/Voltage: 6.3A / 250V AC
- Terminals: Solder Type
- Current Carrying Parts: Brass, Tin-Plated
- Cap Design: Screw-In with Coin Slot
- Panel Thickness (Max.): 3mm
- Insulation Resistance: ≥1000 MΩ
- Contact Resistance (Initial): ≤10 mΩ
- High Voltage Breakdown: 2KV AC for 1 minute
- Permissible Temperature (With/Without Load): -20°C to +85°C
- Approximate Weight: 4.1g
Package Includes:
1 × Screw-In Panel Mount Fuse Holder – 5×20mm, 6.3A 250V AC
