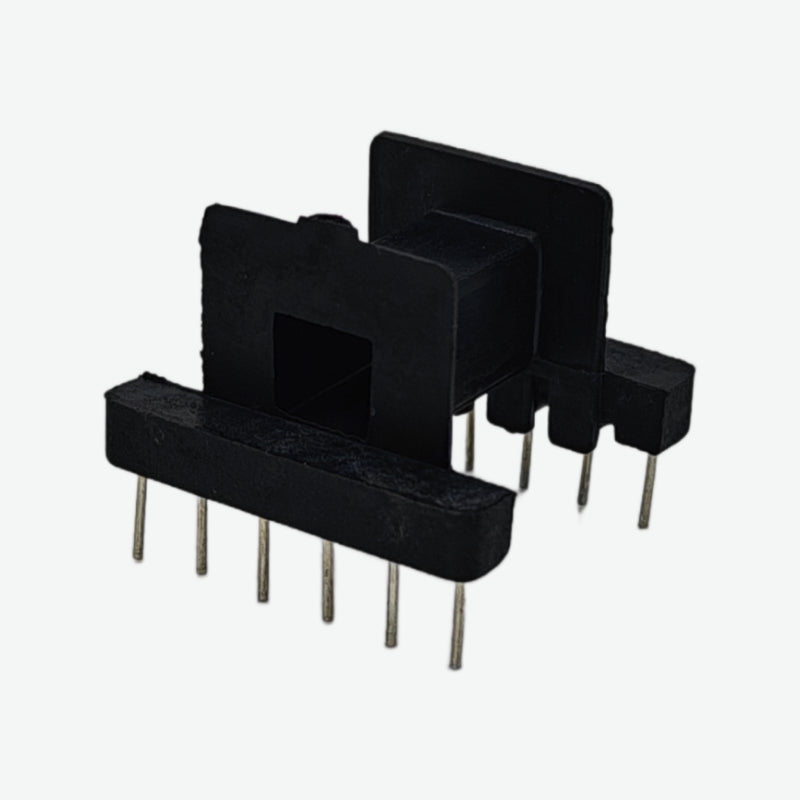

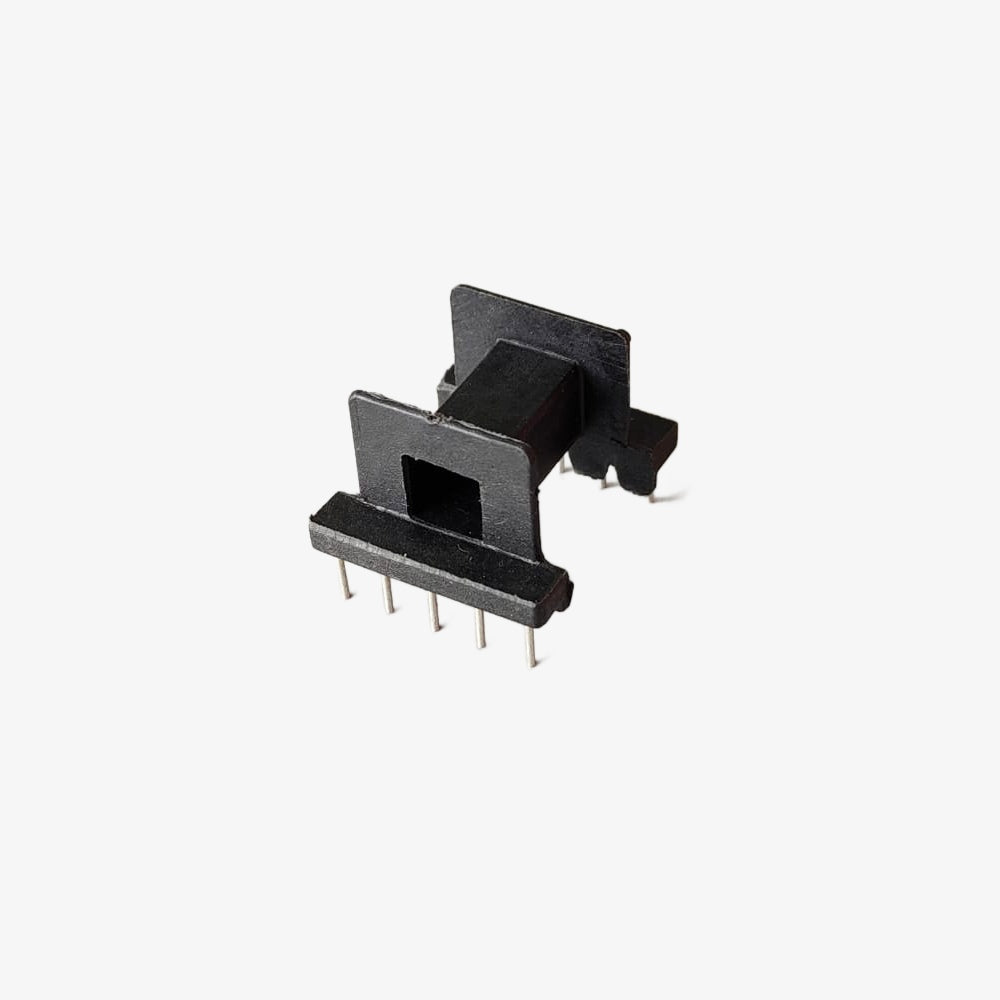

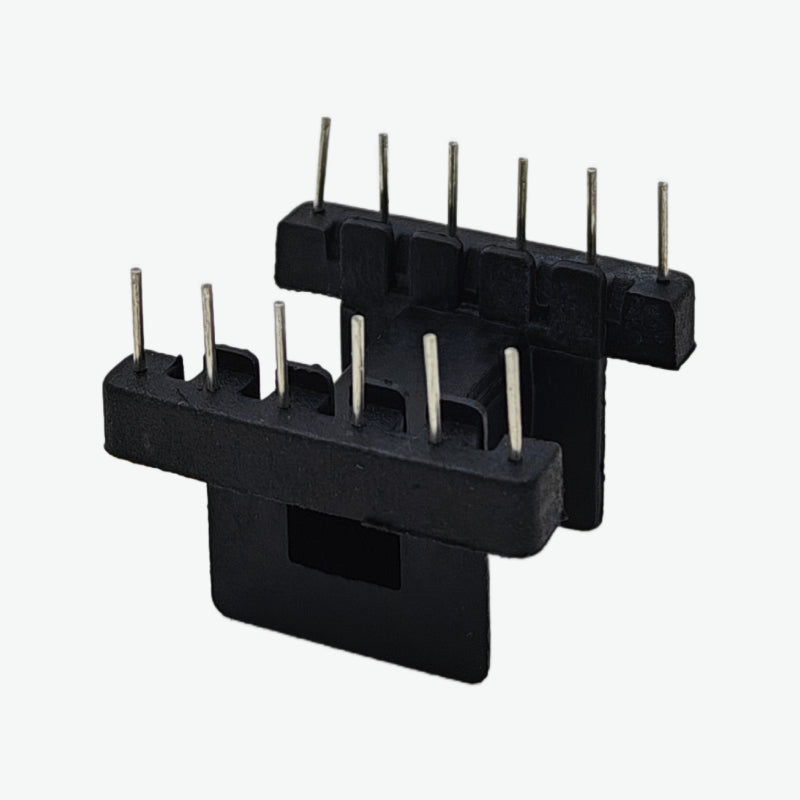

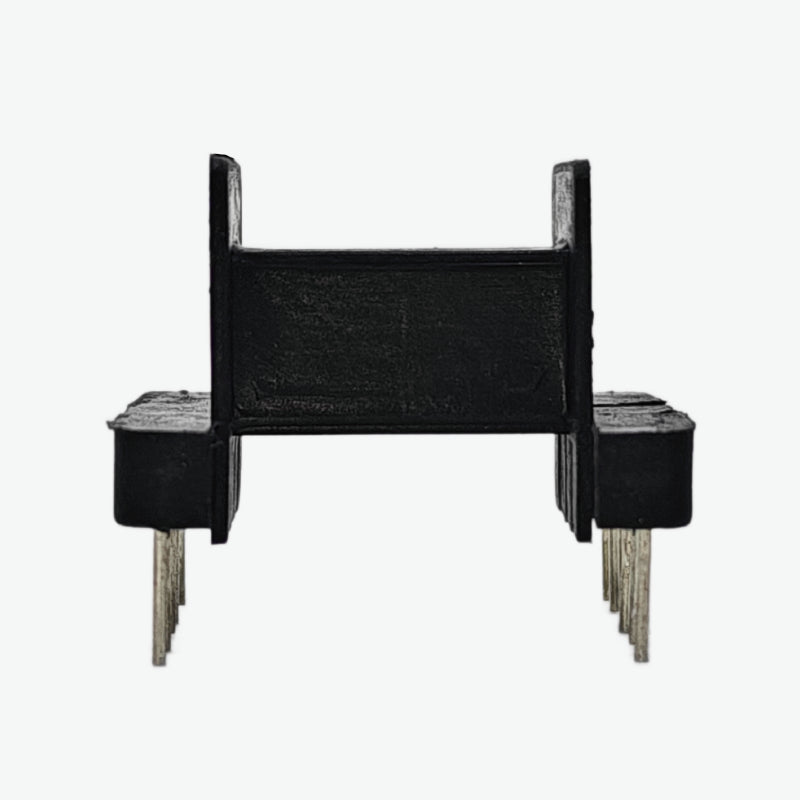

EE30 Transformer Horizontal Bobbin 10 Pin

QC2627
72 In stock
Rs. 16.00 (Exc. GST)
Rs. 16.00

An EE30 transformer horizontal bobbin with 10 pins is a coil former designed for EE30 ferrite cores, facilitating the winding of transformer coils in a horizontal orientation. This configuration is commonly used in high-frequency transformers, inductors, and power supplies.

Key Features:

  • Material: Typically constructed from phenolic or thermoplastic materials, offering high thermal stability and electrical insulation.
  • Pin Configuration: Features a 10-pin setup, suitable for various winding requirements.
  • Design: Includes flanges to prevent wire slippage and may have slots or guides to assist in uniform winding.

Applications:

  • High-Frequency Transformers: Utilized in switching power supplies and converters.
  • Inductors: Employed in filter circuits and energy storage applications.
  • Choke Coils: Used to block high-frequency alternating current (AC) in electrical circuits.
