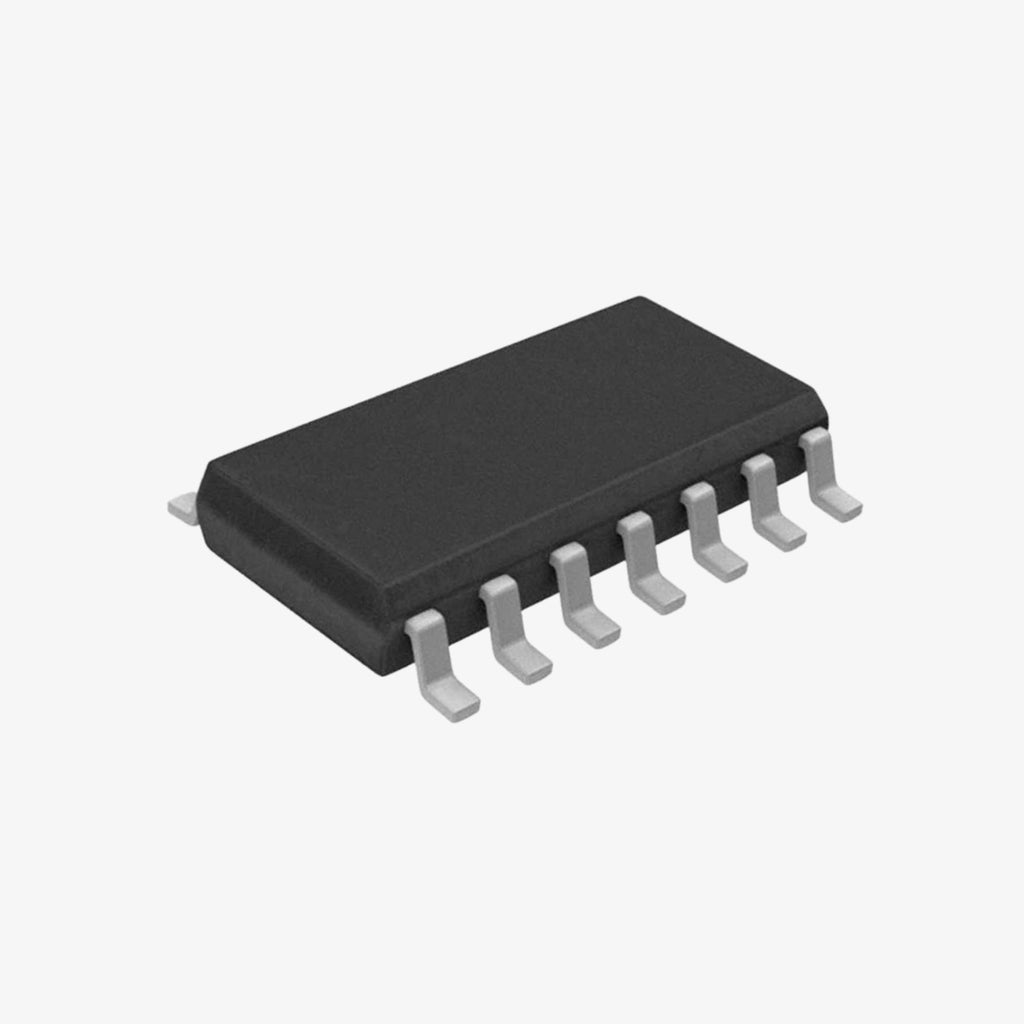

74LS14 Hex Schmitt Trigger Inverter IC - SOIC-14 SMD Package
The 74LS14 is a hex Schmitt trigger inverter IC that features six independent inverters, each with Schmitt trigger inputs. This design ensures enhanced noise immunity and a cleaner output signal by introducing hysteresis between the positive-going and negative-going input thresholds. The IC is housed in a compact SOIC-14 SMD package, making it ideal for various digital and analog signal processing applications.
Specifications:
- IC Type: Hex Schmitt Trigger Inverter
- Package Type: SOIC-14 SMD
- Package Size: 14 Pins
- Supply Voltage: 4.75 V to 5.25 V
- Input Voltage Range: 0 V to 7 V
- Low-Level Output Current: 8 mA
- High-Level Output Current: -0.4 mA
- Propagation Delay: 22 ns (typical)
- Operating Temperature Range: 0°C to +70°C
Pin Configuration:
- 1A: Input for inverter 1
- 1Y: Output for inverter 1
- 2A: Input for inverter 2
- 2Y: Output for inverter 2
- 3A: Input for inverter 3
- 3Y: Output for inverter 3
- GND: Ground
- 4Y: Output for inverter 4
- 4A: Input for inverter 4
- 5Y: Output for inverter 5
- 5A: Input for inverter 5
- 6Y: Output for inverter 6
- 6A: Input for inverter 6
- VCC: Supply Voltage
Features:
- Six independent Schmitt trigger inverters
- Improved noise immunity
- Low power consumption
- High-speed operation
- Compatible with TTL logic levels
- Compact SOIC-14 package for efficient designs
Applications:
- Waveform shaping
- Noise elimination
- Signal conditioning
- Oscillator circuits
- Digital and analog signal processing
Package Includes:
1 x 74LS14 Hex Schmitt Trigger Inverter IC (SOIC-14 SMD Package)
