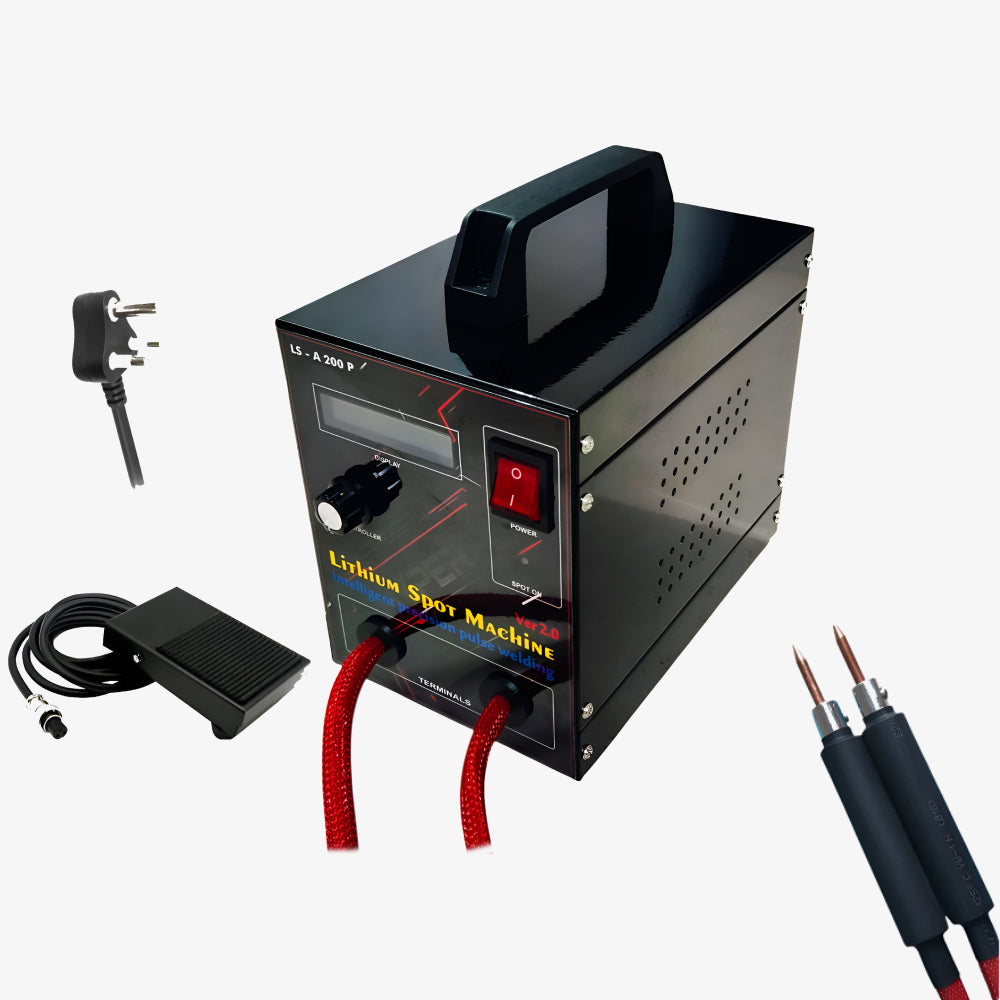

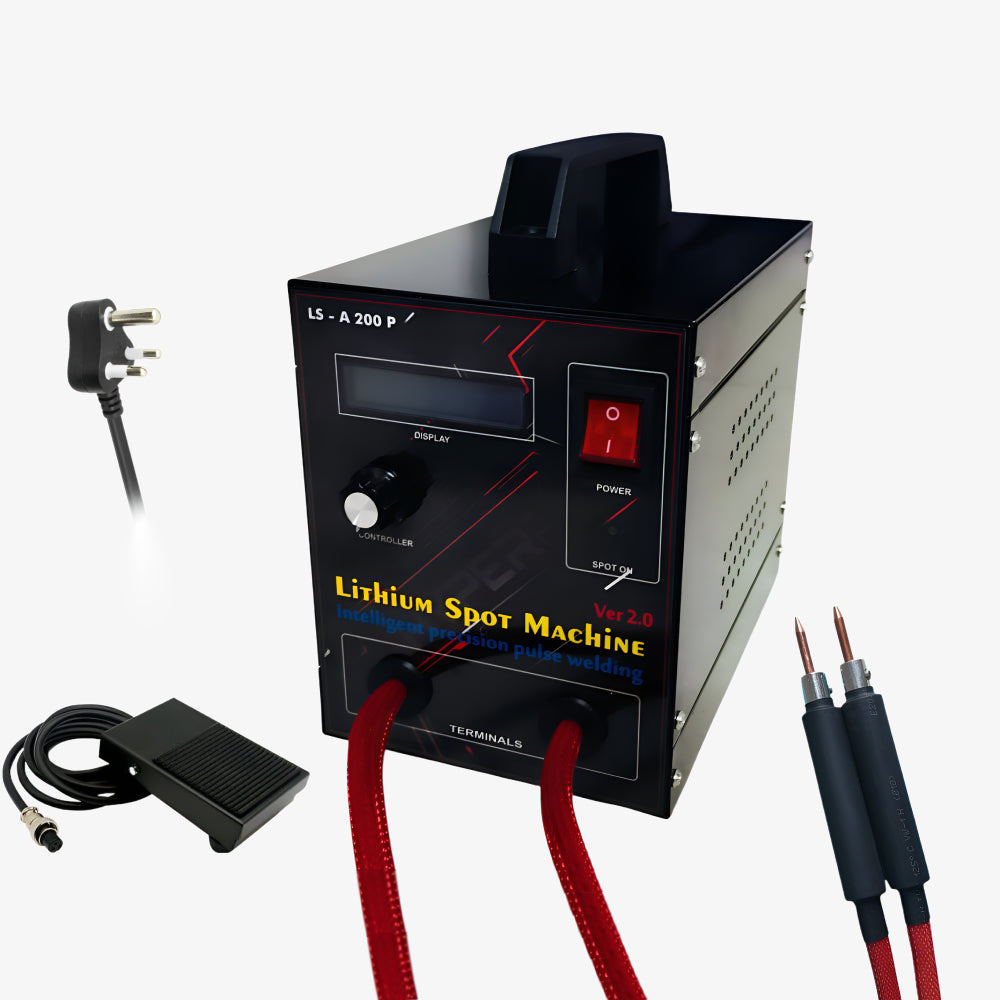

3.5 KVA LS-A200 Portable Lithium Cell Spot Welding Machine for Battery Pack - Includes Double Pen and Pedal
This is a fine-quality spot welding machine control panel, designed for precision, efficiency, and ease of use. It supports single-pulse and double-pulse welding modes, with fully adjustable time and current settings. Equipped with a digital display, it allows direct monitoring of welding parameters, ensuring accurate and stable performance.
The LS-A200 100A Current Controller System is ideal for welding nickel plates, sheet iron, and steel sheets up to 0.25mm thickness, making it suitable for battery pack assembly and high-resistance welding applications. With Auto Spot Mode, welding becomes one-touch simple, while the Double Pulse Welding Technology improves reliability by cleaning the weld surface with the first pulse and securing a strong joint with the second.
Features & Details
- Independently developed control panel for LS-A200 and high-resistance welding.
- Auto Spot Mode – one-touch welding, highly efficient and user-friendly.
- Double Pulse Welding Technology – first pulse cleans oxide layer, second ensures firm, stable welds.
- Multi-function capability – welds nickel plate, sheet iron, and steel sheet (up to 0.25mm).
- Silicone controlled phase-shifting triggering principle for precise adjustment of time and current.
- Digital display shows welding time and current directly for accuracy.
- Optocoupler isolation ensures safety between strong and weak electricity.
- High-precision potentiometer for reliable and convenient control.
- Strong, consistent, and reliable weld joints with reduced spattering.
- Compact and durable design with both foot pedal and auto mode operation options.
Specifications
- Model: LS-A200

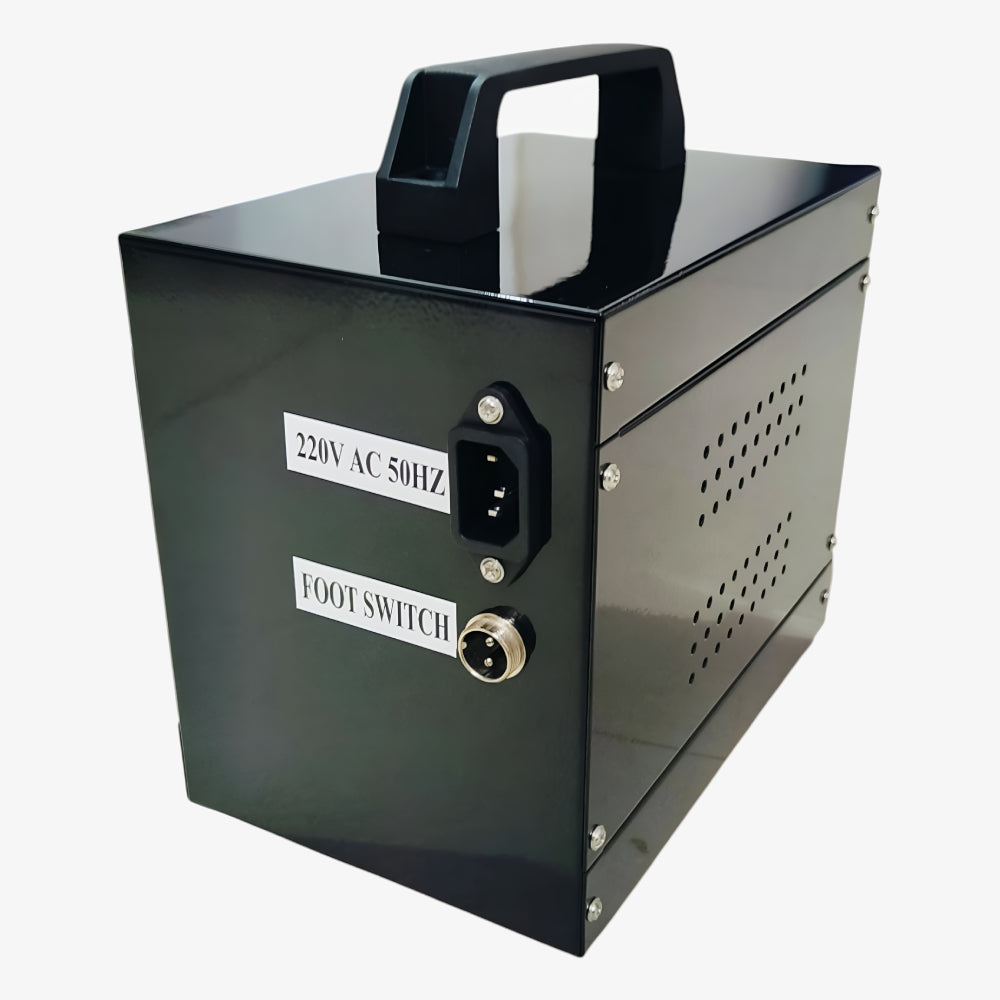

- Type: AC 220V 100A
- Current Adjusting Range: 80A – 1200A (3.6kW)
- Time Adjusting Range: 20ms – 1s
- Maximum Output Current: 1200A
- Welding Thickness: 0.1mm – 0.3mm Nickel Strips / up to 0.25mm sheet iron & steel
- Weight: 7.5kg
Package Includes
1 × LS-A200 Spot Welding Machine
1 × Pair of Welding Pens
1 × Foot Pedal
1 × User Manual
