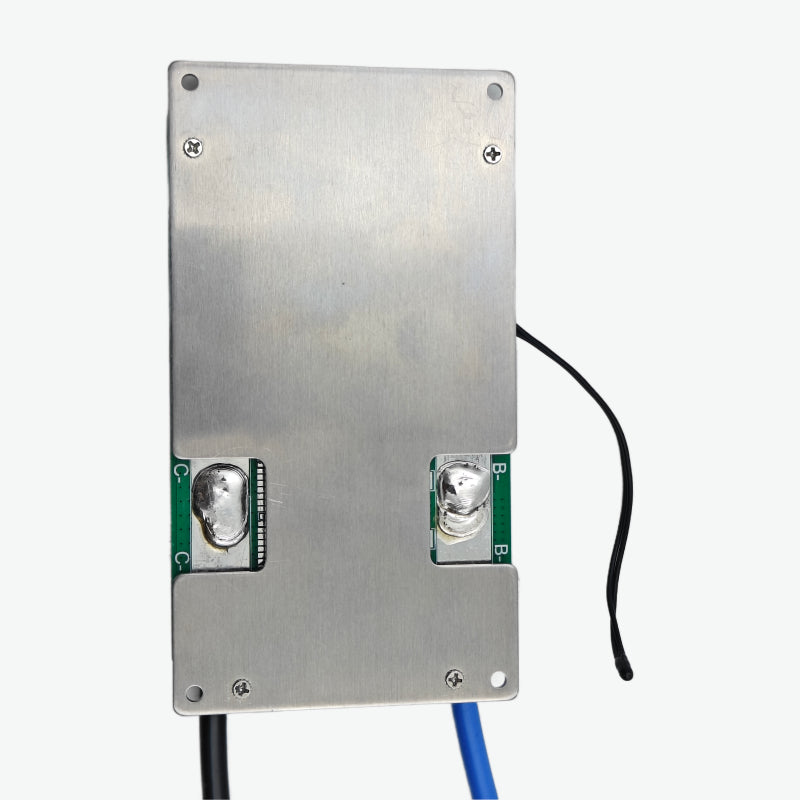

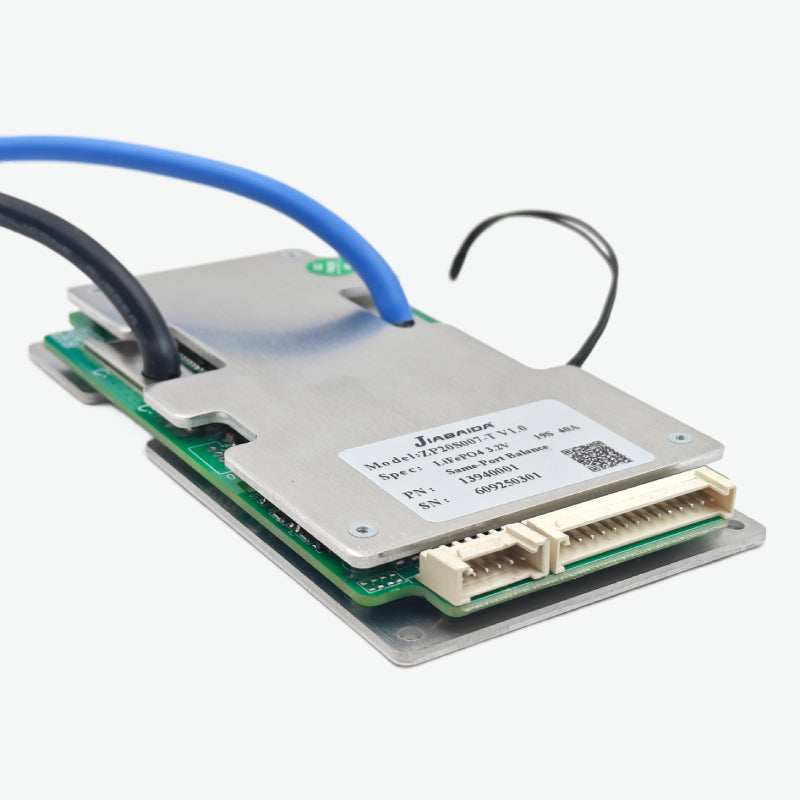

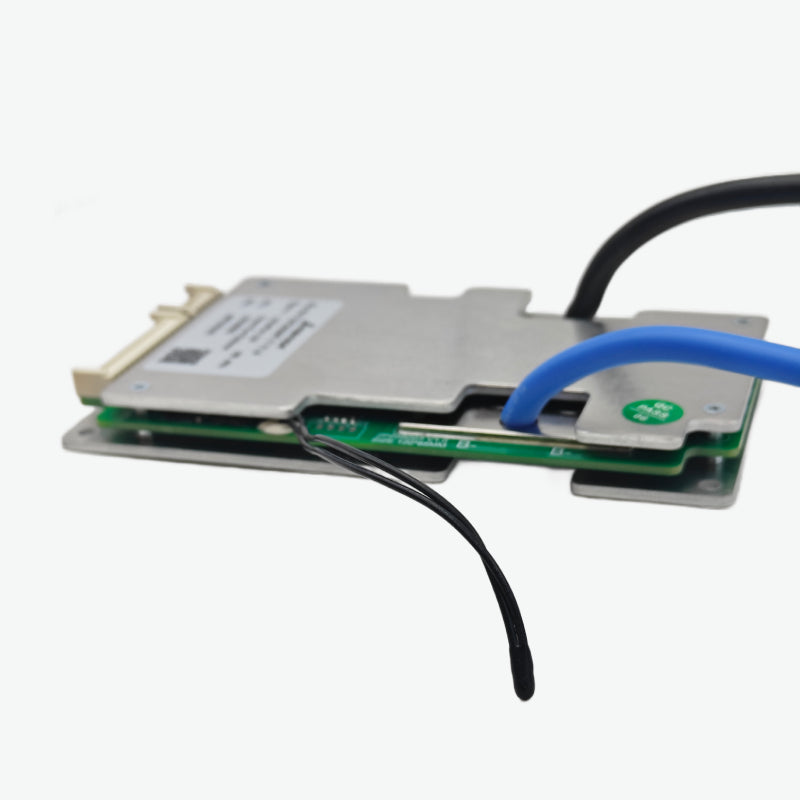

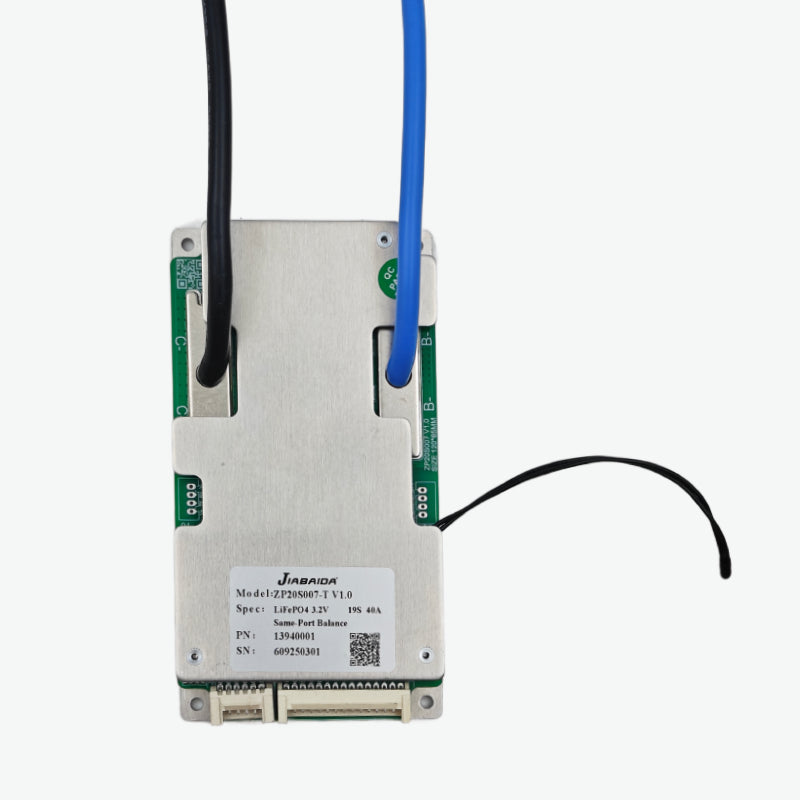

Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board
Jiabaida (JBD) LiFePo4 19S 40A is a reliable and intelligent Battery Management System (BMS) built on the ZP20S007 hardware platform, designed specifically for 19-cell LiFePo4 battery packs. It supports a continuous discharge of 40A and includes essential safety features like overcharge, over-discharge, short-circuit, and overcurrent protection. The board also integrates passive cell balancing to maintain battery health over time, making it ideal for applications such as solar storage systems, e-bikes, and backup power units.
Jiabaida (JBD) LiFePo4 19S 40A BMS Features:
- 40A continuous discharge for moderate-to-high power systems
- Intelligent passive balancing for cell longevity
- Comprehensive protection: over-voltage, under-voltage, overcurrent, short circuit
- ZP20S007 hardware ensures accurate and efficient battery control
- Compact and suitable for LiFePo4-based energy systems
Jiabaida (JBD) LiFePo4 19S 40A BMS Specifications:
| Specification | Value |
|---|---|
| Model | ZP20S007 |
| Supported Cells | 19S (LiFePo4) |
| Nominal Voltage (V) | 60.8V |
| Charge Voltage (V) | 69.35V |
| Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 40A |
| Balance Current (mA) | 30 ±5 |
| Overcharge Detect Voltage (V) | 3.75 ±0.05 |
| Overcharge Release Voltage (V) | 3.55 ±0.05 |
| Over Discharge Detect Voltage (V) | 2.20 ±0.1 |
| Over Discharge Release Voltage (V) | 2.50 ±0.1 |
| Operating Temperature (°C) | -20 to 70 |
| Dimensions (mm) | 120 x 65 x 14 |
Package Includes:

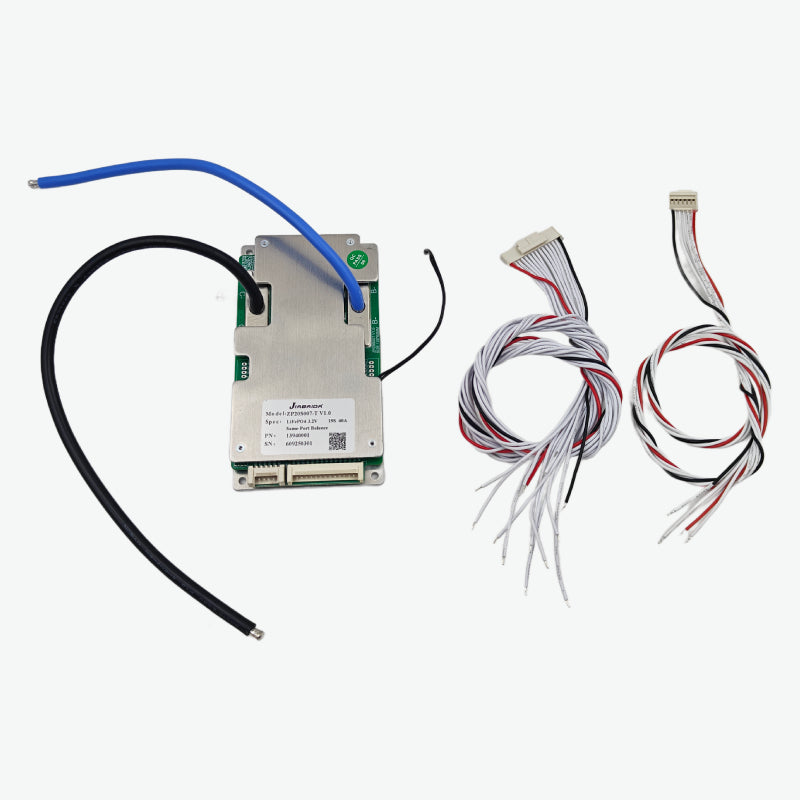

1 x Jiabaida (JBD) LiFePo4 19S 40A Battery Management System - BMS Protection Board
