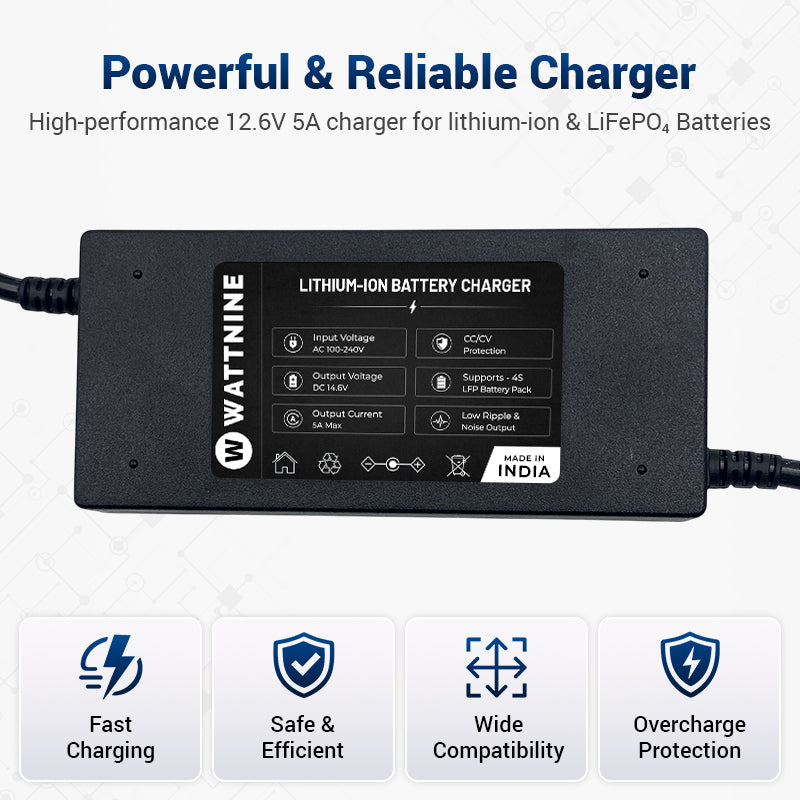

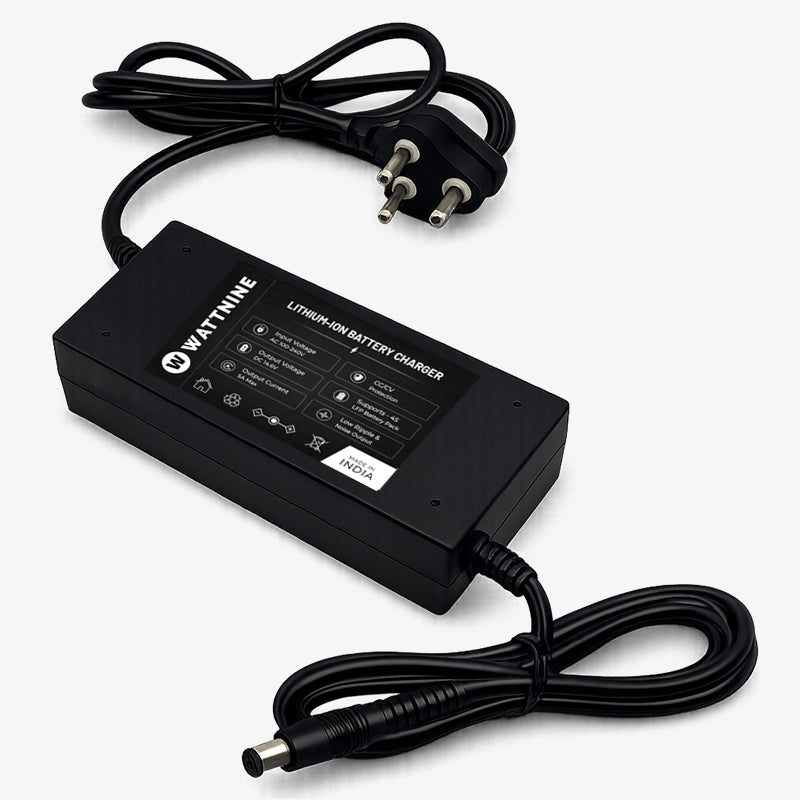

WATTNINE 14.6V 5A Lithium-Ion Battery Charger for 4S LFP Battery Pack - Table-Top Charger with CC & CV
SKU:
BPK-QC6394
Availability:
10
In Stock
-
- Rs. 1,210.00
- Unit price
- per
Subtotal:
Rs. 1,210.00
Description
xWATTNINE 14.6V 5A LiFePO4 Battery Charger for 4S LFP Battery Pack – 75W Table-Top Charger with CC & CV is designed for charging four-cell series-connected lithium iron phosphate (LiFePO4/LFP) battery packs with a nominal voltage of 12.8V. It provides a regulated 14.6V DC output at 5A and uses Constant Current (CC) and Constant Voltage (CV) charging modes to manage the charging process. The table-top switching power supply design includes LED indicators for charging status and protection against output overload and short circuits. It is suitable for compatible 4S LFP battery packs used in portable power systems, energy storage, and other battery-powered equipment.
Features:
- Designed for 4S LiFePO4/LFP battery packs
- 14.6V DC output voltage for full charging of compatible 4S LFP packs
- 5A rated charging current
- 75W rated output power
- Constant Current (CC) and Constant Voltage (CV) charging
- Table-top switching power supply design

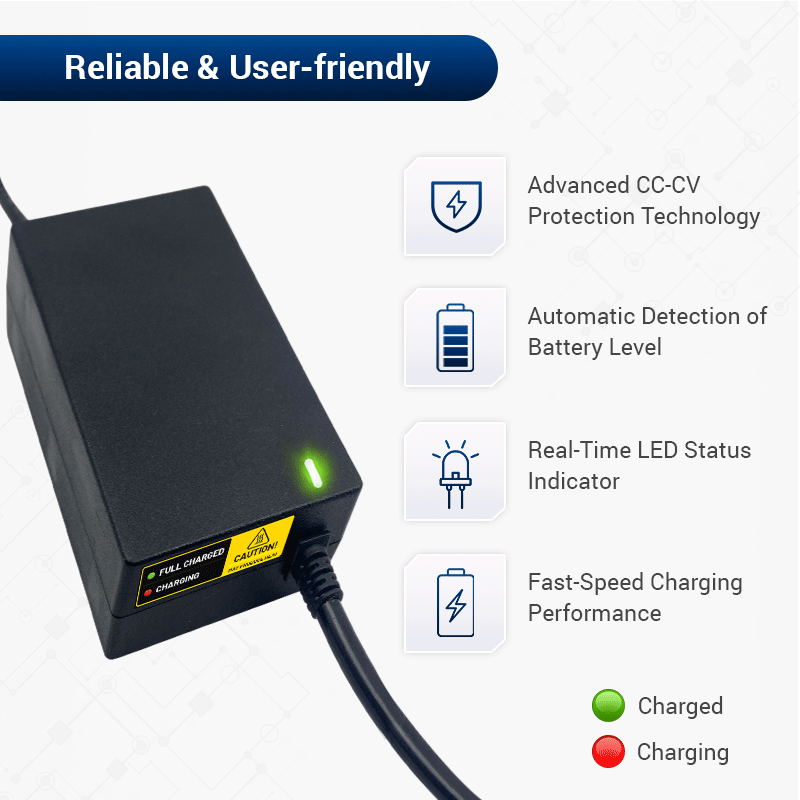

- Red LED indicator for charging status
- Green LED indicator for fully charged status
- Overcurrent protection
- Overvoltage protection
- Output overload protection with automatic restart
- Short-circuit protection with automatic restart
- Regulated output with low ripple and noise
- Suitable for compatible LiFePO4 cells and battery packs
Specifications:
| Specification | Value |
|---|---|
| Brand | WATTNINE |
| Product Type | LiFePO4 Battery Charger |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO4/LFP) |
| Battery Configuration | 4S |
| Compatible Battery Nominal Voltage | 12.8V |
| Output Voltage | 14.6V DC |
| Output Current | 5A |
| Rated Output Power | 75W |
| Charging Method | Constant Current (CC) and Constant Voltage (CV) |
| Input Voltage Range | 100–270V AC |
| Input Frequency | 50/63Hz |
| Maximum Input Current | 2A |
| Efficiency | ≤80% at maximum load and 230V AC |
| Line Regulation | <±1% |
| Load Regulation | <±2% |
| Ripple and Noise | <150mV at 230V AC and full load |
| No-Load Power Consumption | <300mW |
| Output Overcurrent Protection | Above 5A |
| Hold-Up Time | >50ms at 230V AC and full load |
| Turn-On Delay | <50ms |
| Rise Time | <30ms |
| Fall Time | <10ms |
| Status Indicators | Red charging LED, green full-charge LED |
| Form Factor | Table-top |
| Applications | 4S LFP battery packs, portable power systems, and energy storage |
Also Check These Products:-
WATTNINE 8.4V 2A Battery Charger
WATTNINE 12.6V 2A Battery Charger
WATTNINE 14.6V 2A Battery Charger
WATTNINE 16.8V 2A Battery Charger
WATTNINE 16.8V 1.5A NMC Battery Charger
WATTNINE 12.6V 1.5A NMC Battery Charger
Package Includes:
1 × WATTNINE 14.6V 5A 75W Table-Top LiFePO4 Battery Charger
