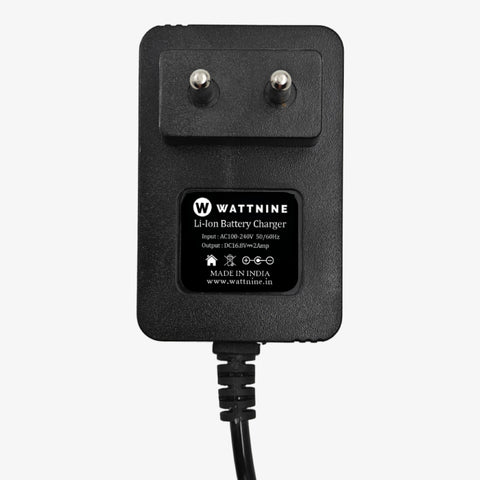

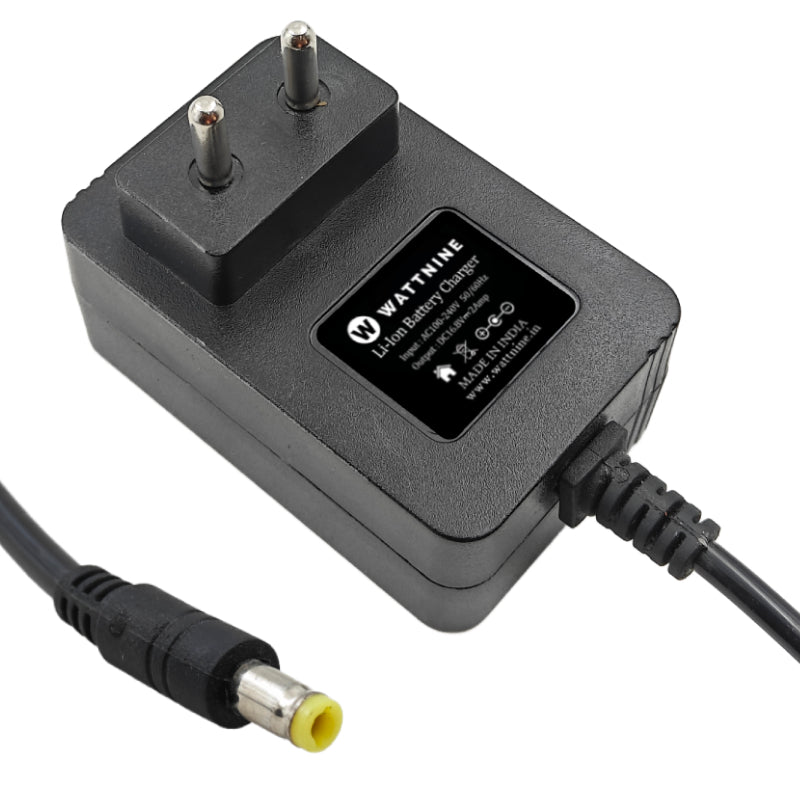

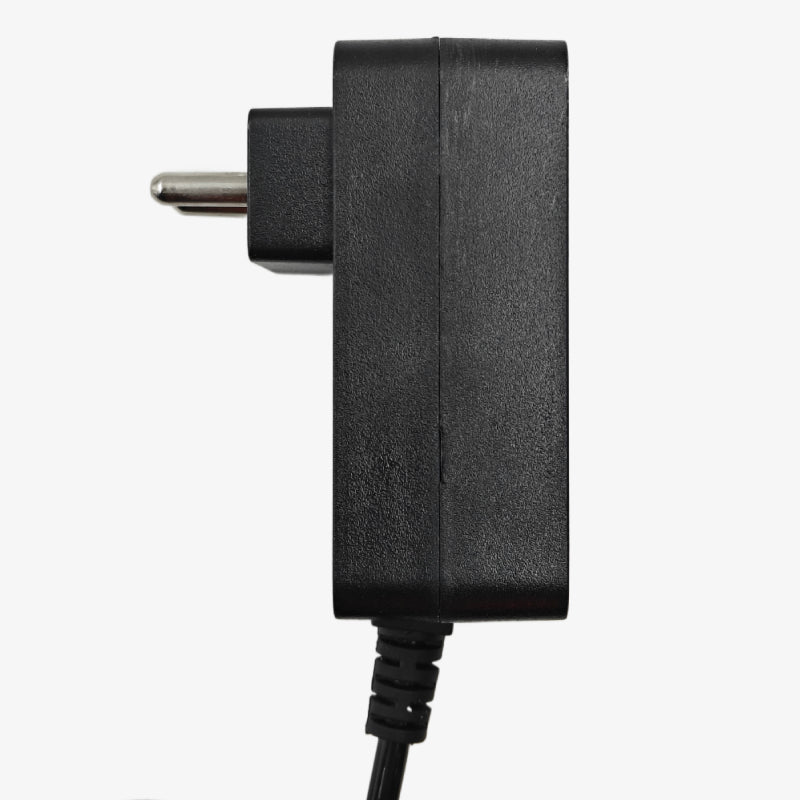

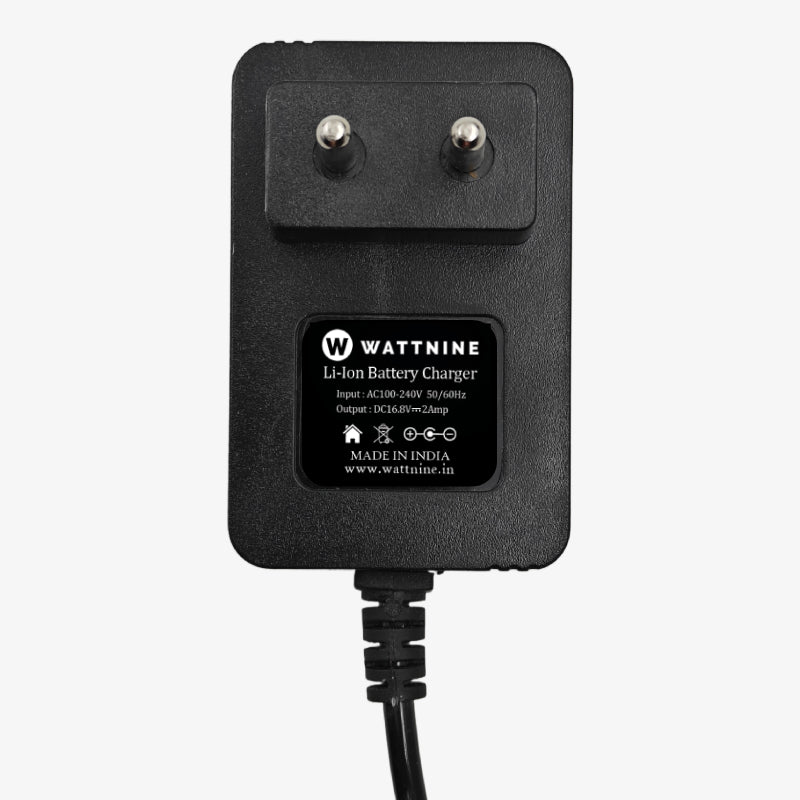

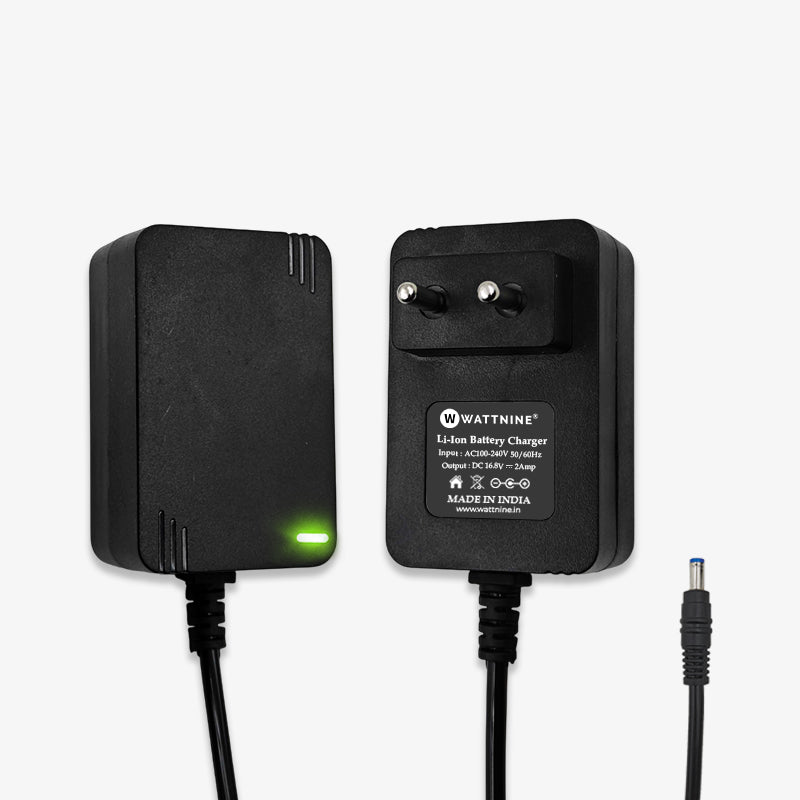

WATTNINE 16.8V 2A Wall Mount 4S Li-ion / LiPo Battery Charger with CC/CV

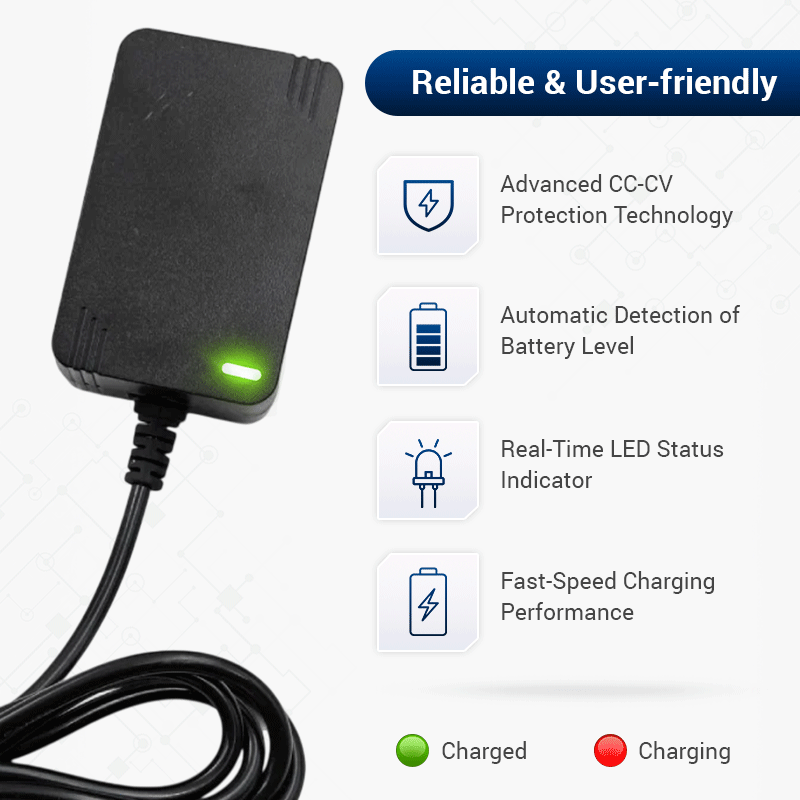

The WATTNINE 16.8V 2A Wall Mount 4S Li-ion / LiPo Battery Charger with CC/CV is a reliable and efficient charger for 4-cell (4S) Li-ion and LiPo battery packs. It uses Constant Current / Constant Voltage charging, which first charges at a fixed current and then maintains a stable voltage to safely complete charging. This ensures fast, balanced charging, extends battery life, and protects against overcharge and overcurrent.

Features:

1. High-quality construction for long-lasting reliability

2. Short Circuit, Over Voltage & Over Current Protection

3. No minimum load required

4. Compact and lightweight design for easy installation

5. Regulated stable voltage output

6. Low ripple and interference for sensitive electronics


Specifications:

• Input Rated Voltage: 86Vac～264Vac

• Input Frequency Range: 50Hz～60Hz

• Input Current: 0.5A (Max)

• Input Inrush Current: <30A

• Efficiency: Level IV

• DC Output Voltage: 16.8V ± 5%

• DC Output Rated Current: 1.5-2A

• DC Output Power: 33.6W

• Ripple and Noise: ≤200mV

• Turn On Delay Time: ≤3s (AC:110V and full load)

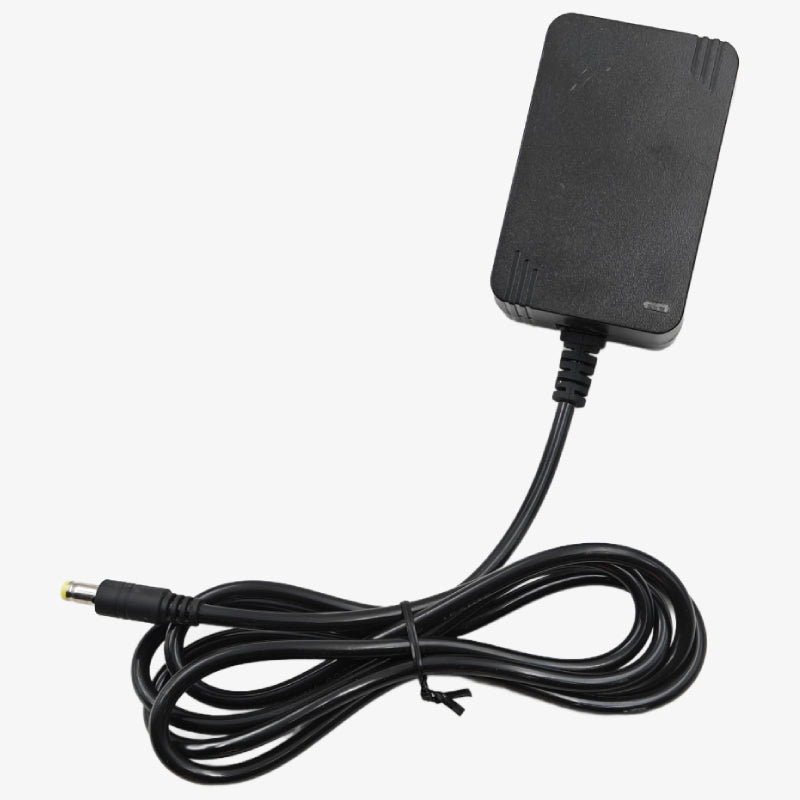

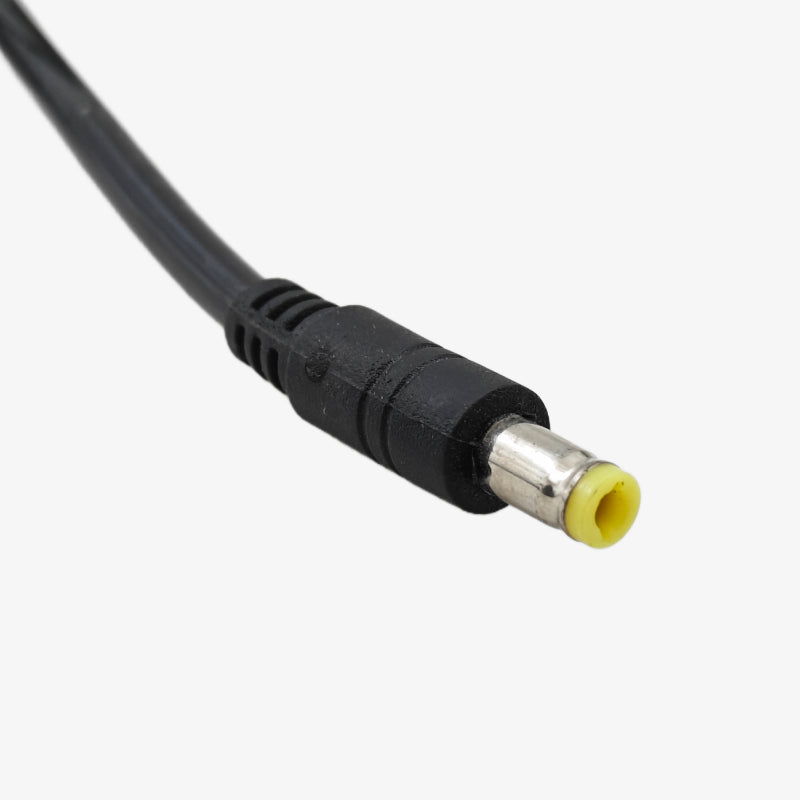

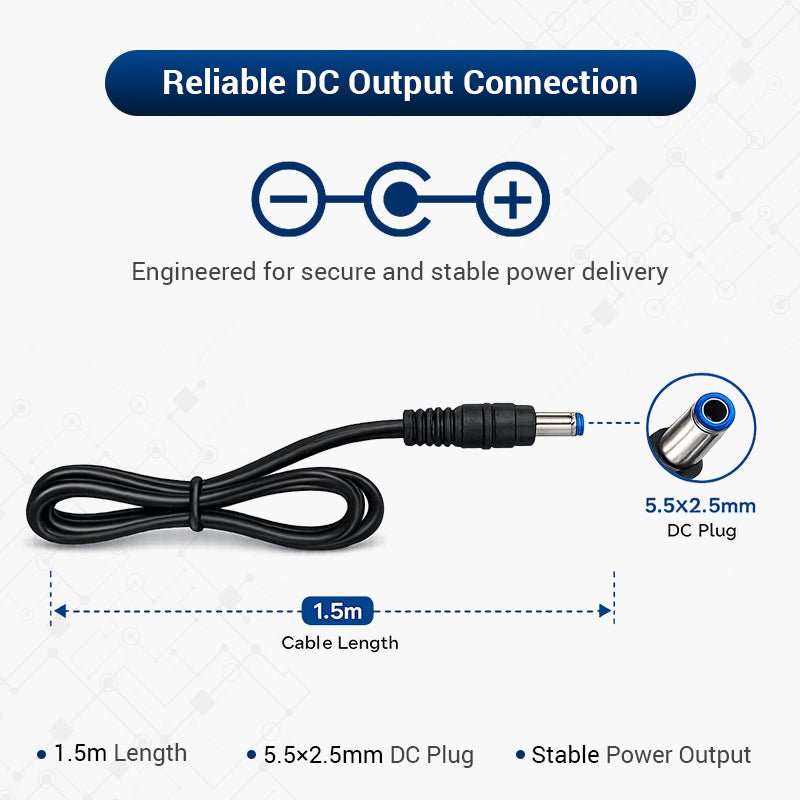

• DC Cable Length: 1.5 m DC cable with 5.5×2.5 mm connector

• Protection: Short circuit / Over current / Over voltage / Over temperature, CC-CV mode

• Leakage Current: ≤5mA

• Operating Temperature Range: -10°C to +55°C

• Storage Temperature: -25°C to +85°C

Also Checkout:

WATTNINE 8.4V 2A Battery Charger
WATTNINE 11V 2A Battery Charger
WATTNINE 12.6V 2A Battery Charger
WATTNINE 14.6V 2A Battery Charger

Package Includes:

1 × WATTNINE 16.8V 2A Wall Mount 4S Li-ion / LiPo Battery Charger with CC/CV
