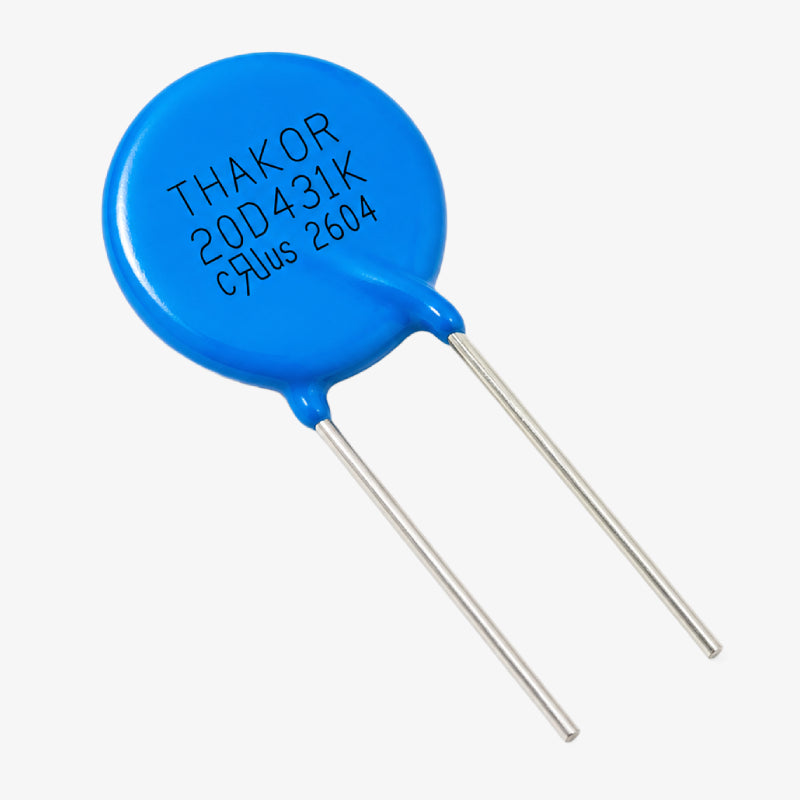

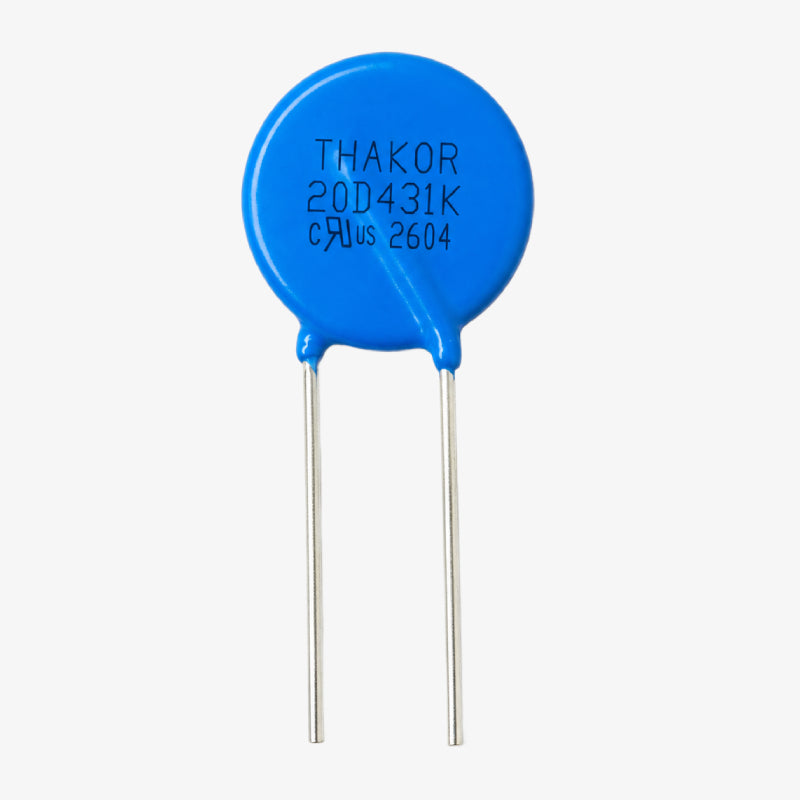

VCRR 20D431K 430VAC RMS 20mm Metal Oxide MOV Varistor

VCRR 20D431K 430VAC RMS 20mm Metal Oxide MOV Varistor is a radial-leaded metal oxide varistor (MOV) designed to protect electronic circuits and electrical equipment against transient overvoltage and surge events. It features a nominal varistor voltage of 430V, a maximum continuous AC voltage rating of 275VAC RMS, a maximum DC voltage rating of 350V, and a maximum clamping voltage of 710V. With a 20mm disc construction, 6.5kA peak surge-current capability, and 190J energy absorption rating, it is suitable for surge suppression in power supplies, AC mains input circuits, industrial equipment, and electronic devices.

Features:

1. Metal Oxide Varistor (MOV) for transient overvoltage protection.
2. 20mm disc-type construction.
3. 430V nominal varistor voltage.
4. ±10% varistor voltage tolerance.
5. Maximum continuous AC voltage of 275VAC RMS.
6. Maximum continuous DC voltage of 350V DC.
7. Maximum clamping voltage of 710V.
8. Peak surge-current capability up to 6.5kA at 8/20µs.
9. Energy absorption capability of 190J.
10. Fast response to transient overvoltage.
11. High surge-current and energy-handling capability.
12. Radial-leaded through-hole construction.
13. 10mm lead pitch for PCB mounting.
14. Suitable for AC mains and power supply surge protection.
15. RoHS-compliant versions are available.

Specifications:

Pin Configuration:

Also Check These Out:

ZOV 07D561K 350V RMS 7mm Radial MOV Varistor

VCRR 20D471K 300VAC RMS 20mm Metal Oxide MOV Varistor

Package Includes:

1 × VCRR 20D431K 430VAC RMS 20mm Metal Oxide MOV Varistor
