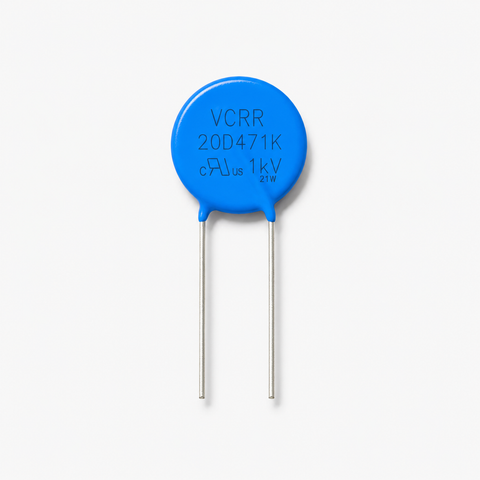

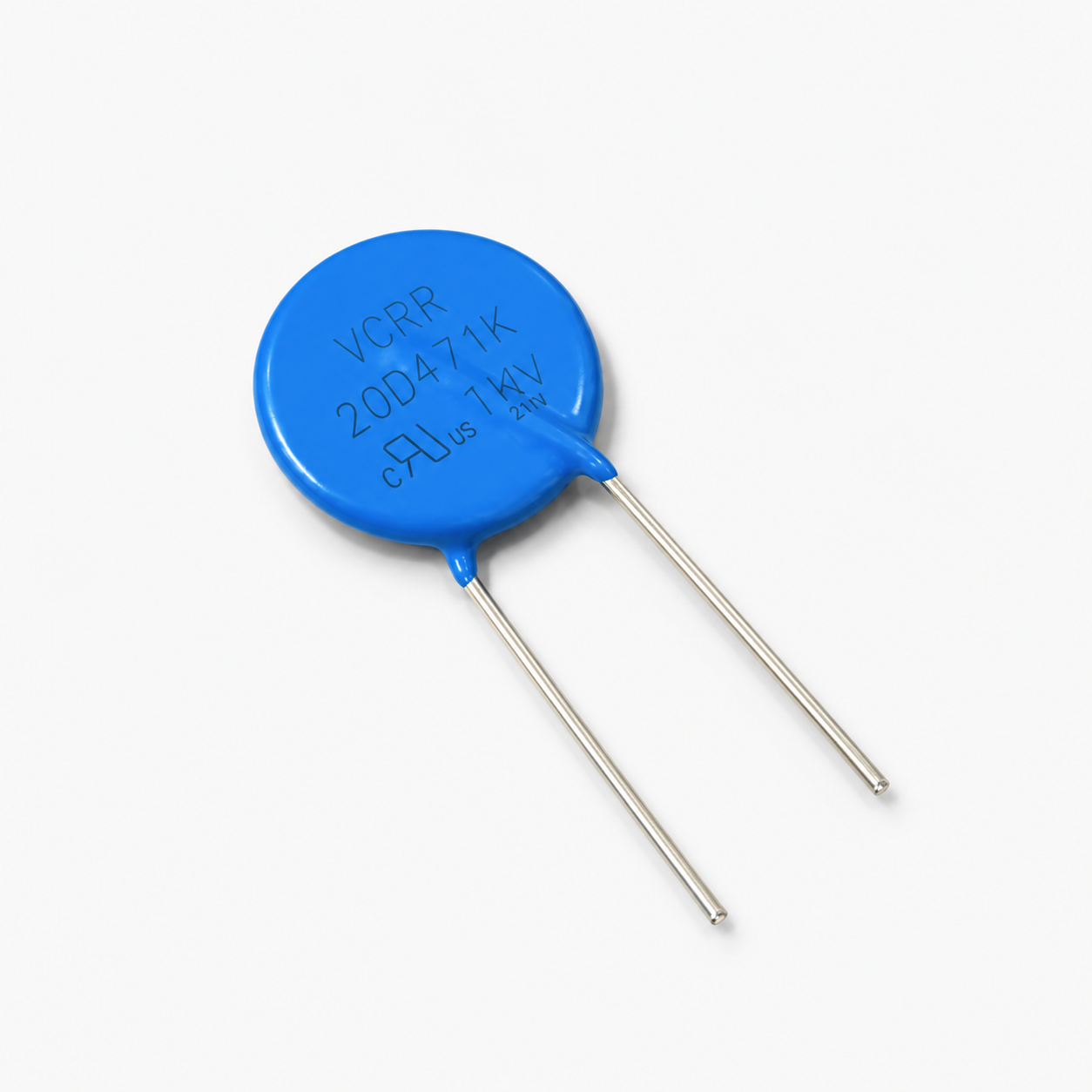

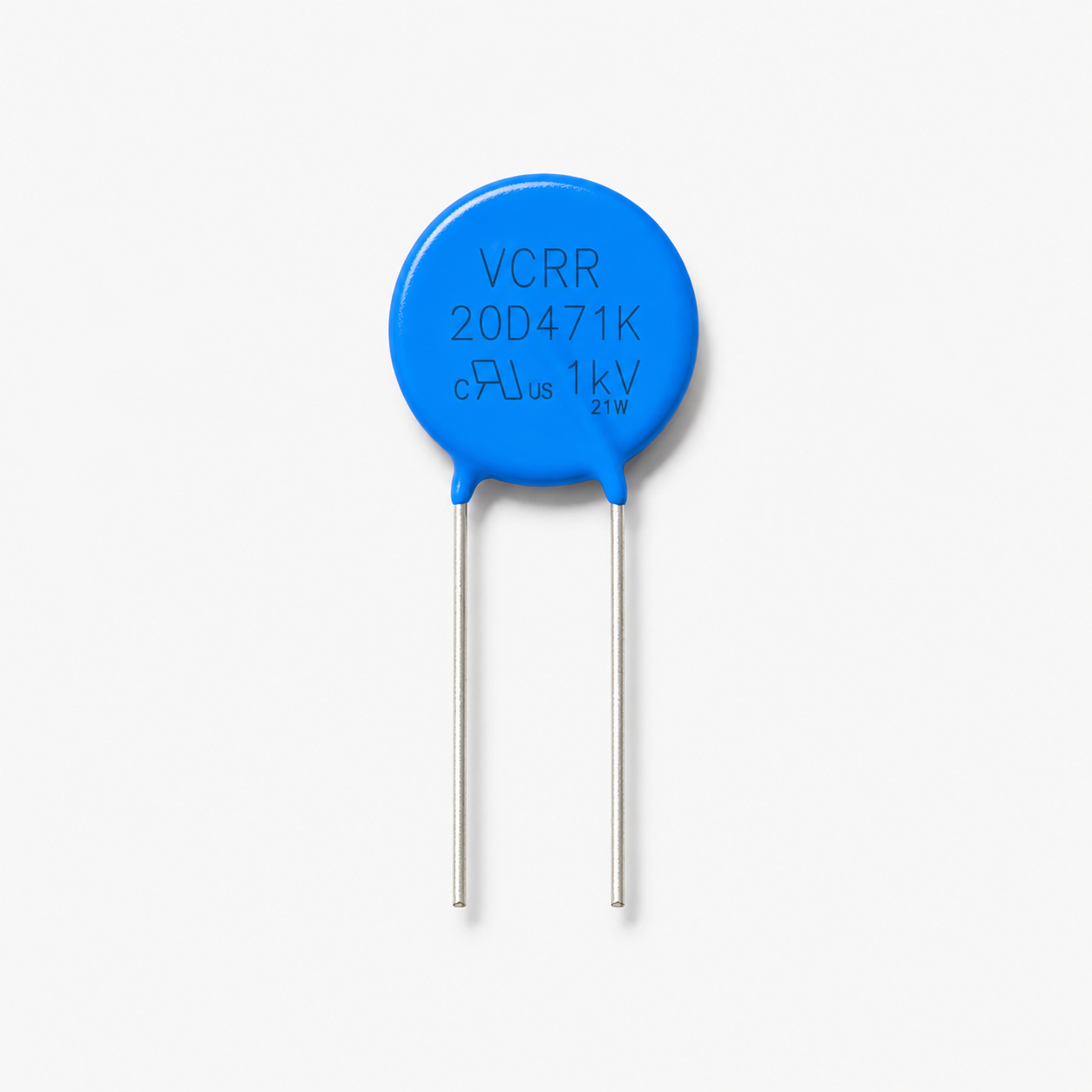

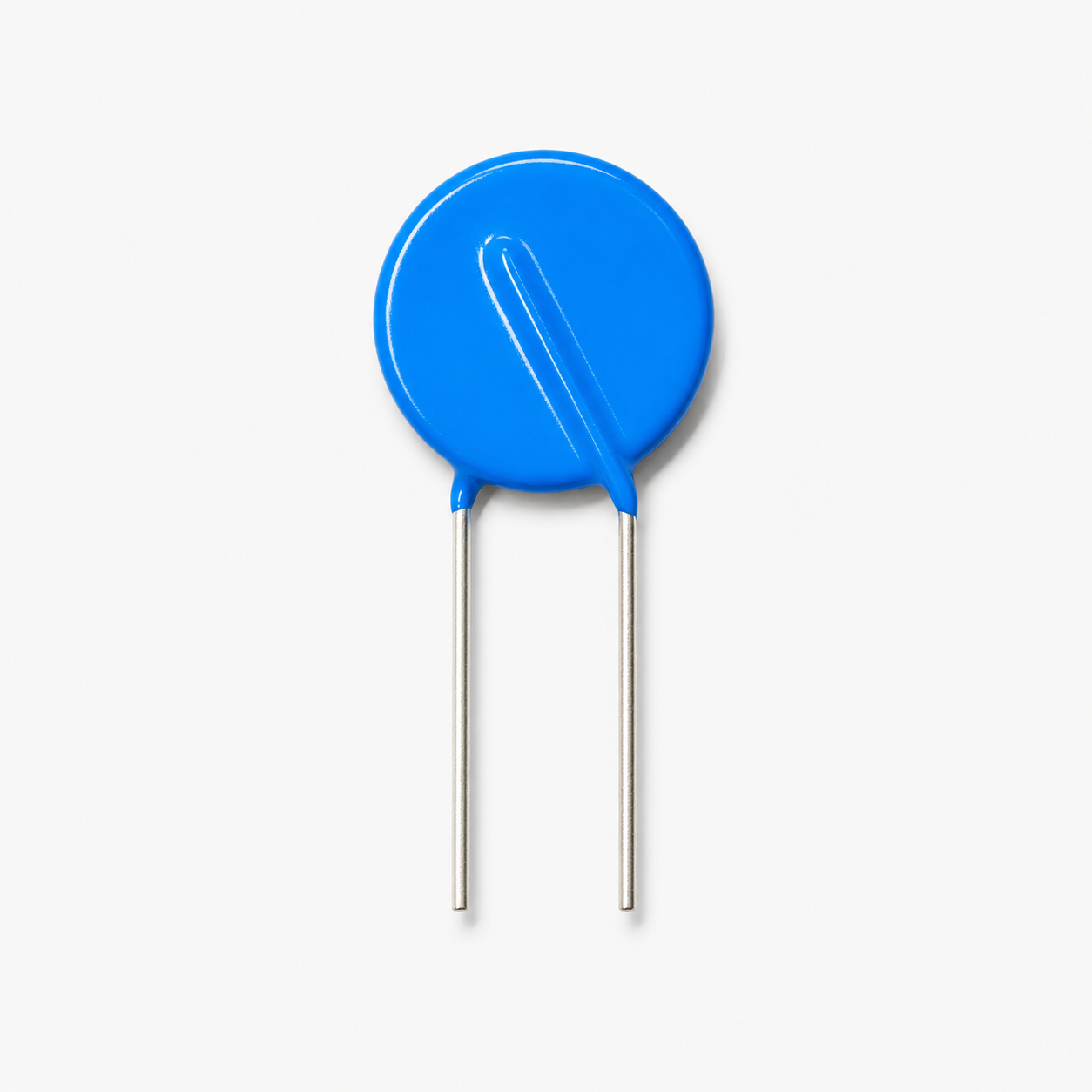

VCRR 20D471K 300VAC RMS 20mm Metal Oxide MOV Varistor
SKU:
CMP-QC6016
Availability:
5
In Stock
-
- Rs. 16.00
- Unit price
- per
Subtotal:
Rs. 16.00
Description
xVCRR 20D471K 300VAC RMS 20mm Metal Oxide MOV Varistor is a high-energy Metal Oxide Varistor (MOV) designed to protect electronic equipment from transient overvoltage caused by lightning strikes, power surges, and switching transients. With a 300VAC RMS operating voltage, 20mm disc size, and high surge current capability, it is ideal for AC power supplies, industrial equipment, home appliances, UPS systems, and surge protection devices.
Features:
- 300VAC RMS Continuous Operating Voltage
- 385VDC Continuous Operating Voltage
- 470V Nominal Varistor Voltage
- High Surge Current Capability
- High Energy Absorption
- Fast Response Time
- Bidirectional Protection
- 20mm Disc Type
- Radial Through-Hole Leads
- Low Leakage Current
- RoHS Compliant
- Suitable for AC Mains, Power Supplies, UPS, Inverters, and Industrial Equipment
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Metal Oxide Varistor (MOV) |
| Brand | VCRR |
| Model | 20D471K |
| Varistor Voltage | 470V ±10% |
| Maximum Continuous AC Voltage (VRMS) | 300VAC |
| Maximum Continuous DC Voltage | 385VDC |
| Maximum Clamping Voltage | 775V |
| Peak Surge Current (8/20µs) | 6.5kA |
| Peak Pulse Current | 100A |
| Energy Absorption | 220J |
| Capacitance | 850pF Typ |
| Disc Diameter | 20mm |
| Mounting Type | Through Hole |
| Lead Type | Radial |
| Operating Temperature | -40°C to +85°C |
| Compliance | RoHS |
Also Check These Out:
Package Includes:
1 x VCRR 20D471K 300VAC RMS 20mm Metal Oxide MOV Varistor
