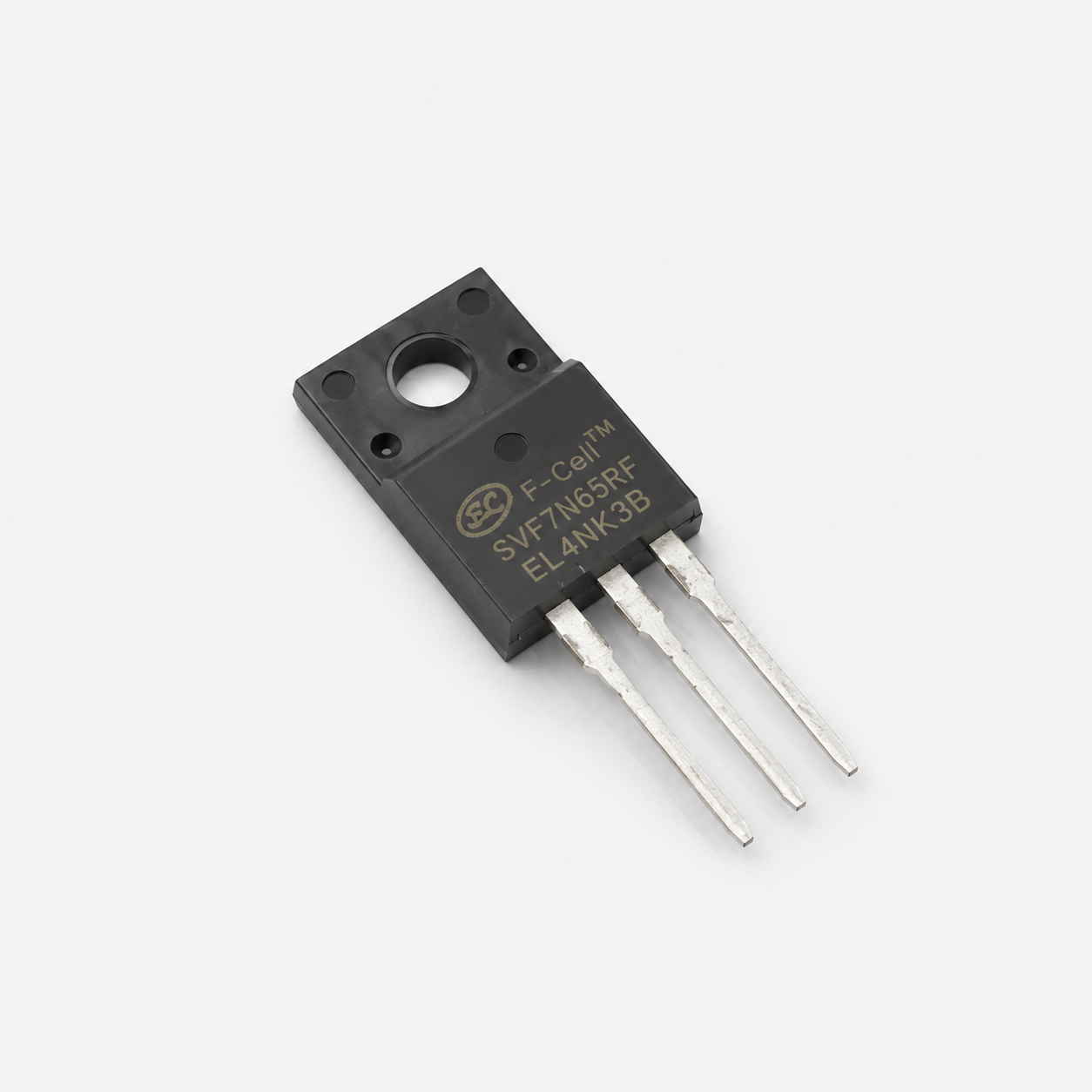

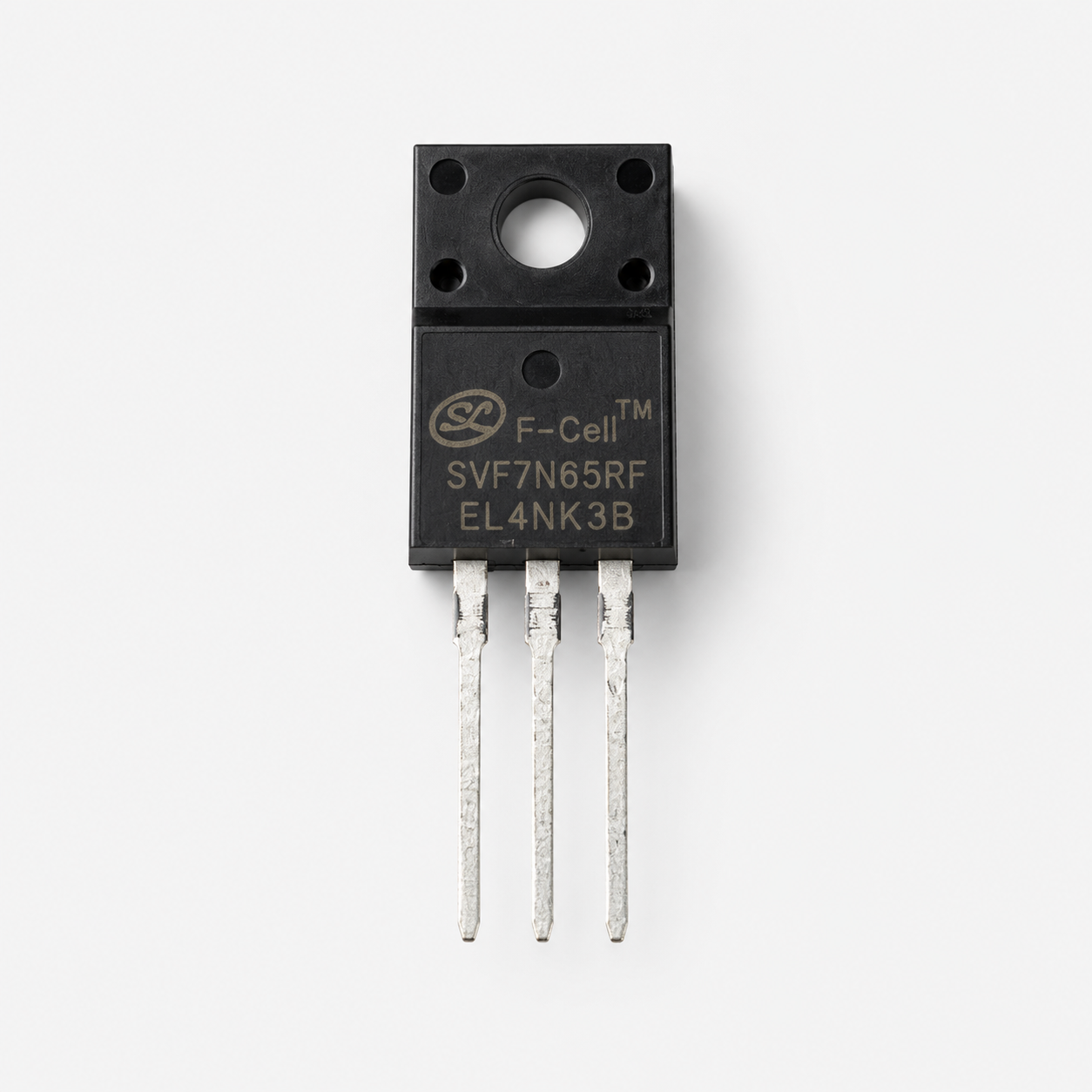

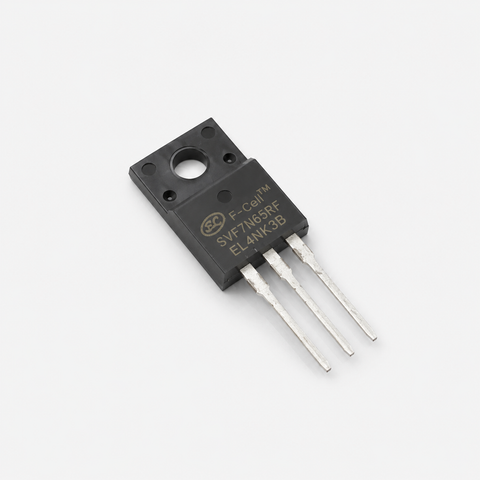

SVF7N65RF N-Channel 650V 7A Power MOSFET - TO-220 Package
SKU:
CMP-QC6012
Availability:
10
In Stock
-
- Rs. 26.00
- Unit price
- per
Subtotal:
Rs. 26.00
Description
xSVF7N65RF N-Channel 650V 7A Power MOSFET - TO-220 Package is a high-voltage N-channel enhancement mode power MOSFET designed for switching power supplies, LED drivers, battery chargers, adapters, inverters, and other high-frequency power switching applications. Manufactured using advanced F-Cell™ VDMOS technology, it offers low ON-state resistance, fast switching performance, high avalanche capability, and excellent reliability for demanding power conversion circuits.
SVF7N65RF N-Channel 650V 7A Power MOSFET - TO-220 Package Datasheet
Features:
- 650V Drain-Source Voltage
- 7A Continuous Drain Current
- N-Channel Enhancement Mode MOSFET
- Low ON-State Resistance
- Fast Switching Performance
- High Avalanche Energy Capability
- Low Gate Charge
- Low Reverse Transfer Capacitance
- Improved dv/dt Capability
- TO-220 Through-Hole Package
- RoHS Compliant
- Suitable for SMPS, LED Drivers, Adapters, and Inverters
Specifications:
| Parameter | Value |
|---|---|
| Product Type | N-Channel Power MOSFET |
| Model | SVF7N65RF |
| Drain-Source Voltage (VDS) | 650V |
| Continuous Drain Current (ID) | 7A |
| Pulsed Drain Current (IDM) | 28A |
| Gate-Source Voltage (VGS) | ±30V |
| Drain-Source ON Resistance (RDS(on)) | 1.30Ω Typ, 1.50Ω Max @ VGS = 10V |
| Gate Threshold Voltage (VGS(th)) | 2V to 4V |
| Power Dissipation (PD) | 50W |
| Total Gate Charge (Qg) | 21nC Typ |
| Input Capacitance (Ciss) | 840pF Typ |
| Reverse Transfer Capacitance (Crss) | 8pF Typ |
| Single Pulse Avalanche Energy (EAS) | 180mJ |
| Operating Junction Temperature | -55°C to +150°C |
| Storage Temperature | -55°C to +150°C |
| Package Type | TO-220 |
| Mounting Type | Through Hole (THT) |
| Polarity | N-Channel |
| Compliance | RoHS |
Also Check These Out:
CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP Package
P13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP Package
FS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD Package
IRF840 Power MOSFET - 8A - TO-220 Package
Package Includes:
1 x SVF7N65RF N-Channel 650V 7A Power MOSFET - TO-220 Package
