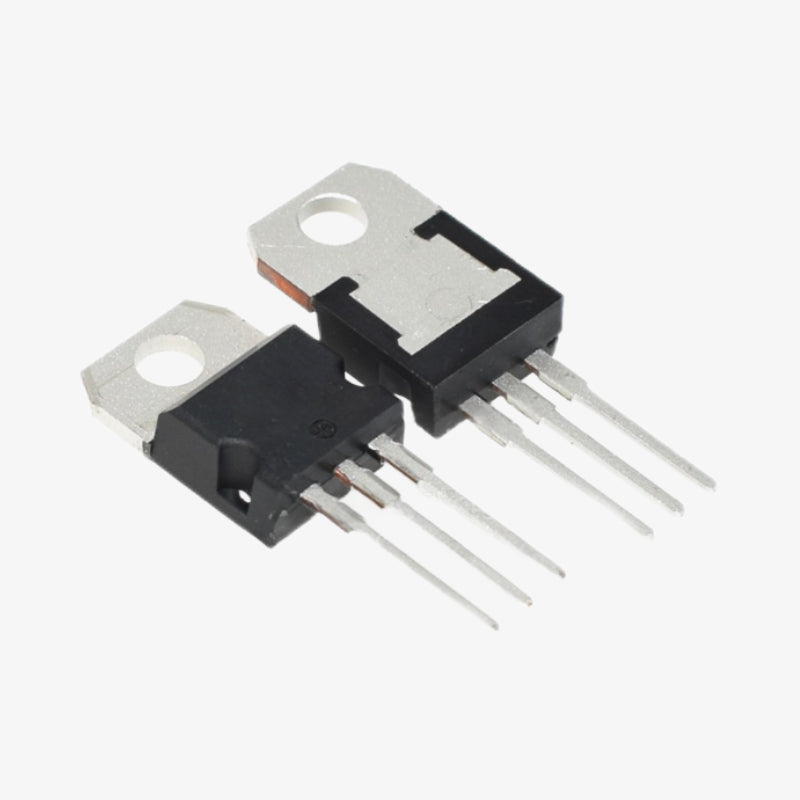

IRF840 Power MOSFET - 8A - TO-220 Package
SKU:
CMP-QC3316
Availability:
85
In Stock
- Rs. 23.00
- Rs. 23.00
- Unit price
- per
Subtotal:
Rs. 23.00
Description
xThe IRF840 is an N-channel power MOSFET designed for high-voltage switching applications. With a drain-source voltage rating of 500V and a continuous drain current of up to 8A, it is commonly used in power supplies, inverters, motor drivers, and general-purpose switching circuits. The TO-220 package offers excellent thermal performance, allowing for efficient heat dissipation in demanding environments.
Features of IRF840 Power MOSFET:
- N-channel power MOSFET with high-voltage capability
- 500V drain-source voltage suitable for high-power applications
- Continuous drain current up to 8A
- Low gate charge and fast switching speed
- Rugged TO-220 package for effective heat management
- Ideal for SMPS, inverter circuits, and motor control
Specifications of IRF840 Power MOSFET:
- Model: IRF840
- Type: N-Channel Power MOSFET
- Drain-Source Voltage: 500V
- Continuous Drain Current: 8A
- Gate Threshold Voltage: 2.0V to 4.0V
- RDS(ON): 0.85Ω max @ VGS=10V
- Total Gate Charge: 71nC (typical)
- Package: TO-220 – Through Hole
- Operating Temperature Range: -55°C to +150°C
Package Includes:
1 × IRF840 Power MOSFET – 8A – TO-220 Package
