SVF4N65RF N-Channel 650V 4A Power MOSFET - TO-220 Package

Brand: GENERIC
SKU: CMP-QC6011
Availability: 10 In Stock
Rs. 22.00
Subtotal: Rs. 22.00
Description
Description
x

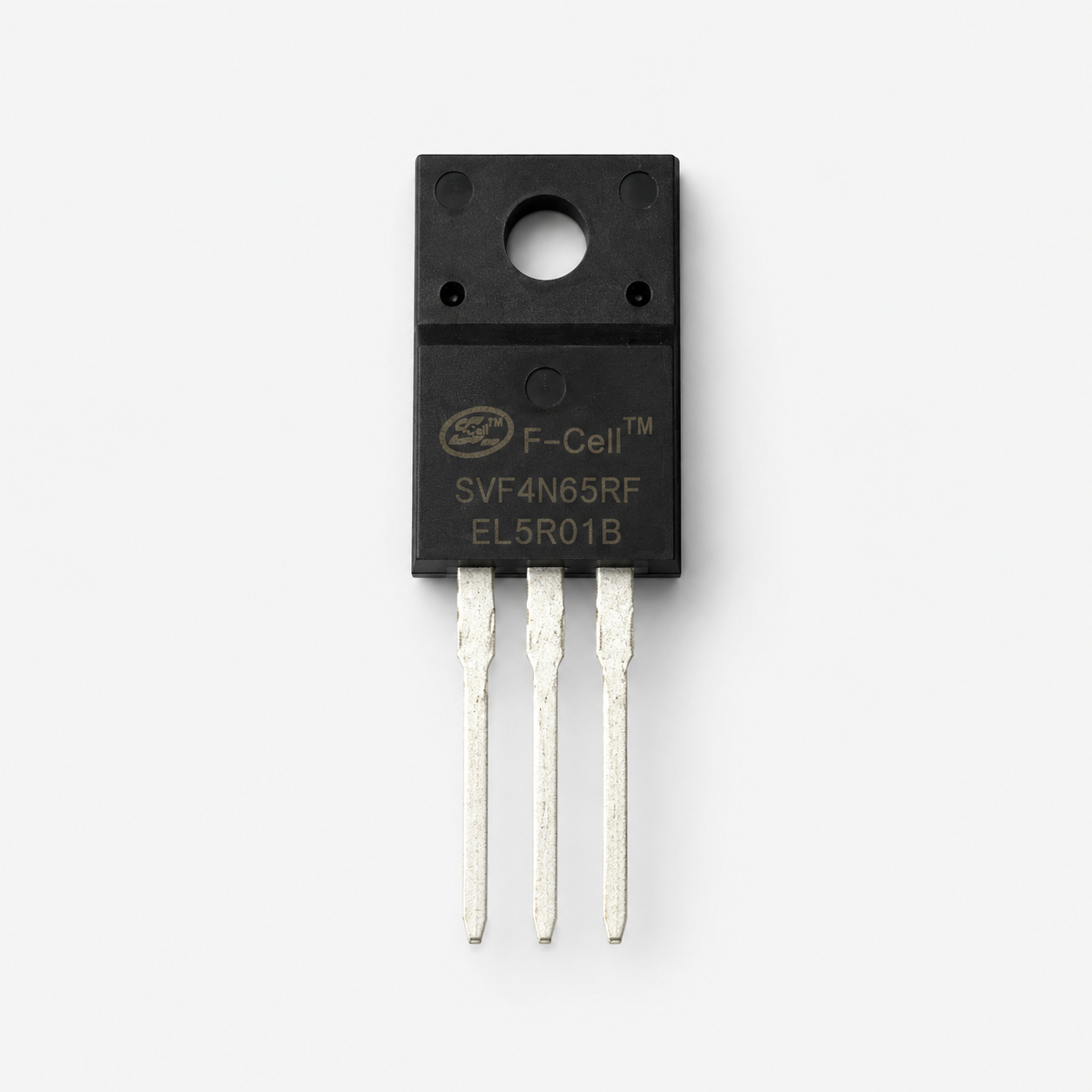

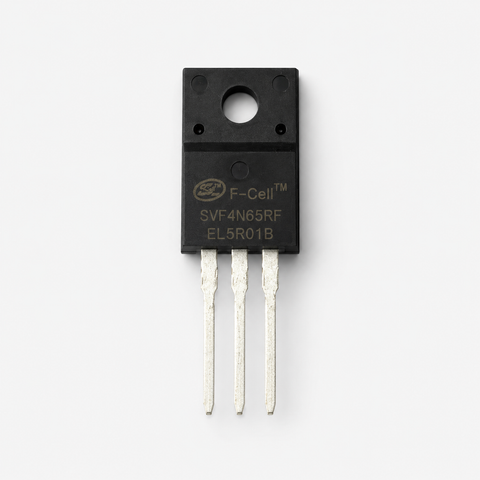

SVF4N65RF N-Channel 650V 4A Power MOSFET - TO-220 Package is a high-voltage N-channel enhancement mode power MOSFET designed for switching power supplies, LED drivers, battery chargers, adapters, inverters, and other high-frequency power switching applications. Manufactured using advanced F-Cell™ VDMOS technology, it offers low ON-state resistance, fast switching performance, high avalanche capability, and excellent reliability for demanding power conversion circuits.

SVF4N65RF N-Channel 650V 4A Power MOSFET - TO-220 Package Datasheet

Features:

  1. 650V Drain-Source Voltage
  2. 4A Continuous Drain Current
  3. N-Channel Enhancement Mode MOSFET
  4. Low ON-State Resistance
  5. Fast Switching Performance
  6. High Avalanche Energy Capability
  7. Low Gate Charge
  8. Low Reverse Transfer Capacitance
  9. Improved dv/dt Capability
  10. TO-220 Through-Hole Package
  11. RoHS Compliant
  12. Suitable for SMPS, LED Drivers, Adapters, and Inverters

Specifications:

Parameter Value
Product Type N-Channel Power MOSFET
Model SVF4N65RF
Drain-Source Voltage (VDS) 650V
Continuous Drain Current (ID) 4A
Pulsed Drain Current (IDM) 16A
Gate-Source Voltage (VGS) ±30V
Drain-Source ON Resistance (RDS(on)) 2.6Ω Typ, 3.0Ω Max @ VGS = 10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Power Dissipation (PD) 50W
Total Gate Charge (Qg) 14nC Typ
Input Capacitance (Ciss) 580pF Typ
Reverse Transfer Capacitance (Crss) 5pF Typ
Single Pulse Avalanche Energy (EAS) 120mJ
Operating Junction Temperature -55°C to +150°C
Storage Temperature -55°C to +150°C
Package Type TO-220
Mounting Type Through Hole (THT)
Polarity N-Channel
Compliance RoHS



Also Check These Out:

CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP Package

P13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP Package

FS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD Package

IRF840 Power MOSFET - 8A - TO-220 Package

Package Includes:

1 x SVF4N65RF N-Channel 650V 4A Power MOSFET - TO-220 Package
