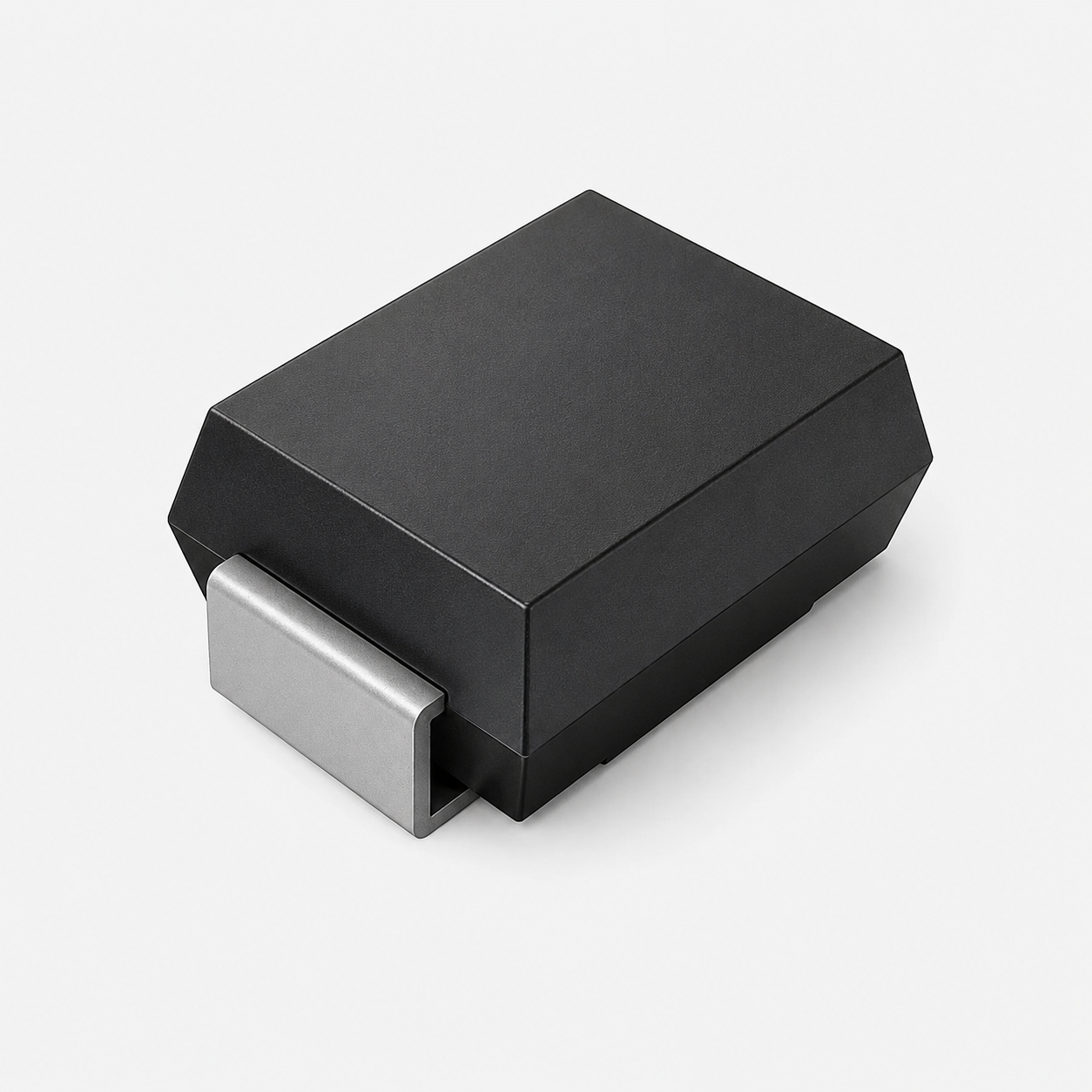

SMBJ17A ESD and Surge Protection TVS Diode - DO-214AA (SMB) SMD Pakage
SKU:
SMD-QC5913
Availability:
5000
In Stock
-
- Rs. 5.00
- Unit price
- per
Subtotal:
Rs. 5.00
Description
xSMBJ17A ESD and Surge Protection TVS Diode - SMB Package (RoHS) is a high-power Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic circuits from ESD, lightning, and other transient voltage spikes. Housed in a compact SMB (DO-214AA) package, it offers fast response time, high surge capability, and reliable overvoltage protection, making it ideal for power supplies, communication equipment, industrial controls, automotive electronics, and consumer devices.
Features:
- 600W Peak Pulse Power Dissipation
- Unidirectional TVS Protection
- Fast Response Time
- Excellent ESD and Surge Protection
- Low Leakage Current
- High Surge Current Capability
- RoHS Compliant
- Compact SMB (DO-214AA) Package
- Reliable Overvoltage Protection
- Suitable for Power, Industrial, Automotive, and Communication Applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | TVS Diode |
| Part Number | SMBJ17A |
| Package | SMB (DO-214AA) |
| Polarity | Unidirectional |
| Reverse Stand-Off Voltage (VRWM) | 17V |
| Peak Pulse Power | 600W |
| Operating Temperature | -55°C to +150°C |
| RoHS Compliance | Yes |
| Response Time | <1ps (Typical) |
| Mounting Type | Surface Mount (SMD) |
Also Check These Out:
SMBJ64A Transient Voltage Suppressor Diode - DO-214AA (SMB) SMD Package
SMBJ440A Transient Voltage Suppressor Diode - DO-214AA (SMB) SMD Package
600V 2A 35ns Fast Recovery Rectifier Diode (ES2JBF) - DO-214AA SMBF Package
Package Includes:
1 x SMBJ17A ESD and Surge Protection TVS Diode - SMB Package (RoHS)
