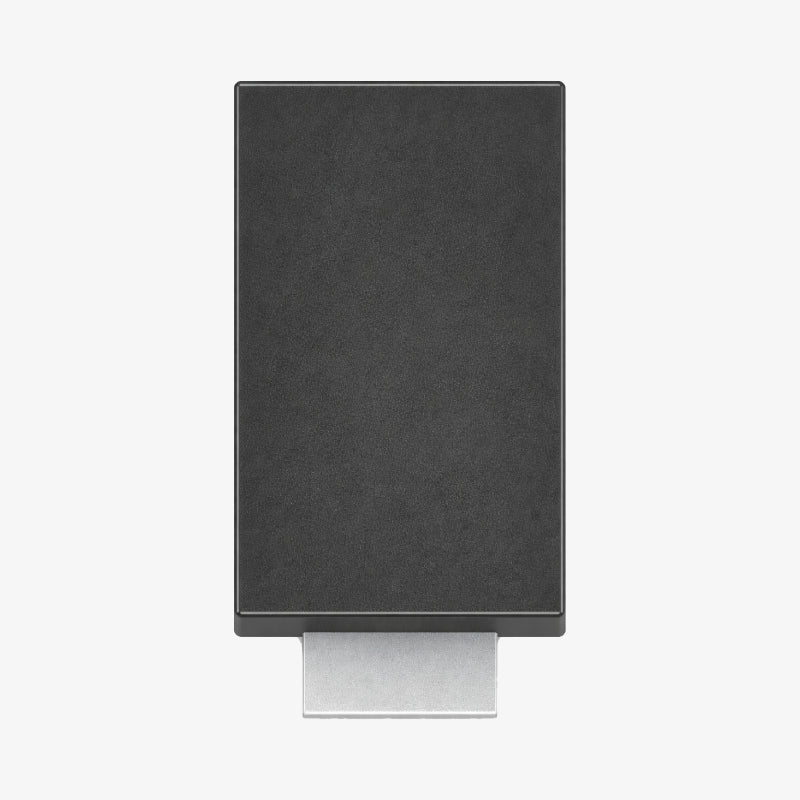

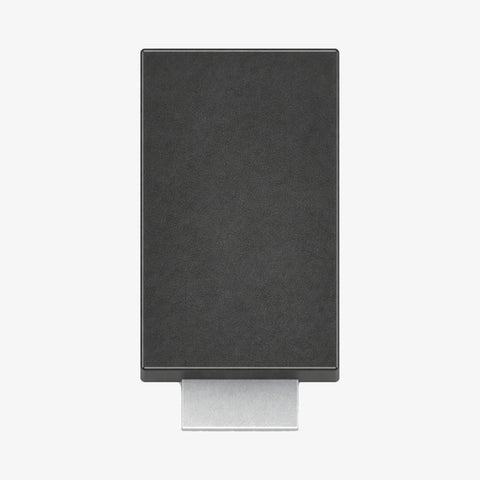

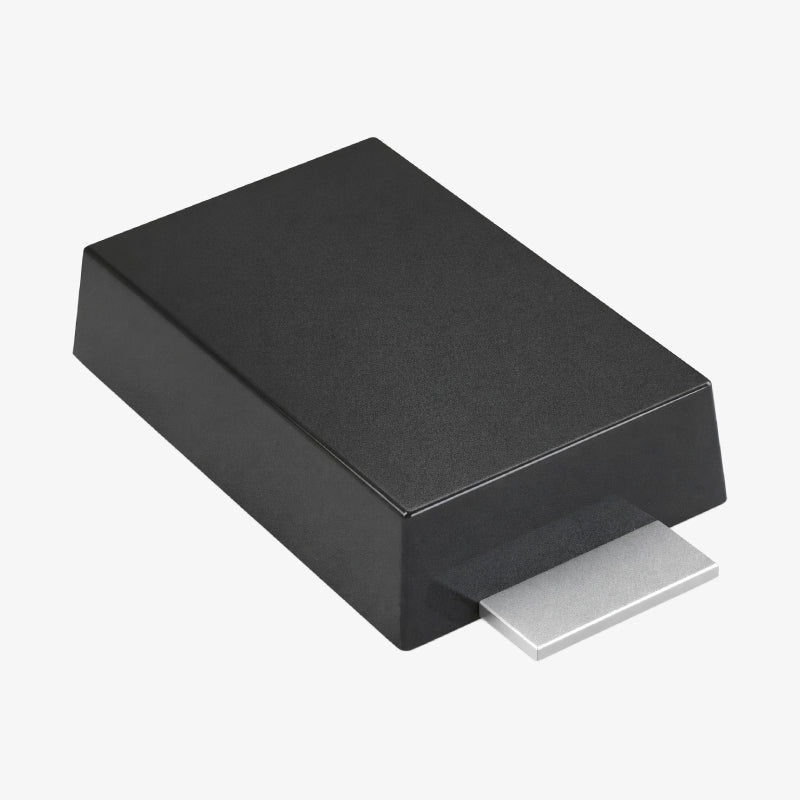

600V 2A 35ns Fast Recovery Rectifier Diode (ES2JBF) - DO-214AA SMBF Package
SKU:
SMD-QC4637
Availability:
5000
In Stock
- Rs. 3.00
- Rs. 3.00
- Unit price
- per
Subtotal:
Rs. 3.00
Description
x600V 2A 35ns Fast Recovery Rectifier Diode (ES2JBF) - DO-214AA SMBF Package is a fast recovery rectifier diode designed for high-efficiency and high-frequency switching applications, offering a 2A average rectified current, 600V DC reverse voltage capability, low forward voltage drop of 1.7V at 2A, ultra-fast reverse recovery time of 35 ns, and reliable performance in compact SMBF surface-mount form, making it suitable for SMPS, inverters, and power conversion circuits.
Features:
- Fast recovery diode for high-frequency switching
- 600V DC reverse voltage capability
- 2A average rectified current rating
- Low forward voltage drop of 1.7V at 2A
- Ultra-fast reverse recovery time of 35 ns
- High efficiency rectification performance
- RoHS compliant construction
Specifications:
- Product Type: Fast Recovery Rectifier Diode
- Rated Voltage: 600 V DC
- Rated Current: 2 A
- Forward Voltage: 1.7 V @ 2 A
- Reverse Recovery Time: 35 ns
- Mounting Type: SMD
- Package Type: SMBF
- Operating Temperature: -55°C to +150°C
- Applications: SMPS rectification, high-frequency converters, inverters, freewheeling circuits, power management electronics
Package Includes:
1 ×600V 2A 35ns Fast Recovery Rectifier Diode (ES2JBF) - DO-214AA SMBF Package
