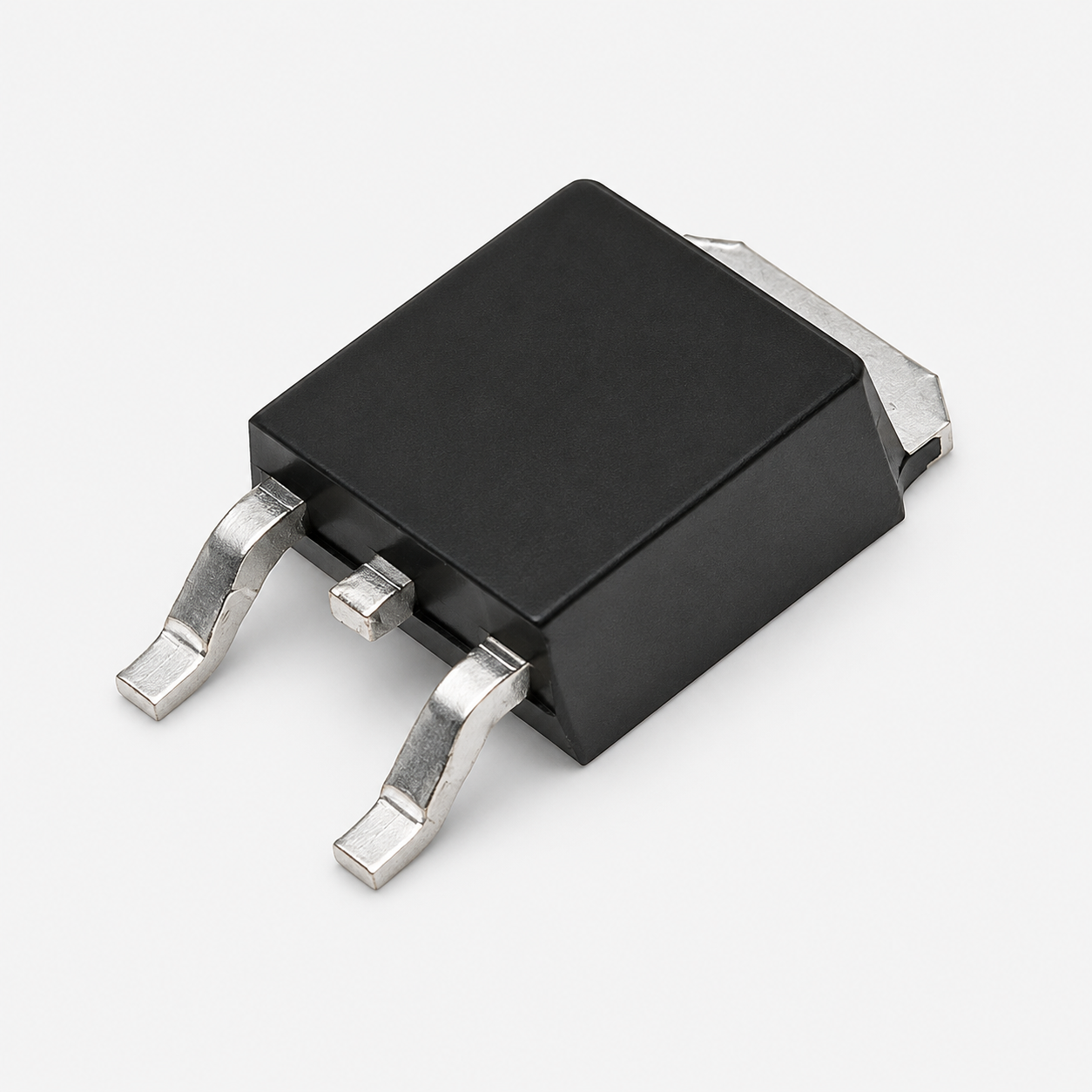

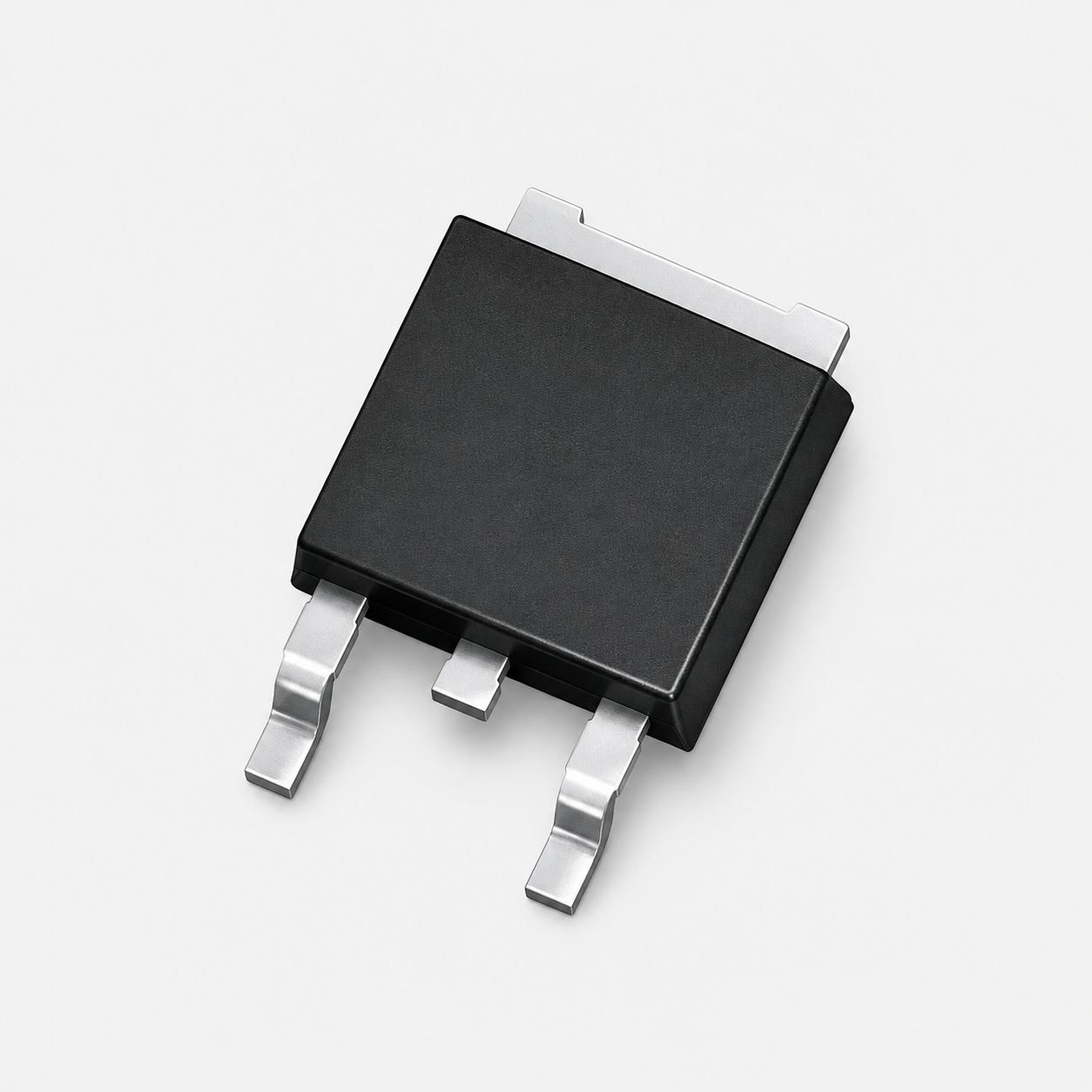

SL80N03 Slkor 1 N-channel 30V 80A MOSFET - TO-252 Package

Brand: Slkor
SKU: CMP-QC6177
Availability: 100 In Stock
Rs. 13.00
Subtotal: Rs. 13.00
Description
Description
x

SL80N03 SLKOR N-Channel 30V 80A MOSFET is a high-current N-channel enhancement-mode power MOSFET designed for efficient power switching applications. It features a 30 V drain-source voltage rating, up to 80 A continuous drain current, and very low on-state resistance of less than 6.5 mΩ at 10 V gate drive and less than 10 mΩ at 5 V gate drive. Its TO-252 package provides good heat dissipation, making it suitable for power supplies, high-current switching, hard-switched circuits, high-frequency applications, and UPS systems.

SL80N03 Slkor 1 N-channel 30V 80A MOSFET Datasheet

Features:

  1. N-channel enhancement-mode power MOSFET.
  2. 30 V drain-source voltage rating.
  3. Up to 80 A continuous drain current.
  4. Very low RDS(on) for reduced conduction losses.
  5. RDS(on) <6.5 mΩ at VGS = 10 V.
  6. RDS(on) <10 mΩ at VGS = 5 V.
  7. ±20 V gate-source voltage rating.
  8. High pulsed drain current capability.
  9. Avalanche energy characterized.
  10. Designed for efficient power switching.
  11. Suitable for high-frequency and hard-switching applications.
  12. Suitable for UPS and power supply applications.
  13. RoHS compliant.
  14. TO-252 package with good thermal dissipation.

Specifications:

Parameter Value
Product Type N-Channel Power MOSFET
Model SL80N03
Brand SLKOR
Channel Type N-Channel
Drain-Source Voltage (VDS) 30 V
Continuous Drain Current (ID) 80 A
Pulsed Drain Current (IDM) 170 A
Gate-Source Voltage (VGS) ±20 V
RDS(on) @ VGS = 10 V <6.5 mΩ
RDS(on) @ VGS = 5 V <10 mΩ
Gate Threshold Voltage 1.0 V to 2.5 V
Total Gate Charge 61 nC Typ.
Power Dissipation 83 W
Junction-to-Case Thermal Resistance 1.74°C/W
Operating / Storage Temperature -55°C to +150°C
Package TO-252
Mounting Type Surface Mount
RoHS Compliant


Pin Configuration:

Pin No. Pin Name Description
1 G Gate Control Terminal
2 D Drain Terminal
3 S Source Terminal
Tab D Drain / Thermal Tab


Also Check These Out:

CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP Package

P13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP Package

FS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD Package

IRF840 Power MOSFET - 8A - TO-220 Package

Package Includes:

1 × SL80N03 SLKOR N-Channel 30V 80A MOSFET - TO-252 Package
