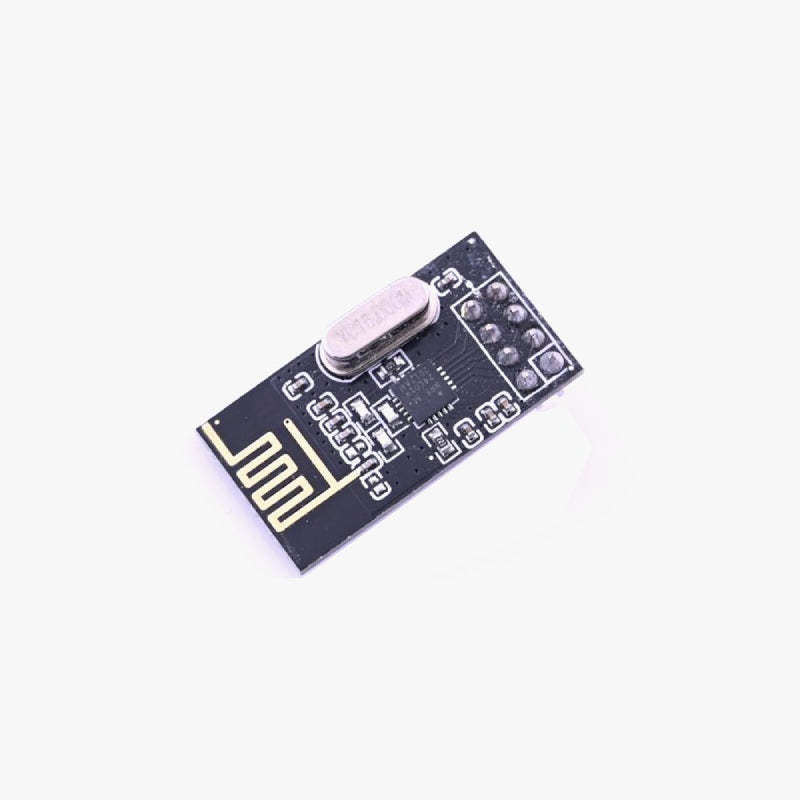

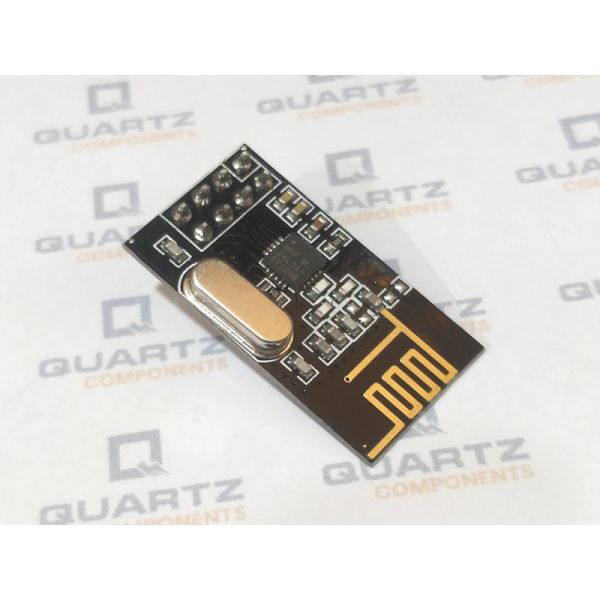

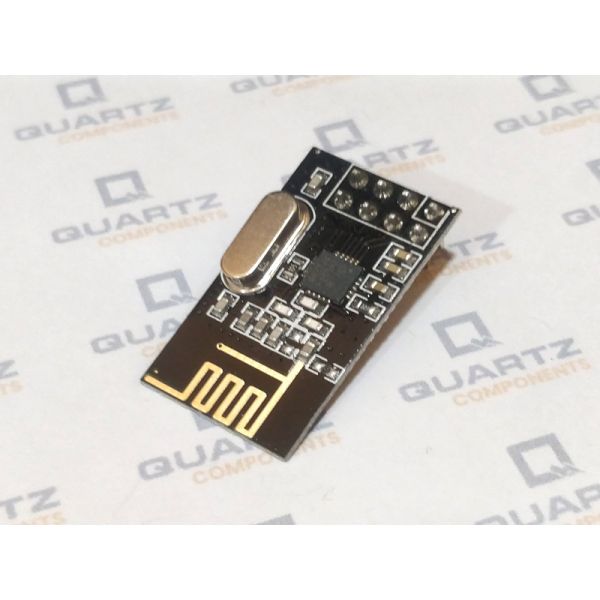

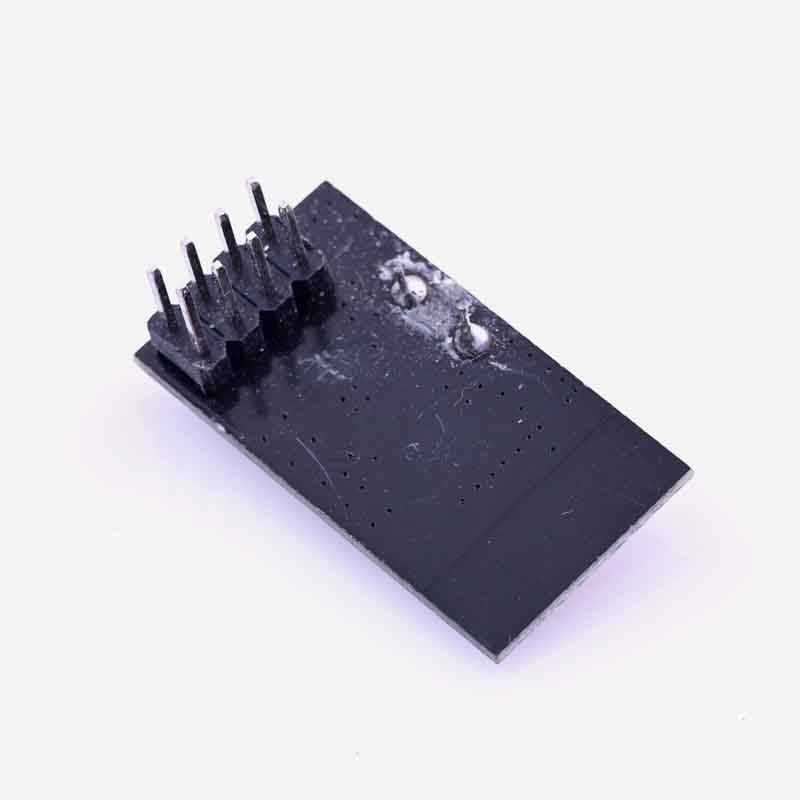

NRF24L01 2.4F RF Transceiver Module

Brand: GENERIC
SKU: MOD-QC0162
Availability: 78 In Stock
Rs. 55.00
Rs. 115.00
Rs. 55.00
Subtotal: Rs. 55.00
Description
Description
x

Radio Frequency Modules are mostly used to add wireless capability to your project, you can use Wi-Fi modules or Bluetooth modules also but Radio Frequency modules will provide a longer range without the need of the internet and hence commonly used for RC control. This 2400 MHz RF Transceiver Module is ultra-low power RF transceiver IC for the ISM (Industrial Scientific and Medical) band. The nRF Module has a transmission range of about 200m. It communicates with SPI communication protocols. The nRF24L01 module is used in many applications like communication between two devices directly, home automation, wireless alarm systems, Robot control and monitoring systems, Remote sensing of temperatures and pressures or any sensor output, etc.



Specifications

  • Low working voltage: 1.9 to 3.6 V
  • I/O input voltage: 5V
  • Wireless rate: 1 or 2 MBPS
  • SPI interface rate: 0 to 8MBPS
  • Transmission distance: 200 meters
  • Dimensions: Width: 30 mm, Height: 10 mm, Depth: 20 mm
  • Weight: 30 g


Product Description

NRF24L01 2.4F RF Transceiver Module



As the module employs SPI communication it can be used with both 3.3V and 5V microcontroller boards like Arduino, Raspberry Pi, AVR, NodeMCU, etc. Connect MOSI MISO and SCK pins to respective SPI pins of your controller and connect CE and CSN pins to any GPIO pin.
