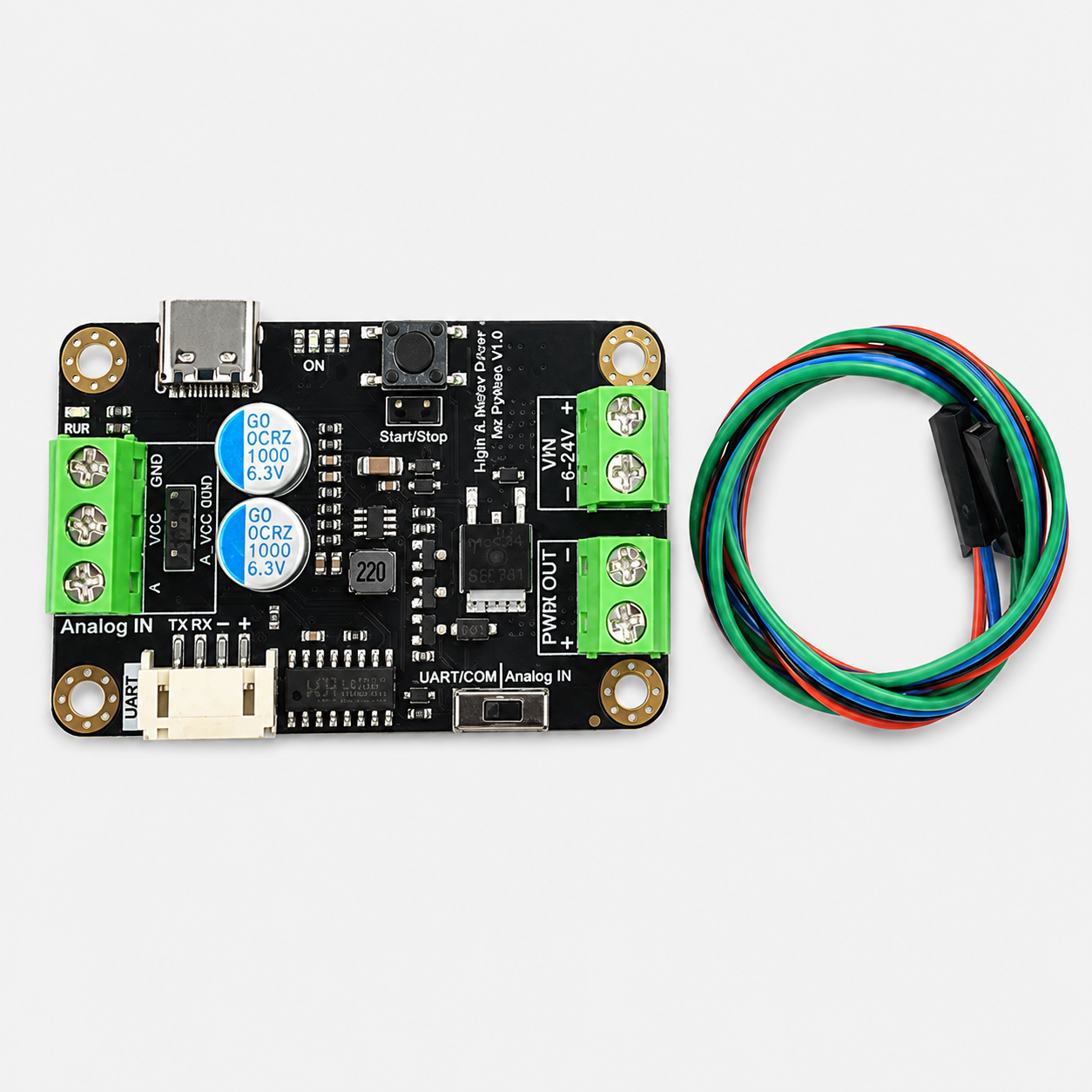

DFRobot Light & Motor Driver for Python (V1.0) is a versatile PWM driver board designed for precise control of DC motors and LED lighting using Python, PC software, UART communication, or an external potentiometer. Supporting a wide 5V–24V input voltage range and up to 10A output current, it is ideal for automation, robotics, lighting control, embedded systems, and DIY electronics projects.

| Parameter | Value |
|---|---|
| Product Type | PWM Light & Motor Driver Board |
| Brand |
DFRobot |
| Input Voltage | 5V – 24V DC |
| Maximum Output Current | 10A |
| PWM Channels | 1 Channel |
| PWM Duty Cycle Range | 0 – 255 |
| PWM Frequency Range | 183Hz – 46875Hz |
| Output Driver | High-Current MOSFET |
| Control Methods | Python, PC Software, UART, External Potentiometer |
| Communication Protocol | MODBUS |
| USB Interface | USB Type-C |
| UART Interface | PH2.0 4-Pin |
| External Potentiometer Interface | 2.54mm Pin Header & Terminal Block |
| Start/Stop Button | 1 |
| Mounting Hole Spacing | 30 × 50mm |
| Mounting Hole Diameter | 3.1mm |

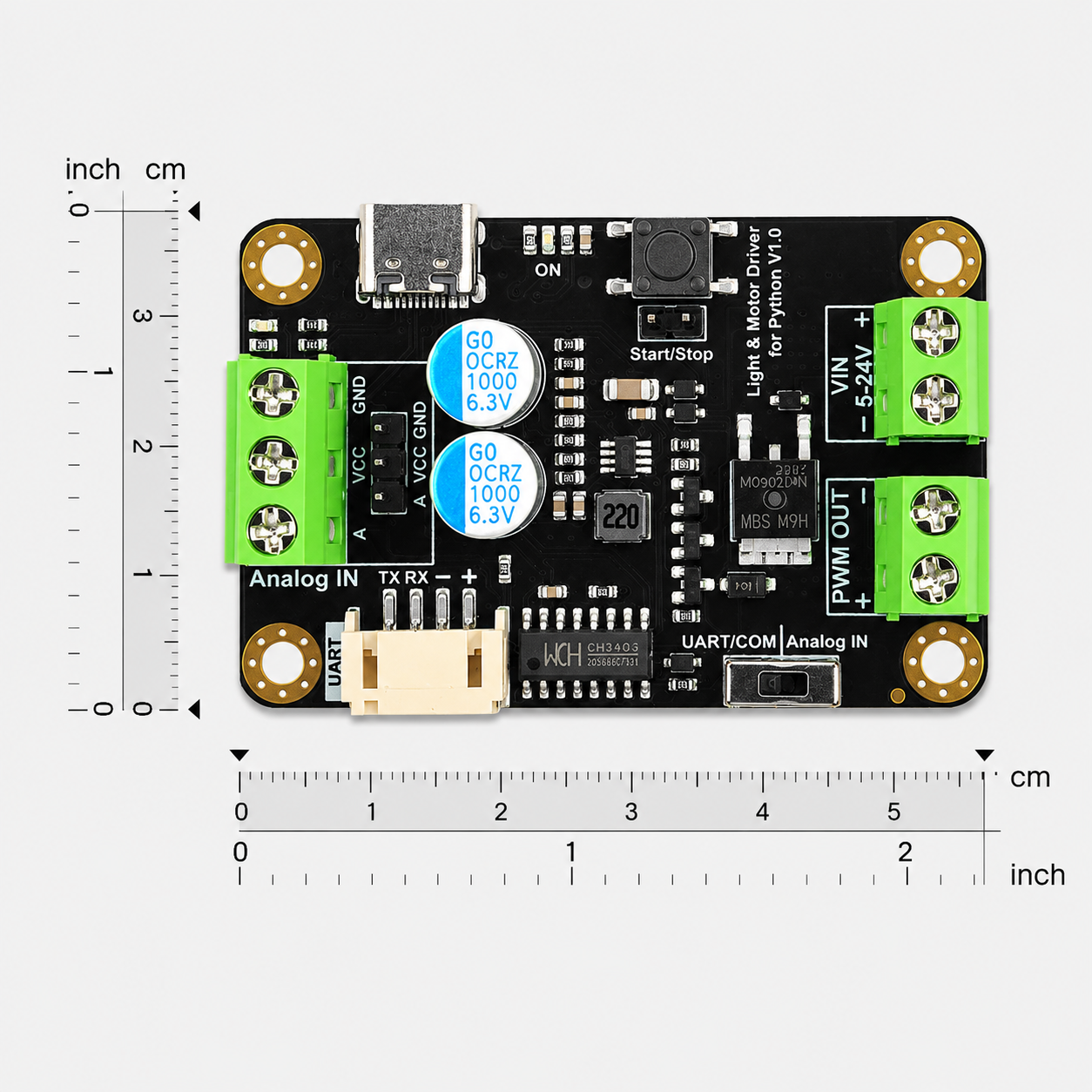

| PCB Dimensions | 37 × 57mm |
| Supported Loads | DC Motors, LED Strips, Fans, Pumps |
| Applications | Motor Speed Control, LED Dimming, Robotics, Automation, Industrial Control, Embedded Systems |
ULN2003A Motor Module Stepper Motor Driver
A3967 Stepper Motor Driver Module
1 × DFRobot Light & Motor Driver for Python (V1.0)
