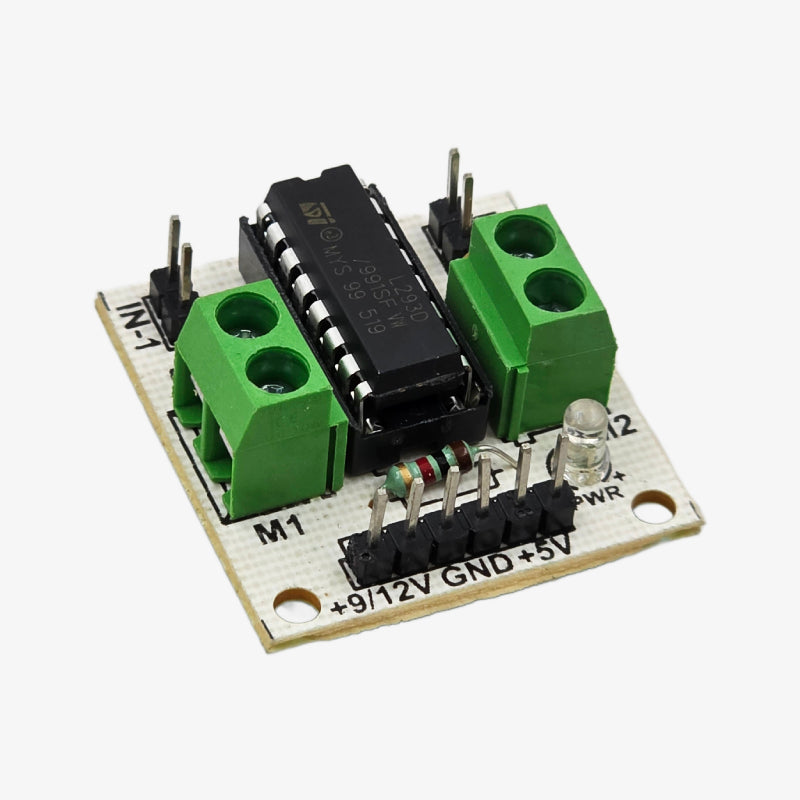

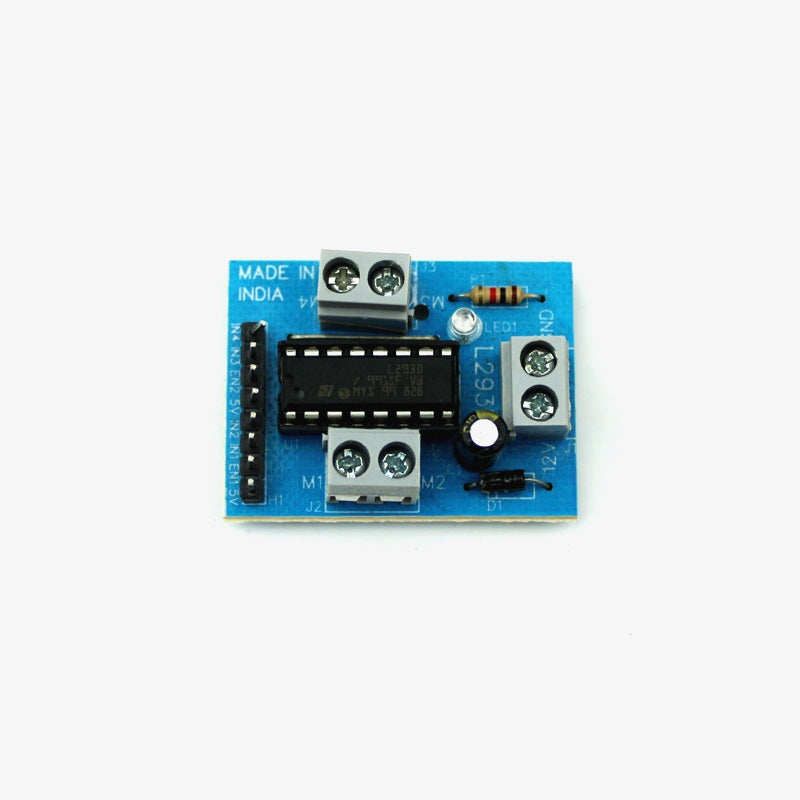

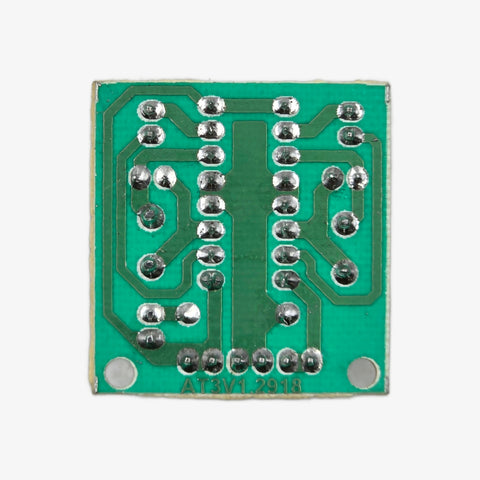

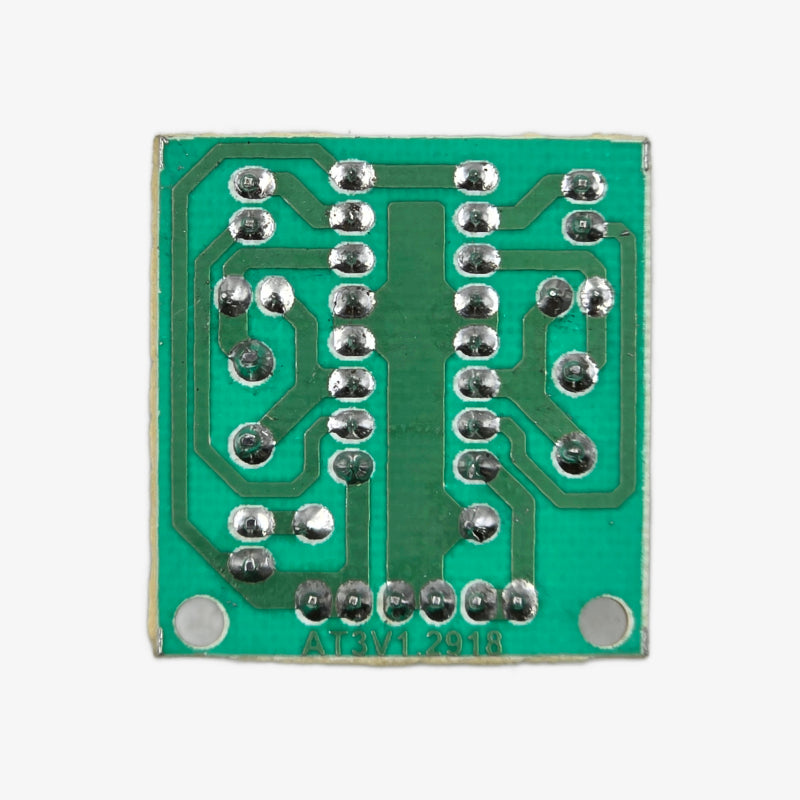

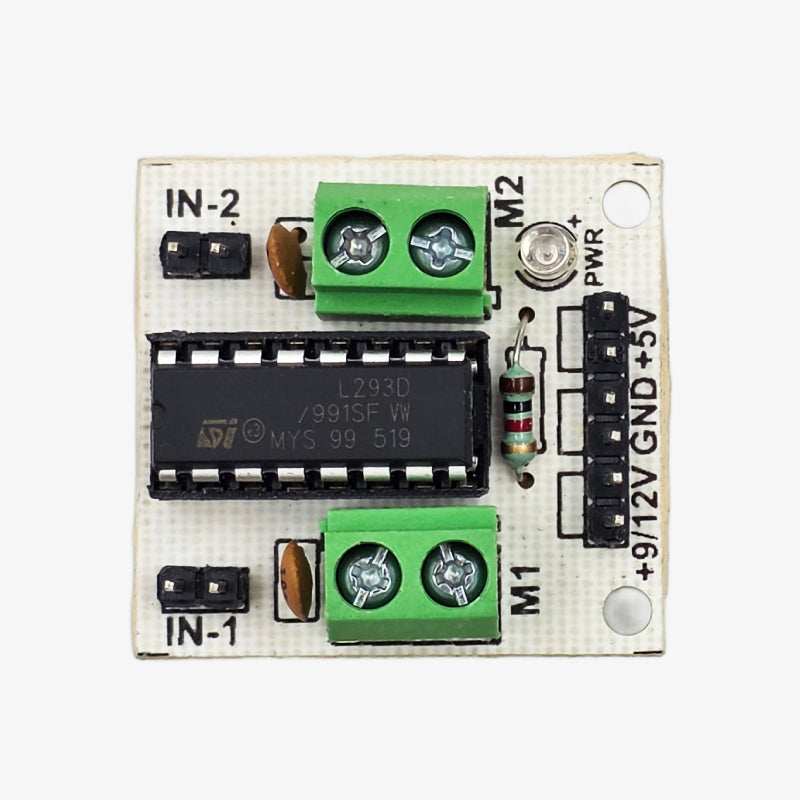

L293D Motor Driver Module L293D Motor Driver Module

QC0169

8 In stock

Rs. 118.00
-
+
Rs. 118.00
(inc. GST)

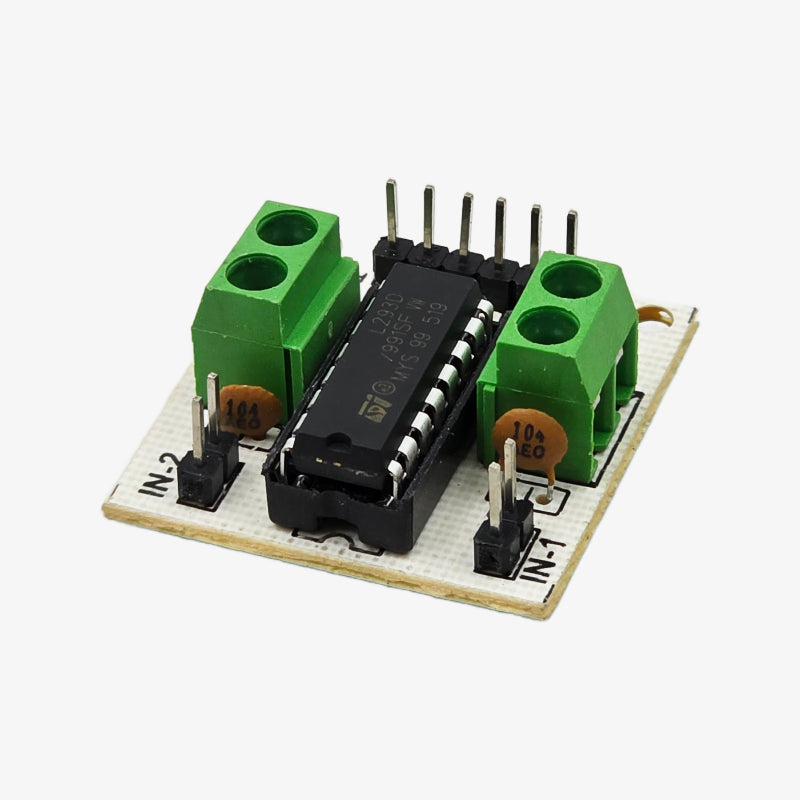

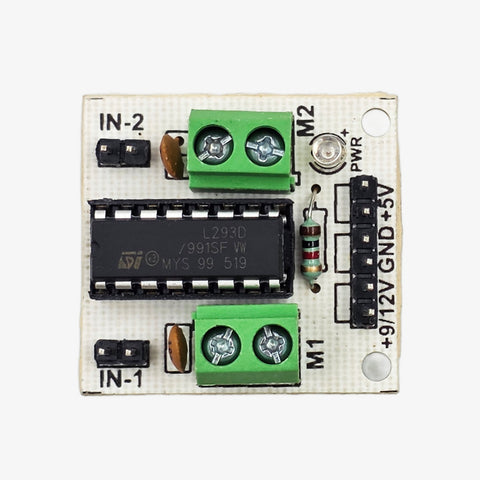

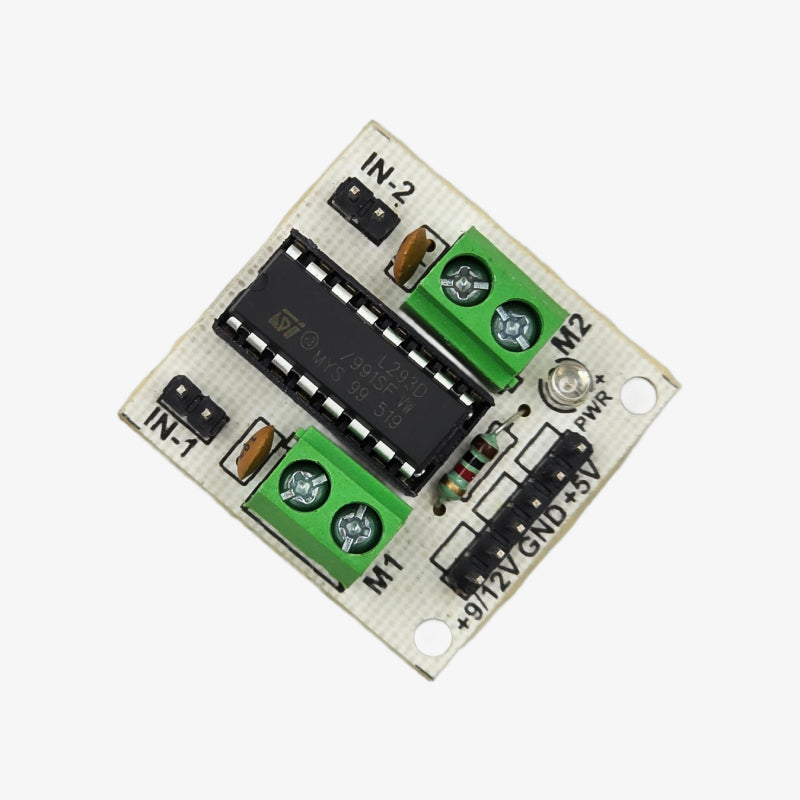

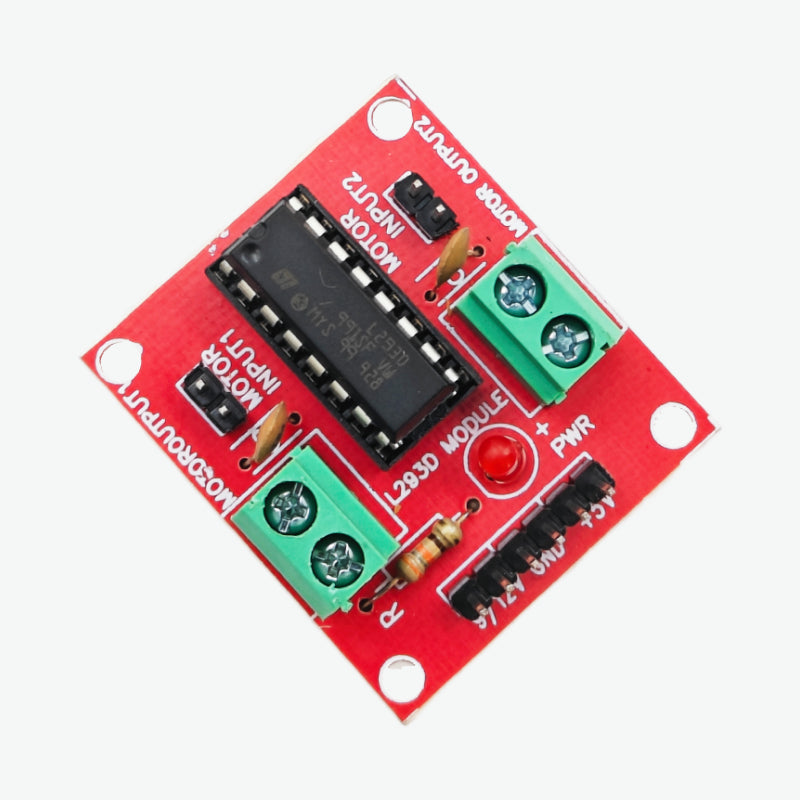

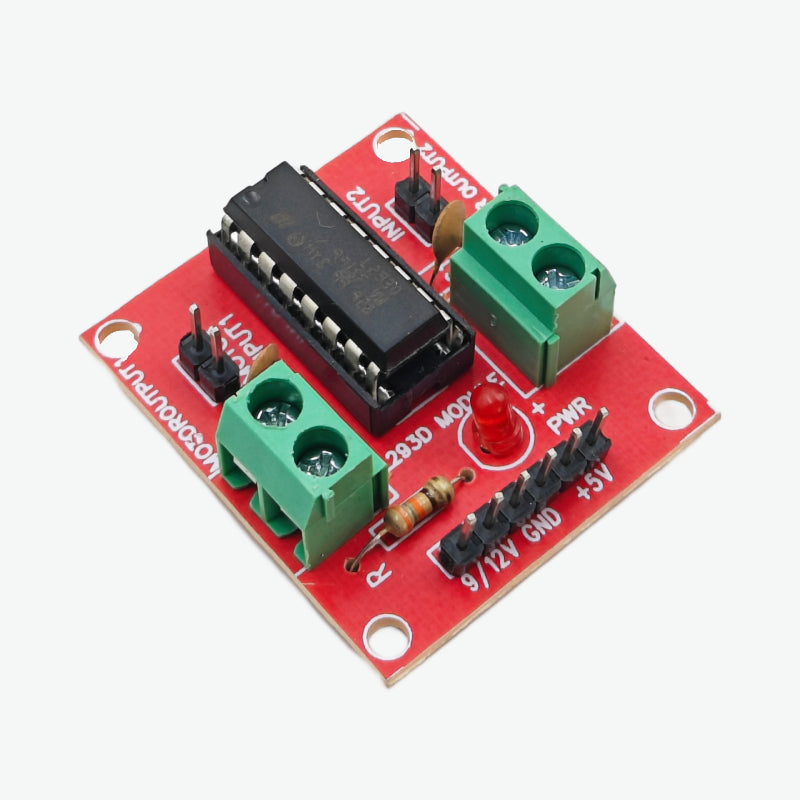

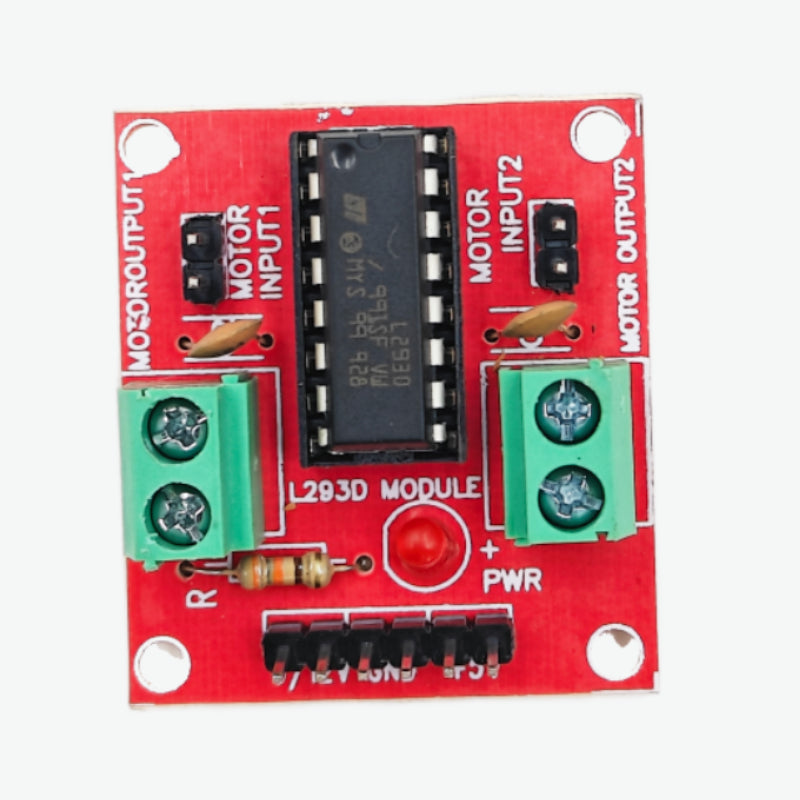

The major component in this L293D Motor Driver module is the L293D Motor Driver IC. This IC is a 16 pin half H bridge motor driver IC. It is capable of driving two DC motors or stepper motors at the same time. The direction of both the motors can be controlled independently of each other but if you just want to turn motor on or off, it can do that with four DC motors. It is used to drive the motors with voltage ratings from 5V to 36V and with a total DC current of 600mA. This l293d motor driver board can be used to drive high current circuits using digital circuits like 555 Timer, MOSFET, or microcontrollers like Arduino, Raspberry Pi, PIC, etc. It is good for robotics projects and other mechatronic projects like robot arms, follower robots, RF cars, etc.



Specifications

  • Can be used to run Two DC or stepper motors with the same IC.
  • Speed and Direction control is possible of both the motors
  • Motor voltage output VCC: 4.5V to 36V
  • Maximum Peak motor current: 1.2A
  • Maximum Continuous Motor Current: 600mA
  • Supply Voltage to the IC: 4.5V to 7V
  • Transition time: 300ns (at 5Vand 24V)
  • High Noise Immunity
  • Screw terminals to easily connect the motors



Product Description



To connect it with Arduino or any other Digital Circuit, you first need to power the device with 12V, 5V, and GND terminals, now there are Motor 1 and Motor 2 input pins available on the module, which when given the signals will control the motors as intended.



Additional Resources

L293D Motor Driver IC Datasheet

An Arduino Project with L293D Motor Driver IC



Package Contents

1×L293D Motor Driver Module

    The major component in this L293D Motor Driver module is the L293D Motor Driver IC. This IC is a 16 pin half H bridge motor driver IC. It is capable of driving two DC motors or stepper motors at the same time. The direction of both the motors can be controlled independently of each other but if you just want to turn motor on or off, it can do that with four DC motors. It is used to drive the motors with voltage ratings from 5V to 36V and with a total DC current of 600mA. This l293d motor driver board can be used to drive high current circuits using digital circuits like 555 Timer, MOSFET, or microcontrollers like Arduino, Raspberry Pi, PIC, etc. It is good for robotics projects and other mechatronic projects like robot arms, follower robots, RF cars, etc.



    Specifications

    • Can be used to run Two DC or stepper motors with the same IC.
    • Speed and Direction control is possible of both the motors
    • Motor voltage output VCC: 4.5V to 36V
    • Maximum Peak motor current: 1.2A
    • Maximum Continuous Motor Current: 600mA
    • Supply Voltage to the IC: 4.5V to 7V
    • Transition time: 300ns (at 5Vand 24V)
    • High Noise Immunity
    • Screw terminals to easily connect the motors



    Product Description



    To connect it with Arduino or any other Digital Circuit, you first need to power the device with 12V, 5V, and GND terminals, now there are Motor 1 and Motor 2 input pins available on the module, which when given the signals will control the motors as intended.



    Additional Resources

    L293D Motor Driver IC Datasheet

    An Arduino Project with L293D Motor Driver IC



    Package Contents

    1×L293D Motor Driver Module
