L14F1 Photodarlington
SKU:
CMP-QC6350
Availability:
24
In Stock
-
- Rs. 242.00
- Unit price
- per
Subtotal:
Rs. 242.00
Description

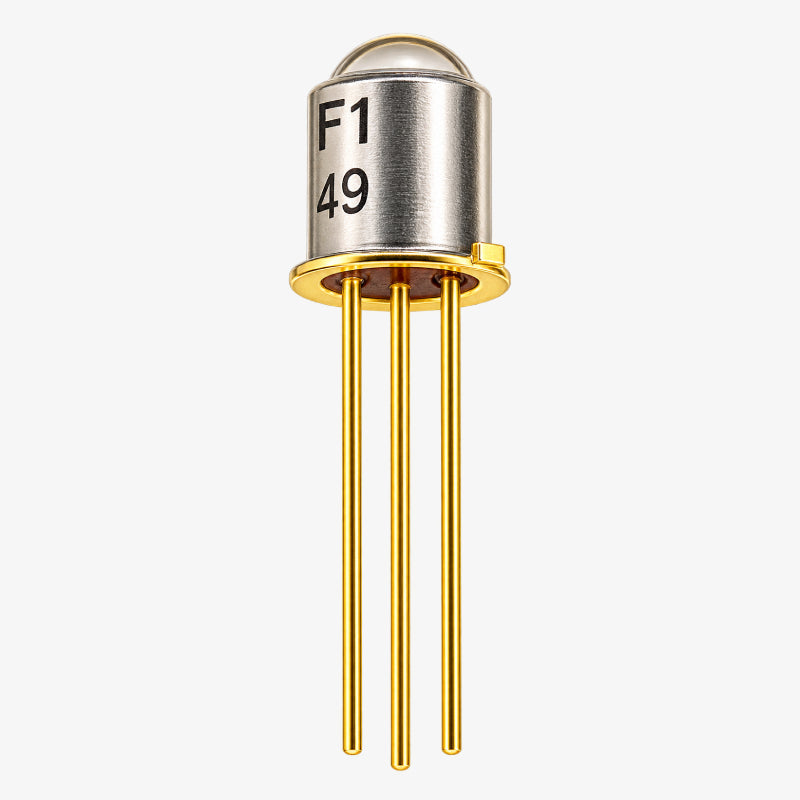

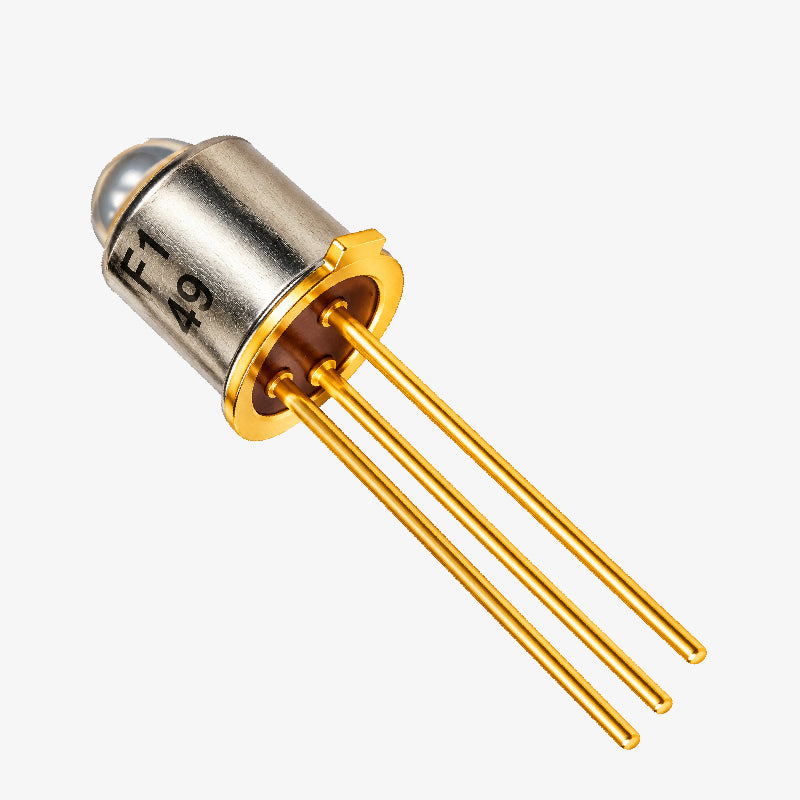

xL14F1 Photodarlington is a hermetically sealed silicon photodarlington transistor housed in a narrow-angle TO-18 metal-can package. It is designed for optical detection applications and provides high sensitivity with an NPN phototransistor configuration.
L14F1 Photodarlington Datasheet
Features:
- Silicon photodarlington transistor
- Hermetically sealed package
- Narrow reception angle
- NPN polarity
- Through-hole mounting
- TO-18 metal-can package
- 940nm wavelength
- 25V collector-emitter breakdown voltage
- 25V collector-base breakdown voltage
- 12V emitter-base breakdown voltage
- 7.5mA maximum collector current
- ±8° reception angle
- -65°C to +125°C operating temperature range
Specifications:
| Specification | Value |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Part Number | L14F1 |
| Product Type | Photodarlington |
| Transistor Type | NPN |
| Material | Silicon |
| Package | TO-18 |
| Mounting Type | Through Hole |
| Number of Pins | 3 |
| Collector-Emitter Breakdown Voltage | 25V |
| Collector-Base Breakdown Voltage | 25V |
| Emitter-Base Breakdown Voltage | 12V |
| Maximum Collector Current | 7.5mA |
| Power Dissipation | 300mW |
| Wavelength | 940nm |
| Reception Angle | ±8° |
| Operating Temperature | -65°C to +125°C |
| Storage Temperature | -65°C to +150°C |
Also Check These Products:-
CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP Package
P13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP Package
FS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD Package
IRF840 Power MOSFET - 8A - TO-220 Package
Package Includes:
1 × L14F1 Photodarlington
