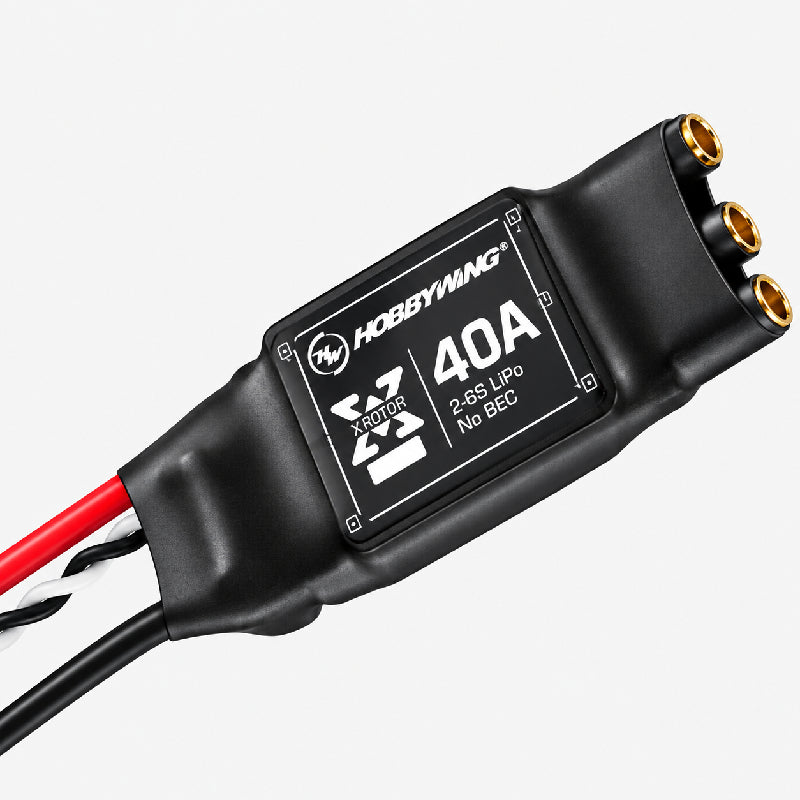

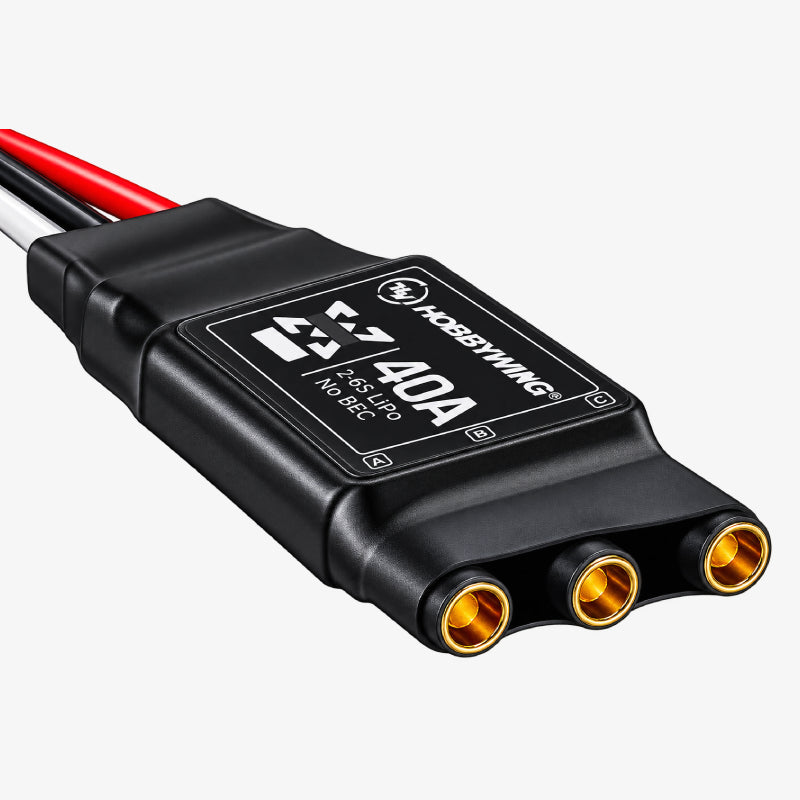

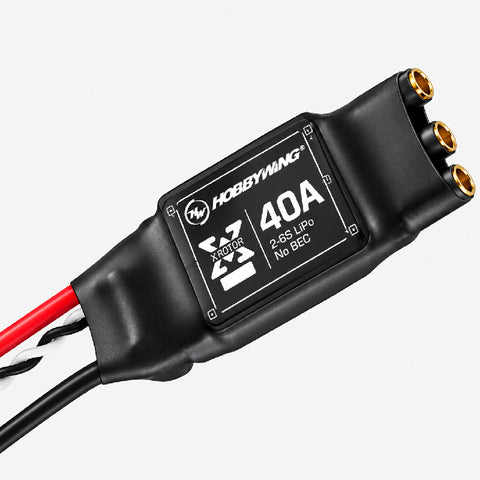

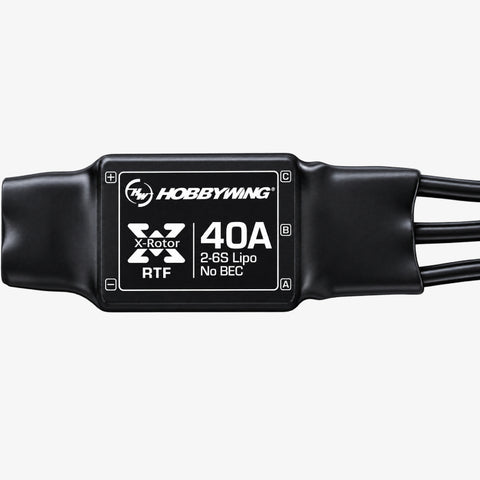

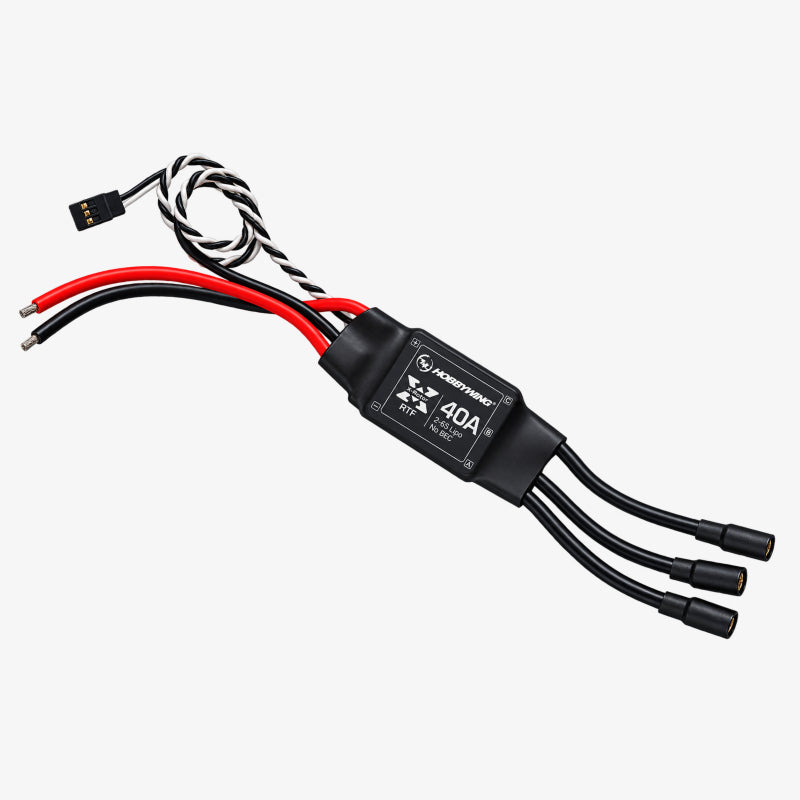

Hobbywing XRotor 40A 2-6S Brushless ESC for Multirotor Drones

Brand: GENERIC
SKU: MTR-QC6284
Availability: 4 In Stock
Rs. 1,550.00
Subtotal: Rs. 1,550.00
Description
Description
x

Hobbywing XRotor 40A 2-6S Brushless ESC for Multirotor Drones is a dedicated multirotor brushless electronic speed controller designed for 2S–6S LiPo propulsion systems. It provides 40A continuous current and 60A peak current for 10 seconds, with no built-in BEC. The ESC uses a dedicated multirotor control program for rapid throttle response and supports throttle signals up to 621Hz. Timing is the programmable parameter, with High and Intermediate settings available.

Features:

  1. 40A continuous current rating
  2. 60A peak current for 10 seconds
  3. Supports 2S–6S LiPo batteries
  4. Dedicated multirotor ESC program
  5. Rapid throttle response
  6. Supports throttle signals up to 621Hz
  7. Throttle range calibration supported
  8. Stick programming supported
  9. Adjustable motor timing
  10. High and Intermediate timing settings
  11. Twisted-pair throttle signal cable
  12. Low internal resistance MOSFET design
  13. No built-in BEC
  14. Designed for 550/650 class multirotors
  15. Compatible with various flight-control systems

Specifications:

Specification Value
Brand Hobbywing
Series XRotor
Model XRotor 40A 6S BLDC
Product Type Brushless Electronic Speed Controller
Application Multirotor
Continuous Current 40A
Peak Current 60A
Peak Current Duration 10 seconds
Battery Type LiPo
Battery Cell Range 2S–6S
BEC Output No
Programmable Parameter Timing
Timing Settings High / Intermediate
Maximum Throttle Signal Frequency 621Hz
Dimensions 68 × 25 × 8.7mm
Weight 26g


Also Check These Products:-

Emax Lightning 30A Brushless ESC

BLS-MAX BLHeli Series 30A ESC - Brushless DC Motor Electronic Speed Controller with Oneshot (Original)

Emax BLHeli Series 30A ESC - Brushless DC Motor Electronic Speed Controller with Oneshot

30A 4-8V Mini Brushed Electric Speed Controller ESC - No Brake

Package Includes:

1 × Hobbywing XRotor 40A 2-6S Brushless ESC for Multirotor Drones
