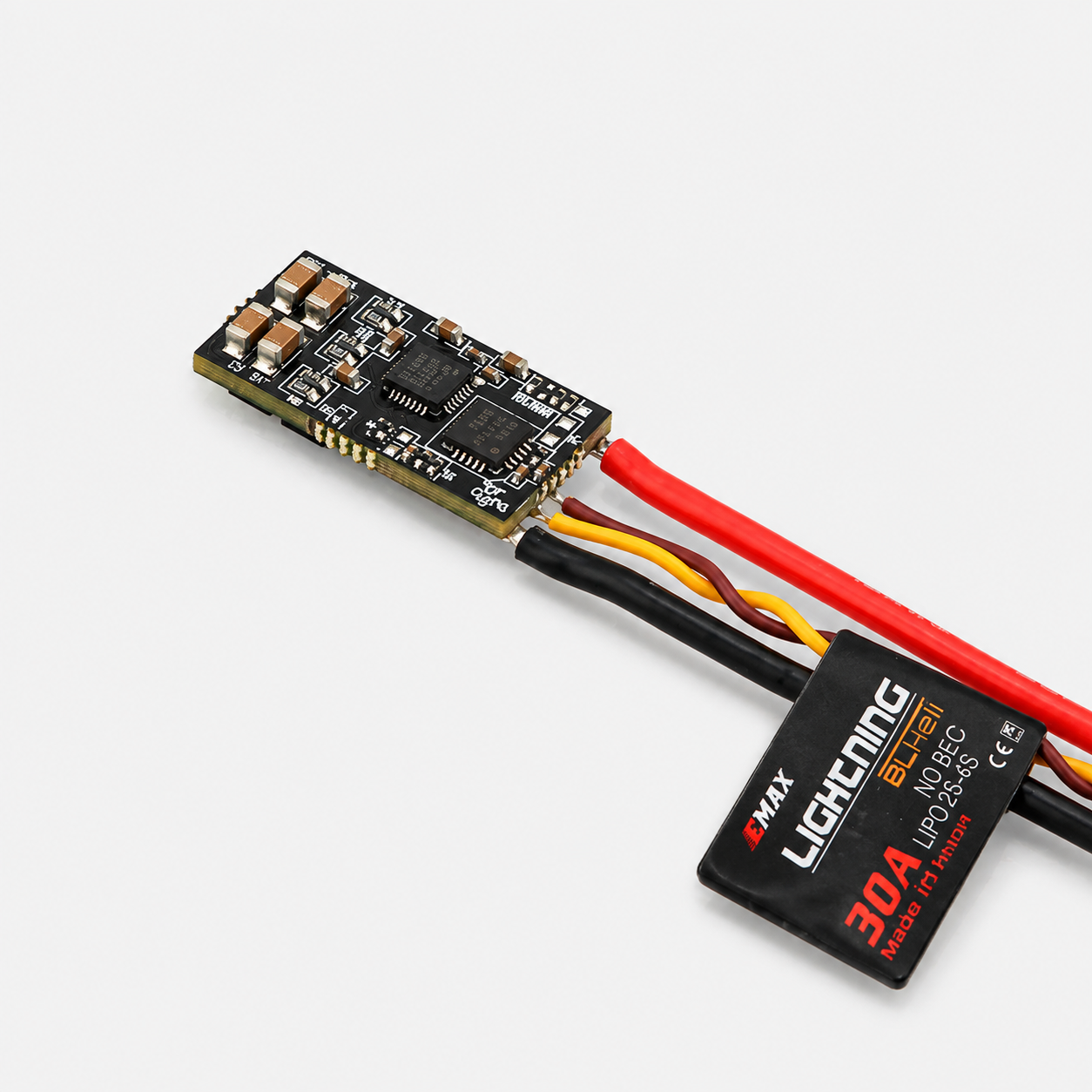

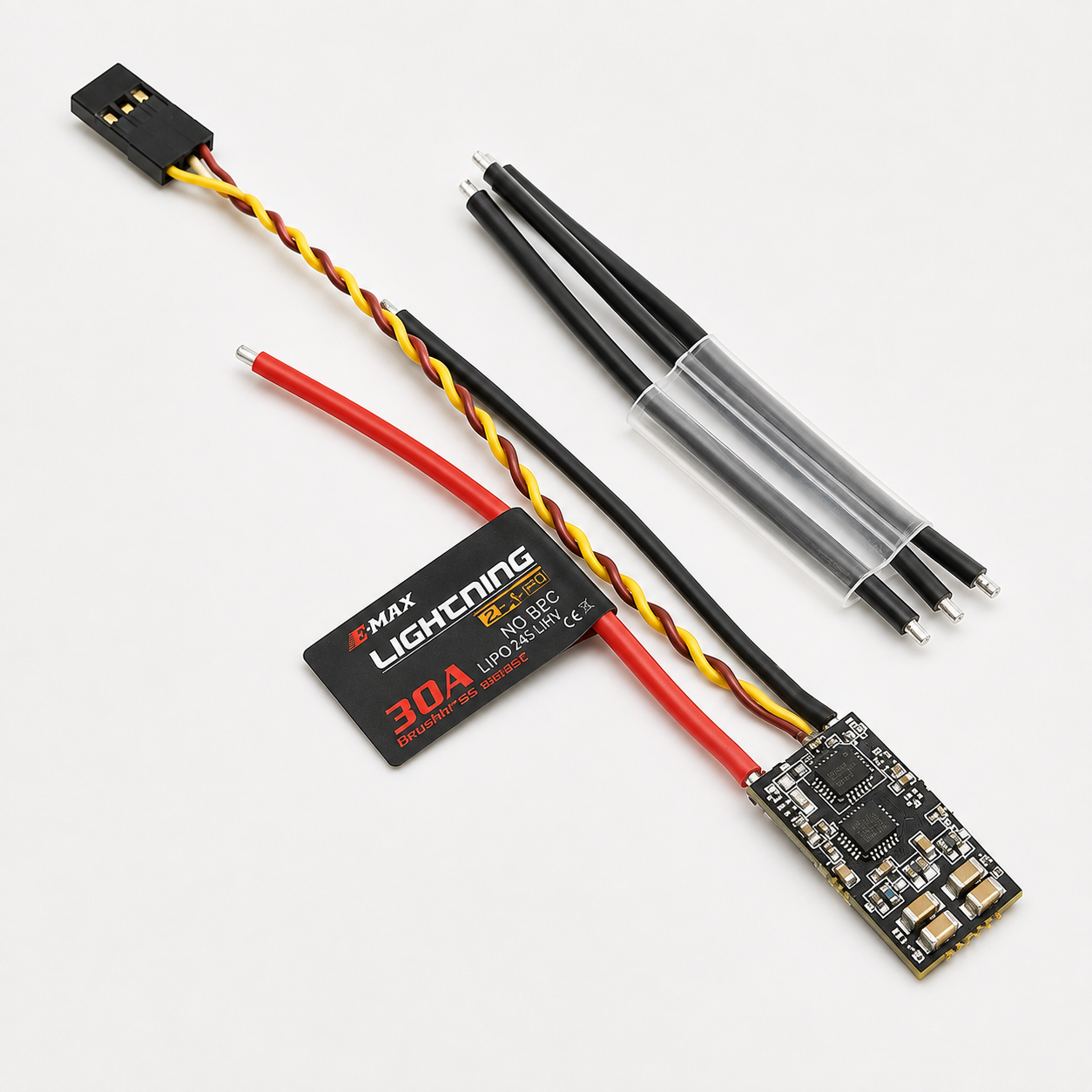

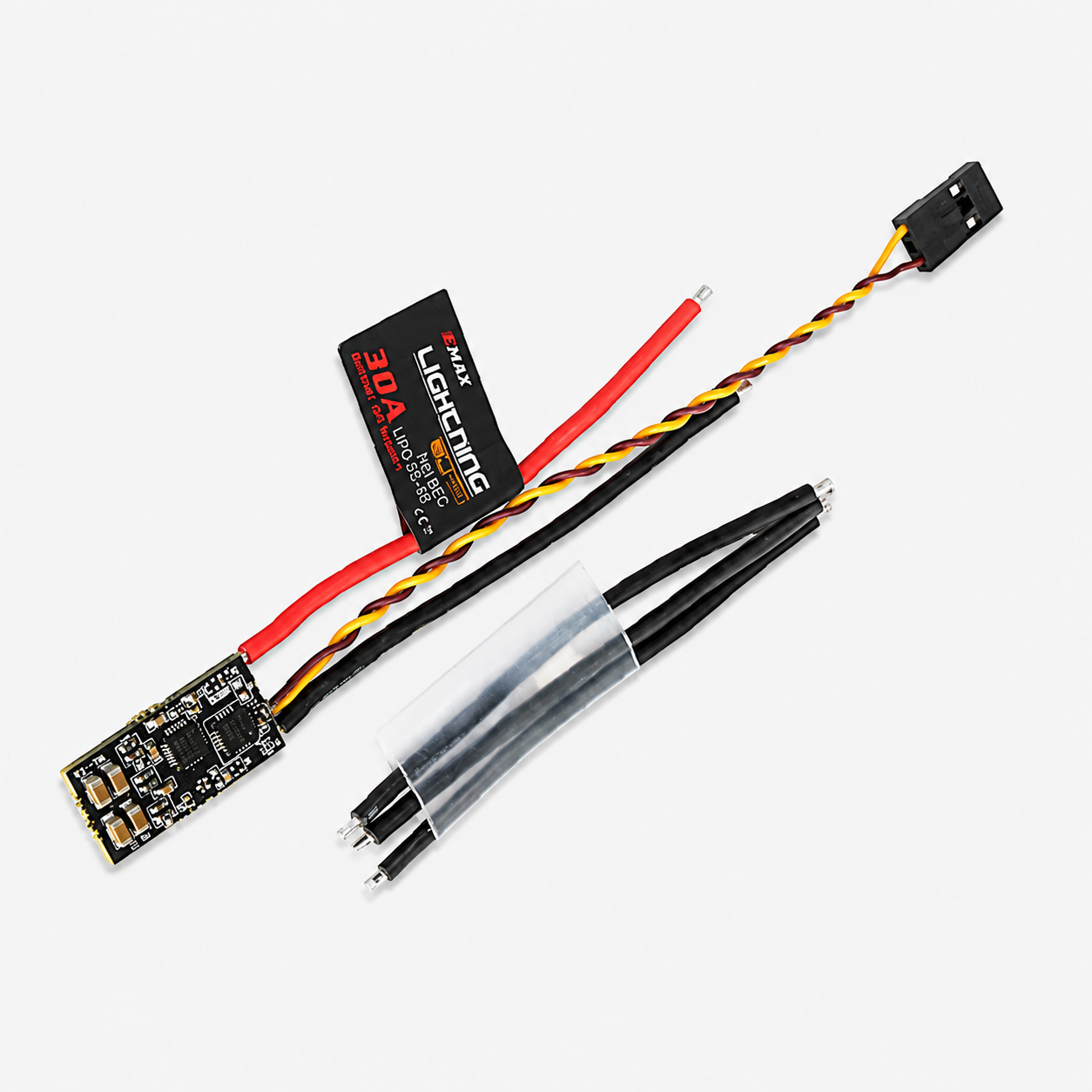

Emax Lightning 30A Brushless ESC
SKU:
MTR-QC6087
Availability:
10
In Stock
-
- Rs. 1,625.00
- Unit price
- per
Subtotal:
Rs. 1,625.00
Description
xOriginal Emax Lightning 30A Brushless ESC is a lightweight, high-performance electronic speed controller designed for FPV racing drones, quadcopters, multirotors, and RC aircraft. Powered by a high-speed F396 MCU and BLHeli_S firmware, it delivers smooth throttle response, active braking, and reliable motor control. Its compact design and support for modern flight protocols make it an excellent choice for high-performance drone builds.
Features:
- High-performance 30A brushless electronic speed controller.
- Powered by high-speed F396 MCU.
- BLHeli_S firmware for smooth and responsive throttle control.
- Supports active braking (Damped Light).
- Firmware upgradeable via the signal wire.
- Supports OneShot and MultiShot protocols.
- Compatible with 2S–4S LiPo batteries.
- Compact and lightweight design for FPV drones.
- Anti-counterfeit authenticity verification.
- Ideal for FPV racing drones, quadcopters, multirotors, and RC aircraft.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Brushless Electronic Speed Controller (ESC) |
| Model | Emax Lightning 30A |
| MCU | F396 |
| Firmware | BLHeli_S |
| Continuous Current | 30A |
| Burst Current | 40A (10 Seconds) |
| Input Voltage | 2S–4S LiPo (6.6V–16.8V) |
| BEC | No (OPTO) |
| Supported Protocols | PWM, OneShot, MultiShot |
| Active Braking | Supported |
| Firmware Upgrade | Via Signal Wire |
| Maximum Supported Cell Voltage | 4.35V Per Cell (HV LiPo Compatible) |
| Dimensions | 24.5 × 12.5 × 5.0mm |
| Weight | Approximately 5.5g |
| Applications | FPV Racing Drones, Quadcopters, Multirotors, RC Airplanes, UAVs, DIY Drone Projects |
Also Check These Out:
Emax MT2213 935kV Brushless Drone Motor with 1045 Propeller Set CW
Emax MT2213 935kV Brushless Drone Motor CCW without Propeller Set - Red Cap
Emax BLHeli Series 30A ESC - Brushless DC Motor Electronic Speed Controller with Oneshot
Package Includes:
1 × Original Emax Lightning 30A Brushless ESC
