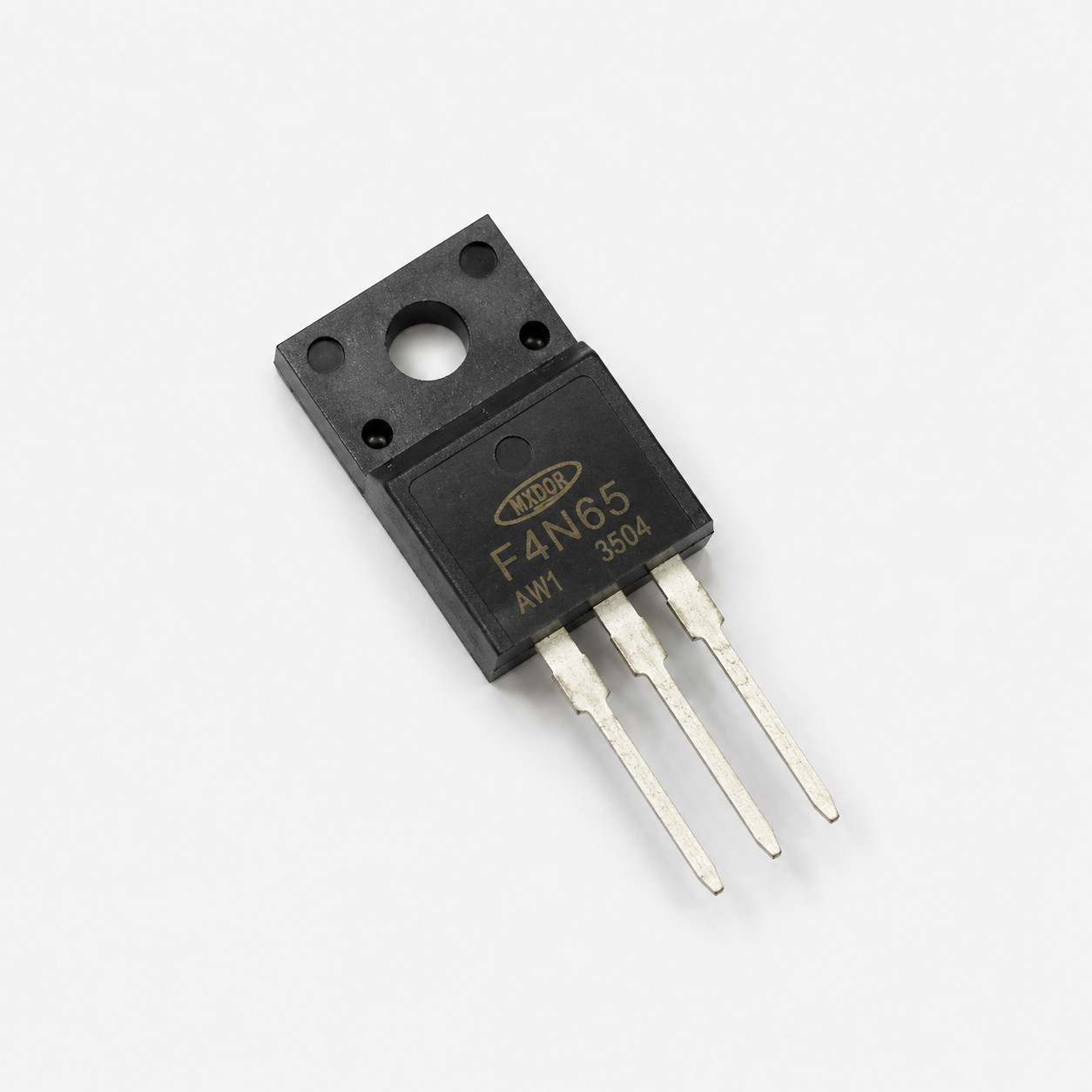

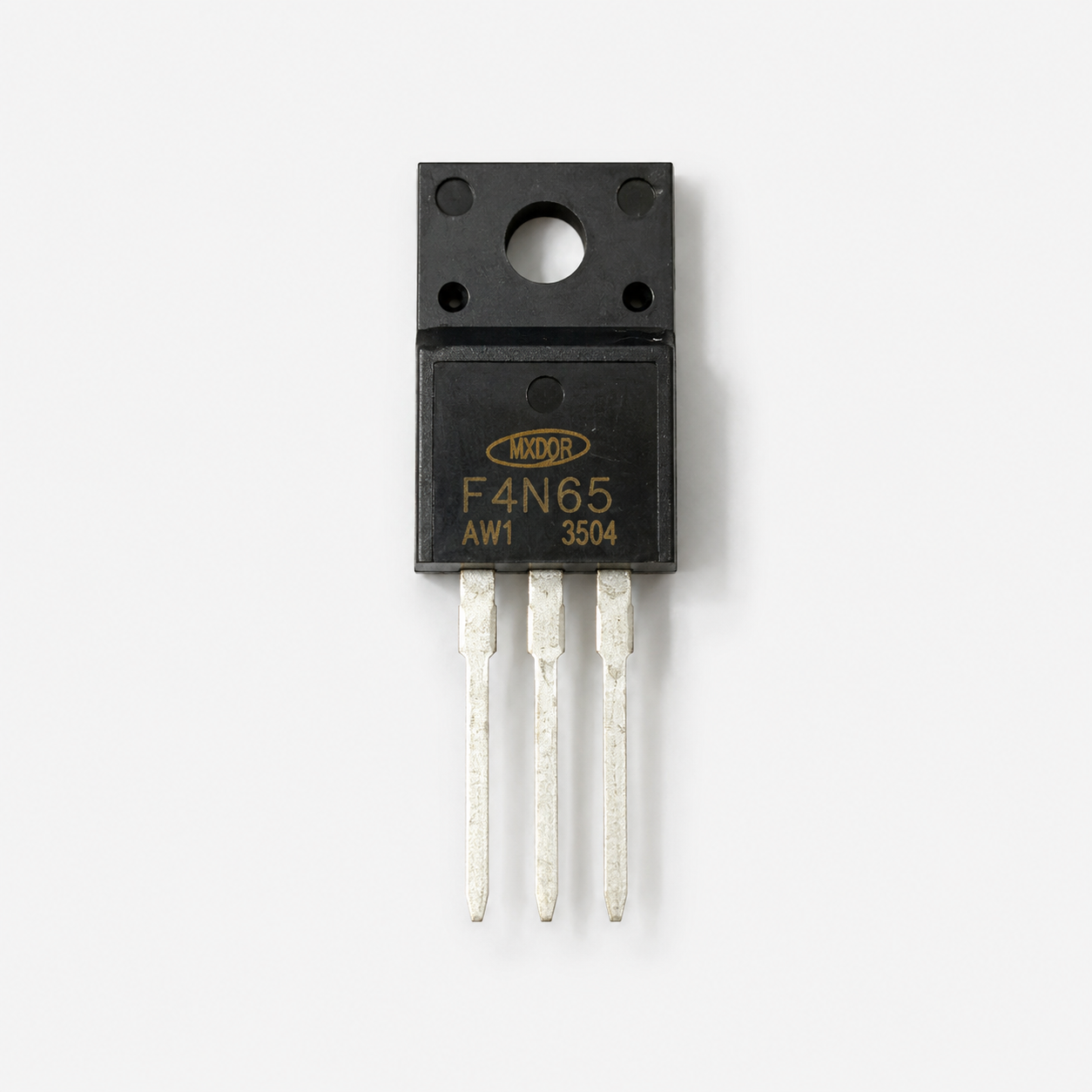

F4N65 N-Channel 650V 4A Power MOSFET - TO-220 Package

Brand: GENERIC
SKU: CMP-QC6008
Availability: 1000 In Stock
Rs. 16.00
Subtotal: Rs. 16.00
Description
Description
x

F4N65 N-Channel 650V 4A Power MOSFET - TO-220 Package is a high-voltage N-channel enhancement mode power MOSFET designed for switching power supplies, LED drivers, battery chargers, adapters, inverters, and other high-frequency power switching applications. Featuring a 650V drain-source voltage, 4A continuous drain current, low ON resistance, fast switching performance, and high avalanche capability, it provides reliable and efficient operation in demanding power circuits.

Features:

  1. 650V Drain-Source Voltage
  2. 4A Continuous Drain Current
  3. N-Channel Enhancement Mode MOSFET
  4. Low ON-State Resistance
  5. Fast Switching Performance
  6. High Avalanche Energy Capability
  7. High dv/dt Ruggedness
  8. Low Gate Charge
  9. TO-220 Through-Hole Package
  10. RoHS Compliant
  11. Suitable for SMPS, LED Drivers, Adapters, and Inverters

Specifications:

Parameter Value
Product Type N-Channel Power MOSFET
Model F4N65
Drain-Source Voltage (VDS) 650V
Continuous Drain Current (ID) 4A
Pulsed Drain Current (IDM) 8A
Gate-Source Voltage (VGS) ±30V
Drain-Source ON Resistance (RDS(on)) 2.6Ω Max @ VGS = 10V
Gate Threshold Voltage (VGS(th)) 2V to 4V
Power Dissipation (PD) 32W
Single Pulse Avalanche Energy (EAS) 173mJ
Operating Junction Temperature -55°C to +150°C
Storage Temperature -55°C to +150°C
Thermal Resistance (Junction to Case) 4°C/W
Package Type TO-220
Mounting Type Through Hole (THT)
Polarity N-Channel
Compliance RoHS



Also Check These Out:

CMF13N65 CMOS N-Channel MOSFET - TO-220F DIP Package

P13NK60ZFP N-Channel MOSFET 600V 13A - TO-220 DIP Package

FS8205A Dual N-Channel Power MOSFET - TSSOP-8 SMD Package

IRF840 Power MOSFET - 8A - TO-220 Package

Package Includes:

1 x F4N65 N-Channel 650V 4A Power MOSFET - TO-220 Package
