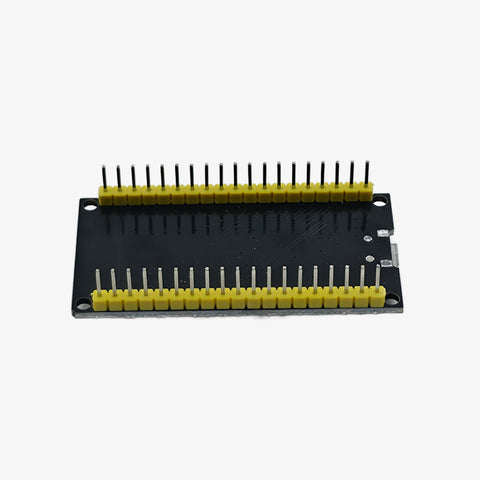

ESP32 Development Board (WIFI+BLUETOOTH) ESP32 Development Board (WIFI+BLUETOOTH)

QC0404

100 In stock

Rs. 390.00
-
+
Rs. 390.00
(inc. GST)
[Delivery: 2 to 5 days]

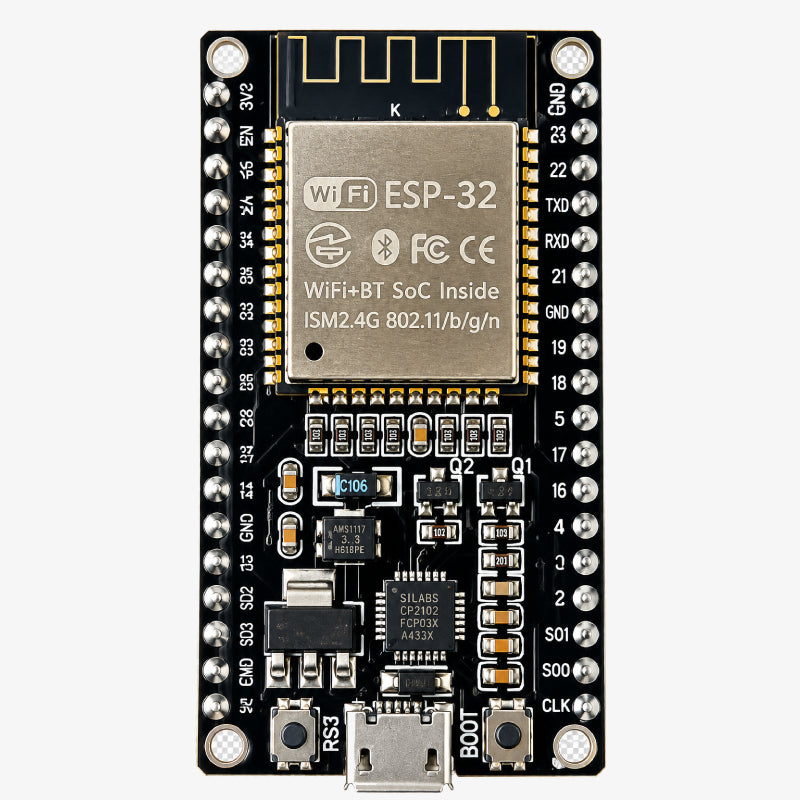

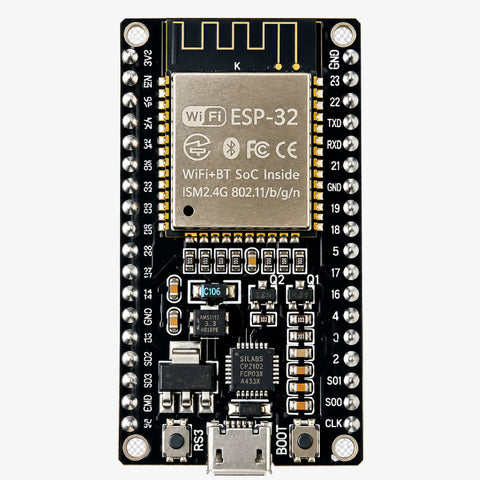

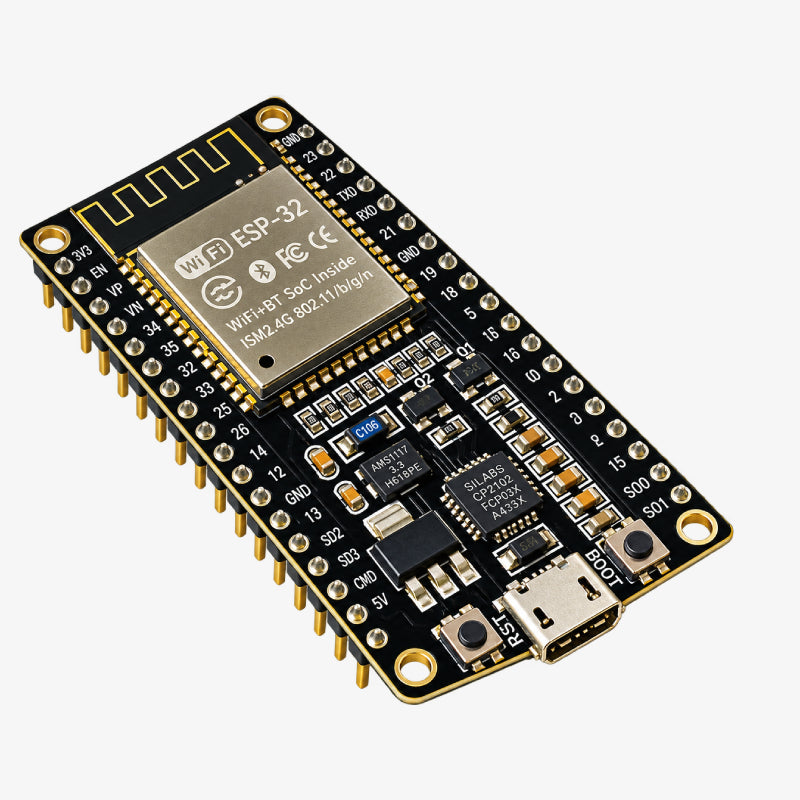

The ESP32 is a Wi-Fi Development Board with in-built Bluetooth Low Energy (BLE) that is commonly used in IoT applications. The Board is based on the ESP WROOM32 Module from Espressif Systems. The compact Module can work on 3.3V and consumes low power making it suitable for portable battery powered applications.

It has a dual mode 2.4 GHz Wi-Fi with 40nm low power TSMC technology making it safe reliable and scalable.  The board also has a CP2102 USB-UART bridge making it easier to use serial communication for debugging. The Board can be used with Arduino IDE and also with Lua Programming Environment.



Product Description of ESP32 Development Board

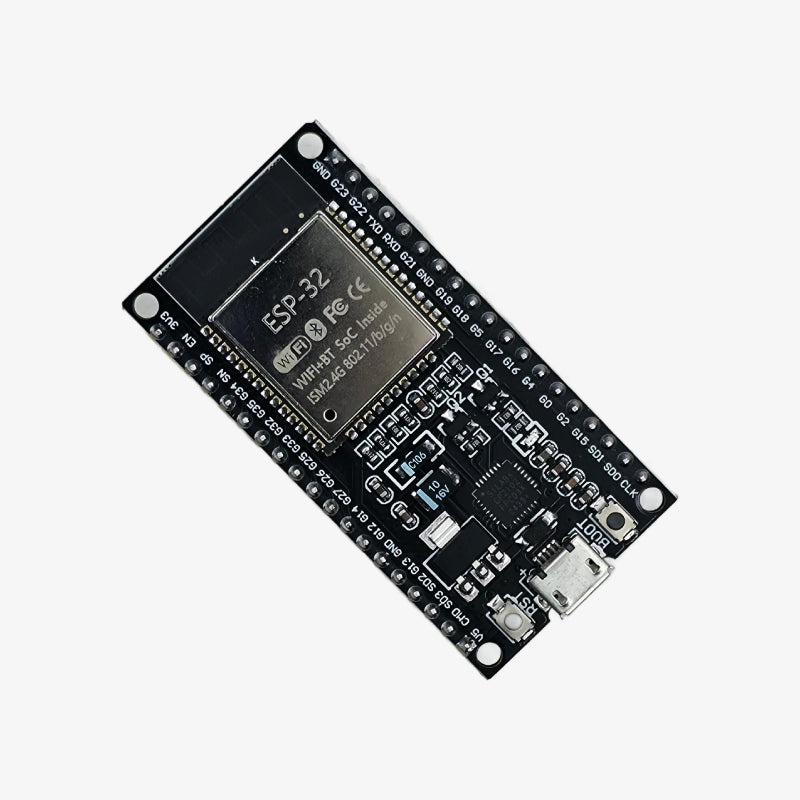

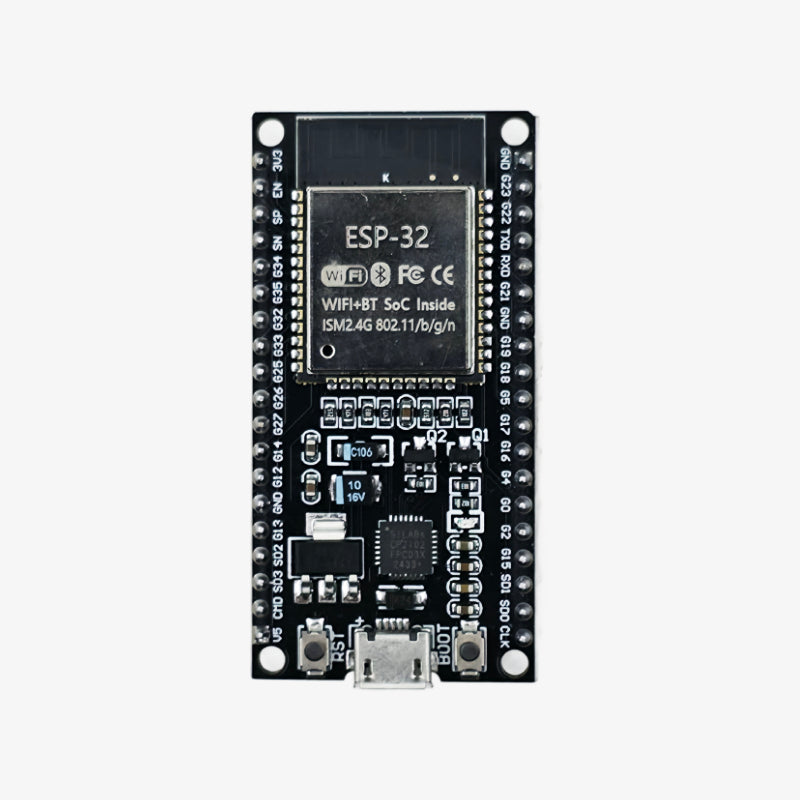

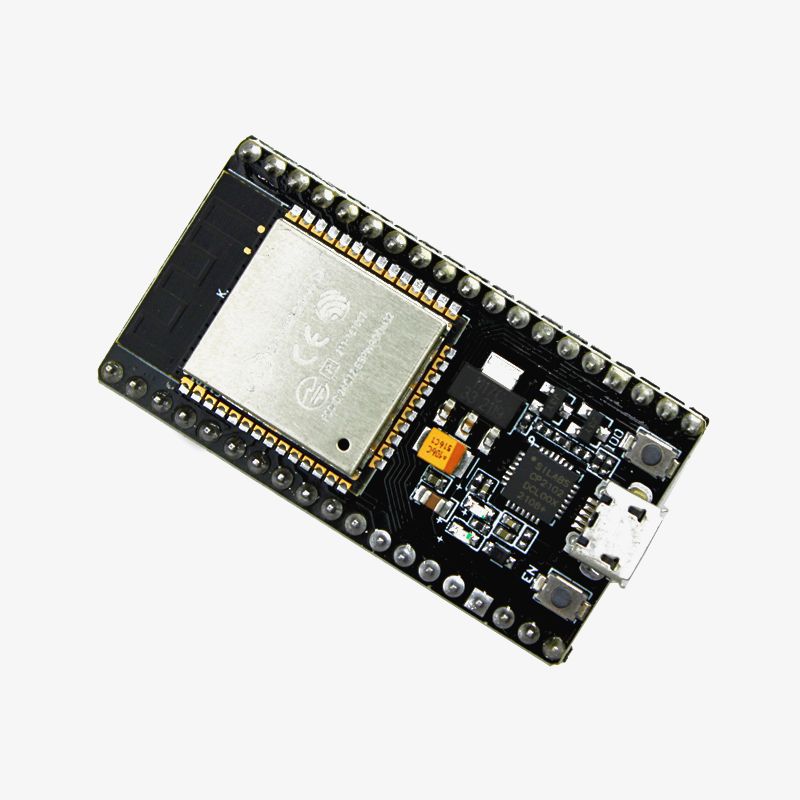

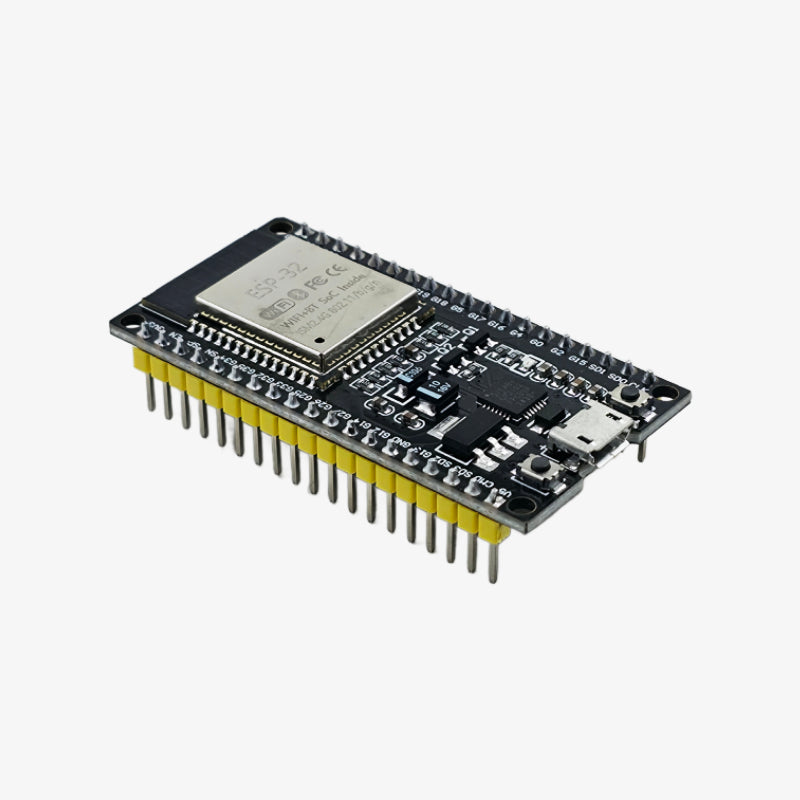

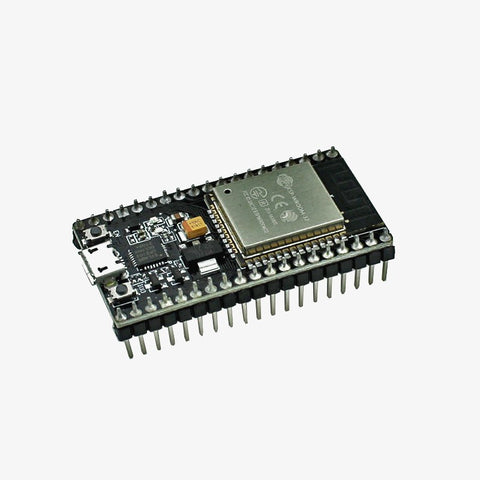

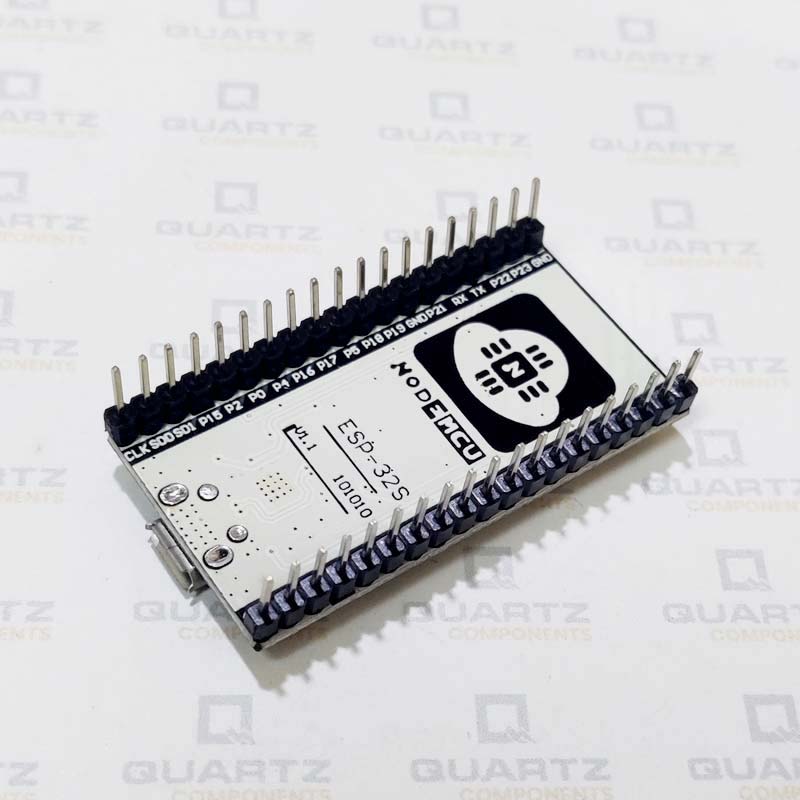

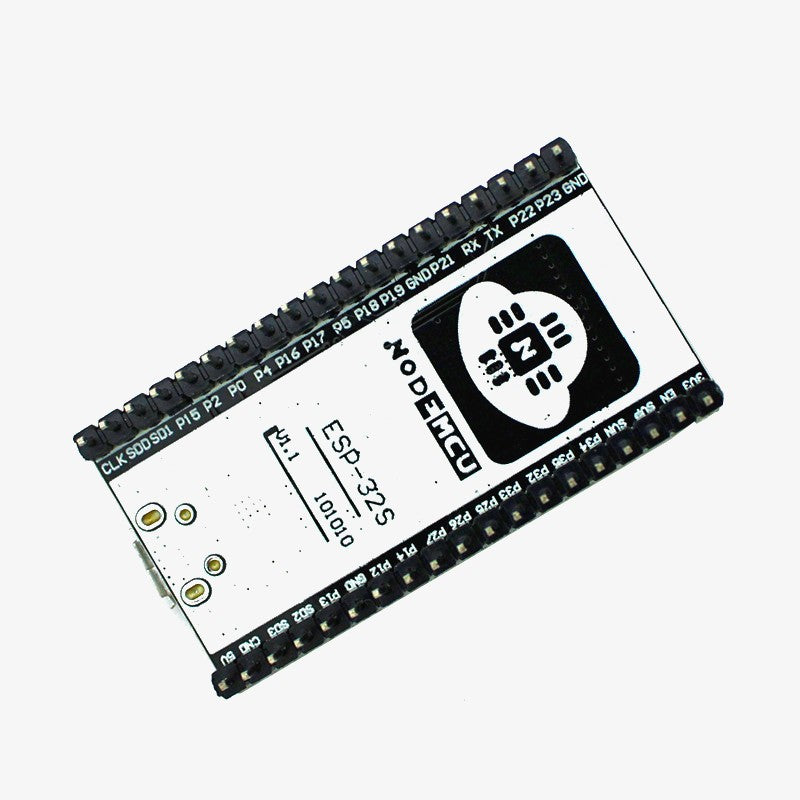

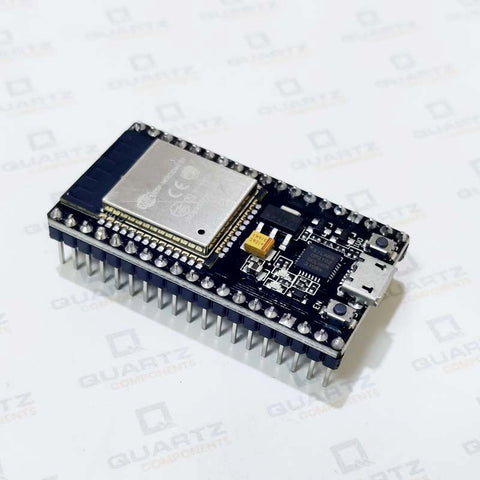

ESP32-Development Board

The ESP32 is a successor of the ESP 8266 board. It is has a dual core processor and it combines both Wi-Fi and Bluetooth capabilities. The board has a USB-to UART interface so that it can be easily programmed with popular Development environments like Arduino IDE. It can be powered through the Micro USB port, the 3.3V pin or the Vin pin.


Specifications of the ESP32 Development Board

  • Main processor: Tensilica Xtensa 32-bit LX6 microprocessor
  • Has Ultra-low power Coprocessor
  • Clock frequency: up to 240 MHz
  • Wireless connectivity: Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s) ; Bluetooth: v4.2 BR/EDR and Bluetooth Low Energy (BLE)
  • Security: IEEE 802.11 standard security features all supported, Secure boot , Flash encryption 1024-bit OTP, up to 768-bit for customers, and Cryptographic hardware acceleration.
  • Designed with TSMC Ultra-low power 40nm technology
  • Operating Voltage : 3.3V
  • DC Current on I/O Pins : 40 mA
  • DC Current on 3.3V Pins : 50 mA
  • Communication :SPI, I2C, I2S, CAN, UART
  • Has on-board enable and reset pins


Additional Resources

Package Includes

1 x ESP32 Development Board (WIFI+BLUETOOTH)

The ESP32 is a Wi-Fi Development Board with in-built Bluetooth Low Energy (BLE) that is commonly used in IoT applications. The Board is based on the ESP WROOM32 Module from Espressif Systems. The compact Module can work on 3.3V and consumes low power making it suitable for portable battery powered applications.

It has a dual mode 2.4 GHz Wi-Fi with 40nm low power TSMC technology making it safe reliable and scalable.  The board also has a CP2102 USB-UART bridge making it easier to use serial communication for debugging. The Board can be used with Arduino IDE and also with Lua Programming Environment.



Product Description of ESP32 Development Board

ESP32-Development Board

The ESP32 is a successor of the ESP 8266 board. It is has a dual core processor and it combines both Wi-Fi and Bluetooth capabilities. The board has a USB-to UART interface so that it can be easily programmed with popular Development environments like Arduino IDE. It can be powered through the Micro USB port, the 3.3V pin or the Vin pin.


Specifications of the ESP32 Development Board

  • Main processor: Tensilica Xtensa 32-bit LX6 microprocessor
  • Has Ultra-low power Coprocessor
  • Clock frequency: up to 240 MHz
  • Wireless connectivity: Wi-Fi: 802.11 b/g/n/e/i (802.11n @ 2.4 GHz up to 150 Mbit/s) ; Bluetooth: v4.2 BR/EDR and Bluetooth Low Energy (BLE)
  • Security: IEEE 802.11 standard security features all supported, Secure boot , Flash encryption 1024-bit OTP, up to 768-bit for customers, and Cryptographic hardware acceleration.
  • Designed with TSMC Ultra-low power 40nm technology
  • Operating Voltage : 3.3V
  • DC Current on I/O Pins : 40 mA
  • DC Current on 3.3V Pins : 50 mA
  • Communication :SPI, I2C, I2S, CAN, UART
  • Has on-board enable and reset pins


Additional Resources

Package Includes

1 x ESP32 Development Board (WIFI+BLUETOOTH)
