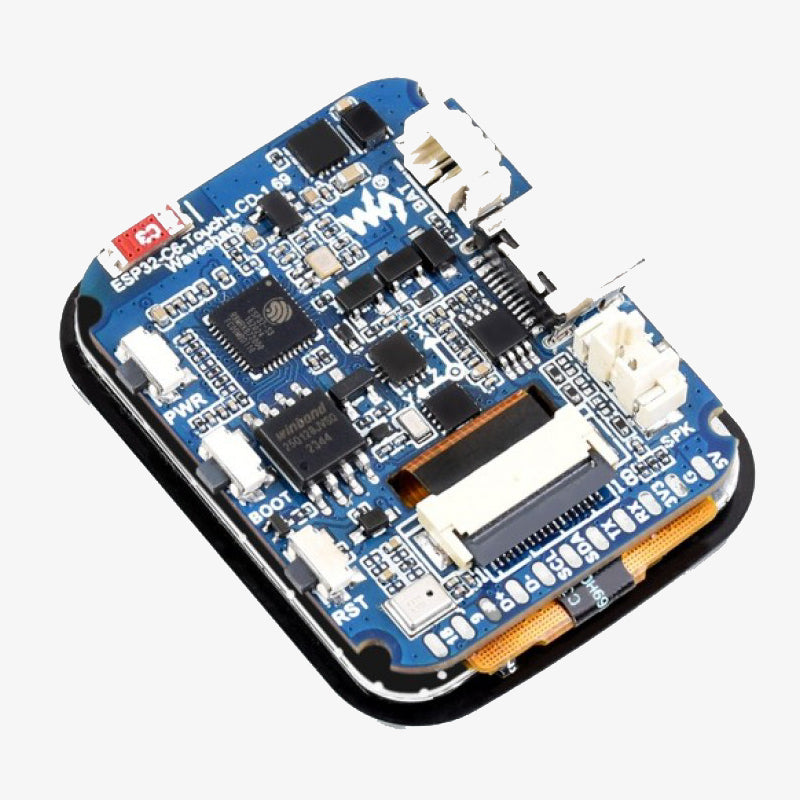

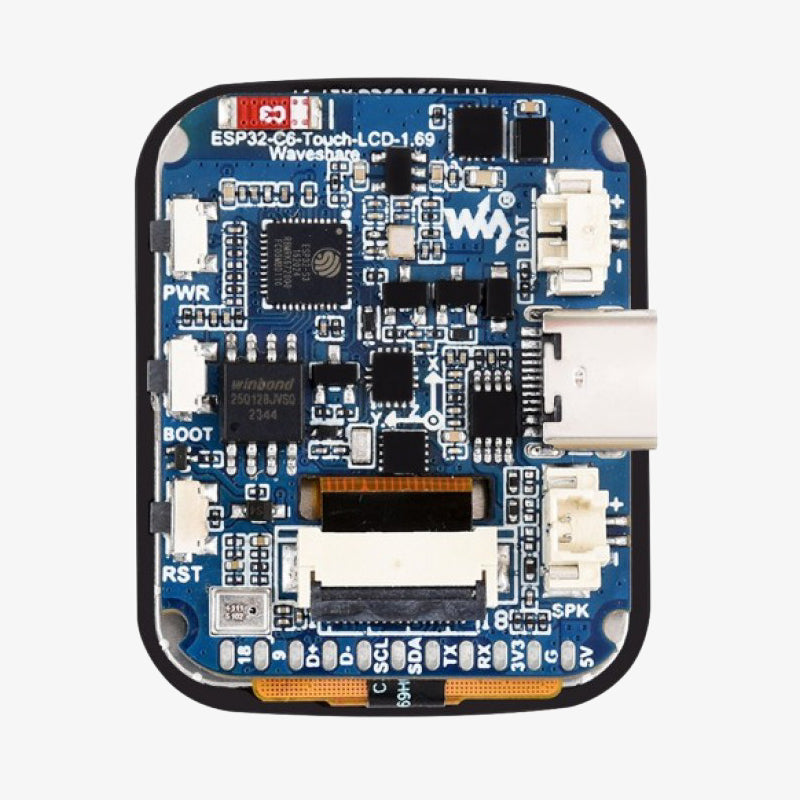

Waveshare ESP32-C6 1.69-Inch Touch Display Development Board – 240 × 280 Pixels, Wi-Fi 6 and Bluetooth 5 is a compact microcontroller development platform featuring an integrated IPS capacitive touchscreen and a 32-bit RISC-V processor. It combines wireless connectivity, audio input and output, motion sensing, and real-time clock functionality in a single board. The integrated microphone, speaker interface, and audio codec support voice-interaction projects, while the touchscreen enables interactive graphical interfaces. USB Type-C connectivity and expansion pads simplify programming, debugging, and peripheral integration.


| Specification | Value |
|---|---|
| Brand | Waveshare |
| Model | ESP32-C6-Touch-LCD-1.69 |
| Main Controller | ESP32-C6 |
| Processor Architecture | 32-bit RISC-V |
| High-Performance Core Frequency | Up to 160MHz |
| Low-Power Core Frequency | Up to 20MHz |
| ROM | 320KB |
| High-Performance SRAM | 512KB |
| Low-Power SRAM | 16KB |
| Flash Memory | 16MB |
| Display Size | 1.69 inches |
| Display Type | IPS LCD |
| Resolution | 240 × 280 pixels |
| Display Colors | 262K |
| Brightness | 435 cd/m² |
| Contrast Ratio | 315:1 |
| Display Controller | ST7789V2 |
| Display Interface | SPI |
| Touch Technology | Capacitive |
| Touch Controller | CST816T |
| Touch Interface | I2C |
| Wi-Fi | Wi-Fi 6 |
| Bluetooth | Bluetooth 5 and BLE |
| Wireless Protocols | IEEE 802.15.4, Zigbee 3.0, Thread |
| Motion Sensor | QMI8658 six-axis IMU |
| RTC Controller | PCF85063 |
| Audio Codec | ES8311 |
| Audio Amplifier | NS4150B, 3W mono Class-D |
| Microphone | Onboard |
| Speaker Connection | MX1.25 2-pin connector |
| USB Connector | USB Type-C |
| Battery Connector | MX1.25 2-pin |
| Battery Support | 3.7V lithium battery |
| Expansion Interfaces | GPIO, I2C, UART, USB |
| Development Use | Embedded systems, voice interaction, IoT, and wearable projects |
1.8 Inch SPI 128x160 TFT LCD Display Module With PCB for Arduino
2.8 Inch SPI Touch Screen Display Module - TFT Display 240x320
2.4 Inch TFT Touchscreen LCD Display for Arduino Uno
3.5 Inch TFT Touchscreen Display for Raspberry Pi
1 × Waveshare ESP32-C6-Touch-LCD-1.69 Development Board
1 × 6Ω 1W Speaker
