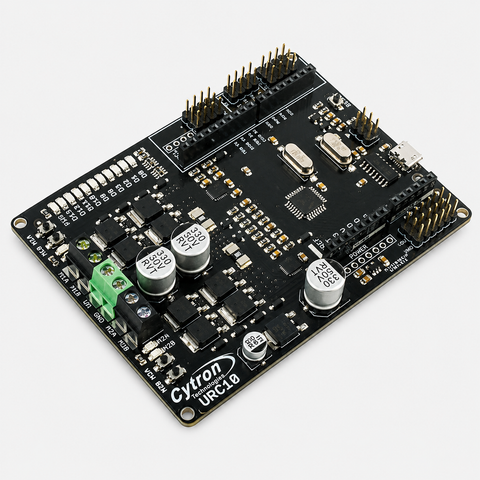

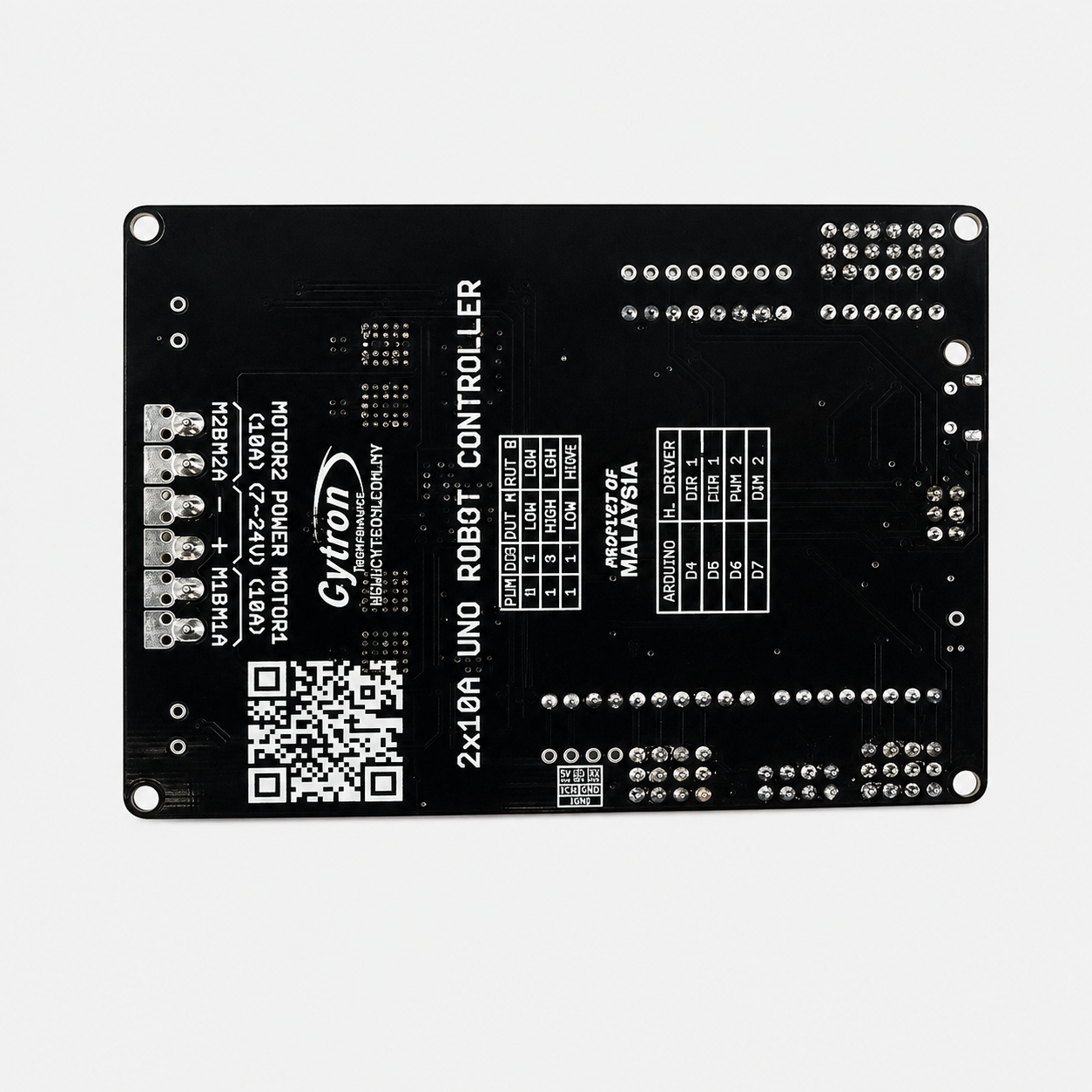

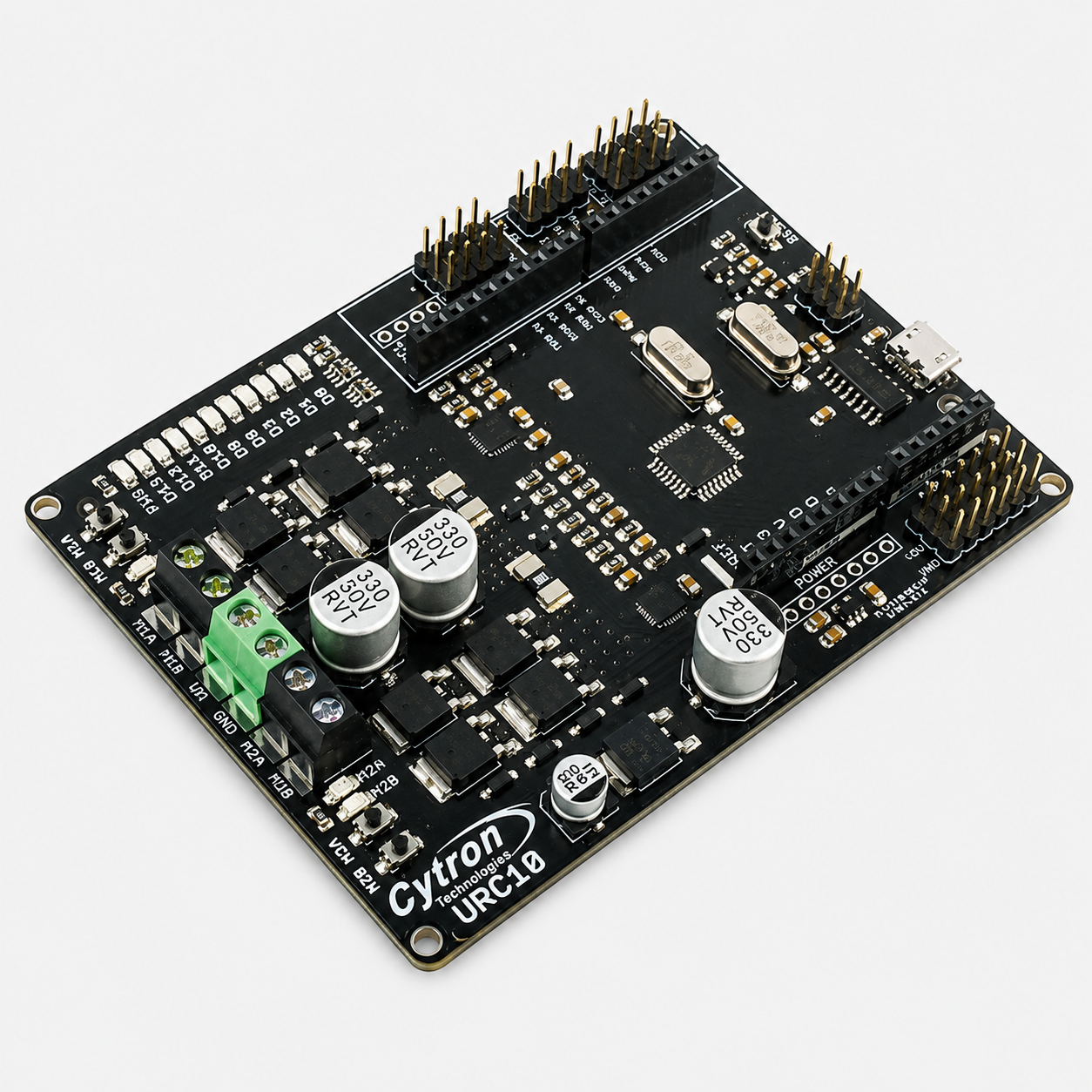

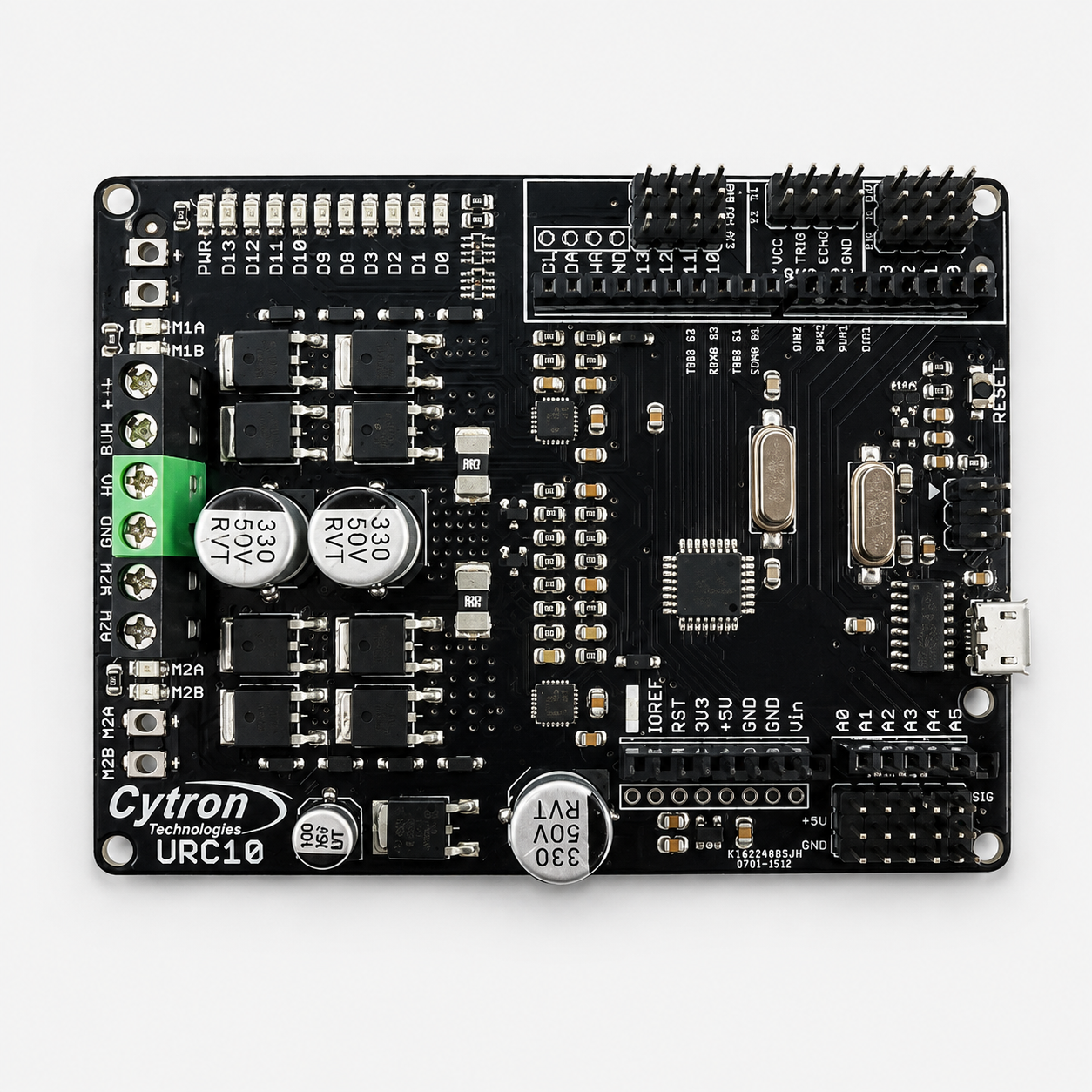

Cytron Dual Channel 10A Motor Driver UNO Robot Controller
SKU:
MOD-QC6090
Availability:
5
In Stock
-
- Rs. 3,352.00
- Unit price
- per
Subtotal:
Rs. 3,352.00
Description
xCytron Dual Channel 10A Motor Driver UNO Robot Controller is an Arduino UNO-compatible robot controller that integrates an ATmega328P microcontroller with a dual-channel 10A brushed DC motor driver on a single board. It simplifies robot development by combining motor control, microcontroller functionality, and sensor interfaces, making it ideal for mobile robots, line followers, sumo robots, AGVs, and automation projects.
Cytron Dual Channel 10A Motor Driver UNO Robot Controller Datasheet
Features:
- Arduino UNO compatible with onboard ATmega328P microcontroller.
- Integrated dual-channel 10A brushed DC motor driver.
- Supports independent bidirectional control of two DC motors.
- Compatible with Arduino IDE and UNO bootloader.
- Supports 3.3V and 5V logic level inputs.
- Built-in 5V and 3.3V voltage regulators.
- R3 shield compatible for easy expansion.
- Multiple digital, analog, PWM, UART, SPI, and I²C interfaces.
- Ideal for robotics, automation, AGVs, line-following, and sumo robots.
- Compact all-in-one controller reduces wiring complexity.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Arduino UNO Robot Controller with Dual Motor Driver |
| Microcontroller | ATmega328P |
| Clock Speed | 16MHz |
| Bootloader | Optiboot (Arduino UNO Compatible) |
| Flash Memory | 32KB |
| SRAM | 2KB |
| EEPROM | 1KB |
| Motor Channels | 2 |
| Continuous Motor Current | 10A per Channel |
| Peak Motor Current | 30A per Channel |
| Motor Supply Voltage | 5V – 30V DC |
| Logic Voltage | 5V / 3.3V Compatible |
| Digital I/O Pins | 14 (6 PWM) |
| Analog Inputs | 6 |
| Communication Interfaces | UART, SPI, I²C |
| Voltage Regulators | 5V (1A), 3.3V (500mA) |
| Shield Compatibility | Arduino UNO R3 Shields |
| Applications | Mobile Robots, Sumo Robots, Line Followers, AGVs, Robotics, Industrial Automation, Educational Projects |
Also Check These Out:
ULN2003A Motor Module Stepper Motor Driver
A3967 Stepper Motor Driver Module
Package Includes:
1 × Cytron Dual Channel 10A Motor Driver UNO Robot Controller
