CD4052 4 Channel Analog Multiplexer IC CD4052 4 Channel Analog Multiplexer IC

QC0070

11 In stock

Rs. 20.00
-
+
Rs. 20.00
(inc. GST)
[Delivery: 2 to 5 days]

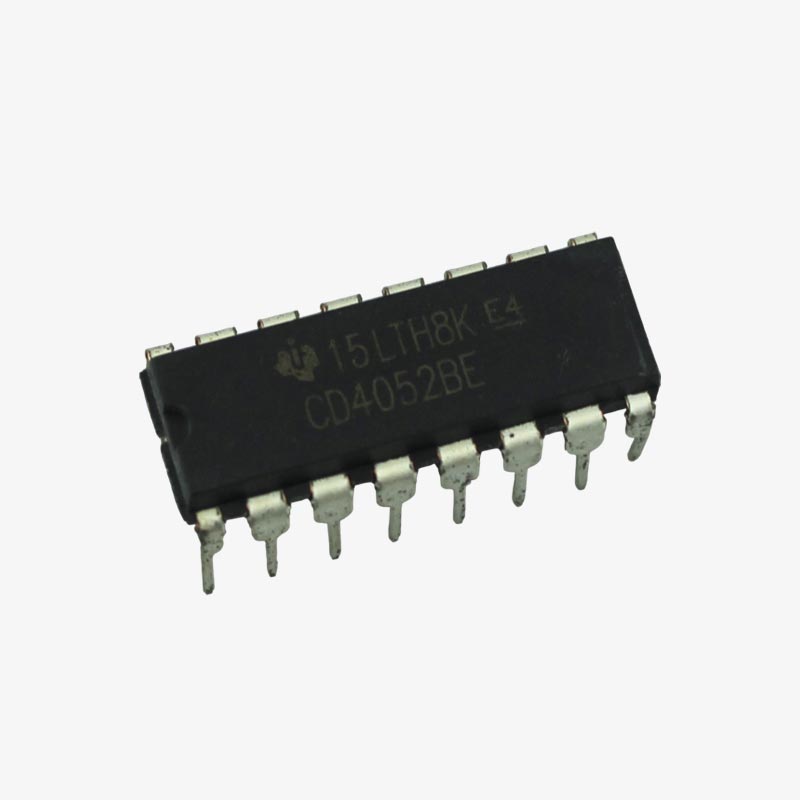

The CD4052 is a 4 channel differential IC that can be used as both a 4:1 Multiplexer and a 1:4 Demultiplexer. The IC has digitally controlled analog switches with Low ON impedance and low OFF leakage current. The IC can operate between 3V to 20V and has an input current of 1uA when operating at 18V.It is commonly used in analog and digital multiplexing and demultiplexing, A/D and D/A Conversion, Programmable Logic Circuits and more. For easy use, you can accessorize the CD4052 IC with a 16 pin DIP IC base/Socket.



Product Description of CD4052 IC

CD4052-4-Channel-Analog-Multiplexer-IC



PIN DESCRIPTION

The IC CD4052 has total 16 pins. All the pins, their names, and description are given in the table below.

CD4052



Features of CD4052 4 Channel Analog Multiplexer IC

  • Used as 4:1 Mux and 1:4 Demux
  • Supports ≤ 20 Vp-p Analog Voltage
  • Supports 3-20 V Digital Voltage
  • Has low ON resistance, 125 W at 18V
  • Has low OFF leakage Current, ±100pA at 18V
  • Max input current of 1uA at 18V
  • Operating Temperature, -55 to 125 ° C
  • Lead Temperature (Soldering ), 260° C



Additional Resources

CD4052 4 Channel Analog Multiplexer IC datasheet

Package Contents

1× CD4052 4 Channel Analog Multiplexer IC

The CD4052 is a 4 channel differential IC that can be used as both a 4:1 Multiplexer and a 1:4 Demultiplexer. The IC has digitally controlled analog switches with Low ON impedance and low OFF leakage current. The IC can operate between 3V to 20V and has an input current of 1uA when operating at 18V.It is commonly used in analog and digital multiplexing and demultiplexing, A/D and D/A Conversion, Programmable Logic Circuits and more. For easy use, you can accessorize the CD4052 IC with a 16 pin DIP IC base/Socket.



Product Description of CD4052 IC

CD4052-4-Channel-Analog-Multiplexer-IC



PIN DESCRIPTION

The IC CD4052 has total 16 pins. All the pins, their names, and description are given in the table below.

CD4052



Features of CD4052 4 Channel Analog Multiplexer IC

  • Used as 4:1 Mux and 1:4 Demux
  • Supports ≤ 20 Vp-p Analog Voltage
  • Supports 3-20 V Digital Voltage
  • Has low ON resistance, 125 W at 18V
  • Has low OFF leakage Current, ±100pA at 18V
  • Max input current of 1uA at 18V
  • Operating Temperature, -55 to 125 ° C
  • Lead Temperature (Soldering ), 260° C



Additional Resources

CD4052 4 Channel Analog Multiplexer IC datasheet

Package Contents

1× CD4052 4 Channel Analog Multiplexer IC
