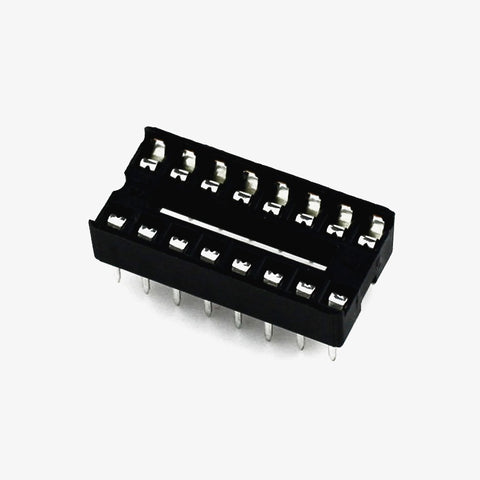

16 Pin DIP IC Base

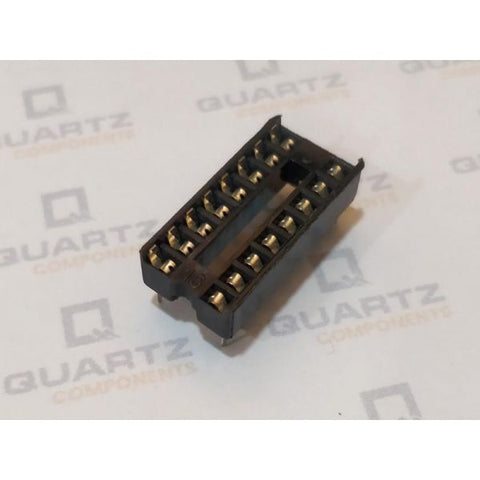

Buy 16 Pin IC base

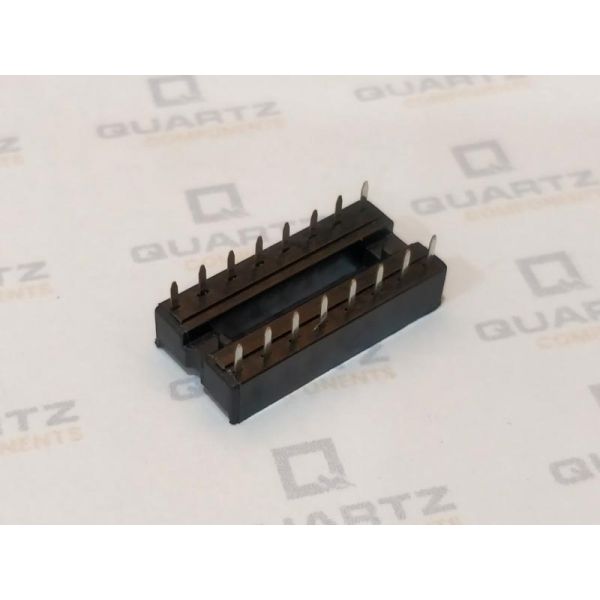

16 Pin IC base/socket
Click to zoom in
  • 3-5 Days Delivery

    Fast Delivery

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

  • Free Shipping

    On orders above INR 599

  • Cash On Delivery

    COD available on all orders

16 Pin DIP IC Base/Socket

QC0392
295 In stock
Rs. 4.00 (Exc. GST)
Rs. 4.00

This is an 16 pin IC socket that is used as a base for 16 pin ICs with DIP package. It has wide enough holes to allow easy insertion of ICs. With this component, designers can mount the IC directly to the PCB or the perf board without having to solder the IC directly to the PCB. Because the IC is not soldered directly to the PCB, it can be easily replaced or reused in other circuits as per requirement. Commonly, the 16 pin IC base is used in prototypes / PCB circuit design testing. They can be joined end to end when working with ICs with more than 16 pins. The contacts of the IC base are tin-plated to reduce oxidation.



Specifications of the 16 pin IC Base

  • Protected open entry for easy insertion of IC
  • Contacts: Brass contacts with tin-surface plating
  • Contacts resistance : 10 mW
  • Current rating :1 A
  • Insulator : Thermoplastic Polyester
  • Colour: Black

Package Includes

1 x 16 Pin DIP IC Base/Socket
