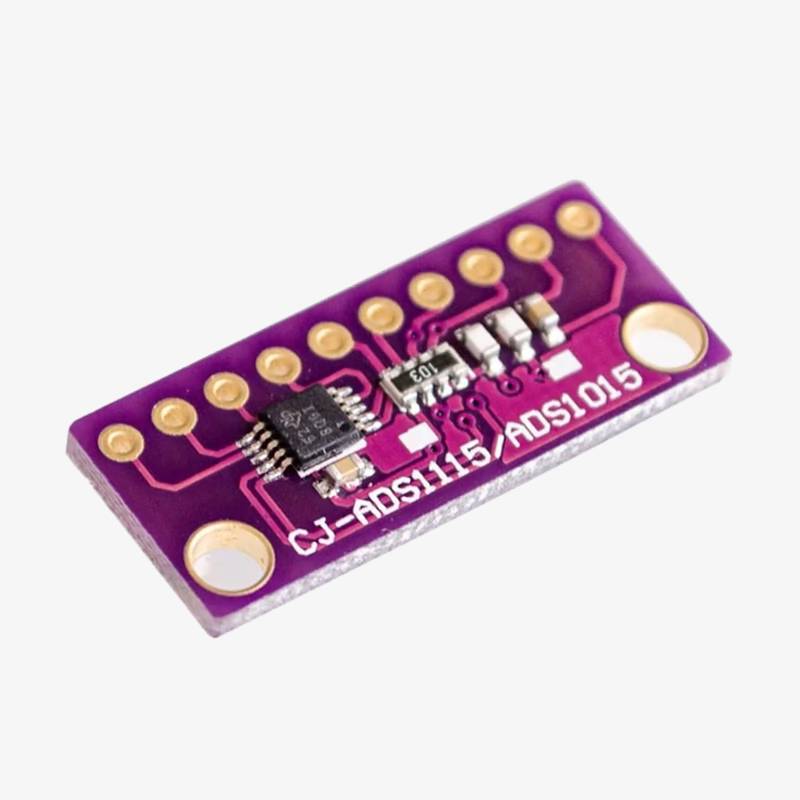

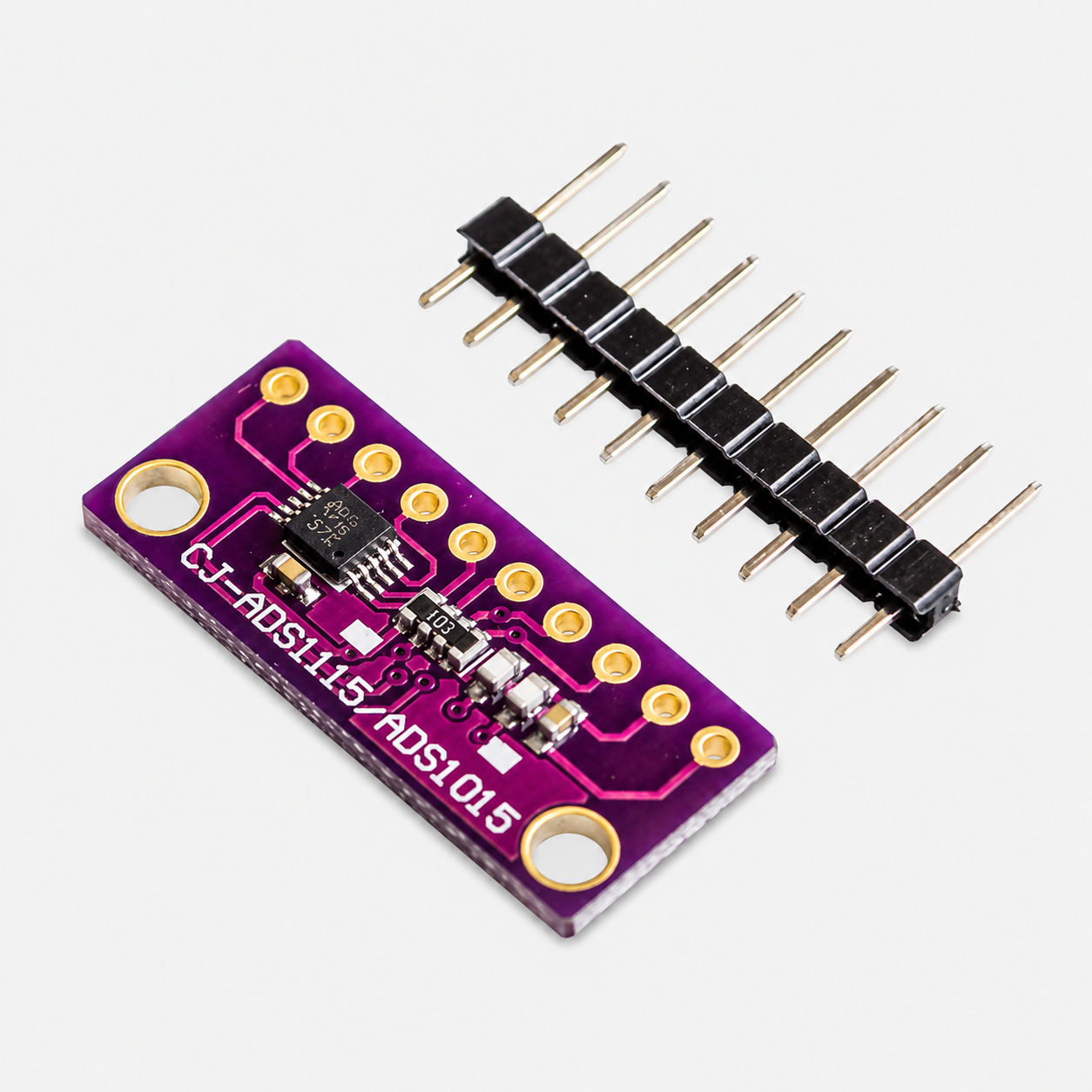

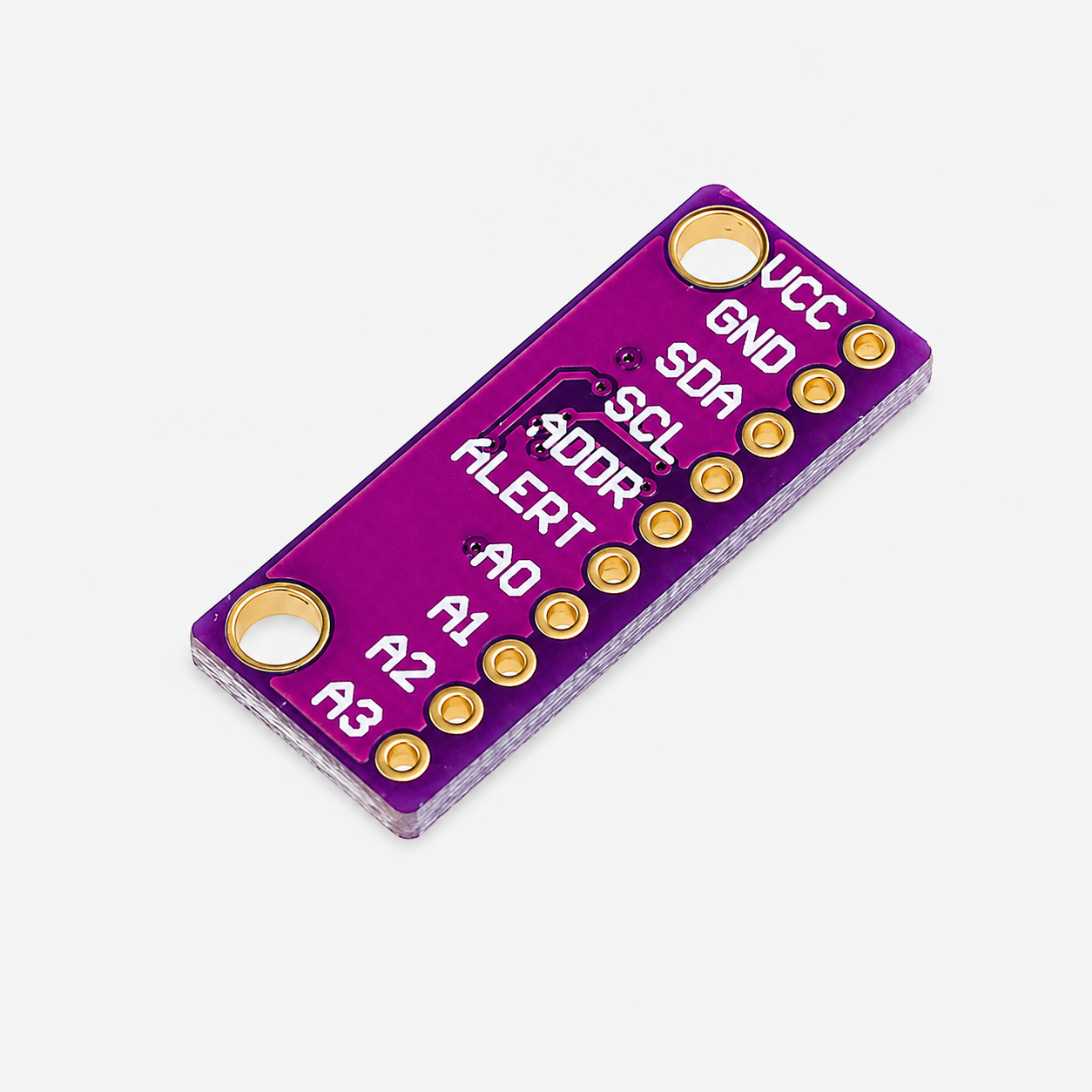

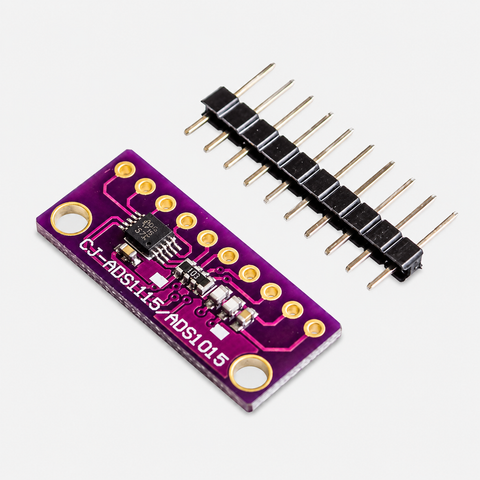

ADS1115 16 Bit ADC I2C 4 Channel Module with Programmable Gain Amplifier is a high-precision analog-to-digital converter module designed to interface analog sensors with microcontrollers. Featuring a 16-bit ADC, four input channels, programmable gain amplifier (PGA), and I2C communication, it provides accurate analog signal measurement for Arduino, Raspberry Pi, ESP32, STM32, and other embedded systems.
| Parameter | Value |
|---|---|
| Product Type | Analog to Digital Converter (ADC) Module |
| Model | HW ADS1115 |
| ADC Resolution | 16 Bit |
| Number of Channels | 4 Single-Ended or 2 Differential |
| Operating Voltage | 2V – 5.5V DC |
| Interface | I2C |
| Programmable Gain Amplifier | Yes |
| Data Rate | 8 SPS – 860 SPS |
| Current Consumption | 150µA |
| I2C Address | Pin Selectable |
| Length | 26mm |
| Width | 9mm |
| Weight | 0.8g |
Also Check These Out:-
ADS1115 Module With Pro Gain Amplifier
ADS1256 Module 8 Channel 24-bit High Precision ADC Data Acquisition Board
1 x ADS1115 16 Bit ADC I2C 4 Channel Module with Programmable Gain Amplifier
