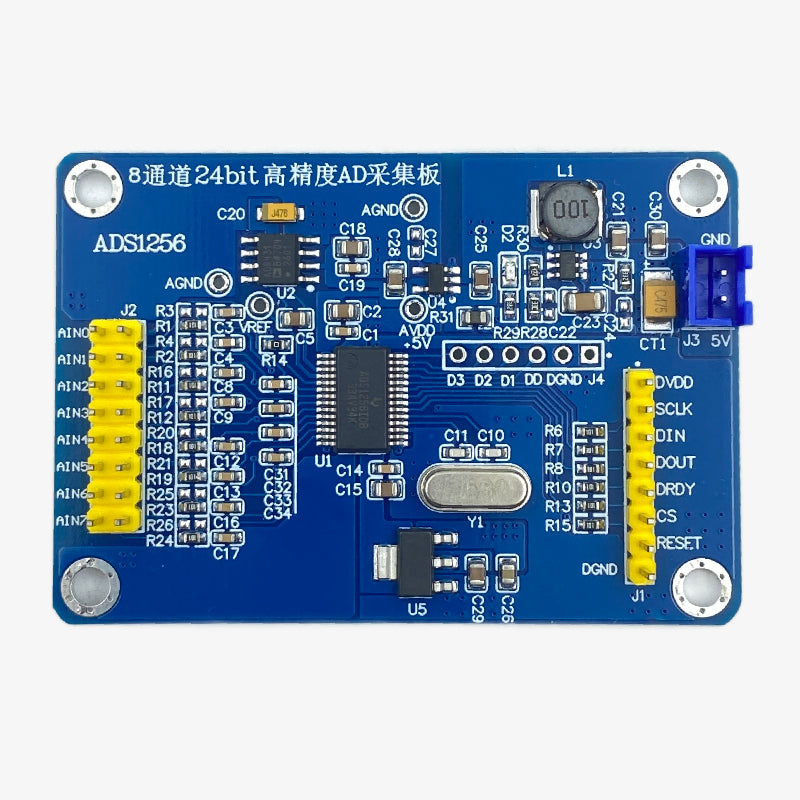

ADS1256 8 Channel 24-bit High Precision AD Acquisition Board is designed for high-accuracy analog signal acquisition with ultra-low noise and high-resolution ADC performance. Ideal for sensor measurement, industrial control, data acquisition systems, and precision instrumentation applications.
| Parameter | Value |
|---|---|
| Model | ADS1256 |
| ADC Chip | TI ADS1256IDB |
| Resolution | 24-bit |
| Input Channels | 8 Channel |
| Input Mode | 8 Single-Ended / 4 Differential |
| Communication Interface | SPI |
| Reference Voltage Chip | ADR03 2.5V |
| Data Output Rate | Up to 30ksps |
| Nonlinearity | ±0.0010% |
| Analog Input Range | Up to 3V |
| Operating Voltage | 5V |

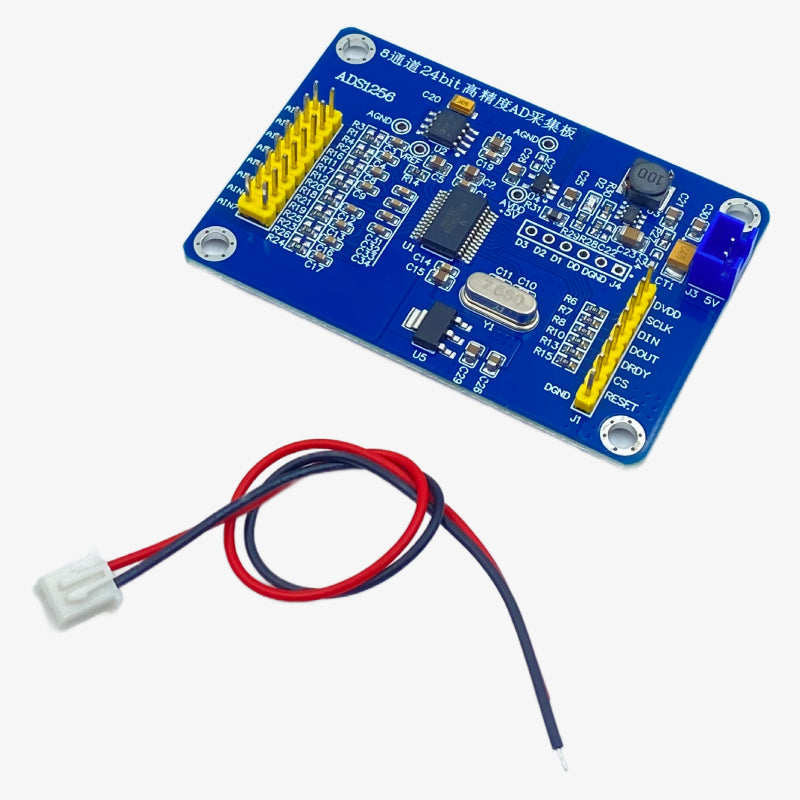

1 x ADS1256 Module 8 Channel 24-bit High Precision ADC Data Acquisition Board
