6S 20A 22.2V NMC BMS with Balance for Lithium Battery Pack - (TDT-9027)
SKU:
BCL-QC6247
Availability:
28
In Stock
-
- Rs. 565.00
- Unit price
- per
Subtotal:
Rs. 565.00
Description

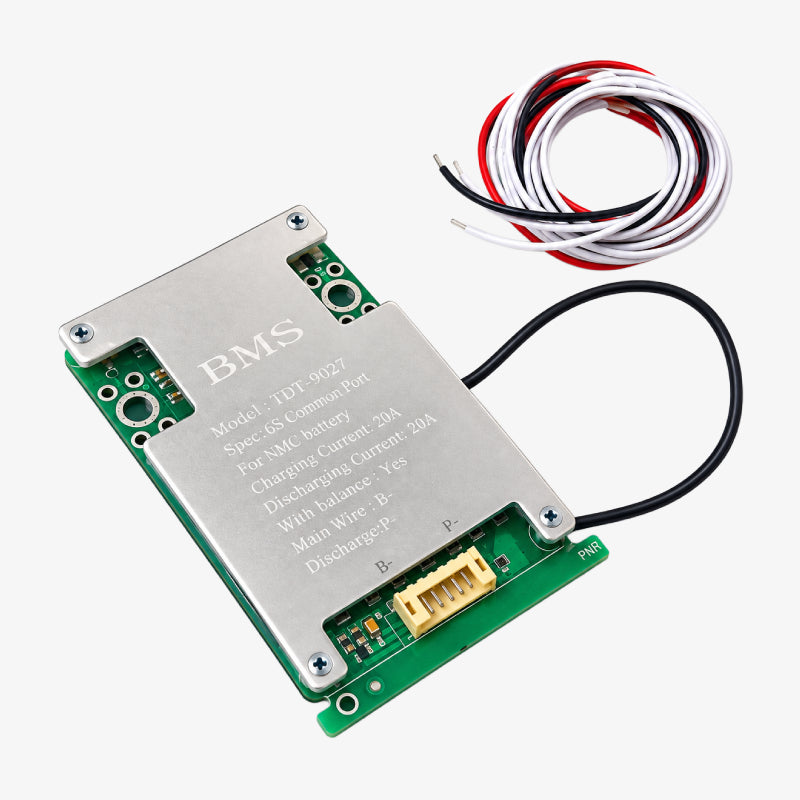

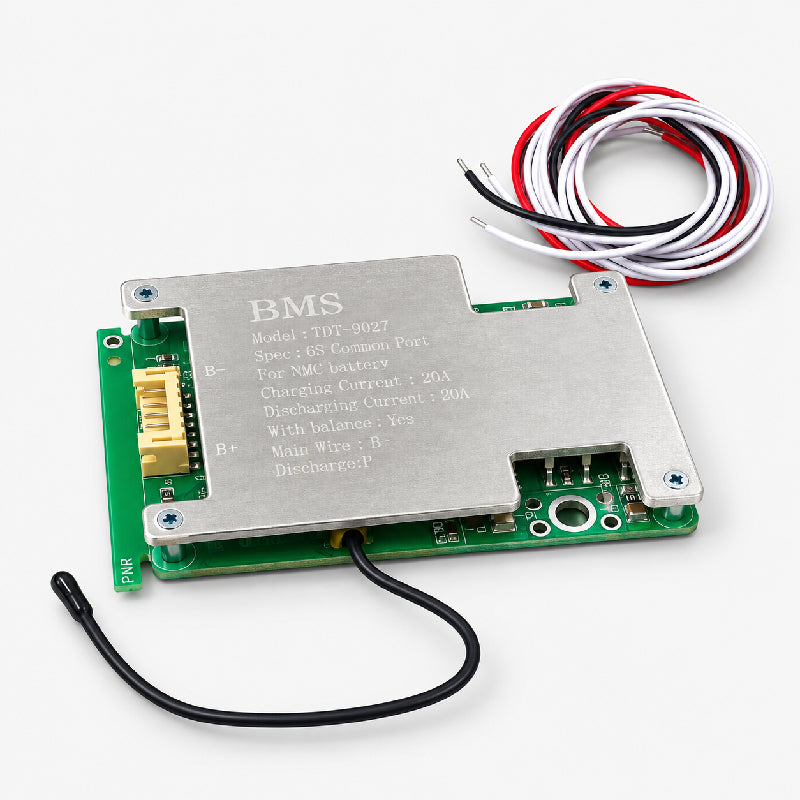

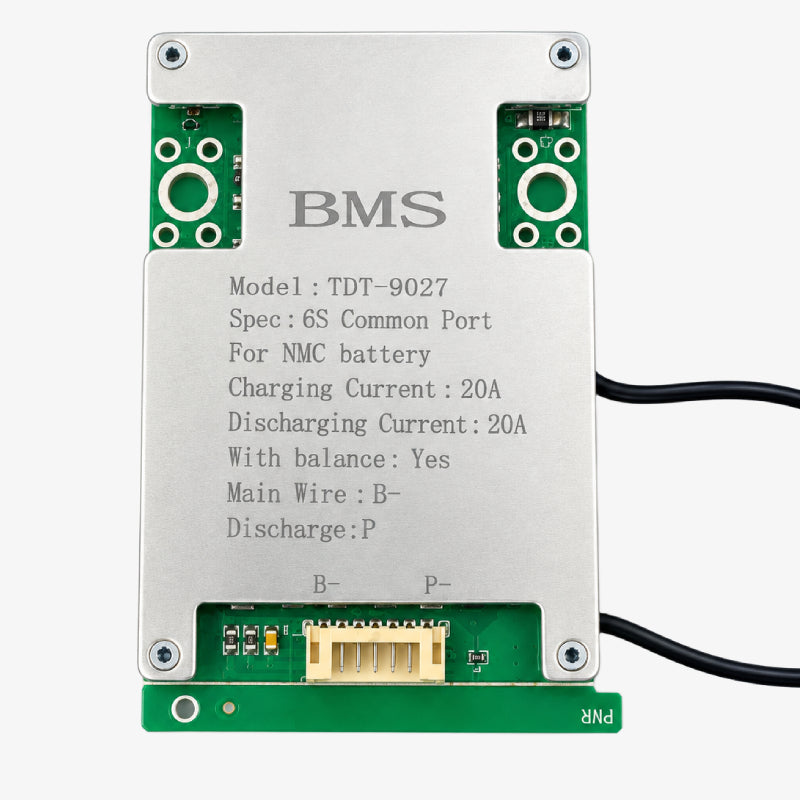

x6S 20A 22.2V NMC BMS with Balance for Lithium Battery Pack - (TDT-9027) is a 6-series lithium-ion NMC Battery Management System designed for 22.2V nominal battery packs. The board supports a 6S common-port configuration with a 20A charging current and 20A discharging current. It provides cell-level protection and balancing functionality for NMC battery packs and uses separate battery negative (B-) and discharge negative (P-) connections as indicated on the product. The TDT-9027 family is associated with overcharge, over-discharge, over-current, short-circuit, and temperature protection functions, with the documented TDT-9027 design using passive cell equalization.
6S 20A 22.2V BMS with Active Balancer for Lithium Battery Pack Datasheet
Features:
- TDT-9027 NMC Battery Management System
- Designed for 6S NMC lithium-ion battery packs
- 22.2V nominal battery-pack configuration
- 20A charging current
- 20A discharging current
- Common-port configuration
- Integrated cell balancing function
- Passive cell equalization
- Overcharge protection
- Over-discharge protection
- Over-current protection
- Short-circuit protection
- Temperature protection with temperature sensor
- Designed for NMC lithium-ion cells
- Suitable for 6-series 18650 and compatible NMC cell packs
- Heavy-duty metal-covered PCB construction
- Battery negative connection through B-
- Discharge negative connection through P-
- Balance wiring harness included
- Suitable for high-current battery-pack applications
Specifications:
| Specification | Value |
|---|---|
| Manufacturer | TDT |
| Model Number | TDT-9027 |
| Product Type | NMC Battery Management System |
| Battery Chemistry | NMC Lithium-Ion |
| Battery Configuration | 6S |
| Number of Cells in Series | 6 |
| Nominal Battery Voltage | 22.2V |
| Maximum Charge Voltage | 25.2V |
| Charging Current | 20A |
| Discharging Current | 20A |
| Port Configuration | Common Port |
| Balancing | Yes |
| Balancing Type | Passive Equalization |
| Overcharge Protection | Yes |
| Over-Discharge Protection | Yes |
| Over-Current Protection | Yes |
| Short-Circuit Protection | Yes |
| Temperature Protection | Yes |
| Temperature Sensor | Included |
| Main Battery Negative | B- |
| Discharge Negative | P- |
| Battery Type | Rechargeable NMC Lithium-Ion |
| Cell Arrangement | 6 Cells in Series |
| Connection Type | Wired Balance Connector |
| PCB Construction | FR-4 |
| Mounting | PCB Module |
| Application | 6S NMC Battery Pack Protection |
Pin Configuration:
| Connection | Function |
|---|---|
| B- | Battery Pack Negative |
| P- | Discharge Negative / Common Port Negative |
| Balance Connector | Cell Voltage Monitoring and Balancing Connections |
Also Check These Products:-
4S 6Amps LFP Battery Protection BMS Module for 3.2V LFP cells
1S 6A LFP 32650 Lithium Battery Protection Board 3.2V BMS
3S 10A Lithium Battery Protection BMS Module for 11.1V NMC cells
3S 10A Lithium Battery Protection BMS Module for 3.7V NMC cells without Nickel Strip
Package Includes:
1 × 6S 20A 22.2V NMC BMS TDT-9027
1 × Balance Wire Harness
1 × Temperature Sensor Cable
