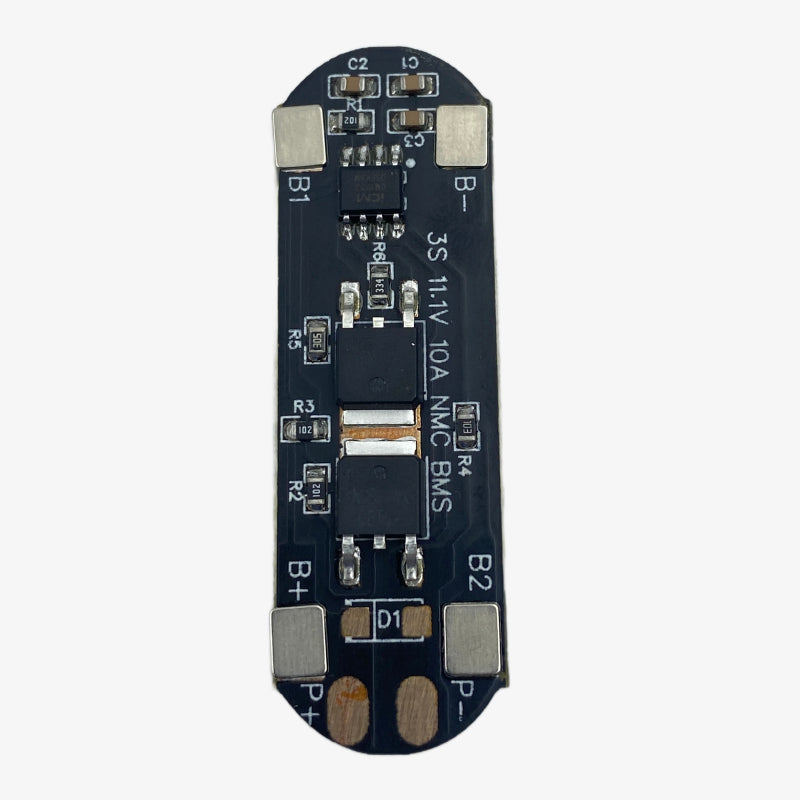

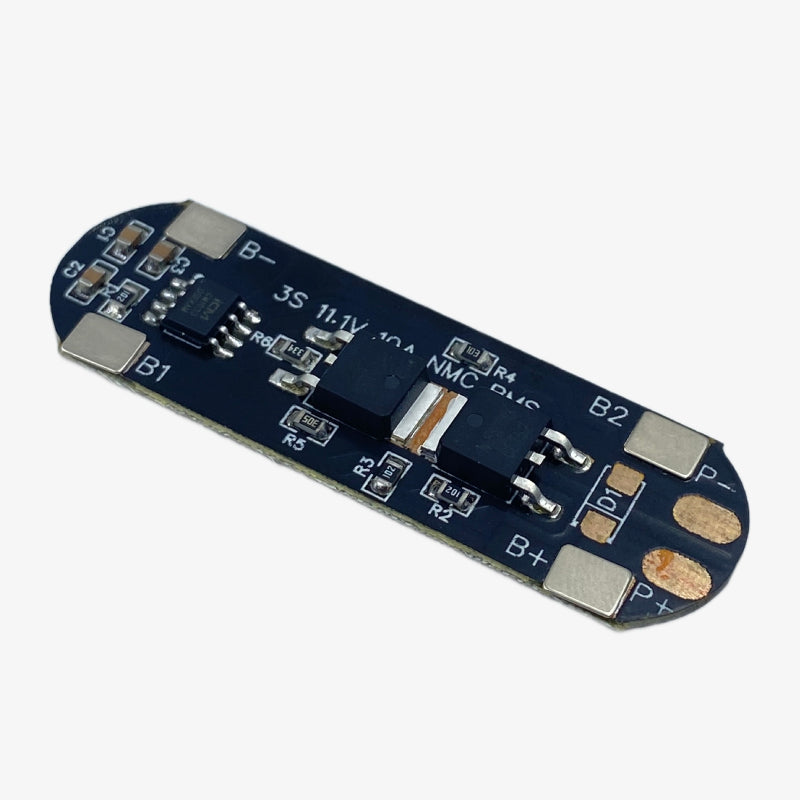

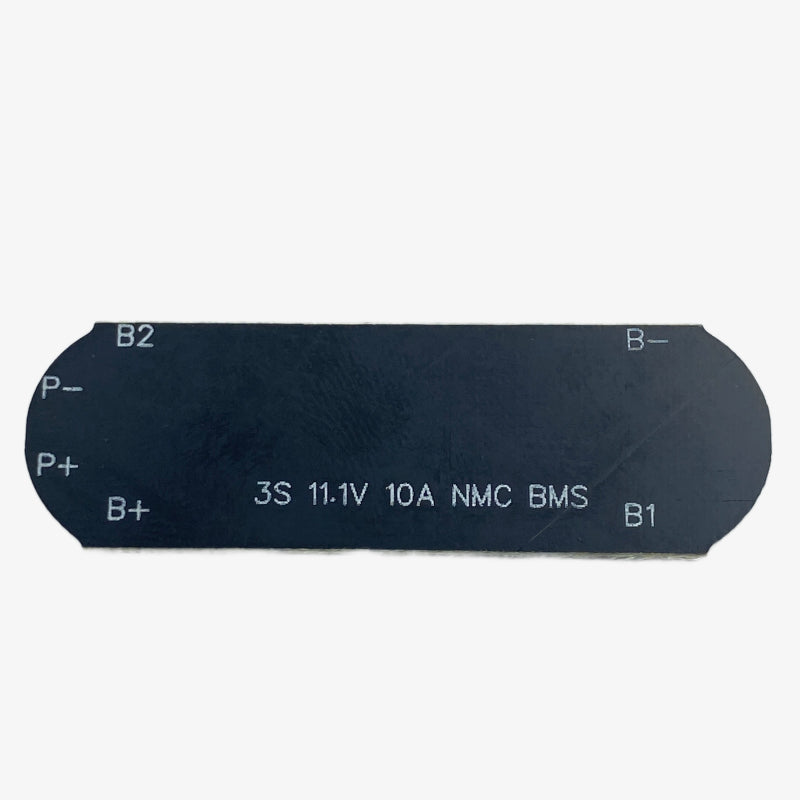

3S 10A Lithium Battery Protection BMS Module for 11.1V NMC Cells is designed to provide reliable protection and balancing for 3-series lithium battery packs. Ideal for 11.1V NMC battery applications, DIY battery packs, portable power systems, and energy storage projects.
| Parameter | Value |
|---|---|
| Model | HX-3S-01 |
| Battery Type | Lithium-ion NMC |
| Supported Cells | 3S |
| Full Charge Voltage | 12.6V – 13V |
| Maximum Operating Current | 6 – 8A |
| Maximum Transient Current | 9 – 13A |
| Over-Voltage Protection | 4.25V – 4.35V ±0.05V |
| Over-Current Protection | Yes |
| Under-Voltage Protection | Yes |
| Short Circuit Protection | Yes (Delayed Self-Recovery) |
| Internal Resistance | 100mΩ |
| Quiescent Current | 30µA |
| Operating Temperature | -40°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Effective Life | >30000 Hours |
| Dimensions | 50 × 16 × 2 mm |
| Weight | 12 g |
2S 15A 7.4V NMC Battery Protection Board BMS Module
3S 5A Lithium Battery Protection BMS Module for 3.7V NMC cells
4S 10A Li-ion Battery Protection BMS Module for 3.7V NMC Cells
3S BMS - 20A Li-ion Battery Protection Board for 3.7V NMC cells
1 x 3S 10A Lithium Battery Protection BMS Module for 11.1V NMC Cells
