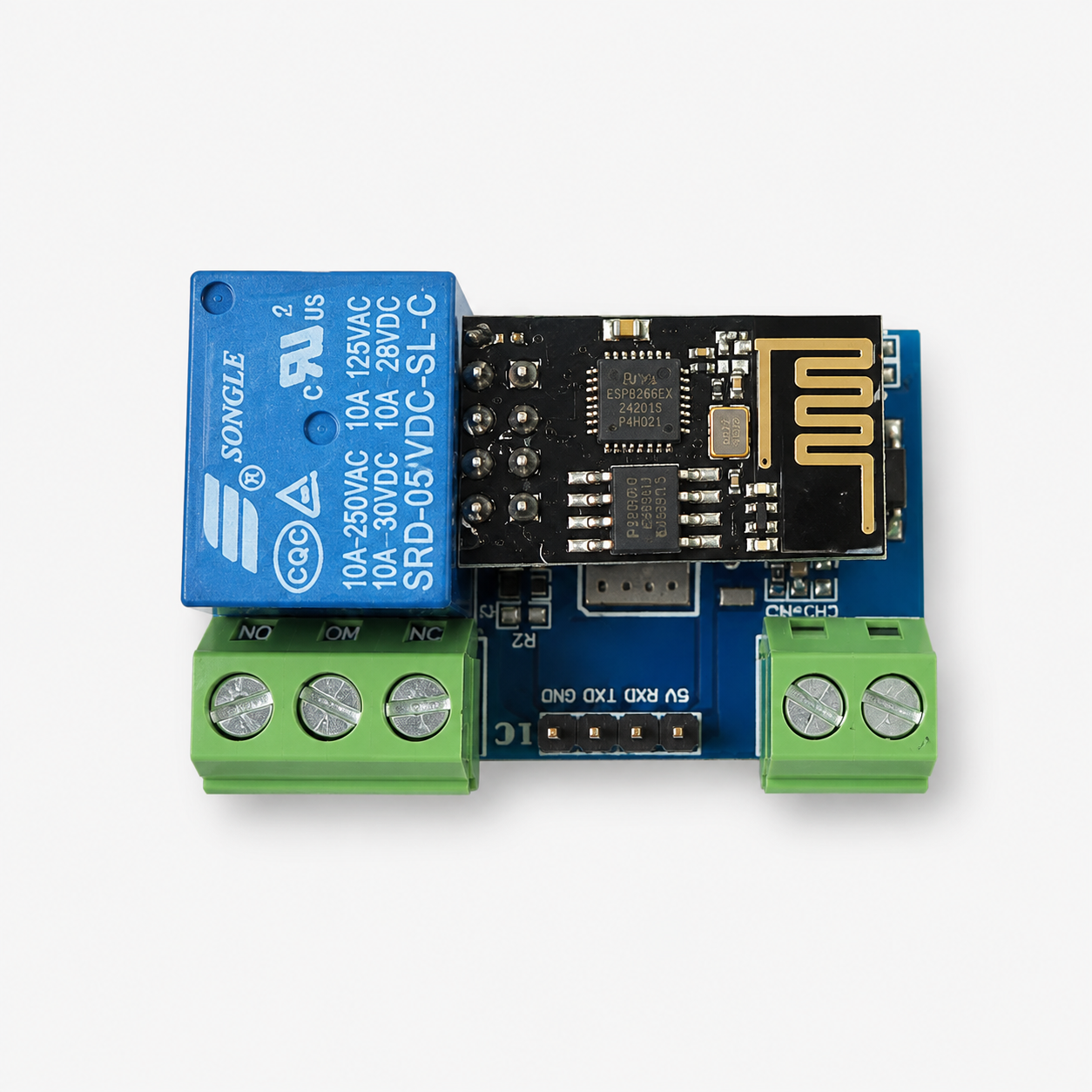

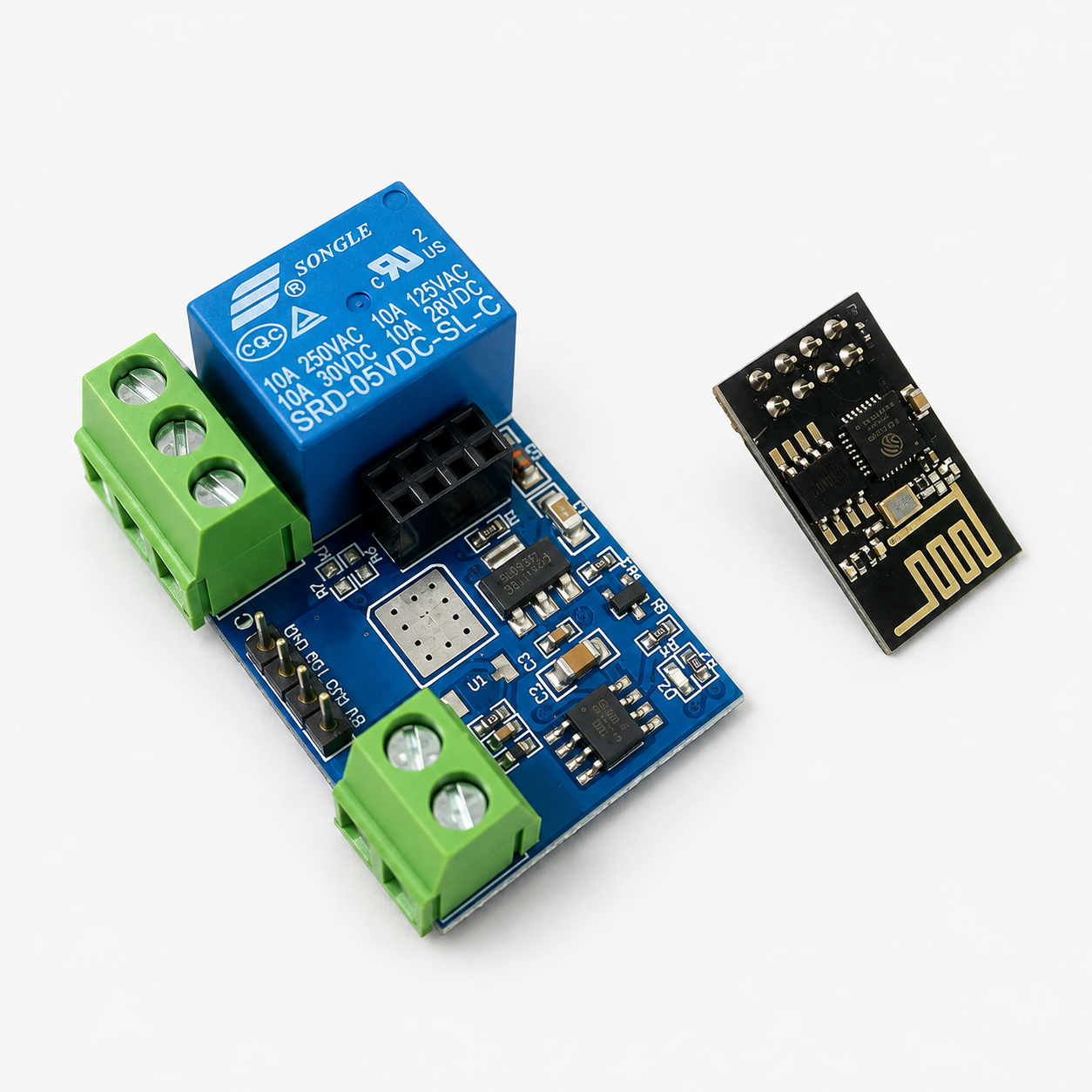

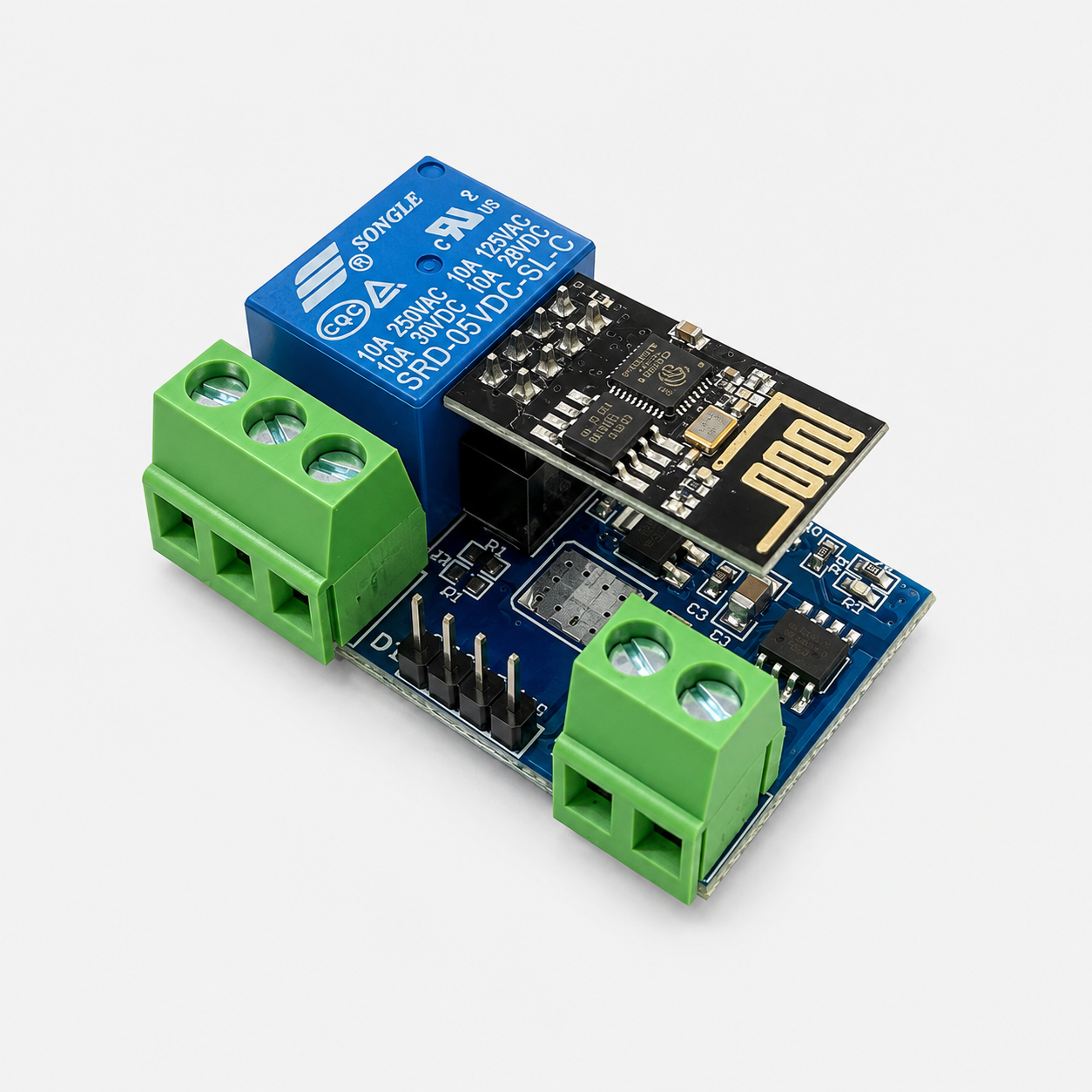

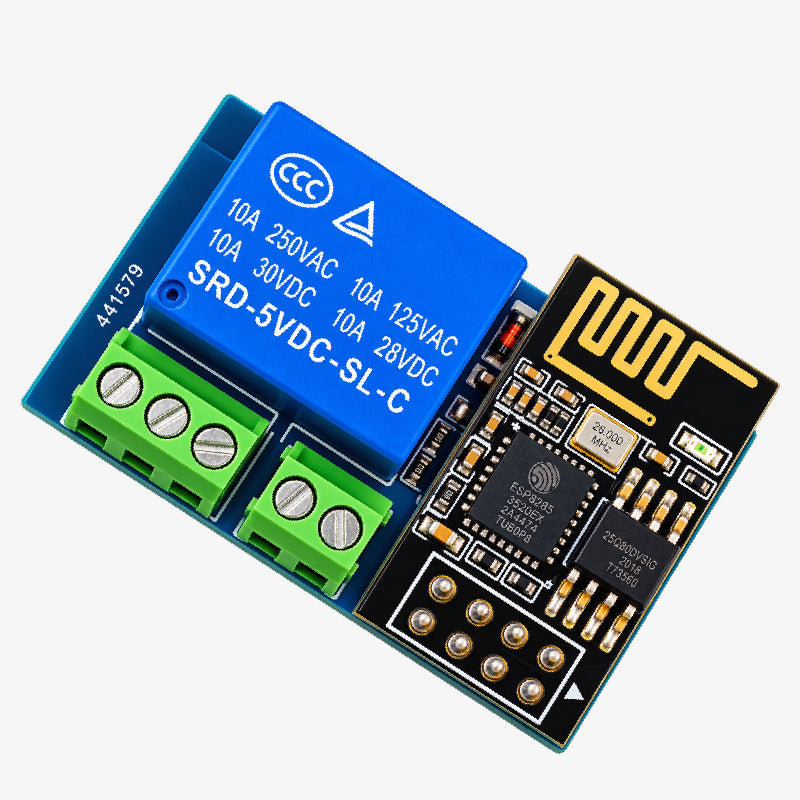

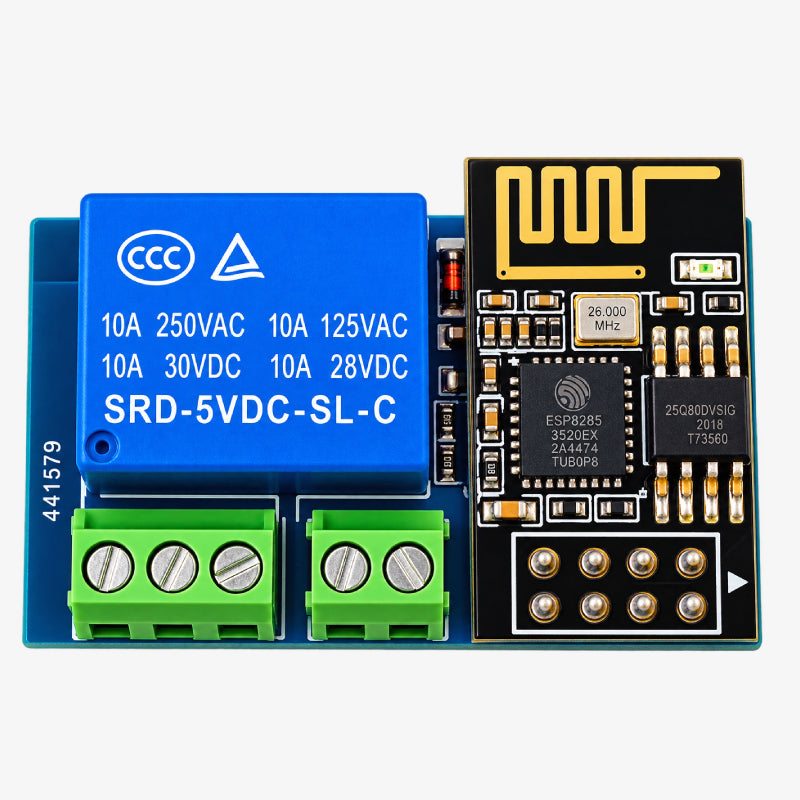

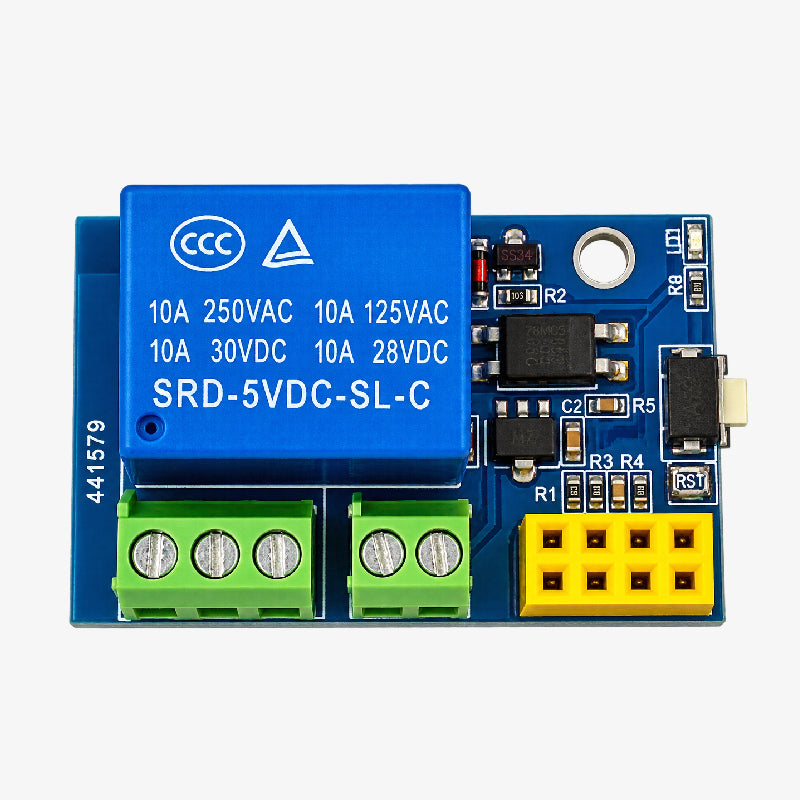

5V Relay Module with ESP8266 ESP-01S WiFi Module is a compact WiFi-enabled relay module that combines a 5V relay with an ESP8266 ESP-01S WiFi module, allowing wireless control of electrical appliances and automation systems over a WiFi network. It supports custom firmware development using the Arduino IDE, making it an excellent solution for smart home projects, IoT applications, remote switching, and industrial automation.
5V Relay Module with ESP8266 ESP-01S WiFi Module Datasheet
| Parameter | Value |
|---|---|
| Product Type | WiFi Relay Module |
| WiFi Module | ESP8266 ESP-01S |
| Operating Voltage | 5V DC |
| Relay Channels | 1 |
| Relay Type | SPDT Electromechanical Relay |
| Relay Contact Rating | 10A @ 250V AC / 10A @ 30V DC |
| WiFi Standard | IEEE 802.11 b/g/n |
| WiFi Frequency | 2.4GHz |
| Wireless Security | WPA/WPA2 |
| Programming Interface | UART |
| Compatible IDE | Arduino IDE, ESP8266 SDK |
| Logic Level | 3.3V (ESP8266) |
| Control Method | WiFi / Manual Push Button |
| Status Indicator | Power LED, Relay LED |
| Operating Temperature | -20°C to +70°C |
| Mounting Type | PCB Mount |
| Applications | Smart Home Automation, IoT Projects, Remote Appliance Control, Home Security, Industrial Automation, Wireless Switching |
ESP-01 ESP8266-01 WiFi Transceiver Module

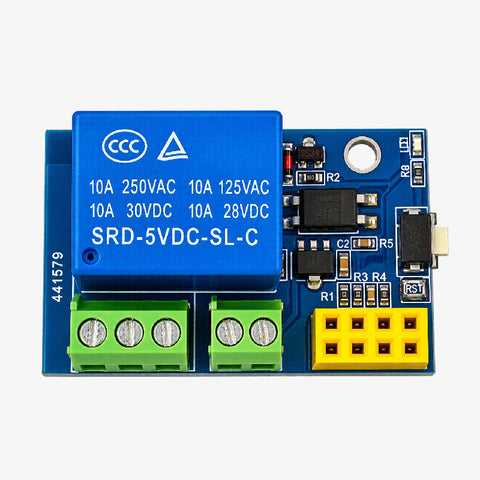

5V Relay Module for ESP8266 ESP-01S WiFi Module (Without ESP8266)

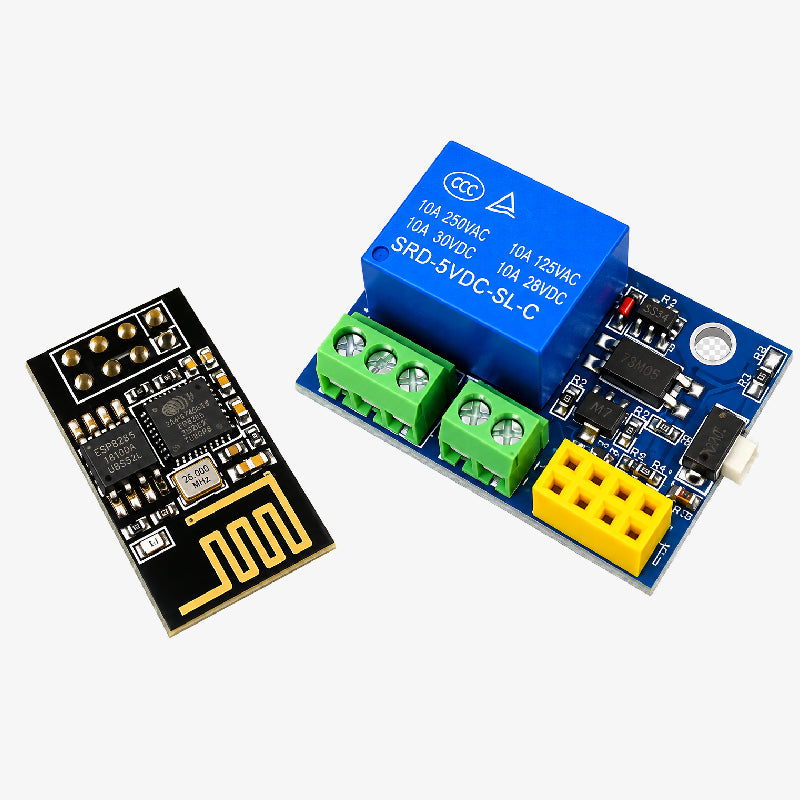

1 × 5V Relay Module

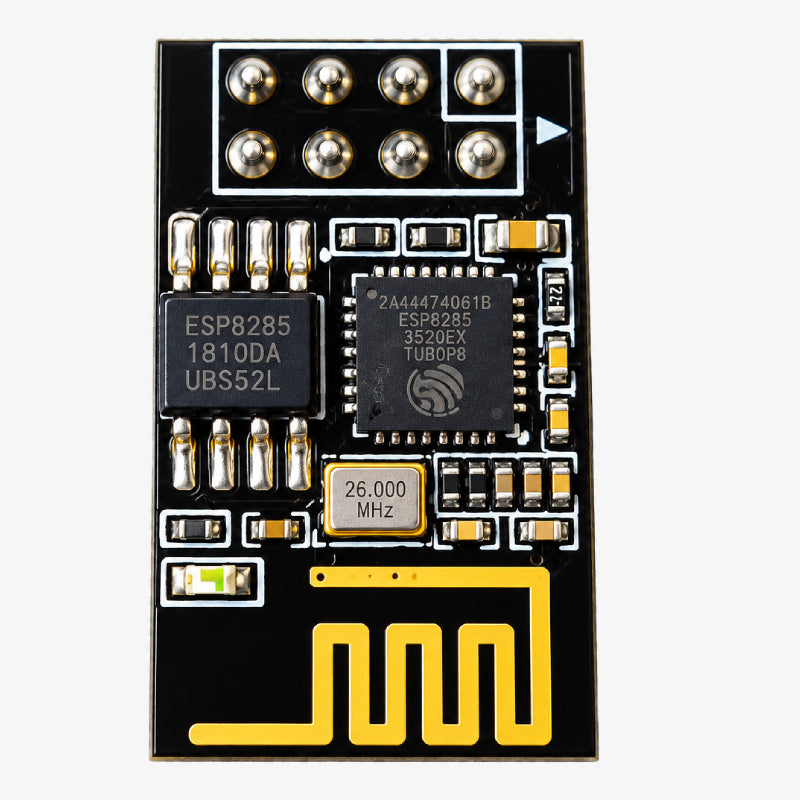

1 × ESP8266 ESP-01S WiFi Module
