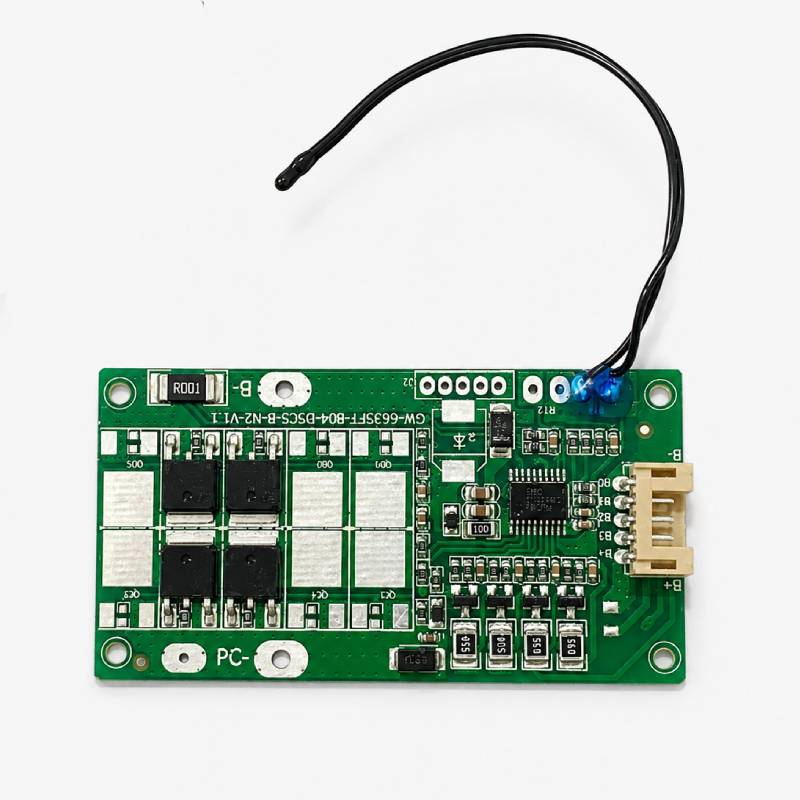

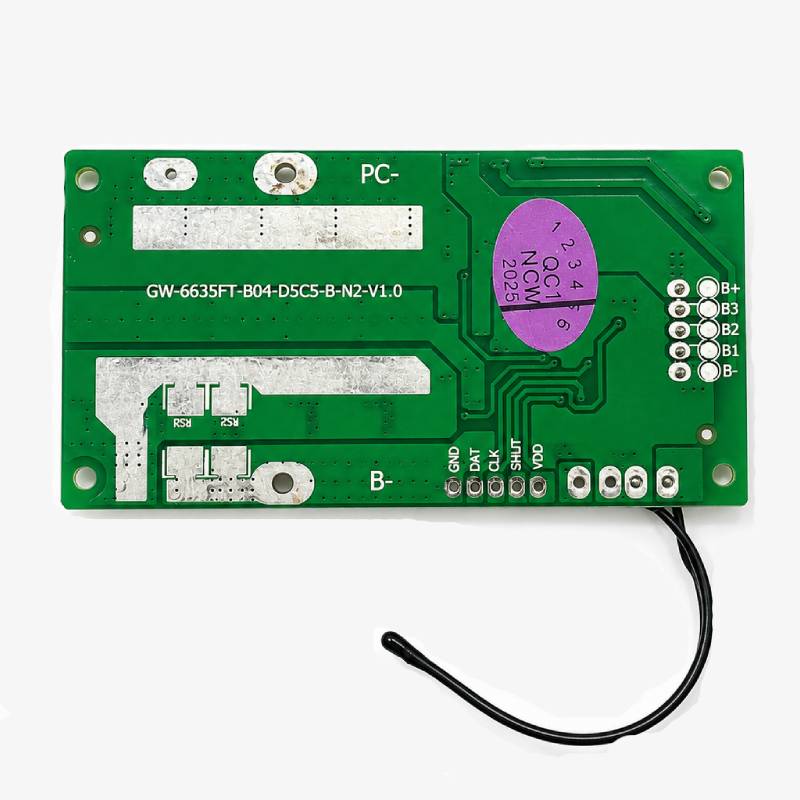

4S 10A Battery BMS Module with Connector for 3.7V NMC Cells
SKU:
BCL-QC5911
Availability:
100
In Stock
-
- Rs. 127.00
- Unit price
- per
Subtotal:
Rs. 127.00
Description
x4S 10A Battery BMS Module with Connector for 3.7V NMC Cells is designed to protect and manage 4-series (4S) 3.7V NMC lithium battery packs by providing overcharge, over-discharge, overcurrent, and short-circuit protection. Featuring a compact design with a balance connector, it ensures safe charging, stable discharging, and extended battery life for DIY battery packs, portable power systems, electric vehicles, and energy storage applications.
About The Sensor
The NTC (Negative Temperature Coefficient) sensor in a Battery Management System (BMS) continuously monitors the temperature of the battery pack to ensure safe operation. As the battery temperature increases, the resistance of the NTC sensor decreases, allowing the BMS to detect overheating. If the temperature exceeds the preset safety limit, the BMS automatically disconnects charging or discharging to protect the battery from damage, overheating, and potential thermal runaway. Once the temperature returns to the safe operating range, the BMS restores normal operation, ensuring enhanced battery safety, reliability, and longer service life.
Features:
- 4S Lithium Battery Protection Module
- Designed for 3.7V NMC Lithium Cells
- 10A Continuous Charging & Discharging Current
- Built-in Overcharge Protection
- Built-in Over-Discharge Protection
- Overcurrent & Short Circuit Protection
- High-Precision Voltage Detection
- Balance Connector for Cell Monitoring
- Compact PCB Design
- Suitable for DIY Battery Packs and Energy Storage Applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | 4S Battery BMS Module |
| Battery Type | 3.7V NMC Lithium Cells |
| Cell Configuration | 4S |
| Charging Voltage | DC 16.8V (CC/CV) |
| Continuous Charging Current | 10A Max |
| Continuous Discharge Current | 10A Max |
| Overcharge Detection | 4.25 ± 0.05V/Cell |
| Over-Discharge Detection | 3.0 ± 0.1V/Cell |
| Overcurrent Detection | 15 ± 3A |
| Operating Temperature | -45°C to +65°C |
| Storage Temperature | -45°C to +85°C |
| Connector | Balance Connector |
Also Check These Out:
4S 6Amps LFP Battery Protection BMS Module for 3.2V LFP cells
1S 6A LFP 32650 Lithium Battery Protection Board 3.2V BMS
3S 10A Lithium Battery Protection BMS Module for 11.1V NMC cells
3S 10A Lithium Battery Protection BMS Module for 3.7V NMC cells without Nickel Strip
Package Includes:

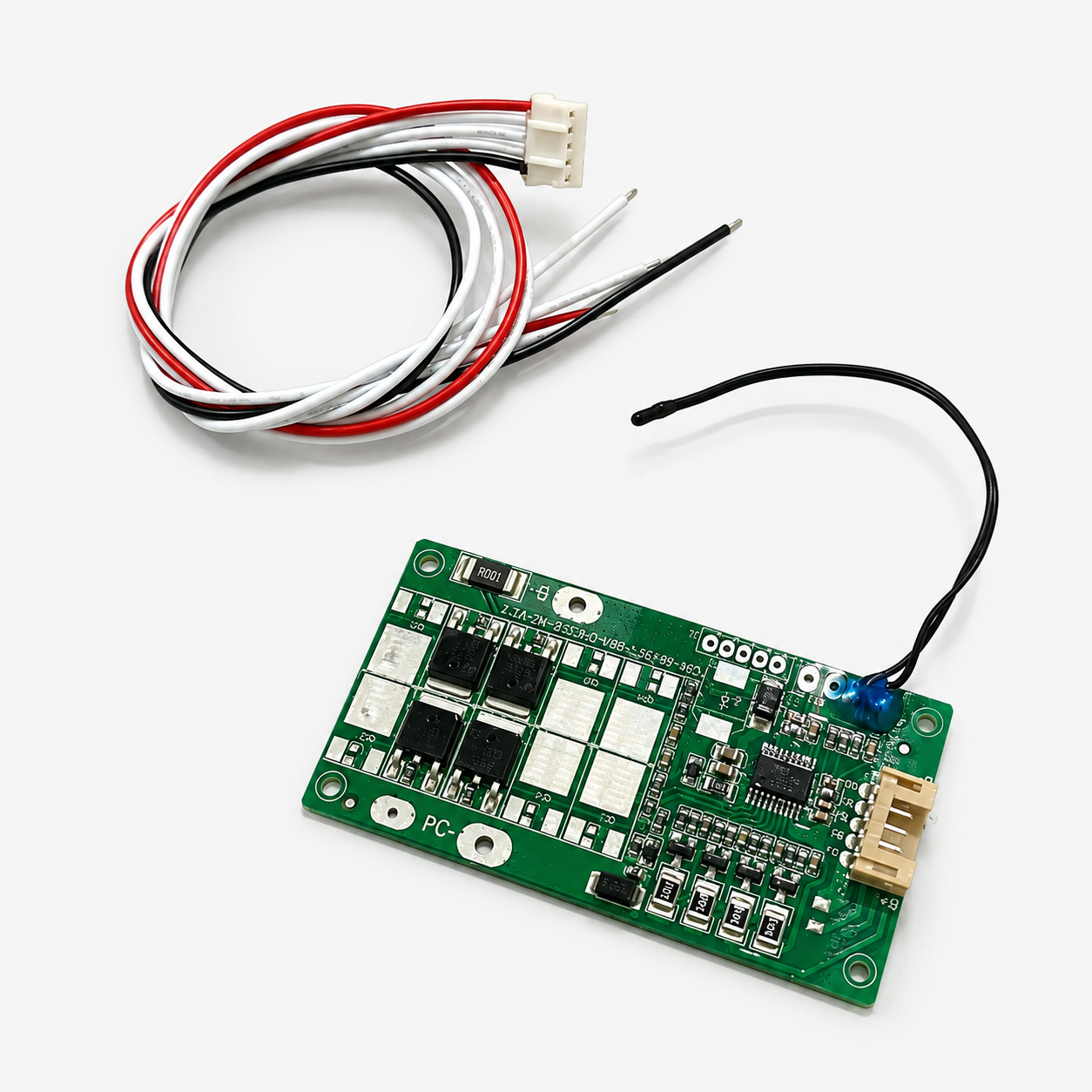

1 x 4S 10A Battery BMS Module with Connector for 3.7V NMC Cells
