2SC5200-O NPN Transistor 2SC5200-O NPN Transistor

QC0074

9 In stock

Rs. 125.00
-
+
Rs. 125.00
(inc. GST)

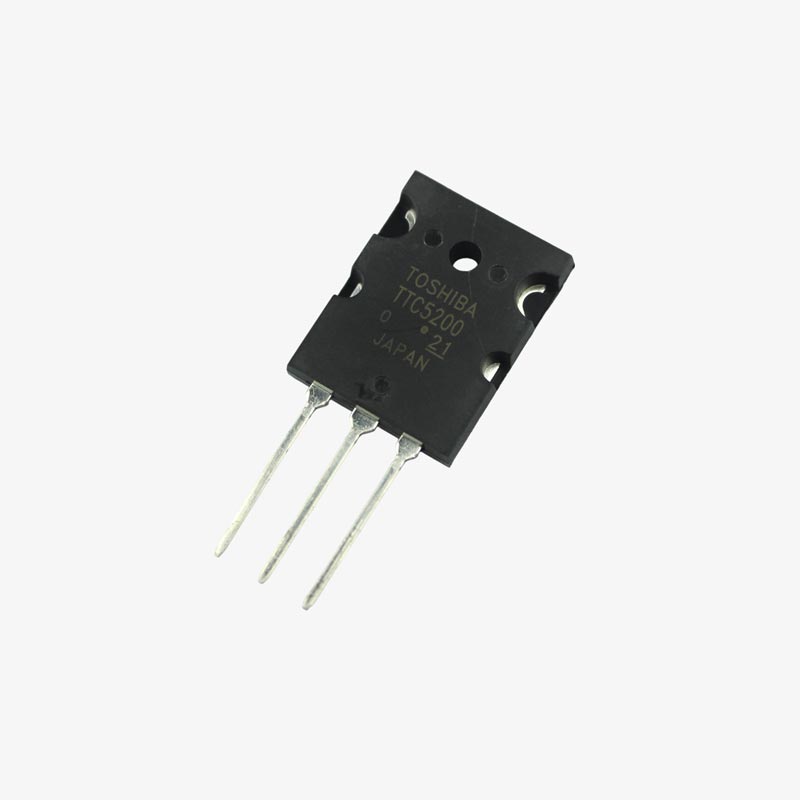

2SC5200 Transistor is an NPN Power Transistor manufactured by Toshiba. It has collector continuous current of 15A and a Collector-Emitter voltage of 230V. The base current of this transistor is about 1.5A and the Emitter base voltage is 5V.



Due to its high current gain and collector current, this c5200 transistor is very commonly used in High power audio circuits or AF amplifiers. Recommended for 150-W high-fidelity audio frequency amplifier output stage. The transistor is popularly used in push-pull audio circuits along with this PNP Equivalent 2SC1943 PNP Transistor.



Features & Specifications

  • High-power NPN Transistor
  • DC Current Gain (hFE):55 to 160
  • Continuous Collector current (IC): 15A
  • Collector-Emitter voltage (VCE): 230 V
  • Collector-Base voltage (VCB): 230V
  • Emitter Base Voltage (VBE): 5V
  • Transition Frequency: 30MHz
  • Minimum Operating Temperature: - 55 C
  • Maximum Operating Temperature: 150 °C
  • Available in To-264 Package
  • Mounting Style: Through Hole



Package Contents

1×2SC5200-O NPN Transistor



Additional Resources

2SC5200 Datasheet

2SC5200 Tutorial

2SC5200 Transistor is an NPN Power Transistor manufactured by Toshiba. It has collector continuous current of 15A and a Collector-Emitter voltage of 230V. The base current of this transistor is about 1.5A and the Emitter base voltage is 5V.



Due to its high current gain and collector current, this c5200 transistor is very commonly used in High power audio circuits or AF amplifiers. Recommended for 150-W high-fidelity audio frequency amplifier output stage. The transistor is popularly used in push-pull audio circuits along with this PNP Equivalent 2SC1943 PNP Transistor.



Features & Specifications

  • High-power NPN Transistor
  • DC Current Gain (hFE):55 to 160
  • Continuous Collector current (IC): 15A
  • Collector-Emitter voltage (VCE): 230 V
  • Collector-Base voltage (VCB): 230V
  • Emitter Base Voltage (VBE): 5V
  • Transition Frequency: 30MHz
  • Minimum Operating Temperature: - 55 C
  • Maximum Operating Temperature: 150 °C
  • Available in To-264 Package
  • Mounting Style: Through Hole



Package Contents

1×2SC5200-O NPN Transistor



Additional Resources

2SC5200 Datasheet

2SC5200 Tutorial
