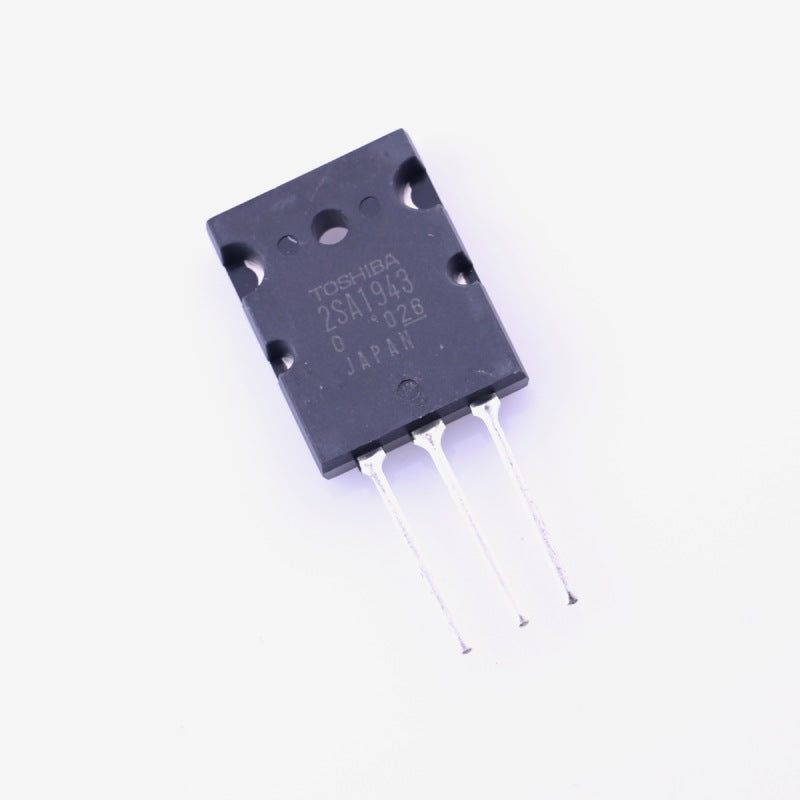

2SC1943-O PNP Power Transistor
2SC1943-O PNP Power Transistor
2SA1943-O PNP Power Transistor
Click to zoom in
  • Free Shipping

    On prepaid orders above INR 500

  • Cash On Delivery

    COD available for orders above INR 500

  • 3-5 Days Delivery

    Shipped within 24 hrs

  • Dedicated Support

    Mon to Sat - 10 AM to 6.30 PM

2SA1943-O PNP Power Amplifier Transistor

QC0073
55 In stock
Rs. 85.00 Rs. 80.00 (Exc. GST)
Rs. 80.00

The 2SA1943 is a high power PNP Power transistor manufactured by Toshiba. It has a collector continuous current of 15A and a Collector-Emitter voltage of 230V. The base current is about 1.5A and the Emitter base voltage is 5V.



Due to its high current gain and collector current, it is very commonly used in High power audio circuits or AF amplifiers. Recommended for 150-W high-fidelity audio frequency amplifier output stage. The transistor is popularly used in push-pull audio circuits along with this NPN Equivalent 2SC5200 NPN Transistor.



Features & Specifications

  • Medium-power PNP Transistor
  • DC Current Gain (hFE): 55 to 160
  • Continuous Collector current (IC): 15A
  • Collector-Emitter voltage (VCE): 230 V
  • Collector-Base voltage (VCB): 230V
  • Emitter Base Voltage (VBE): 5V
  • Recommended for 150-W high-fidelity audio frequency amplifier output stage
  • Maximum Operating Temperature: 150 C
  • Mounting Style: Through Hole
  • Available in To-264 Package



Package Contents

1×2SA1943-O PNP Power Transistor



Additional Resources

2SA1943 Datasheet

2SA1943 Tutorial

Read More
Read Less

Returns Policy

Due to the type of products we sell, we accept limited returns. Below are the conditions where we can accept a return request.

1. Damaged During Shipment
If you receive a product damaged during shipment, please notify us within the 3 days of you receive the product, supported by the proper pictures and description. Once our support team accept the return, we will provide a replacement or a complete refund including the return shipping cost.

2. Wrong Item Shipped

If your item looks different from what is shown in the image on our website, we will take the item back and provide a refund or replacement as per your choice.

Limitation of Returns
We don't accept the returns for the products damanged by improper use of the product. Moreover we don't accept the return, if the ordered product is not fit for any specific application. Please read the product specifications and datasheet before selecting and ordering a product. Returns are accepted only with 3 days from the date of delivery.

Shipping

We ship to all over India with free shipping on all prepaid orders above 500. For Cash on Delivery orders INR 80 will be charged for orders below INR 599 and INR 30 will be charged for the orders above 599. Please contact to our support team at support@quartzcomponents.com for any question related to shipping.


Please note that the Minimum Order Value is INR 500 for COD orders.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
A
Arun Nijsure

2SA1943-O PNP Power Amplifier Transistor

D
Dr Samuela

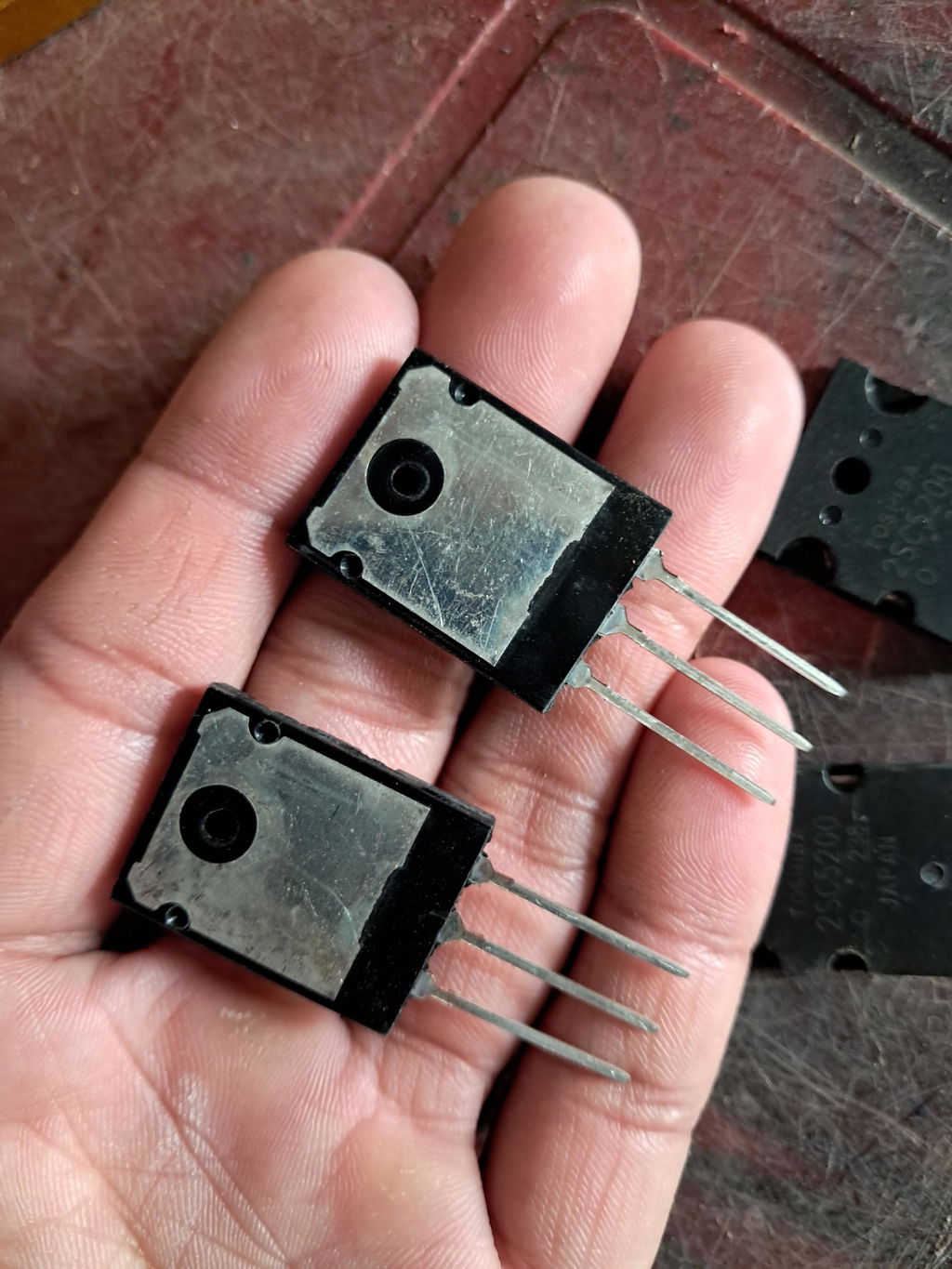

Good..but

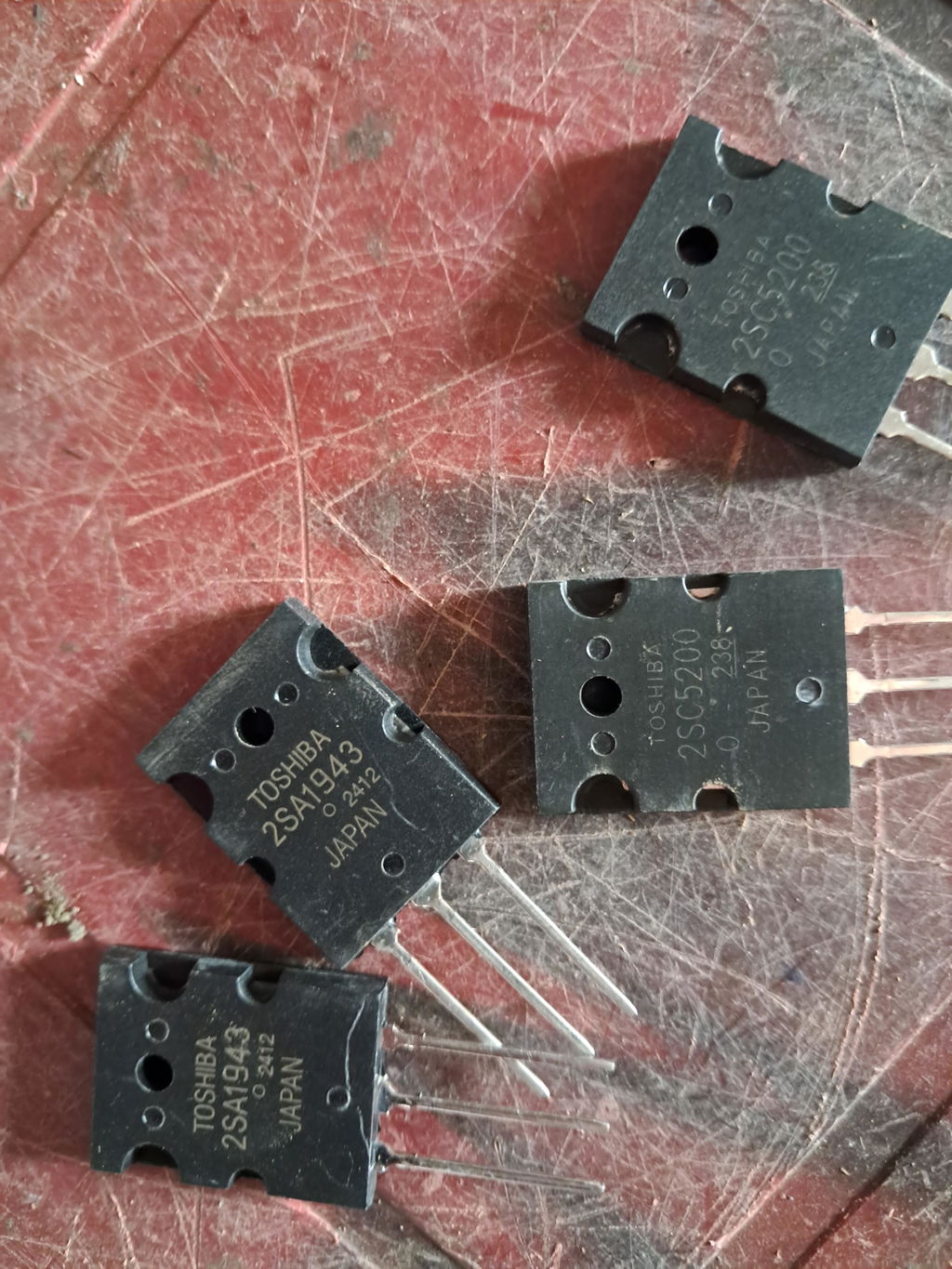

I have order 2SC5200 and 2SA1943 but instead i received TTC5200 which is okay..
