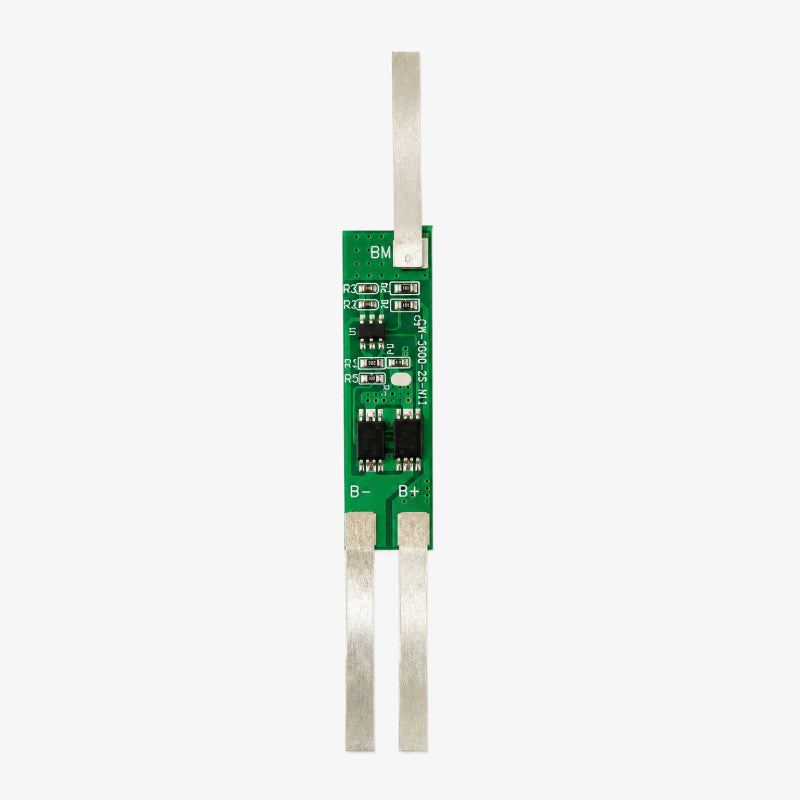

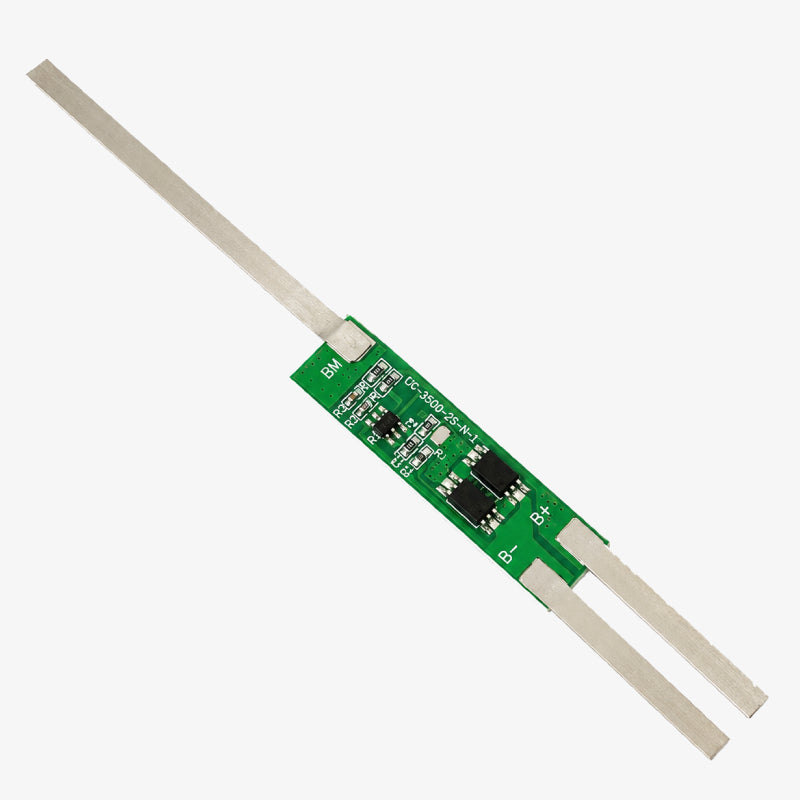

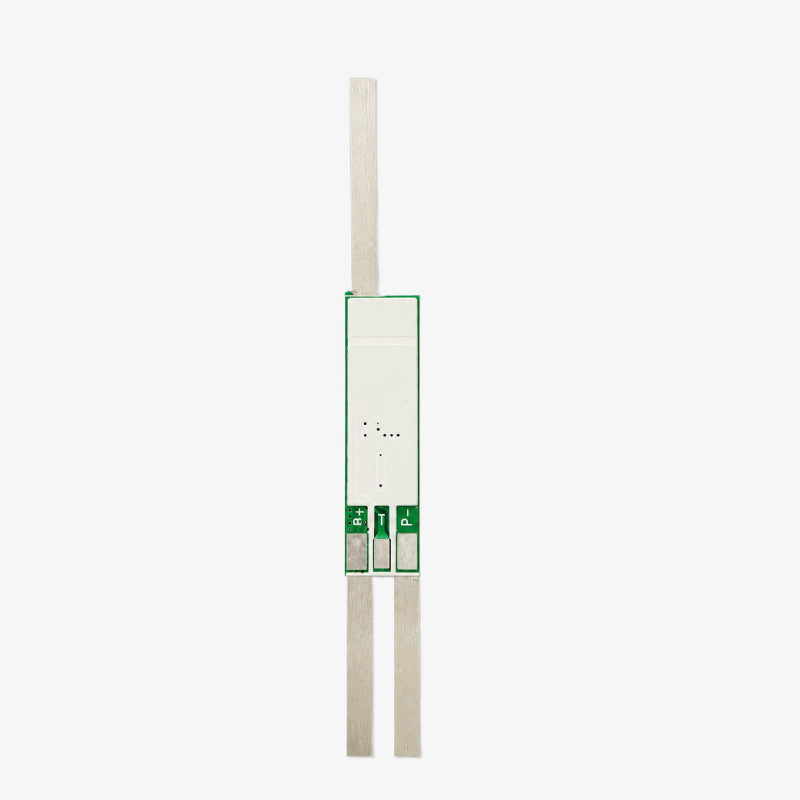

2S 4A Lithium Battery Protection BMS Module for 7.4V NMC cells with Nickel Strip
SKU:
BCL-QC6215
Availability:
3
In Stock
-
- Rs. 31.00
- Unit price
- per
Subtotal:
Rs. 31.00
Description
x2S 4A Lithium Battery Protection BMS Module for 7.4V NMC cells with Nickel Strip is a compact 2S lithium-ion battery protection module designed for building and protecting rechargeable battery packs using two 3.7V NMC cells connected in series. It provides a 7.4V nominal battery configuration with protection against overcharge, over-discharge, over-current, and short-circuit conditions. The module supports up to 4A continuous current and includes a nickel strip for spot-welding the battery cells, making it suitable for DIY battery packs and compact portable power applications.
Features:
- 2S lithium-ion battery protection module.
- Designed for two 3.7V NMC lithium-ion cells connected in series.
- 7.4V nominal battery pack configuration.
- 8.4V nominal full-charge voltage.
- Up to 4A continuous discharge current.
- Overcharge protection.
- Over-discharge protection.
- Over-current protection.
- Short-circuit protection.
- Automatic protection recovery after fault conditions.
- Low quiescent current for reduced battery drain.
- Compact PCB construction.
- Pre-attached nickel strip for battery assembly.
- Spot-weldable battery connection.
- Suitable for 18650 and compatible NMC lithium-ion cells.
- Suitable for DIY rechargeable battery packs.
- Useful for portable electronics, LED lighting, small motors, robotics, sensors, and other battery-powered projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Lithium Battery Protection BMS Module |
| Battery Chemistry | NMC Lithium-Ion |
| Battery Configuration | 2S |
| Number of Cells | 2 |
| Nominal Cell Voltage | 3.7V |
| Nominal Pack Voltage | 7.4V |
| Full Charge Voltage | 8.4V |
| Recommended Charging Voltage | 8.4V CC/CV |
| Continuous Discharge Current | 4A |
| Over-Current Protection | Approx. 4.5A |
| Overcharge Detection Voltage | 4.25 ± 0.05V / Cell |
| Over-Discharge Detection Voltage | 2.75 ± 0.05V / Cell |
| Overcharge Release Voltage | Approx. 4.15V / Cell |
| Over-Discharge Release Voltage | Approx. 3.0V / Cell |
| Short-Circuit Protection | Yes |
| Short-Circuit Response | Instant Cutoff |
| Short-Circuit Recovery | Automatic / Charge Recovery |
| Quiescent Current | <30µA |
| Operating Temperature | -20°C to 60°C |
| Cell Connection | Series |
| Protection Type | BMS / PCM |
| Charging Method | CC/CV |
| Compatible Battery Type | 3.7V NMC Li-ion |
| Compatible Cell Format | 18650 / Compatible Cylindrical Cells |
| Nickel Strip | Included |
| Nickel Strip Connection | Spot Welding |
| PCB Construction | Compact Protection PCB |
| Application | 2S Li-ion Battery Pack |
Also Check These Products:-
4S 6Amps LFP Battery Protection BMS Module for 3.2V LFP cells
1S 6A LFP 32650 Lithium Battery Protection Board 3.2V BMS
3S 10A Lithium Battery Protection BMS Module for 11.1V NMC cells
3S 10A Lithium Battery Protection BMS Module for 3.7V NMC cells without Nickel Strip
Package Includes:
1 x 2S 4A Lithium Battery Protection BMS Module
