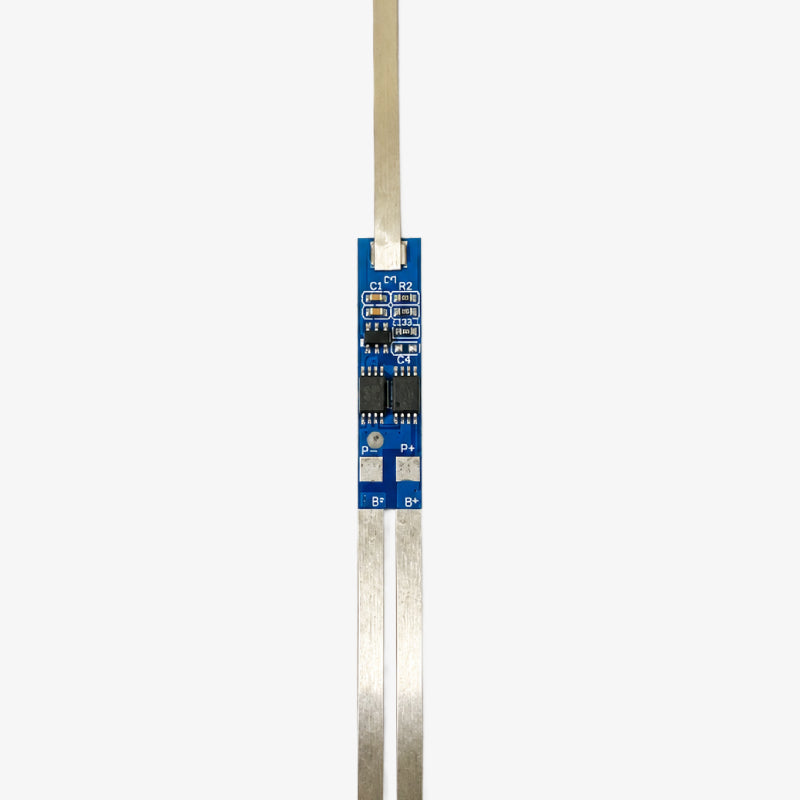

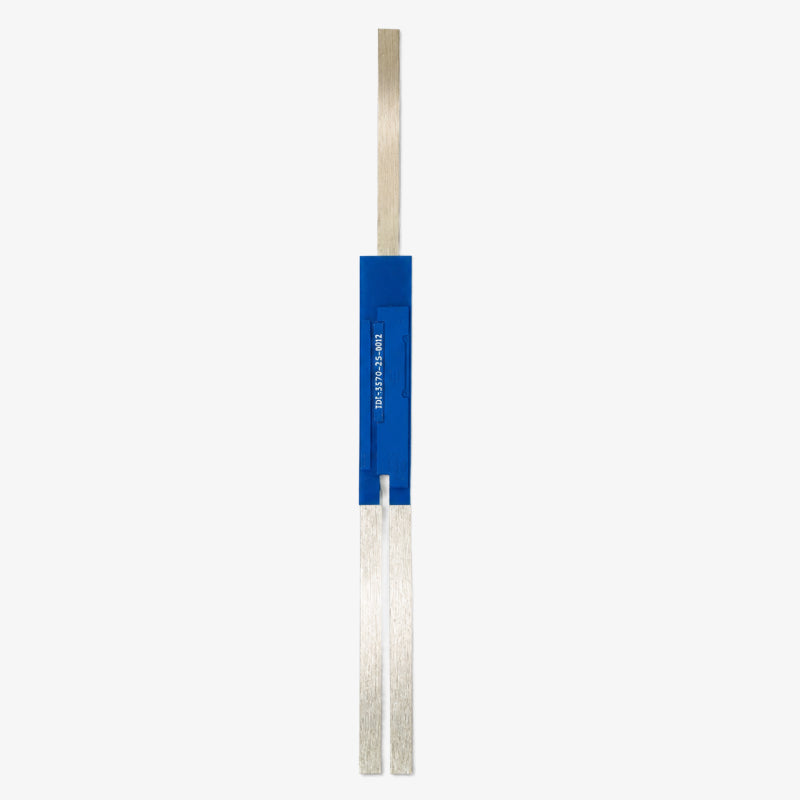

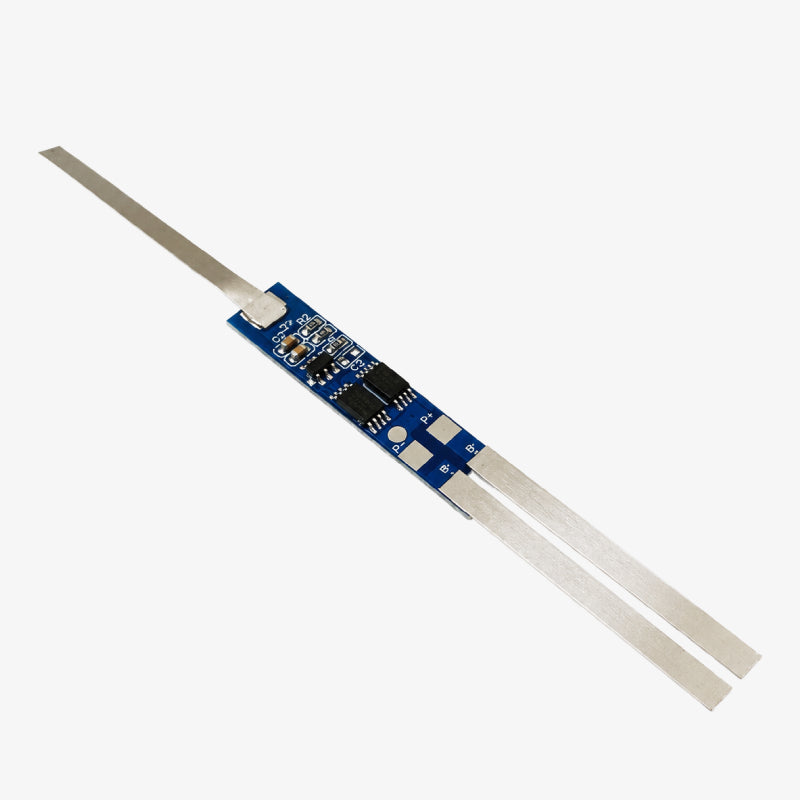

2S 4A Li-ion Battery Protection BMS Module for 3.2V LFP Cells with Nickel Strips

2S 4A Li-ion Battery Protection BMS Module for 3.2V LFP Cells with Nickel Strips is a compact 2S battery protection module designed specifically for two LiFePO4 (LFP) cells connected in series. It supports a 6.4V nominal battery pack and approximately 7.4V maximum charging voltage, with up to 4A continuous current capability. The module provides protection against overcharge, over-discharge, over-current, and short-circuit conditions and includes nickel strips for convenient spot-welded battery pack assembly.

Features:

1. 2S LiFePO4 (LFP) battery protection module.
2. Designed for two 3.2V nominal LFP cells connected in series.
3. 6.4V nominal battery pack configuration.
4. Approximately 7.4V maximum charging voltage.
5. Supports up to 4A continuous current.
6. Overcharge protection.
7. Over-discharge protection.
8. Over-current protection.
9. Short-circuit protection.
10. Cell voltage monitoring.
11. Helps protect individual cells during charging and discharging.
12. Automatic protection operation.
13. Compact and lightweight PCB design.
14. Nickel strips included for direct spot welding.
15. Suitable for custom 2S LiFePO4 battery packs.
16. Suitable for portable electronics, LED lighting, small robotics, IoT devices, backup systems, and DIY battery projects.

Specifications:

Also Check These Products:-

4S 6Amps LFP Battery Protection BMS Module for 3.2V LFP cells

1S 6A LFP 32650 Lithium Battery Protection Board 3.2V BMS

3S 10A Lithium Battery Protection BMS Module for 11.1V NMC cells

3S 10A Lithium Battery Protection BMS Module for 3.7V NMC cells without Nickel Strip

Package Includes:

1 x 2S 4A BMS Module for 3.2V LFP Cell
