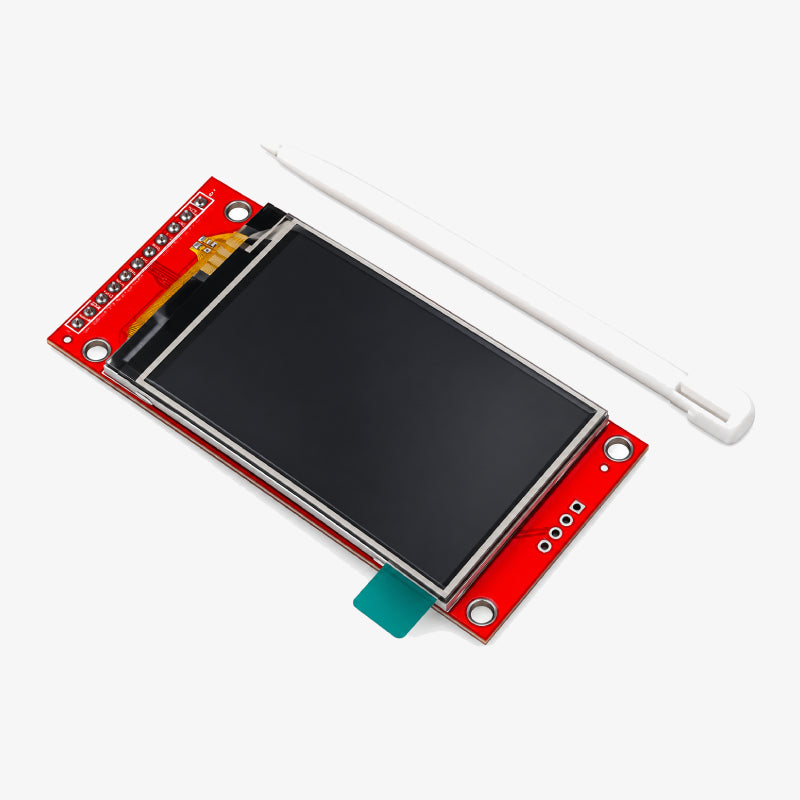

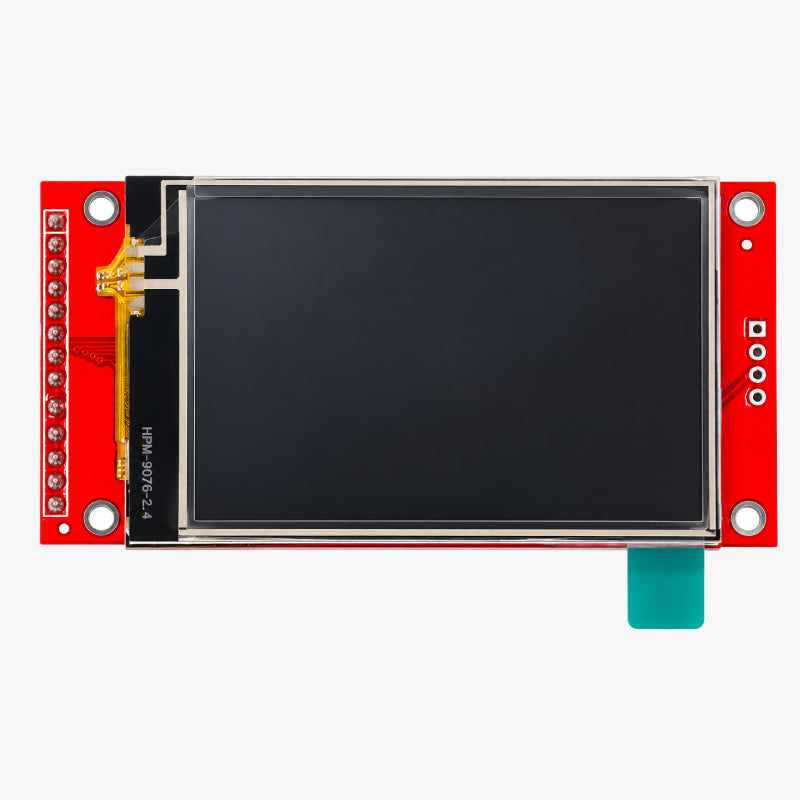

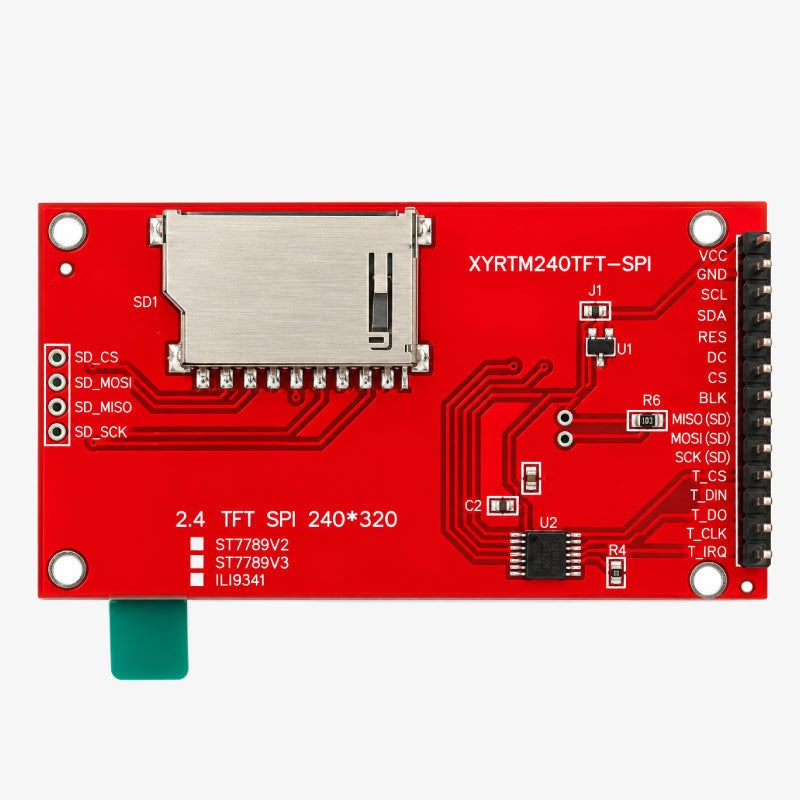

2.4-Inch 240×320 TFT Touch Screen Display Module is a compact full-color display module designed for embedded systems and microcontroller-based projects. It features a 240 × 320-pixel resolution for displaying text, graphics, sensor readings, and interactive graphical interfaces. The SPI interface reduces wiring requirements and supports integration with compatible development boards such as Arduino, ESP32, and STM32. The integrated touch panel enables user input for menu navigation and control applications.
| Specification | Value |
|---|---|
| Display Type | TFT LCD |
| Display Size | 2.4 inches |
| Resolution | 240 × 320 pixels |
| Display Controller | ST7789V |
| Touch Technology | Resistive |
| Touch Controller | XPT2046 |
| Communication Interface | SPI |
| Color Data Format | RGB565 |
| Display Orientation | Portrait |
| Backlight Type | LED |
| Logic Voltage | 3.3V |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Compatible Platforms | Arduino, ESP32, STM32 |
| Applications | Embedded interfaces, sensor displays, and control panels |
1.8 Inch SPI 128x160 TFT LCD Display Module With PCB for Arduino
2.8 Inch SPI Touch Screen Display Module - TFT Display 240x320
2.4 Inch TFT Touchscreen LCD Display for Arduino Uno
3.5 Inch TFT Touchscreen Display for Raspberry Pi
1 × 2.4-Inch 240×320 TFT Touch Screen Display Module
