16mm Latching/Momentary Switch Connector Socket Plug
SKU:
CNX-QC3556
Availability:
55
In Stock
-
- Rs. 101.00
- Unit price
- per
Subtotal:
Rs. 101.00
Description

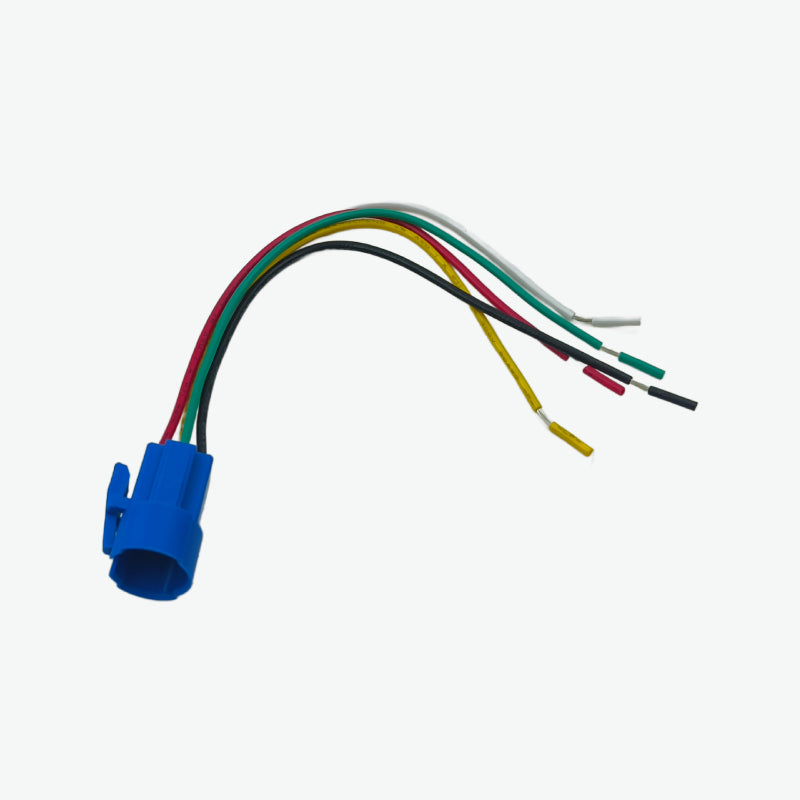

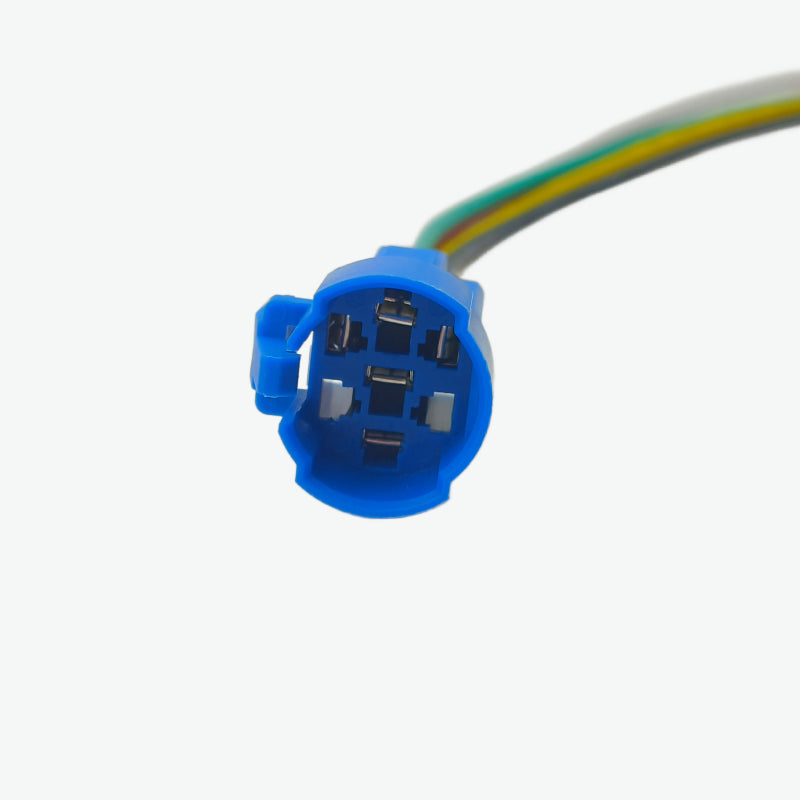

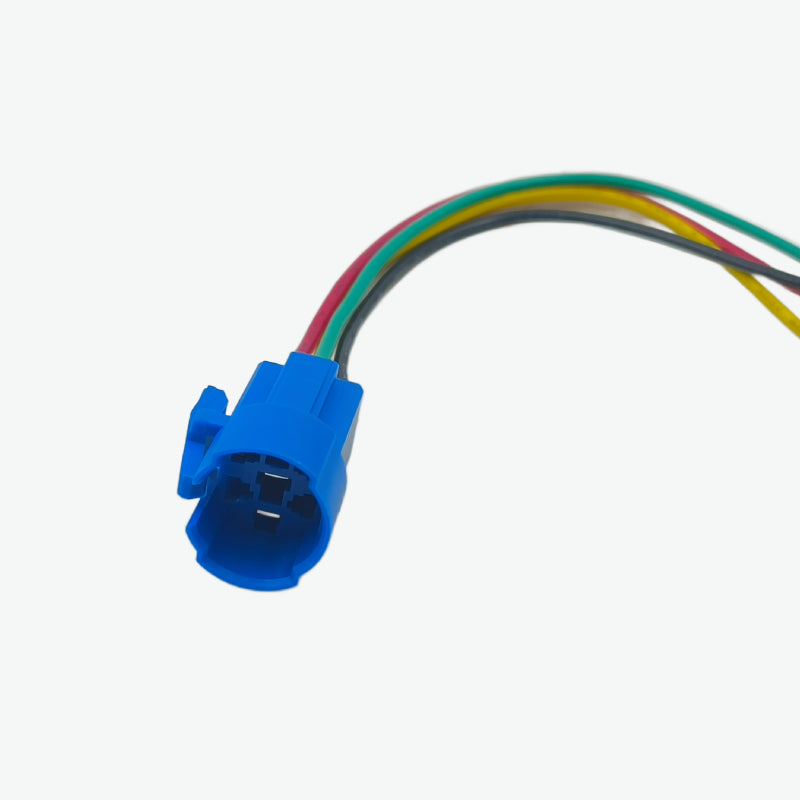

xThe 16mm Latching Switch Connector plug is a high-quality pre-wired socket plug designed for quick and secure connection with 16mm latching push button switches.
This connector features 5 color-coded 20AWG wires (14cm length) for easy identification and wiring - perfect for use in automotive, industrial, and DIY electronic applications.
Ideal for use with FILN and compatible 16mm latching switches, this connector allows convenient setup of LED indicators and switch functions like ON/OFF or momentary operation.
Note: Switch not included with product.
Features:
- Plug-and-play design — no soldering required.
- Fits standard 16mm latching push button switches.
- Includes 5 color-coded 20AWG wires for simple wiring and reliable contact.
- Supports LED illumination wiring (Red & Black for LED terminals).
- High-strength plastic body ensures insulation and long service life.
- Suitable for cars, boats, control panels, and other electronic devices.
Specifications:
|
Product Type |
Latching Switch Connector Socket Plug |
|
Mounting Hole Size |
16mm |
|
Wire Gauge |
20AWG |
|
Wire Length |
14cm |
|
Number of Wires |
5 |
|
Material |
High-Quality Plastic |
|
Switch Compatibility |
16mm Latching Push Button Switch (FILN or similar) |
|
Switch Rating (Reference) |
Upto 5A/250V AC, 5A/30V DC |
|
Operating Voltage for LED |
3V–24V (Depends on LED type) |
|
Mounting Type |
Panel Mount (with Switch) |
Package Includes:
1 × 16mm Latching Switch Connector (Socket Plug)
