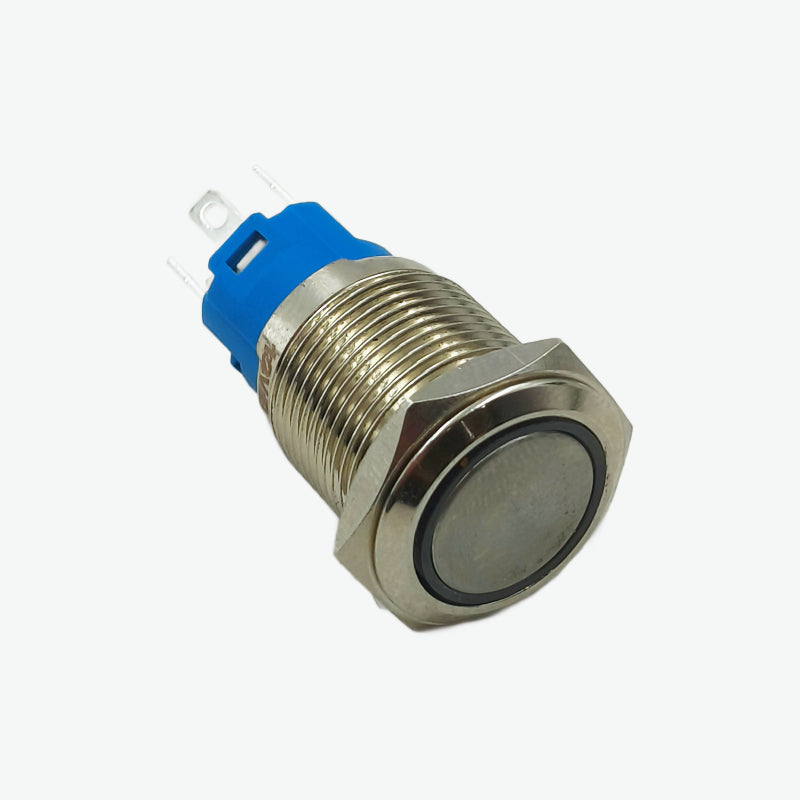

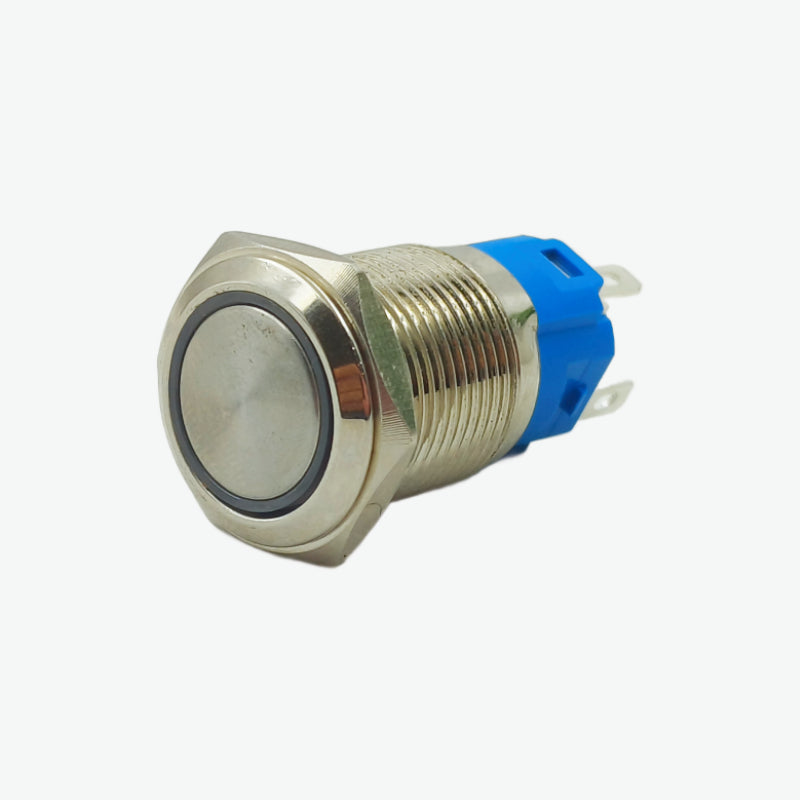

This 16mm Flat Head Metal Latching Push Button Switch is a durable, industrial-grade switch designed for reliable performance and long life. Featuring a ring-style LED illumination and a rugged stainless-steel body, this switch provides a professional look and high resistance against dust and moisture (IP67 rated).

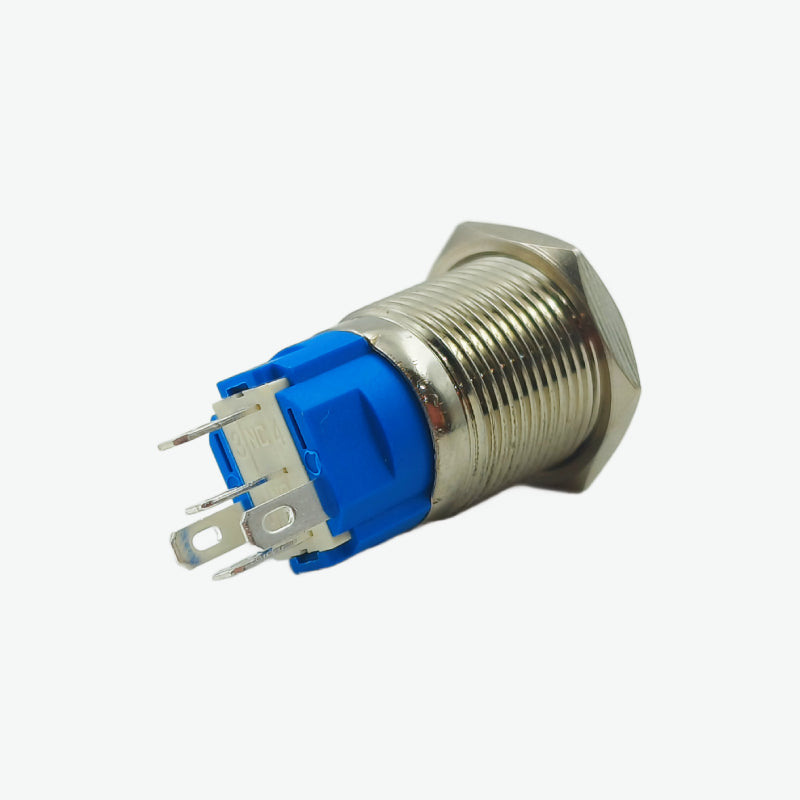

It is a latching type switch, meaning it stays in its last position until pressed again - perfect for On/Off control applications. Operating on 12V - 24V DC, it includes 5 pins (C, NO, NC, and 2 LED pins) allowing independent LED operation or LED activation only when the switch is pressed.
This switch is ideal for use in industrial control panels, automotive systems, power equipment, and DIY electronics projects.
Also check: 16mm Latching/Momentary Switch Connector Socket Plug
Features:
- Ring LED illumination for clear switch status indication
- Latching type – press once ON, press again OFF
- Durable stainless steel metal body for long life
- IP67 waterproof and dustproof for outdoor/industrial use
- Operates on 12V–24V DC wide voltage range
- 5-pin design with separate LED control pins
- Easy 16mm panel mounting with threaded design
Specifications:
|
Switch Type |
Latching (Push ON / Push OFF) |
|
Mounting Hole Diameter |
16mm |
|
Operating Voltage |
12V–24V DC |
|
LED Type |
Ring Illumination |
|
LED Color |
Blue |
|
Pin Configuration |
5 Pins (C, NO, NC + 2 LED Pins) |
|
Switch Rating |
4A / 250V AC |
|
Body Material |
Stainless Steel |
|
Protection Level |
IP67 Waterproof |
|
Operation Life |
≥ 50,000 Cycles |
|
LED Life |
≥ 50,000 Hours |
|
Mounting Type |
Panel Mount |
|
Contact Type |
SPDT (Single Pole Double Throw) |
Applications:
- Control panels and machinery
- Automotive dashboard or ignition control
- Marine and outdoor equipment
- DIY electronics and robotics
- Power supply On/Off switch
- Computer case or power control
Package Includes:
1 × 16MM 12V–24V Latching Metal Push Button Switch with Blue LED Ring Illumination
