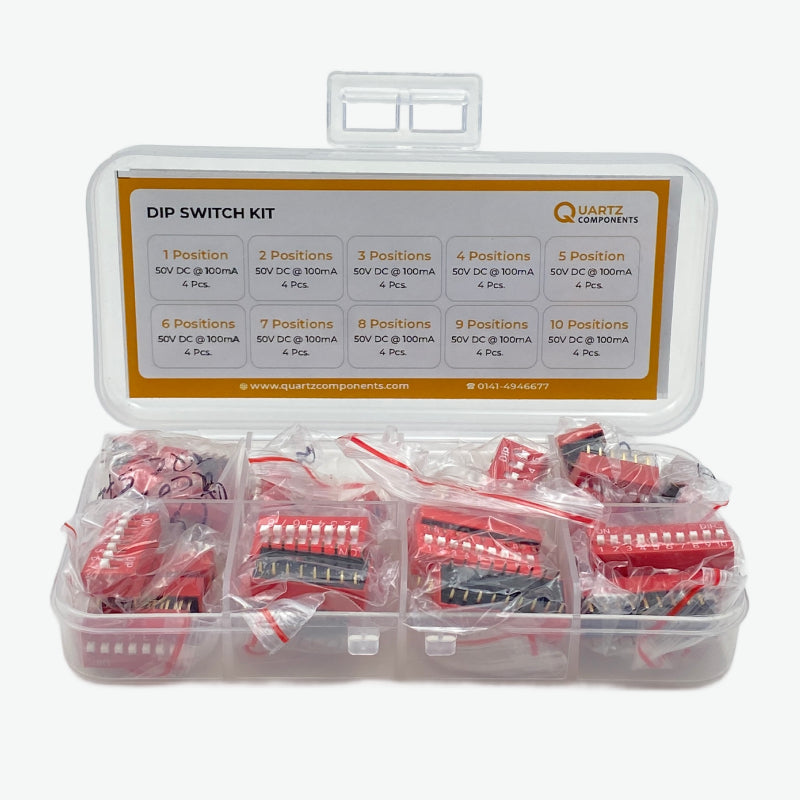

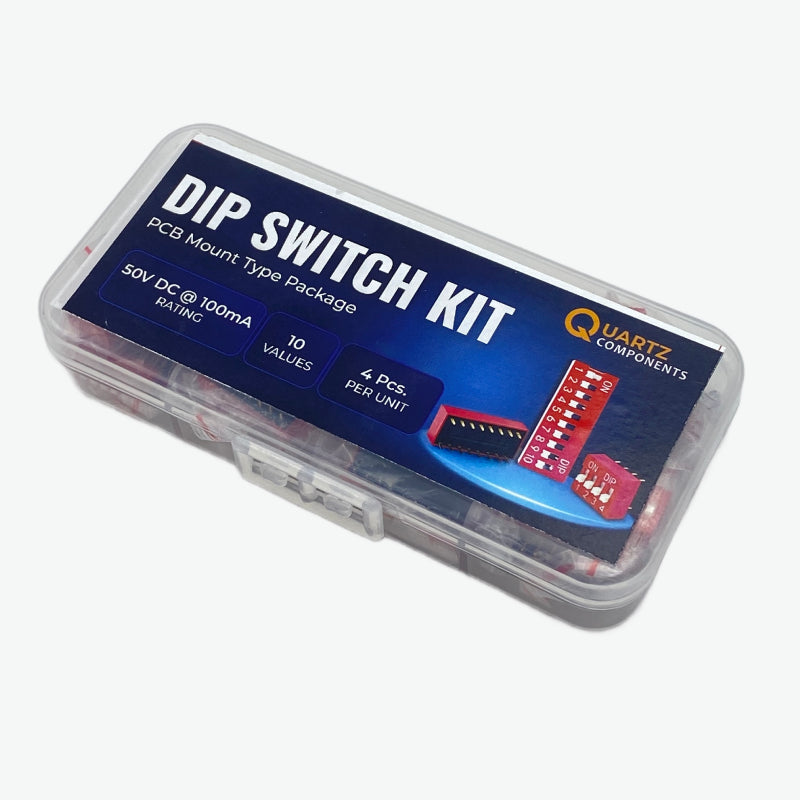

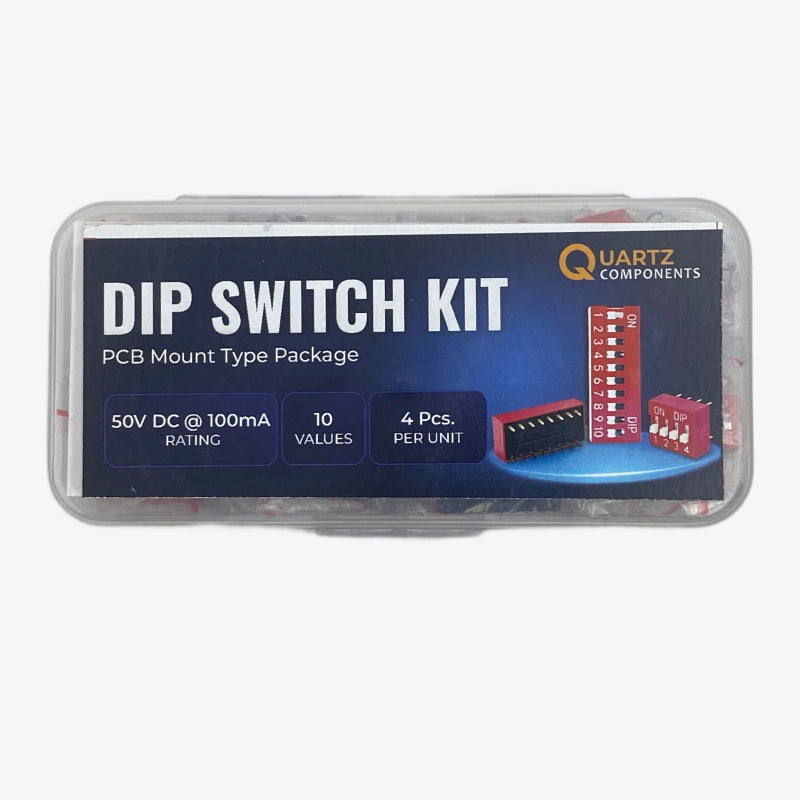

10 Set DIP Switch Kit PCB Mount Type Package 1 to 10 Position - 40 Pcs is designed for reliable manual configuration and signal selection in electronic circuits. Ideal for PCB applications, embedded systems, prototyping, and DIY electronics projects requiring multiple DIP switch variations.
10 Set DIP Switch Kit PCB Mount Type Package 1 to 10 Position - 40 Pcs Datasheet
| Parameter | Value |
|---|---|
| Product Type | DIP Switch Kit |
| Mount Type | PCB Mount |
| Contact Rating | 100mA 50VDC |
| Position Range | 1 to 10 Position |
| Total Quantity | 40 Pieces |
| Contact Identification | Numbered Contacts |
| Application | PCB / Embedded / DIY Projects |
Check Out These Kits :-
8 Values Glass Fuse Kit from 0.5A to 30A - 80Pcs
8 Values HRC Pencil Type Fuse Kit 6A to 20A - 40 Pcs
8 Values Automotive Blade Fuse Kit from 5A to 40A - 40Pcs
1 x 10 Set DIP Switch Kit PCB Mount Type Package 1 to 10 Position - 40 Pcs
| Positions | Switch Rating |
|---|---|
| 1 Position | 50VDC @ 100mA |
| 2 Position | 50VDC @ 100mA |
| 3 Position | 50VDC @ 100mA |
| 4 Position | 50VDC @ 100mA |
| 5 Position | 50VDC @ 100mA |
| 6 Position | 50VDC @ 100mA |
| 7 Position | 50VDC @ 100mA |
| 8 Position | 50VDC @ 100mA |
| 9 Position | 50VDC @ 100mA |
| 10 Position | 50VDC @ 100mA |
