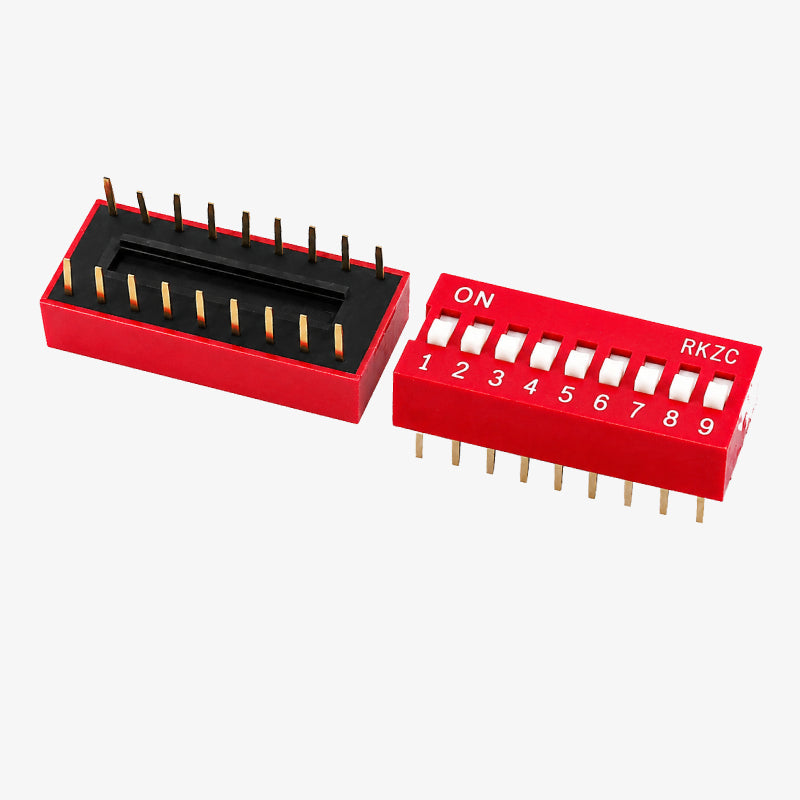

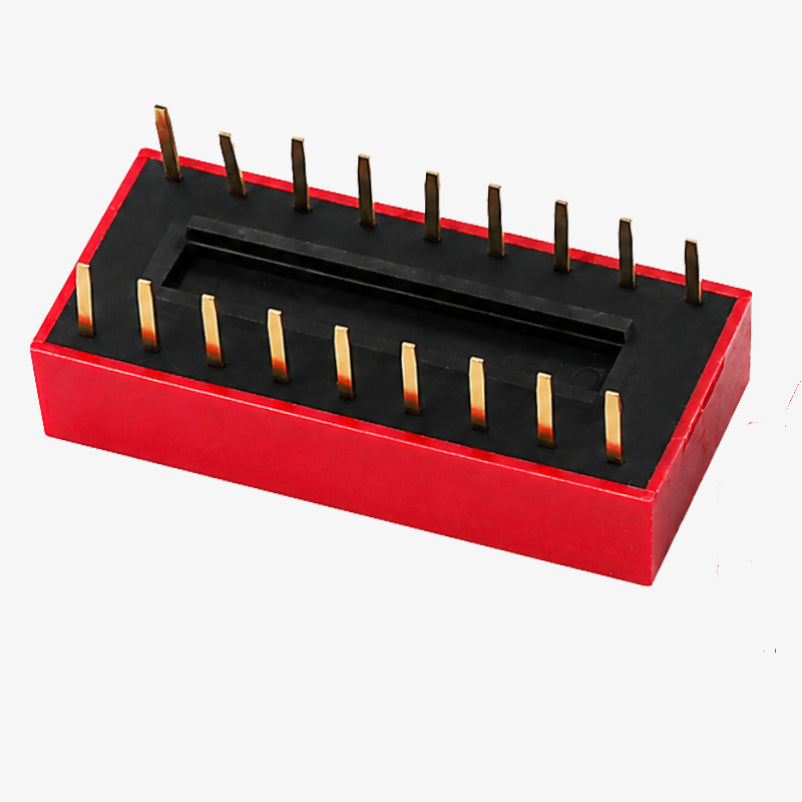

9 Position DIP Switch
SKU:
CNX-QC5732
Availability:
495
In Stock
-
- Rs. 21.00
- Unit price
- per
Subtotal:
Rs. 21.00
Description
x9 Position DIP Switch is designed for reliable manual configuration and signal selection in electronic circuits. Ideal for PCB applications, embedded systems, and DIY electronics projects requiring compact switching solutions.
9 Position DIP Switch Datasheet
Features:
- 9 Position DIP Switch
- Surface Mount Design
- Gold Plated Brass Terminals
- Compact and Durable Construction
- Reliable Switching Performance
- High Mechanical Life
- Suitable for PCB and Embedded Applications
Specifications:
| Parameter | Value |
|---|---|
| Product Type | DIP Switch |
| Positions | 9 |
| Mount Type | Surface Mount |
| Terminal Material | Brass with Gold Plating |
| Contact Rating | 100mA 50VDC |
| Contact Resistance | 500mΩ Max |
| Insulation Resistance | 100MΩ Min (500VDC) |
| Dielectric Strength | 500VAC / 1 Minute |
| Operating Temperature | -25°C to +85°C |
| Mechanical Life | ≥100,000 Cycles |
| Electrical Life | 2,000 Cycles per Position |
| Color | Red |
Also Check These Products:-
Package Includes:
1 x 9 Position DIP Switch
