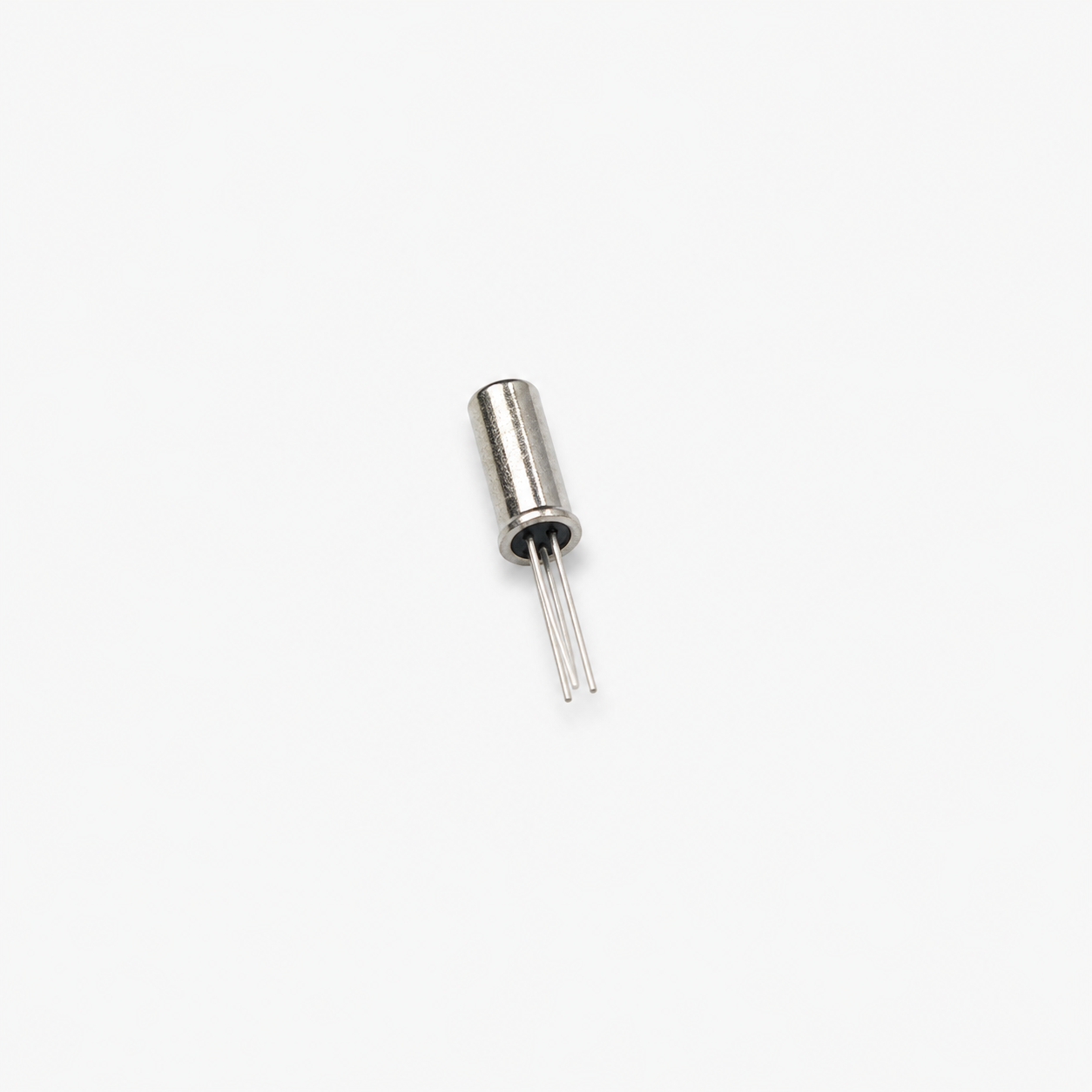

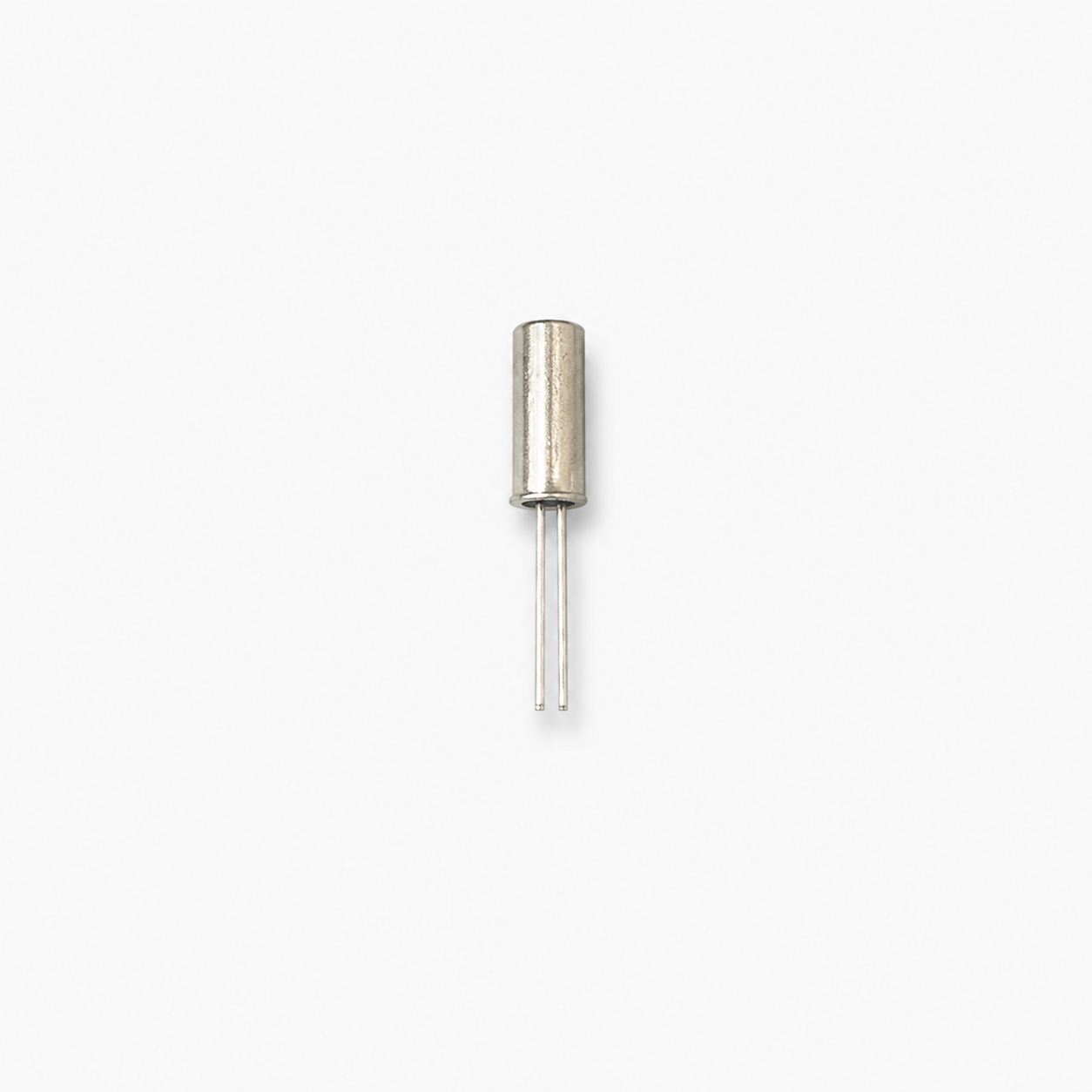

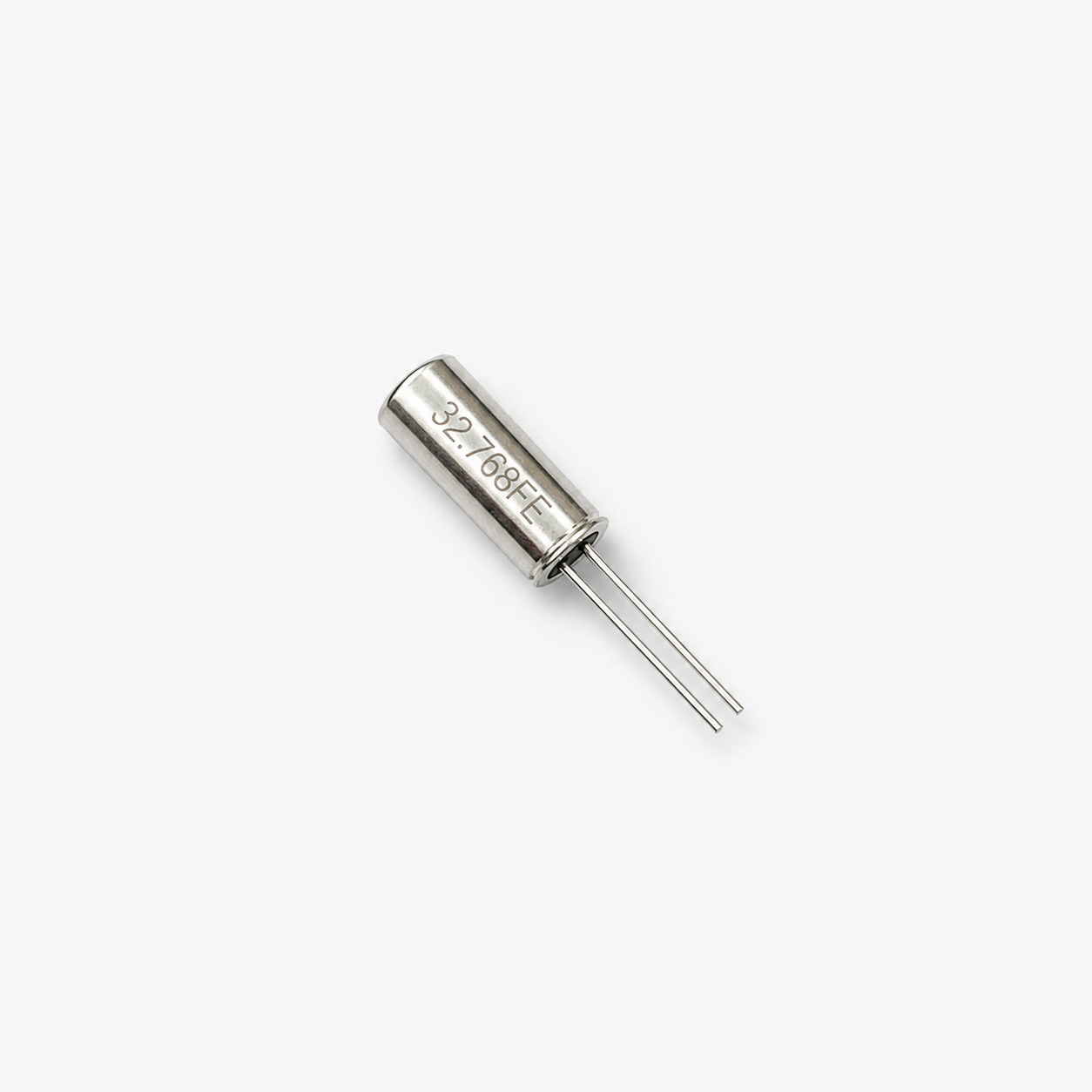

YQM Y8MOGI-32.768K-5QM-GJ Crystal oscillator (32.768KHZ)
SKU:
QC6020
Availability:
1000
In Stock
-
- Rs. 6.00
- Unit price
- per
Subtotal:
Rs. 6.00
Description
xYQM Y8MOGI-32.768K-5QM-GJ Crystal Oscillator (32.768KHZ) is a surface-mount clock oscillator designed to provide a precise and stable 32.768kHz clock signal for real-time clock (RTC) circuits, microcontrollers, IoT devices, wearable electronics, and low-power embedded systems. It offers low power consumption, excellent frequency stability, and reliable long-term operation. Similar 32.768kHz oscillators commonly operate from a 1.8V–3.3V supply with CMOS output.
YQM Y8MOGI-32.768K-5QM-GJ Crystal oscillator (32.768KHZ) Datasheet
Features:
- 32.768kHz Output Frequency
- Low Power Consumption
- CMOS Output
- Excellent Frequency Stability
- Fast Start-Up Time
- High Reliability
- Compact SMD Package
- Suitable for Automatic Reflow Soldering
- RoHS Compliant
- Ideal for RTC, IoT, Wearables, and Embedded Systems
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Crystal Oscillator |
| Brand | YQM |
| Model | Y8MOGI-32.768K-5QM-GJ |
| Output Frequency | 32.768kHz |
| Output Type | CMOS |
| Supply Voltage | 1.8V to 3.3V |
| Frequency Stability | ±20ppm |
| Duty Cycle | 45% to 55% |
| Start-Up Time | 2ms Max |
| Rise/Fall Time | 50ns Max |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -55°C to +125°C |
| Mounting Type | Surface Mount (SMD) |
| Compliance | RoHS |
Also Check These Out:
RTC Crystal oscillator (YT-32.768Khz)
Crystal oscillator (11.0592 Mhz)
Package Includes:
1 x YQM Y8MOGI-32.768K-5QM-GJ Crystal Oscillator (32.768KHZ)
