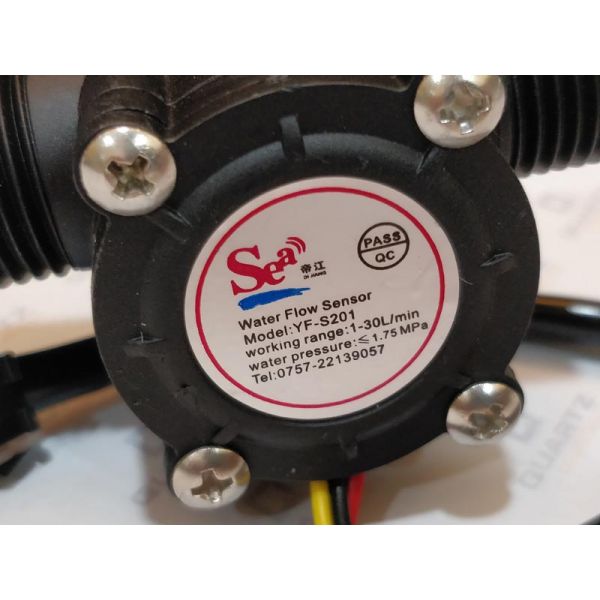

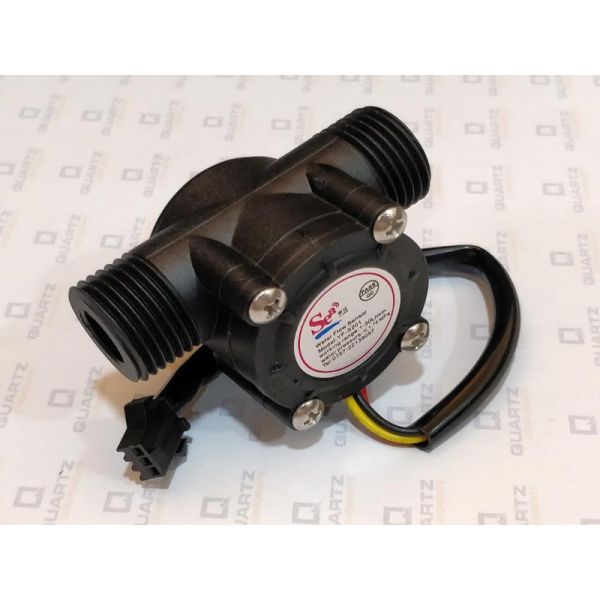

YF-S201 Water Flow Measurement Sensor

QC0274
Out of stock
Rs. 198.00 (Exc. GST)

The YF-S201 sensor is widely used water flow measurement sensor used in different applications such as a robotic cocktail dispensing machine, accurately measure components like Soda, Water, etc. This has only three pins and comes in a compact size to fit in the application area without any big effort.



YF-S201 Water Flow Sensor Specifications:

  • Sensor Type: Hall effect
  • Working Voltage: 5 to 18V DC (min tested working voltage 4.5V)
  • Max current draw: 15mA @ 5V
  • Output Type: 5V TTL
  • Working Flow Rate: 1 to 30 Liters/Minute
  • Working Temperature range: -25 to +80℃
  • Working Humidity Range: 35%-80% RH
  • Accuracy: ±10%
  • Pulses per Liter: 450
  • Output duty cycle: 50% +-10%
  • Output rise time: 0.04us
  • Output fall time: 0.18us
  • Maximum water pressure: 2.0 MPa
  • Flow rate pulse characteristics: Frequency (Hz) = 7.5 * Flow rate (L/min)



Package Includes:

1 x YF-S201 Water Flow Measurement Sensor
