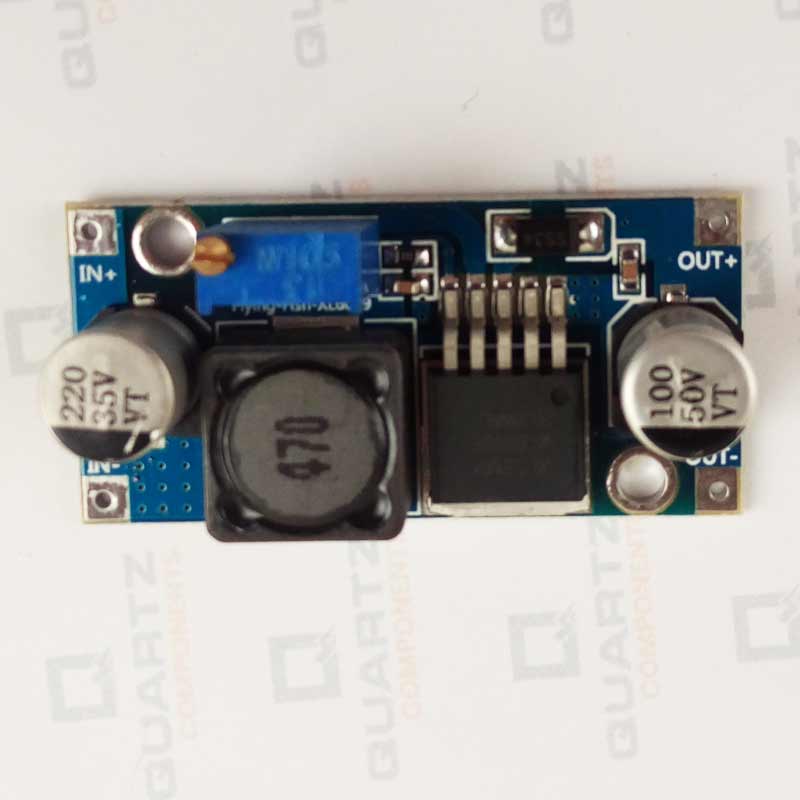

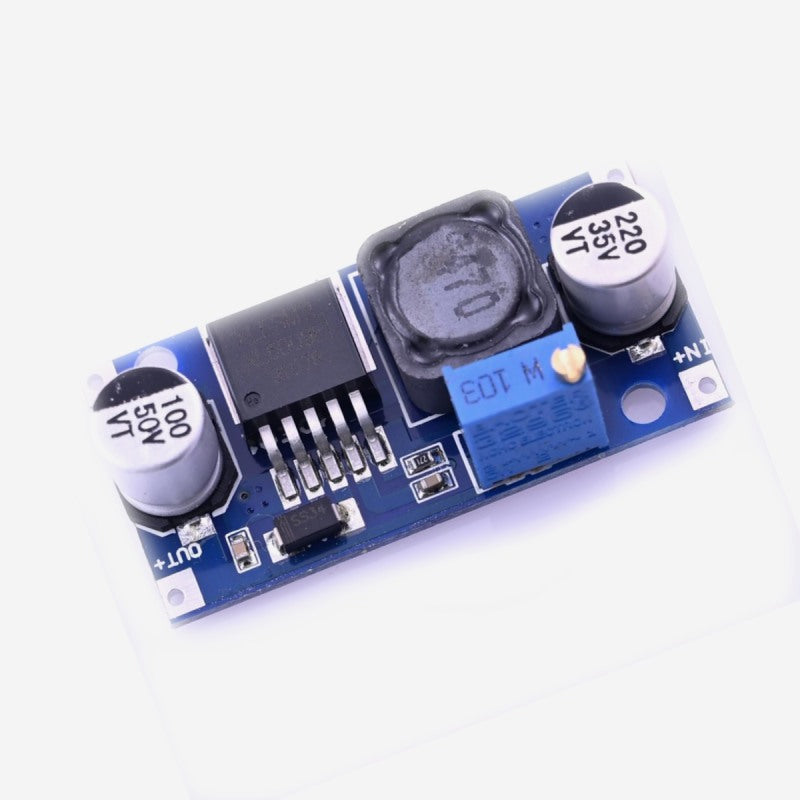

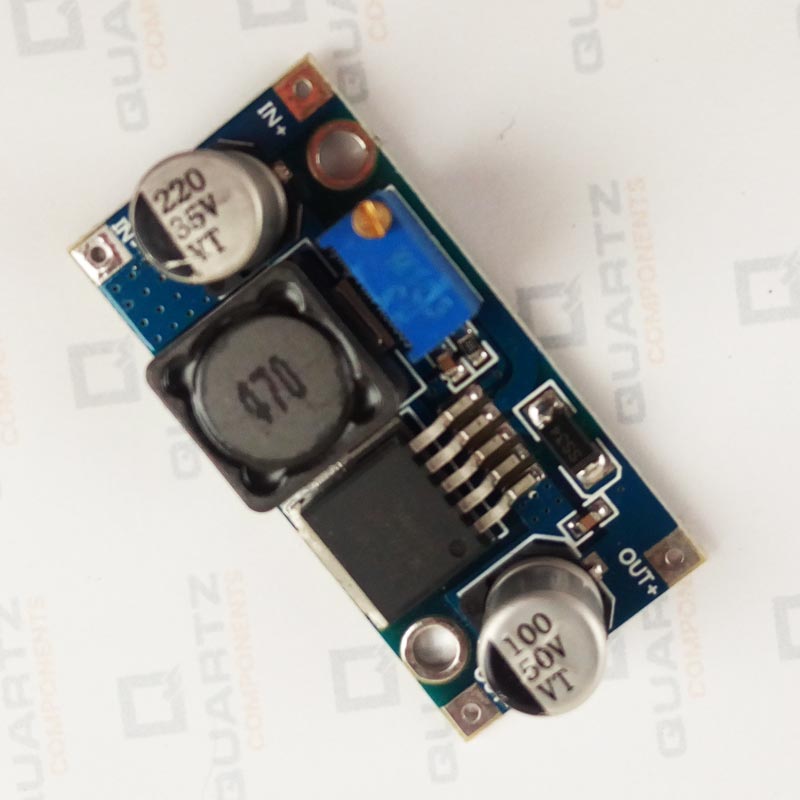

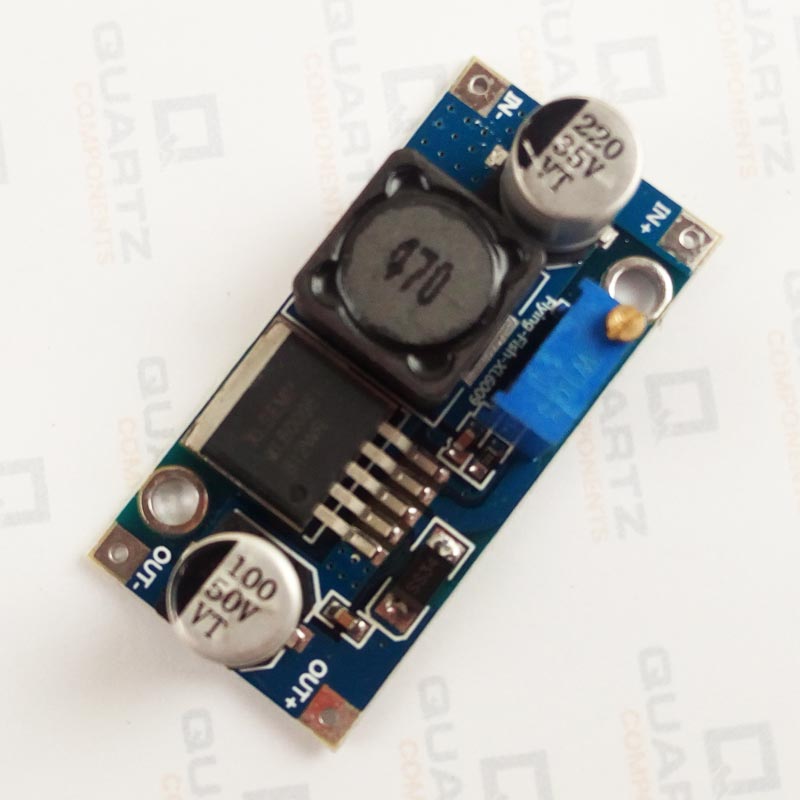

XL6009 DC-DC Boost Power Supply Module XL6009 DC-DC Boost Power Supply Module

QC0471

2 In stock

Rs. 144.00
-
+
Rs. 144.00
(inc. GST)

Voltage levels in AC can be changed much easier than in case of DC and with much more efficiency, it was one of the deciding factors in war of Currents between Edison and Tesla. But, with this XL6009 DC-DC Boost Converter is capable of driving a load current of upto 3A with excellent load and line regulation. This module operates at the frequency of 400kHz so the filter components are comparatively smaller compared to the other low frequency switching regulators. It can provide efficiency up to 92% which is very good for a switching regulator and its small size allows it to be used in portable electronics. It can be used in Battery charging circuits, Low power motor speed control circuits, Automotive applications etc.

XL6009 DC-DC Boost Power Supply Module Specifications

  • Input voltage: 3 - 32V
  • Output voltage: 5 - 35V (adjustable)
  • Output current: Maximum output current 3A
  • Efficiency of this regulator upto <92%
  • Load regulation: 0.5%
  • Voltage regulation: 0.5%
  • Adjustable potentiometer onboard for output voltage adjustment

Product Description

XL6009 DC DC Boost Power Module

To incorporate this module in your system you need to connect the input DC wires to respective input terminals on the board and take the output from the Output terminals. If you need to change the output voltage, you can do that by using the variable resistor knob given on the board.

Package Contents

1× XL6009 DC-DC Booster Power supply module

Additional Resources

Datasheet of XL6009 Boost Converter

Buck Boost Regulator using XL6009 Regulator IC
