XL4005 Step Down Power Module XL4005 Step Down Power Module

QC0815

6 In stock

Rs. 119.00
-
+
Rs. 119.00
(inc. GST)
[Delivery: 2 to 5 days]



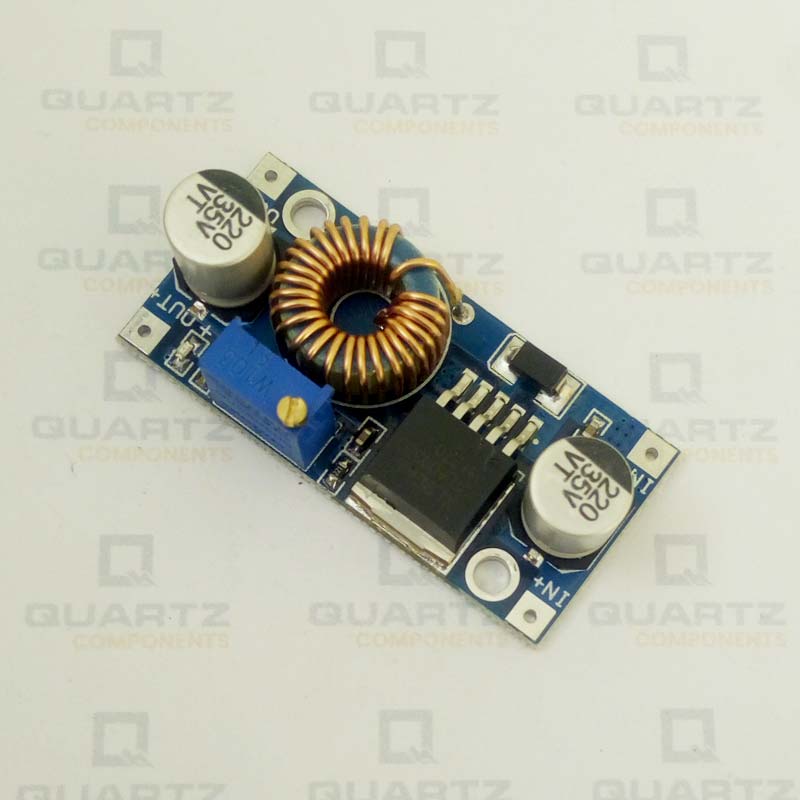

The XL4005 Power supply module is based on the XL4005 Dc-Dc converter IC. The module can step-down and regulate a voltage from 0.8V to 32V based on the position of the potentiometer. The Potentiometer used here is a 25-turn potentiometer that provides easy adjustment of the output of the module to exactly the voltage application needs. The maximum output current can go as high as 5A making it suitable to power heavy loads like CNC machines, Robotic Arms or even to charge batteries.

It works with fixed 300 kHz frequency and uses a PWM buck feature where the maximum duty cycle is 100%. It has excellent low ripple and regulation features. A built-in current limit feature along with the thermal shutdown is also available in this module. In-Built output short protection circuits are also useful for safety. It does not include any Input reverse polarity protection, although high current diodes in series can be useful in such cases. It is high frequency module with 5V-32V input voltage.





Pin Description

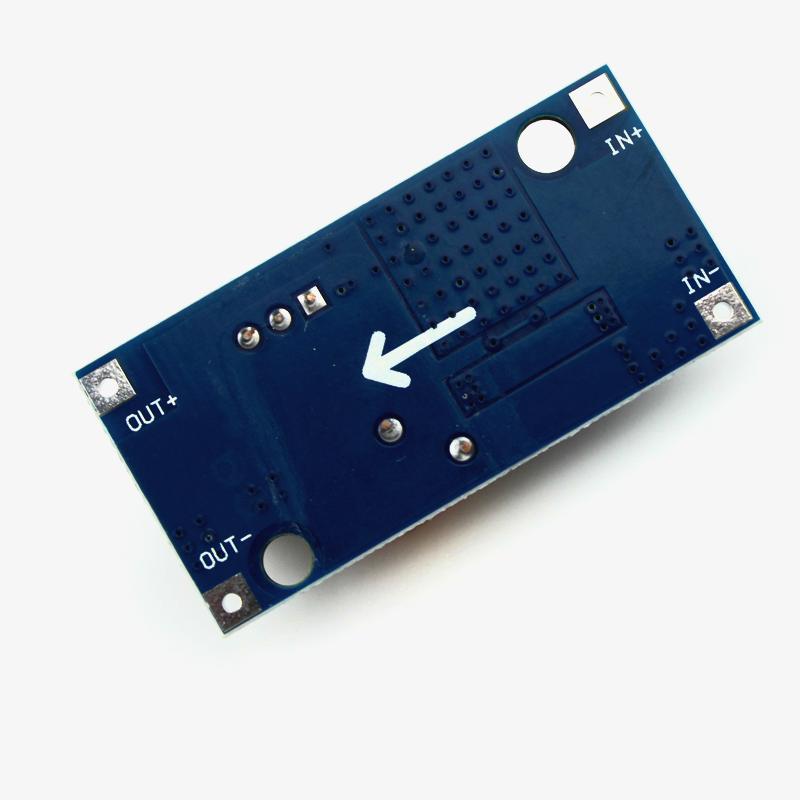

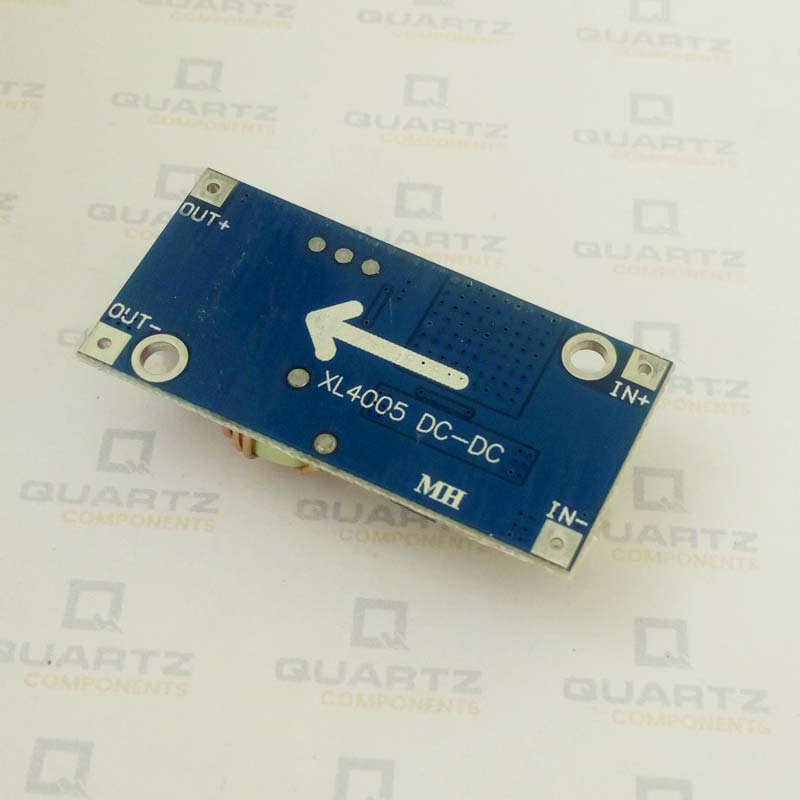

The below image is the overview of the XL4005 5A Module pin diagram.

XL6005



XL4005 5A Module Specifications:

  • Input voltage range: 5V-32V DC
  • Output voltage range: 0.8V-30V DC adjustable.
  • Output current: 0-5A.
  • Dropout Voltage: 0.6V minimum.
  • High efficiency
  • The built-in thermal shutdown function
  • Built-in current limit function
  • In-Built output short protection function





Dimension

XL4005-Dimension

XL4005 5A Module Applications:

  • Hobby Projects
  • Battery Charging
  • Audio grade power supply unit
  • PSU (Buck-Converter) for applications required up to 5A of current.



Additional Resources:

XL4005 Datasheet

Package Contains

1x XL4005 5A Power Supply Module



The XL4005 Power supply module is based on the XL4005 Dc-Dc converter IC. The module can step-down and regulate a voltage from 0.8V to 32V based on the position of the potentiometer. The Potentiometer used here is a 25-turn potentiometer that provides easy adjustment of the output of the module to exactly the voltage application needs. The maximum output current can go as high as 5A making it suitable to power heavy loads like CNC machines, Robotic Arms or even to charge batteries.

It works with fixed 300 kHz frequency and uses a PWM buck feature where the maximum duty cycle is 100%. It has excellent low ripple and regulation features. A built-in current limit feature along with the thermal shutdown is also available in this module. In-Built output short protection circuits are also useful for safety. It does not include any Input reverse polarity protection, although high current diodes in series can be useful in such cases. It is high frequency module with 5V-32V input voltage.





Pin Description

The below image is the overview of the XL4005 5A Module pin diagram.

XL6005



XL4005 5A Module Specifications:

  • Input voltage range: 5V-32V DC
  • Output voltage range: 0.8V-30V DC adjustable.
  • Output current: 0-5A.
  • Dropout Voltage: 0.6V minimum.
  • High efficiency
  • The built-in thermal shutdown function
  • Built-in current limit function
  • In-Built output short protection function





Dimension

XL4005-Dimension

XL4005 5A Module Applications:

  • Hobby Projects
  • Battery Charging
  • Audio grade power supply unit
  • PSU (Buck-Converter) for applications required up to 5A of current.



Additional Resources:

XL4005 Datasheet

Package Contains

1x XL4005 5A Power Supply Module
