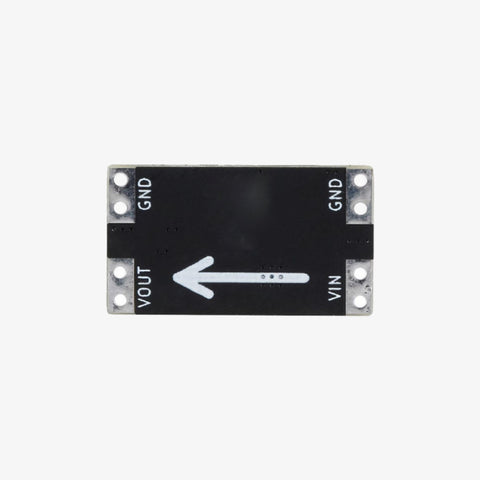

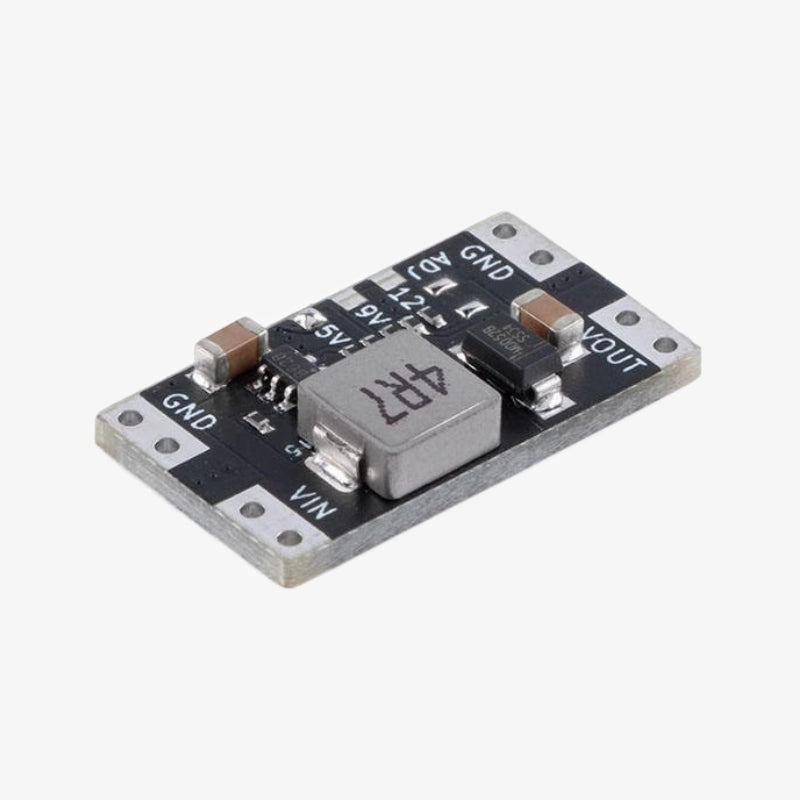

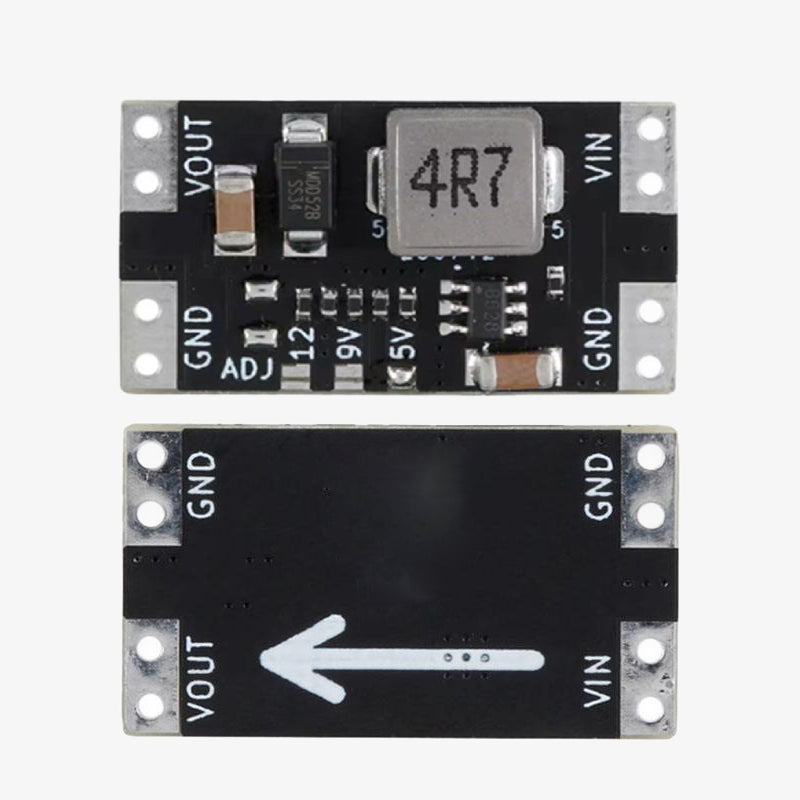

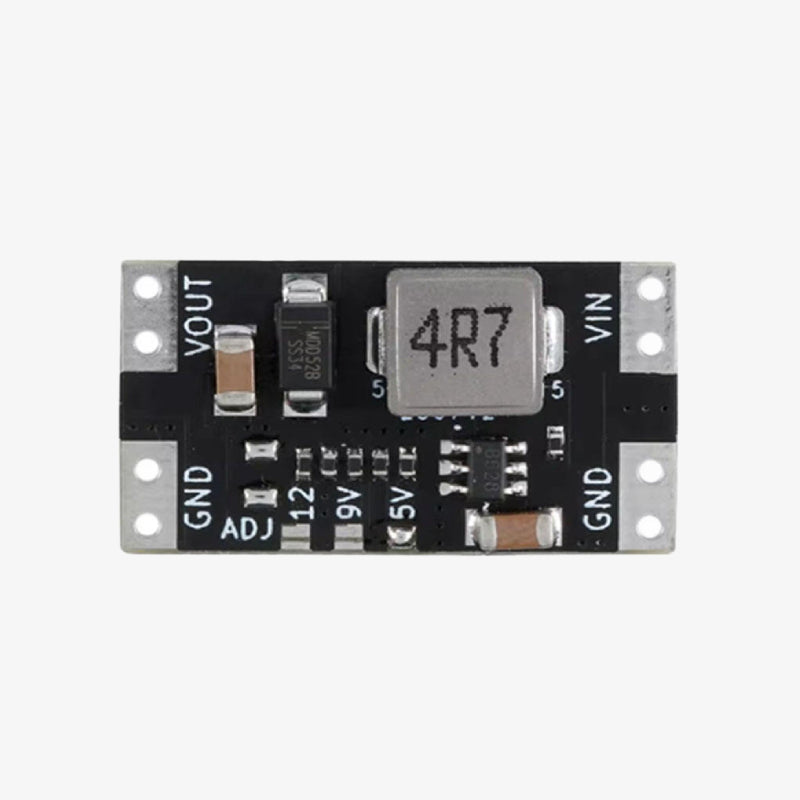

XL3608 Mini Boost Board DC-DC 5V Step-Up Power Module (5V/9V/12V 2A)

The XL3608 Mini Boost Board is a compact and efficient DC-DC step-up converter module designed to increase lower DC input voltages to stable higher output levels. Built around the XL3608 high-efficiency switching regulator, this module supports adjustable output voltage up to 28V with a maximum output current of 2A. Its small footprint and high efficiency make it ideal for battery-powered systems, DIY electronics, portable devices, and power supply projects requiring a stable boost function.

Features:

1. High-efficiency XL3608 boost converter IC
2. Adjustable DC-DC step-up functionality (output up to 28V)
3. Supports common outputs like 5V, 9V, 12V, 15V, and more
4. Compact mini module suitable for embedded and portable applications
5. Overcurrent and thermal protection built-in
6. High switching frequency for reduced ripple and stable output
7. Ideal for battery-powered circuits and voltage boosting solutions

Specifications:

• Module Type: DC-DC Step-Up (Boost) Converter
• Chipset: XL3608
• Input Voltage Range: 3.5V – 28V
• Output Voltage Range: Adjustable, 5V – 28V
• Output Current: Up to 2A (peak), 1.2A (stable continuous)
• Efficiency: Up to 94% (depending on input/output configuration)
• Switching Frequency: 1.2 MHz
• Ripple: Low, depending on load and input quality
• Protection Features: Overcurrent, thermal shutdown
• Operating Temperature: –40°C to +85°C
• Dimensions: Mini compact board (varies slightly by batch)
• Applications: Battery boost circuits, portable electronics, DIY projects, sensors, embedded systems

Package Includes:

1 × XL3608 Mini Boost Board DC-DC Step-Up Power Module (5V/9V/12V 2A)
