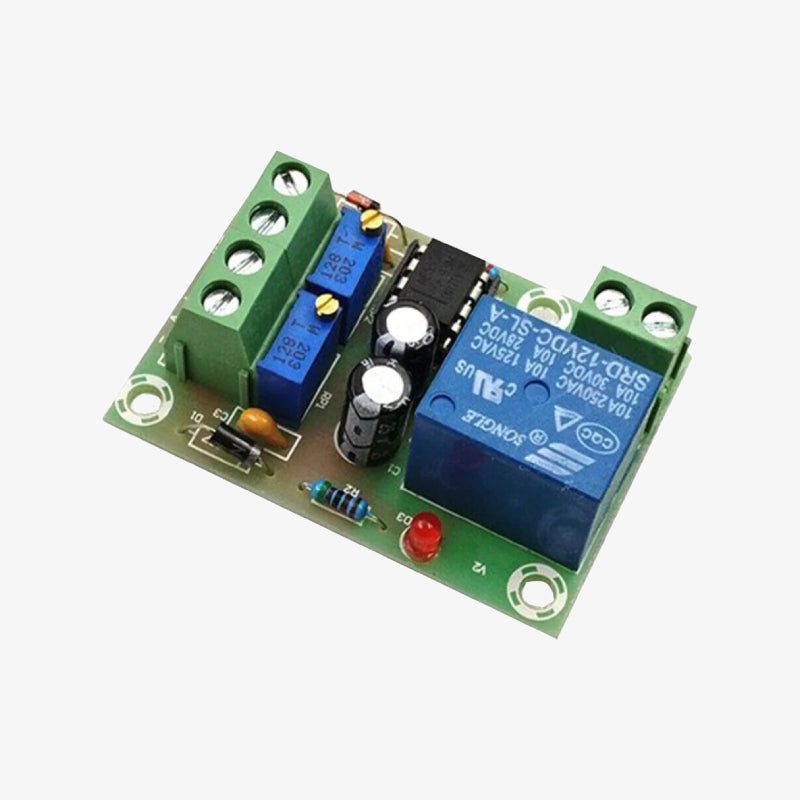

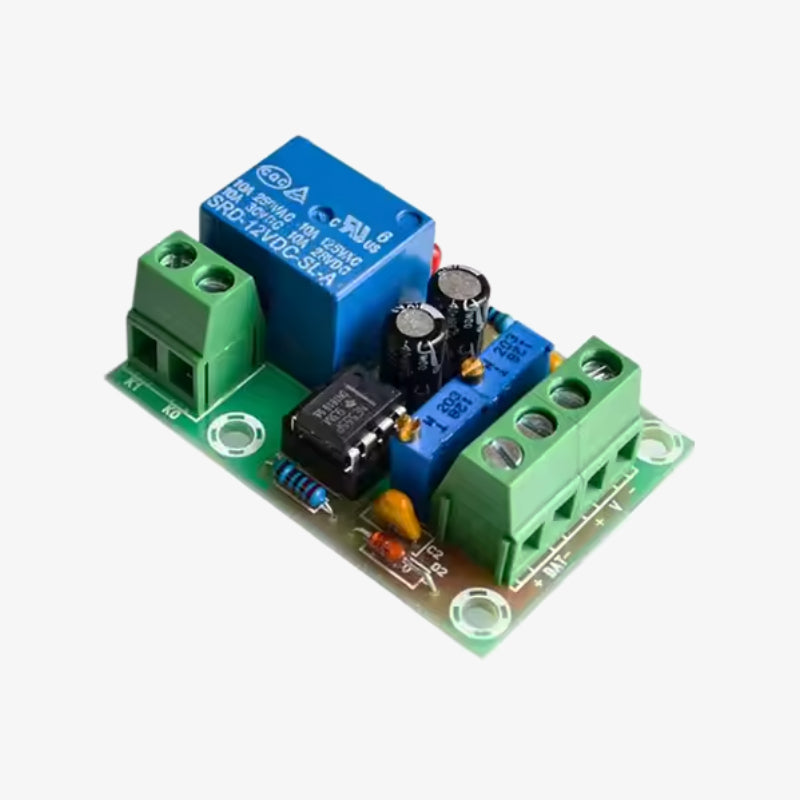

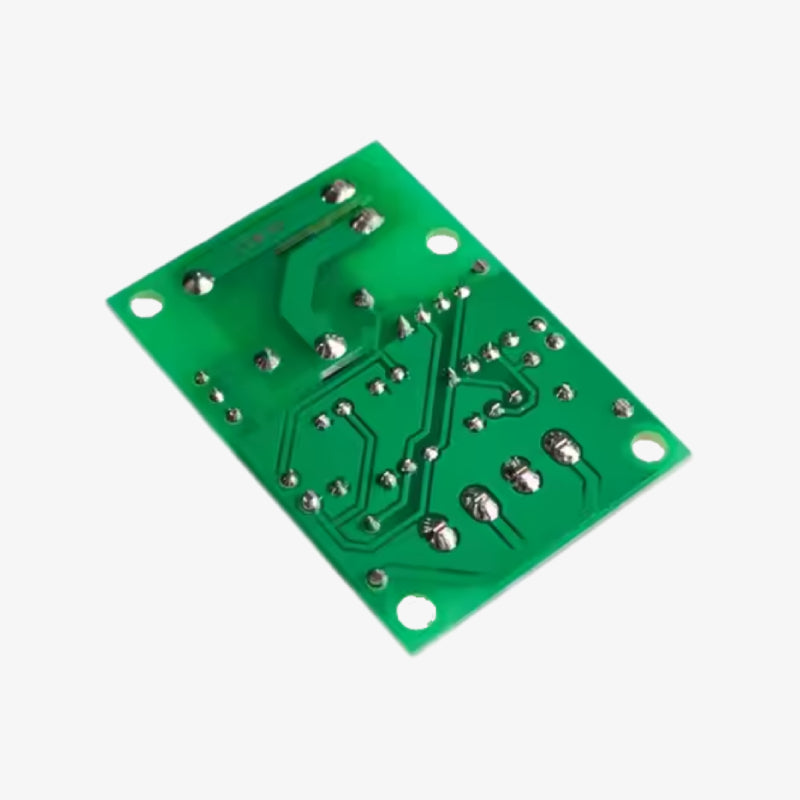

XH-M601 12V Intelligent Battery Charging Control Board

The XH-M601 is an intelligent charging control board designed for 12V storage batteries. With built-in adjustable potentiometers and precise voltage control, this module ensures safe and efficient charging while extending battery life. It automatically starts and stops charging based on user-defined voltage thresholds, making it ideal for lead-acid and lithium batteries in solar systems, backup power systems, and more.

XH-M601 12V Intelligent Battery Charging Control Board Features:

• Automatic Charging Control: Starts and stops charging automatically when voltage thresholds are reached.
• Adjustable Voltage Settings: Two potentiometers (RP1 and RP2) allow customization of the charging and disconnect voltages.
• Overcharge Protection: Prevents damage to batteries by stopping charging at the set upper voltage limit.
• LED Indicators: Displays charging and power status at a glance.
• High Current Handling: Supports up to 10A for various battery capacities.
• Compact Design: Small and robust board for easy integration into systems.

XH-M601 12V Intelligent Battery Charging Board Specifications:

• Input Voltage: 13.8–14.8V DC
• Battery Compatibility: 12V Lead-Acid and Lithium Batteries
• Relay Operating Voltage: 12.4V
• Relay Disconnect Voltage: 14.8V
• Voltage Tolerance: ±0.1V
• Adjustable Potentiometers:
  • RP1: Adjusts the battery start charging voltage (low voltage setting; clockwise increases, counter-clockwise decreases).
  • RP2: Adjusts the battery disconnect charging voltage (high voltage setting; clockwise increases, counter-clockwise decreases).
• Charging Type: 12V Storage Battery
• Max Current Capacity: 10A

Package Includes:

1 x XH-M601 12V Intelligent Battery Charging Control Board
