XH-M404 XL4016 DC-DC Converter With Display XH-M404 XL4016 DC-DC Converter With Display

QC0816

21 In stock

Rs. 296.00
(Excluding 18% GST)
-
+
[Delivery: 2 to 5 days]

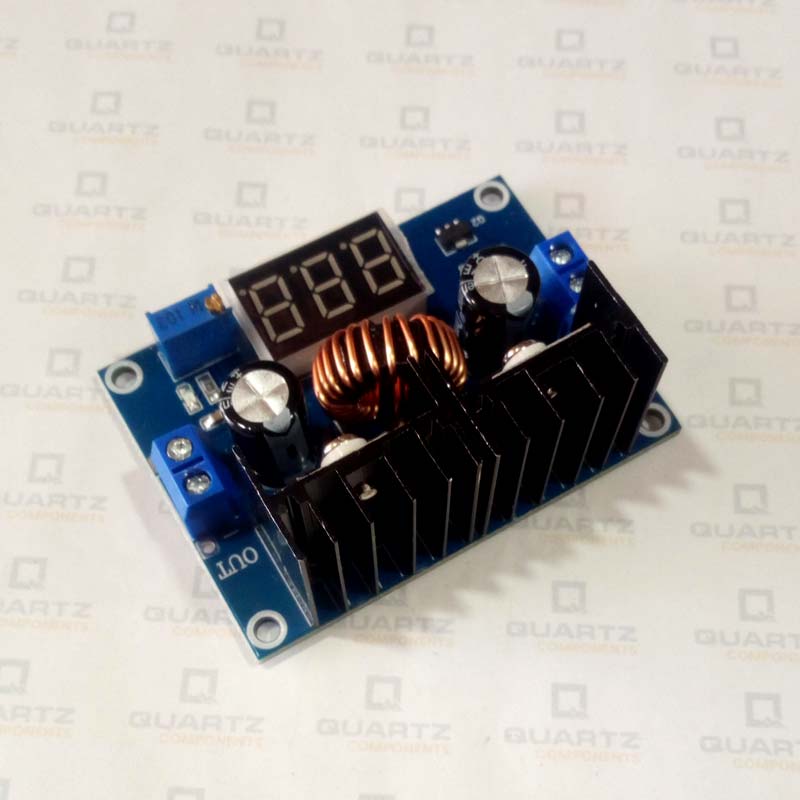

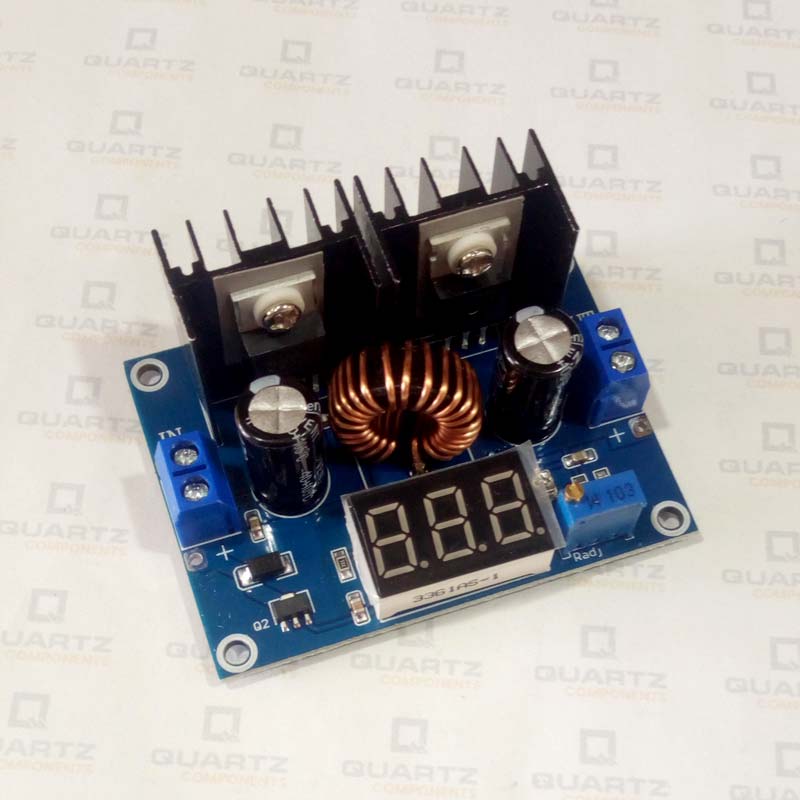

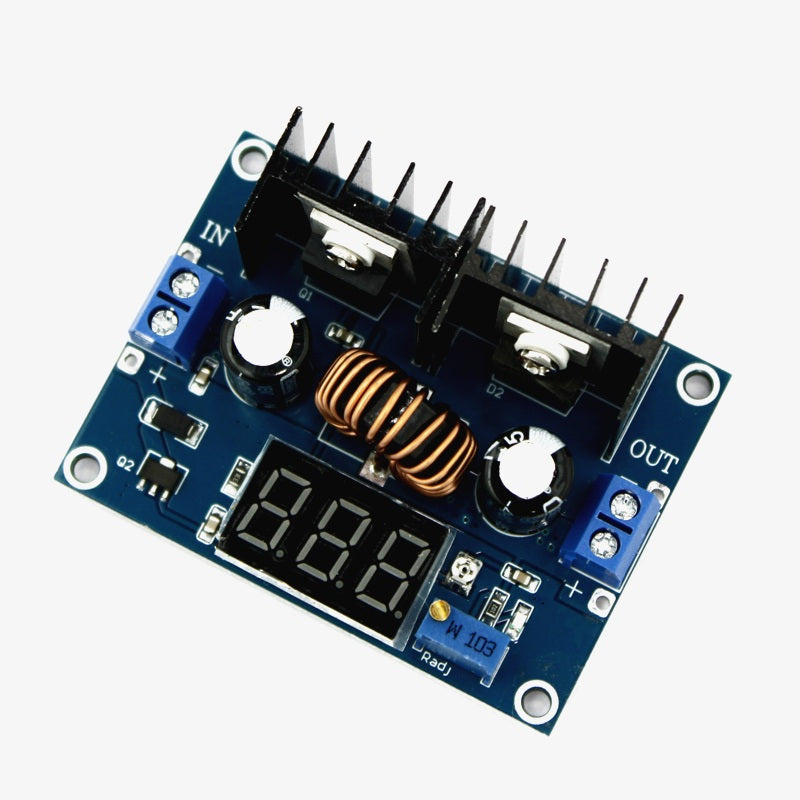

The XL4016 with Display Power supply module is based on the XL4016 Dc-Dc buck converter IC. The module can step-down and regulate a voltage from 1.25V to 36V based on the position of the potentiometer. It has a 7-segment display to get the information of output voltage. The maximum output current can go as high as 8A maximum when used in open air or with Fan. It is suitable to power heavy loads upto maximum of 200W.

It works with fixed 180 kHz frequency and the efficiency is quite high as 94% in normal operations below 5A of Output current. It has a built-in current limit feature along with the thermal shutdown is also available in this module. In-Built output short protection circuits are also useful for safety. It is high frequency module with 4V-40V input voltage





Pin Description

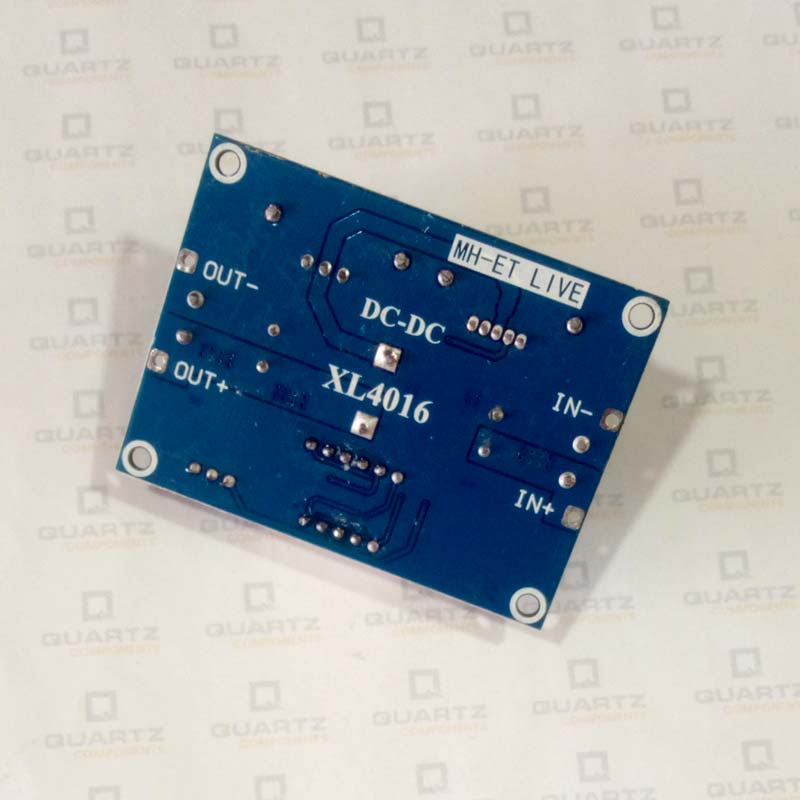

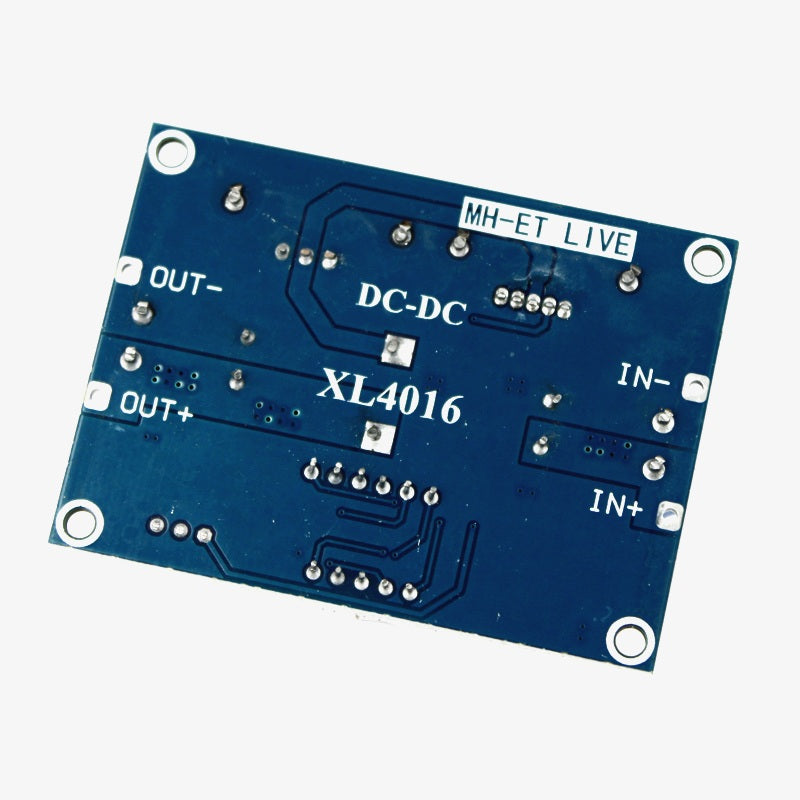

The below image is the overview of the XL4016 with Display 8A Module pin diagram.

XL4016



XL4016 with Display 8A Module Specifications:

  • Input voltage range: 4V-40V DC
  • Output voltage range: 1.25V-36V DC adjustable.
  • Output current: 0-8A.
  • Output Power: 200W
  • High efficiency upto 94%
  • The built-in thermal shutdown function
  • Built-in current limit function
  • In-Built output short protection function


Dimension

XL4016-Dimension

XL4016 with Display 8A Module Applications:

  • Hobby Projects
  • Battery Charging
  • Audio grade power supply unit
  • PSU (Buck-Converter) for applications required up to 8A of current.
  • CNC Machines
  • Single Phase Heavy Motor Driving


Additional Resources:

XL4016 Datasheet

Package Contains

1x XL4016 with Display 8A Power Supply Module

The XL4016 with Display Power supply module is based on the XL4016 Dc-Dc buck converter IC. The module can step-down and regulate a voltage from 1.25V to 36V based on the position of the potentiometer. It has a 7-segment display to get the information of output voltage. The maximum output current can go as high as 8A maximum when used in open air or with Fan. It is suitable to power heavy loads upto maximum of 200W.

It works with fixed 180 kHz frequency and the efficiency is quite high as 94% in normal operations below 5A of Output current. It has a built-in current limit feature along with the thermal shutdown is also available in this module. In-Built output short protection circuits are also useful for safety. It is high frequency module with 4V-40V input voltage





Pin Description

The below image is the overview of the XL4016 with Display 8A Module pin diagram.

XL4016



XL4016 with Display 8A Module Specifications:

  • Input voltage range: 4V-40V DC
  • Output voltage range: 1.25V-36V DC adjustable.
  • Output current: 0-8A.
  • Output Power: 200W
  • High efficiency upto 94%
  • The built-in thermal shutdown function
  • Built-in current limit function
  • In-Built output short protection function


Dimension

XL4016-Dimension

XL4016 with Display 8A Module Applications:

  • Hobby Projects
  • Battery Charging
  • Audio grade power supply unit
  • PSU (Buck-Converter) for applications required up to 8A of current.
  • CNC Machines
  • Single Phase Heavy Motor Driving


Additional Resources:

XL4016 Datasheet

Package Contains

1x XL4016 with Display 8A Power Supply Module
